BetaFPV C04 Camera and VTX Module With M04 5.8G 25-400mW VTX Module 160° FOV, 1/3" CMOS 1200TVL, for Cetus X Betaflight FC Version FPV Drone

Description:

The modular C04 Camera and VTX Module for the Cetus X quadcopter offer easy installation and usage. Simply plug and play. With its lightweight 4.14g design and 1200TVL resolution, this camera delivers outstanding performance for micro FPV quadcopters. It provides a wide 160° field of view and utilizes a 1/3'' CMOS sensor for crisp and vibrant images. By purchasing and replacing it on your Cetus X quadcopter, pilots can secure emergency backup and minimize downtime.

Specifications:

• Item: C04 Camera and VTX Module(M04 VTX/Cetus VTX V2)
• Camera: C04 FPV Micro Camera
• Image Sensor: 1/3" CMOS Sensor
• Horizontal Resolution: 1200TVL
• FOV: 160°
• Video System: NTSC (4:3)
• Output power: 25-400mW(M04 VTX)/ 25-350mW(Cetus VTX V2)
• Supply Voltage: 5V

• Frequency: 5 bands 40 channels with Raceband(M04 VTX)，1 band 8 channels(B band)(Cetus VTX V2)

Features:

• The modular design allows for easy installation and use without the need for professional soldering skills. Simply plug and play directly.
• The max output power is up to 350~400mW, so pilots can fly longer, and farther explore more possibilities, and have fun.

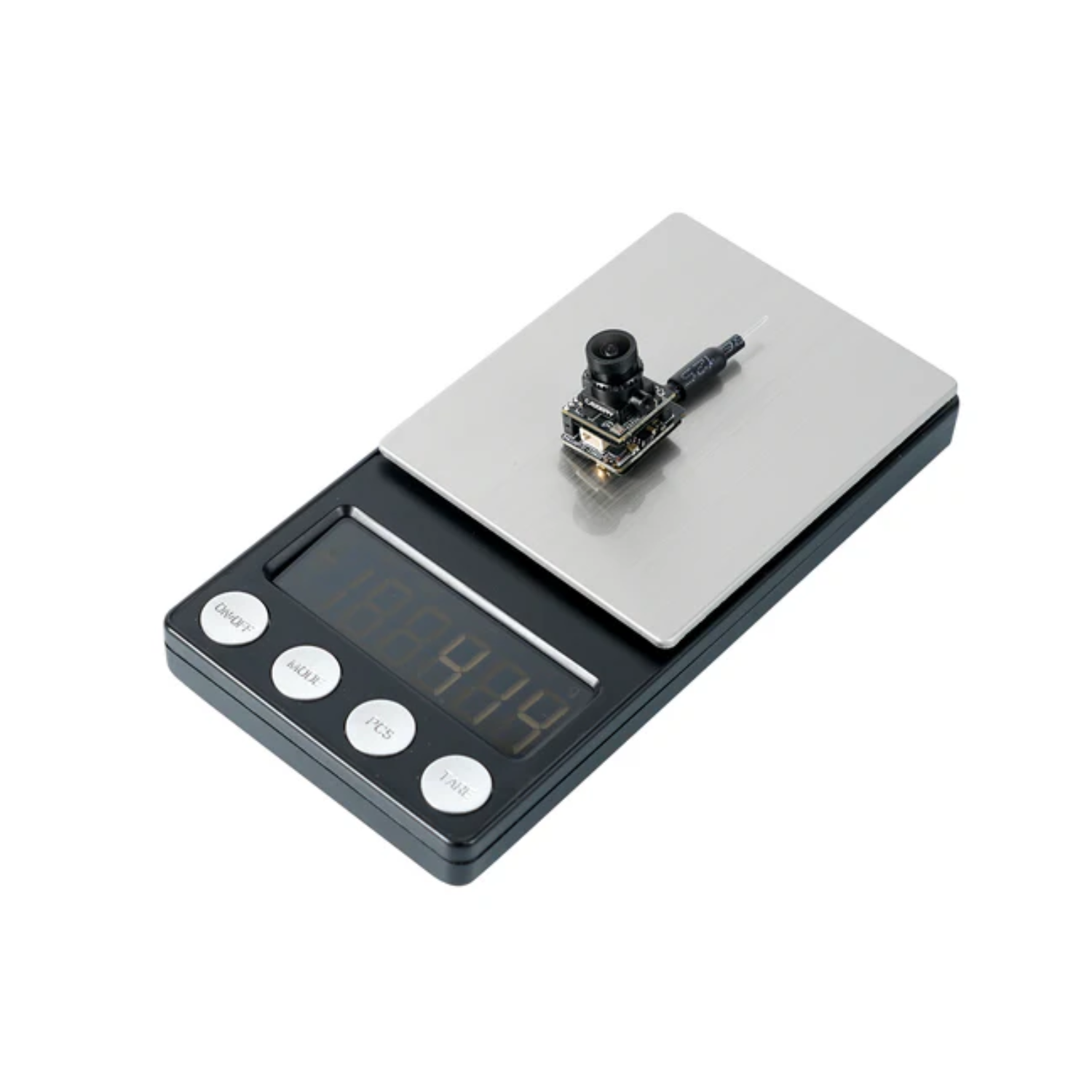

• Miniature and lightweight design, weighing only 4.14g with antenna and adjustable output power for longer-distance flying.
• 1200TVL resolution and 1/3" CMOS sensor ensure good quality and a clear image.
• With a wider 160° FOV, it can record wide and beautiful scenes.
• If you have the Betaflight Version flight controller for your Cetus X quadcopter, please select the M04 Version C04 Camera and VTX Module. Otherwise, choose the Cetus V2 Version.

Package Included:

1  x C04 Camera and VTX Module
