Benewake

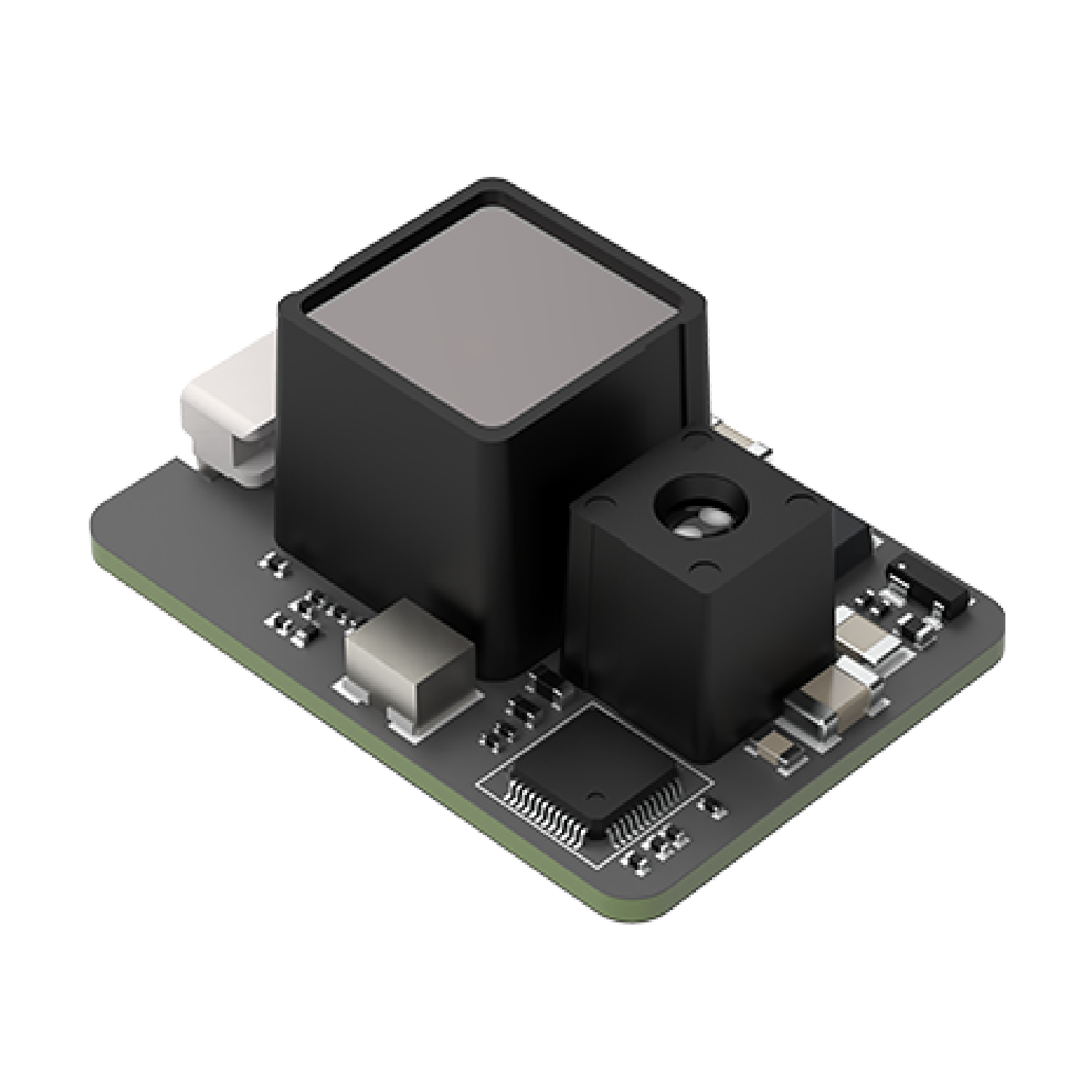

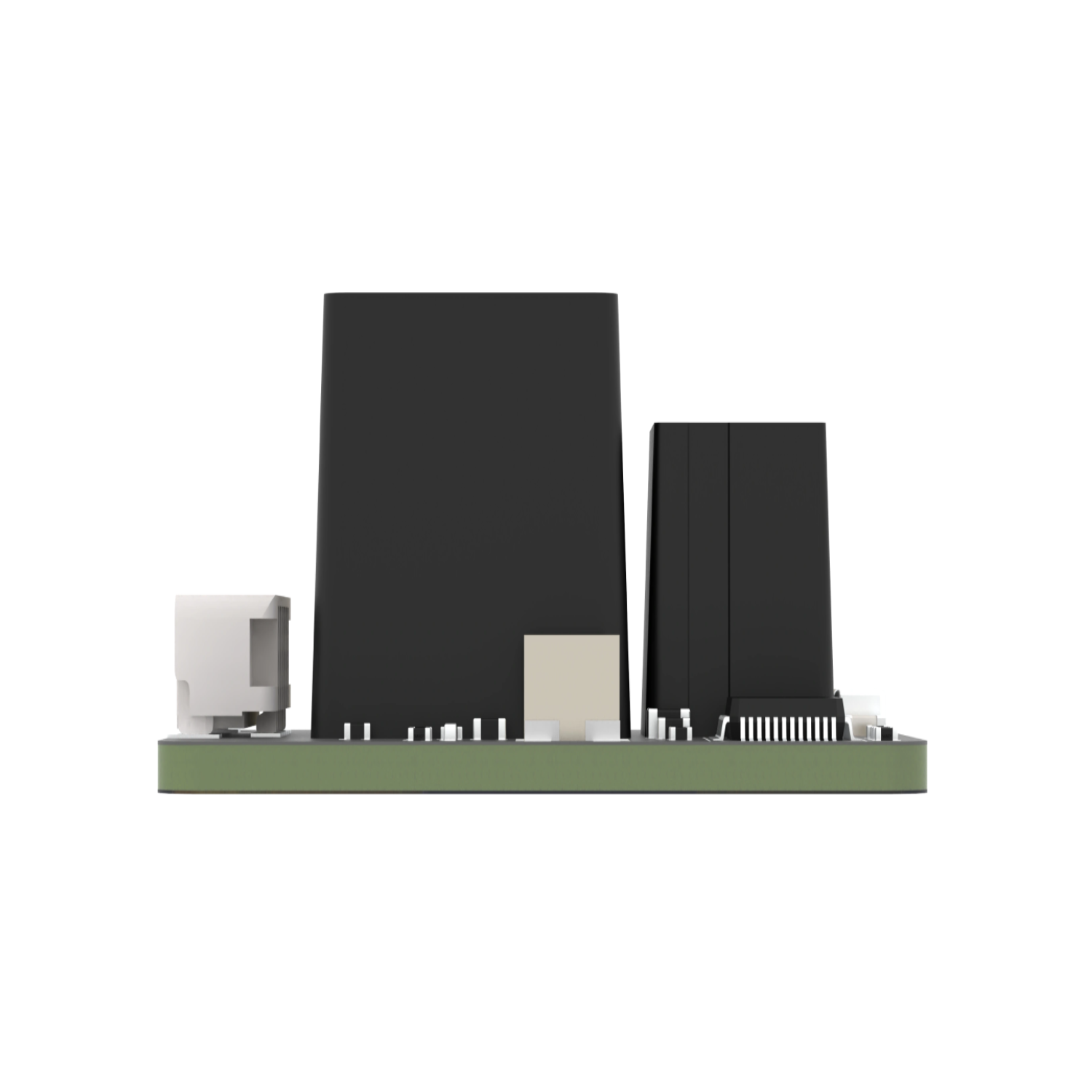

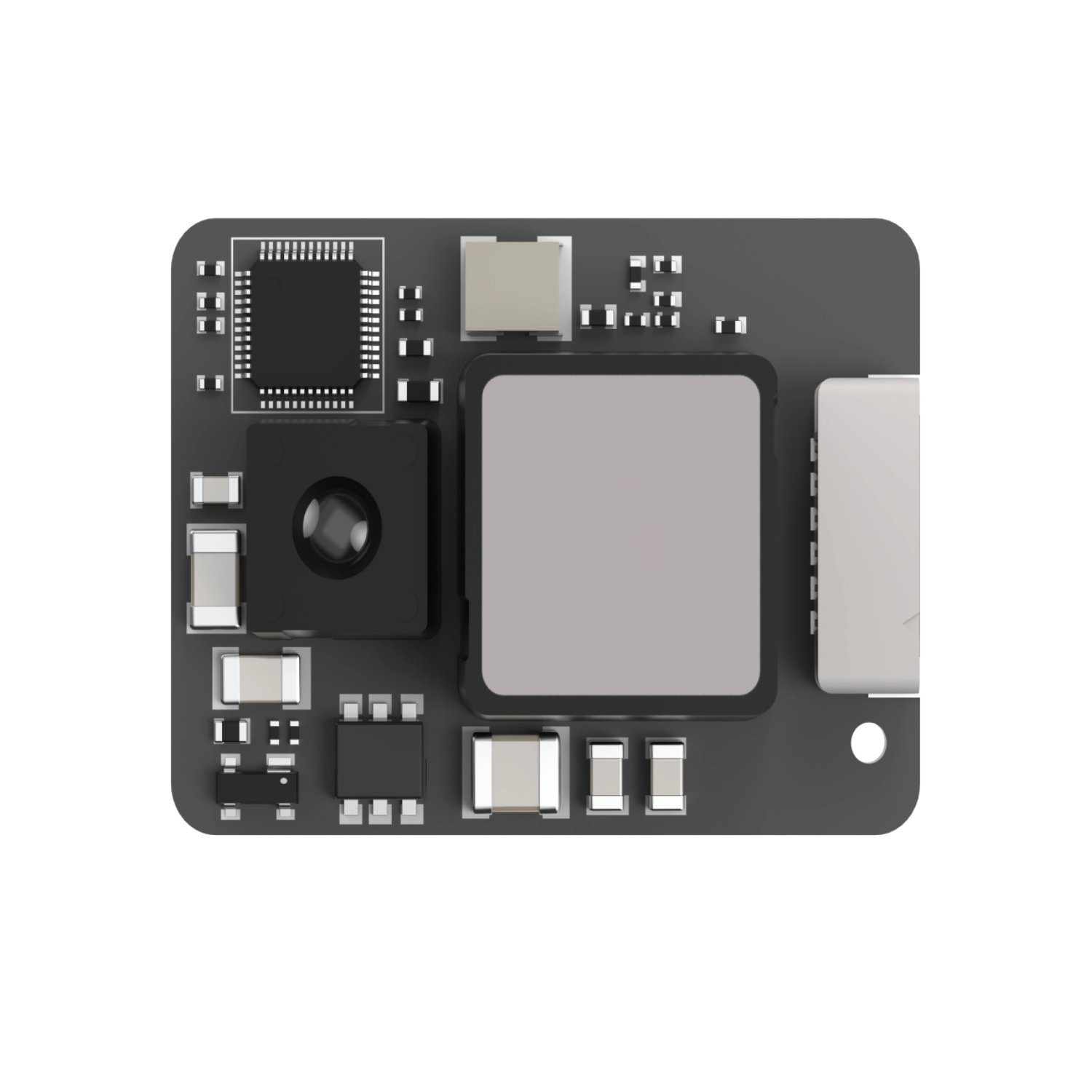

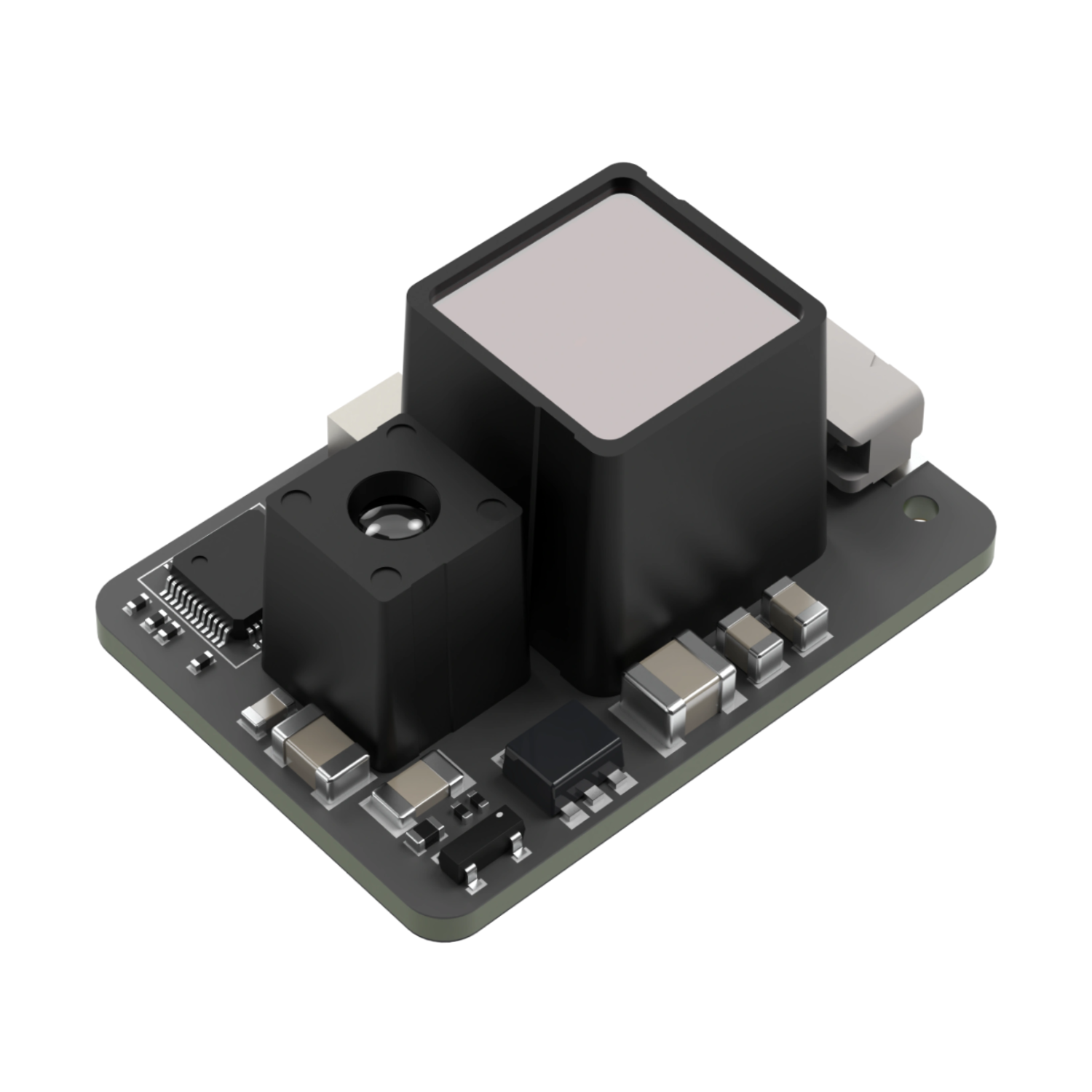

Benewake TFS20-L Mini LiDAR Sensor 0.2–20m Range For UAV, Robotics & Automation

Benewake TFS20-L Mini LiDAR Sensor 0.2–20m Range For UAV, Robotics & Automation

In stock

Rs. 5,254.00
Rs. 5,254.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Benewake TFS20-L is a compact and high-performance single-point LiDAR sensor designed for precise short-range distance measurement. Utilizing advanced direct Time-of-Flight (dToF) technology and a high-sensitivity SPAD detector, it delivers fast, stable, and highly accurate distance data in real time.

With a measurement range of 0.2 to 20 meters, the TFS20-L is ideal for applications such as robotics, UAV obstacle avoidance, smart devices, and industrial automation. Its ultra-small form factor and lightweight design make it perfect for space-constrained and weight-sensitive projects.

Engineered for reliability, the sensor provides excellent performance even in challenging environments, ensuring consistent readings with low power consumption. Easy integration with multiple communication interfaces makes it a versatile solution for developers and engineers.

Specifications:

  • Power Supply: DC 3.3±9% V
  • Central wavelength: 905nm
  • Operating Temperature: -20°C ~ +60°C
  • Light Source: VCSEL
  • Frame rate: 0 / 20 / 50 / 100 (default) / 250 Hz
  • Accuracy: ±6 cm (~0.2–6 m) and 1% (≥6 m)

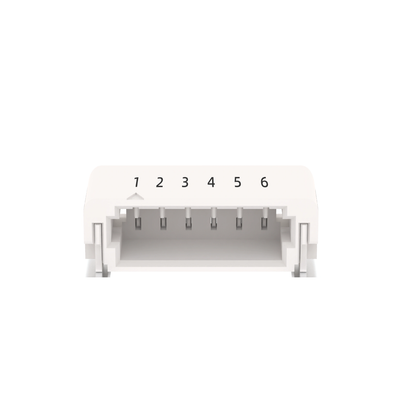

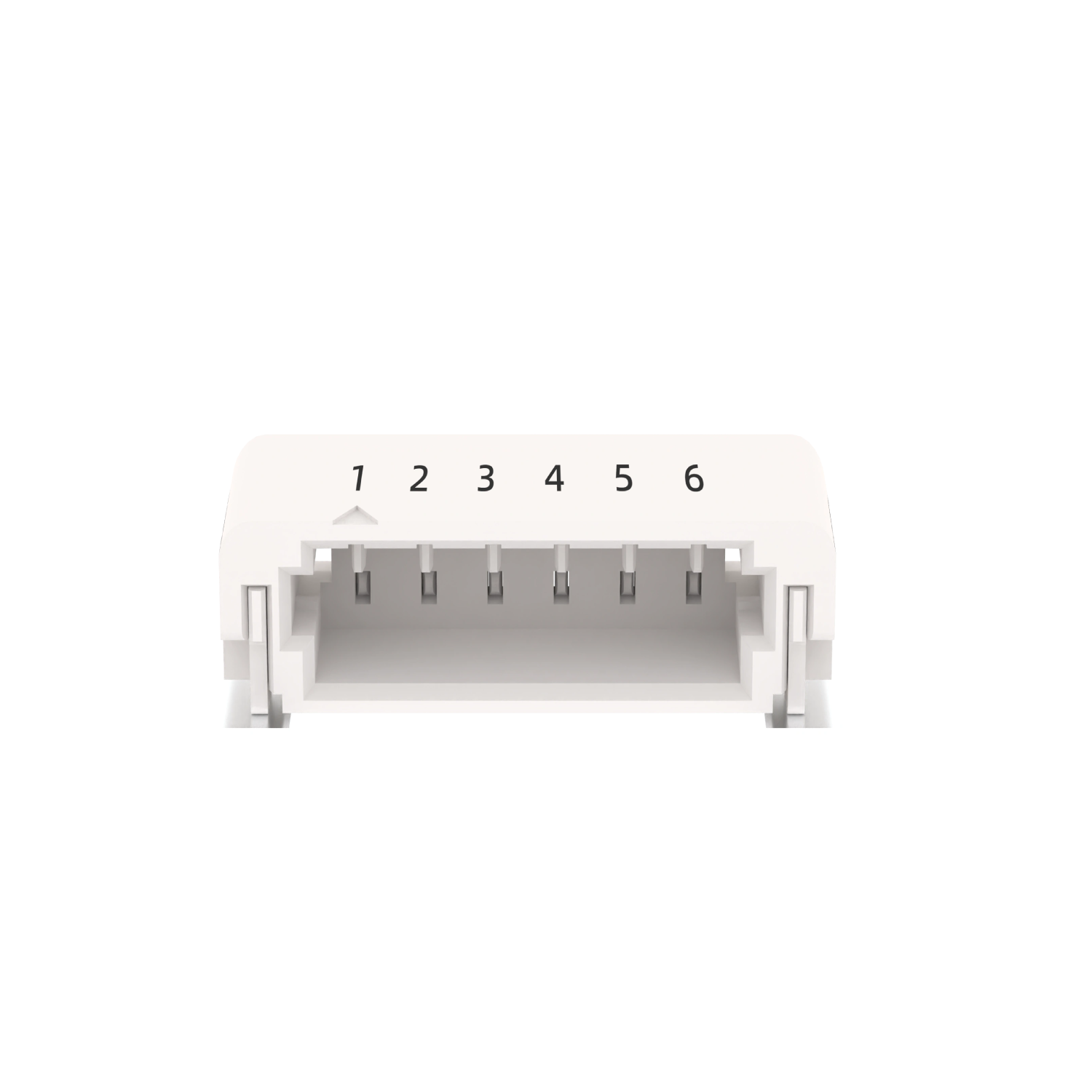

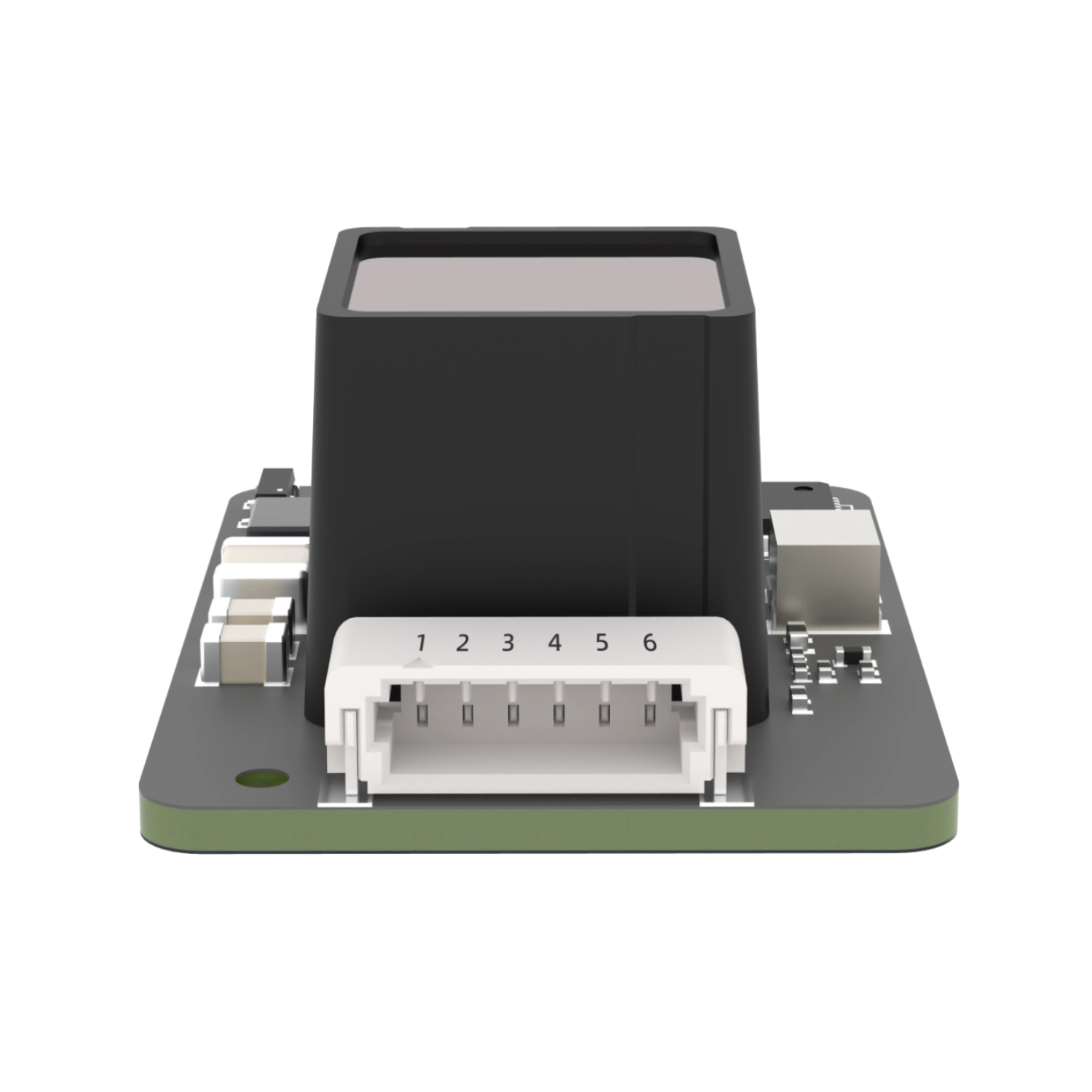

  • Connector: 0.8mm-6P (Model: WF08006-01207)
  • Central wavelength: 905nm

Applications:

  • Robot: Pallet Transport Robot Obstacle Avoidance, Crane Positioning/Obstacle Avoidance, Robot Fall Prevention & Obstacle Avoidance truck oration
  • IoT: Auxiliary Focus, Smart Trigger, Security Warning
  • Level Detection: Level Detection, Volume Detection, Liquid Level Detection, Space & People Flow Detection
  • Smart Parking: Highway Key Area Monitoring, V2X/Holographic Intersection/Traffic Light Control, Meli train collision avoidance System, Smart Civil Aviation

Features:

  • Precise distance measurement with a high-sensitivity SPAD sensor.
  • Compact design for easy integration into drones, robots, and IoT devices.
  • Reliable performance even in bright ambient light.
  • Low-power operation on a 3.3V supply, ideal for portable applications.
  • Supports I²C and UART interfaces for seamless system integration.
  • Wide operating range (0.2~20 m) for versatile use cases.
  • Stable and accurate in diverse environmental conditions.

Package Included:

1 x Benewake TFS20-L Mini LiDAR Sensor (0.2–20 m Range)
