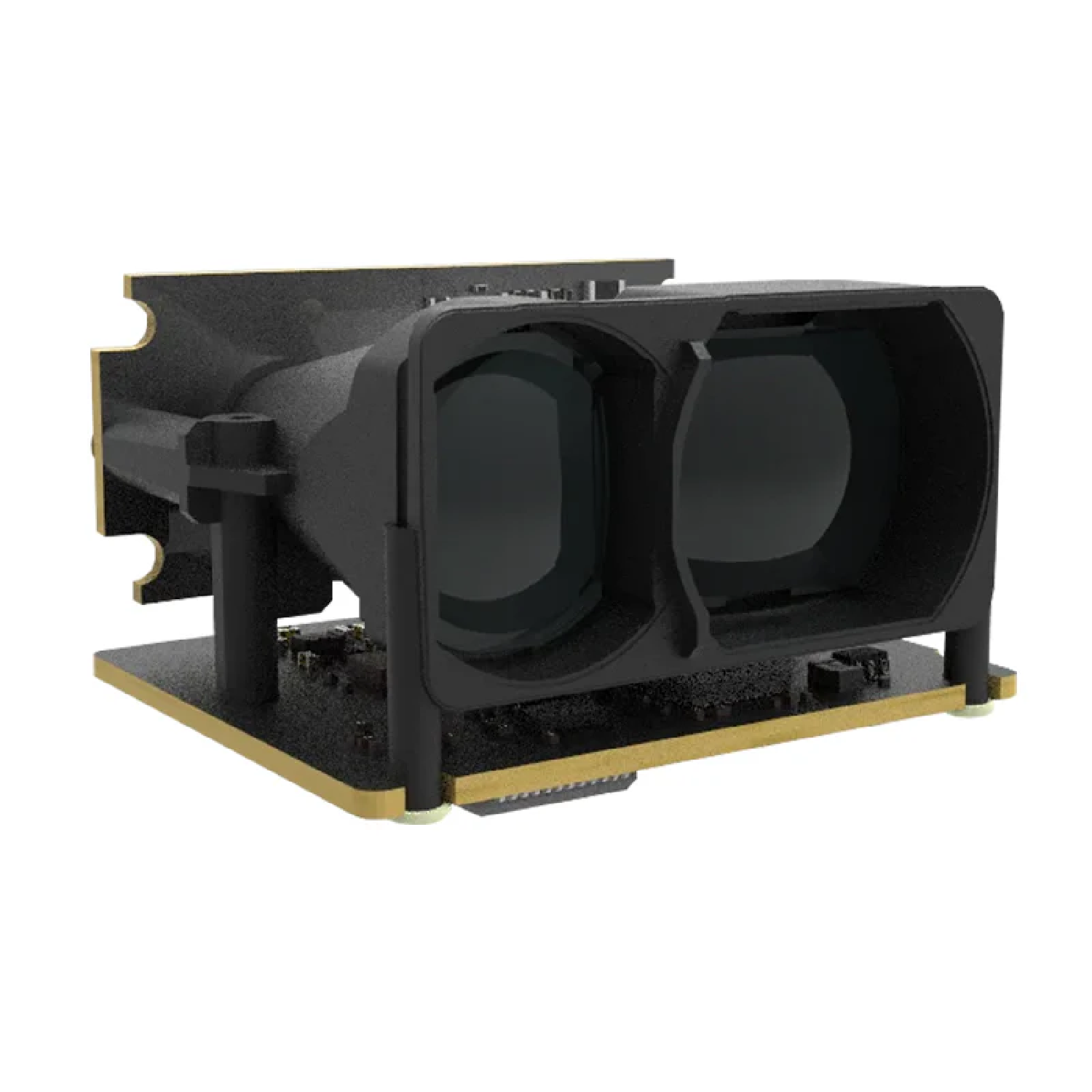

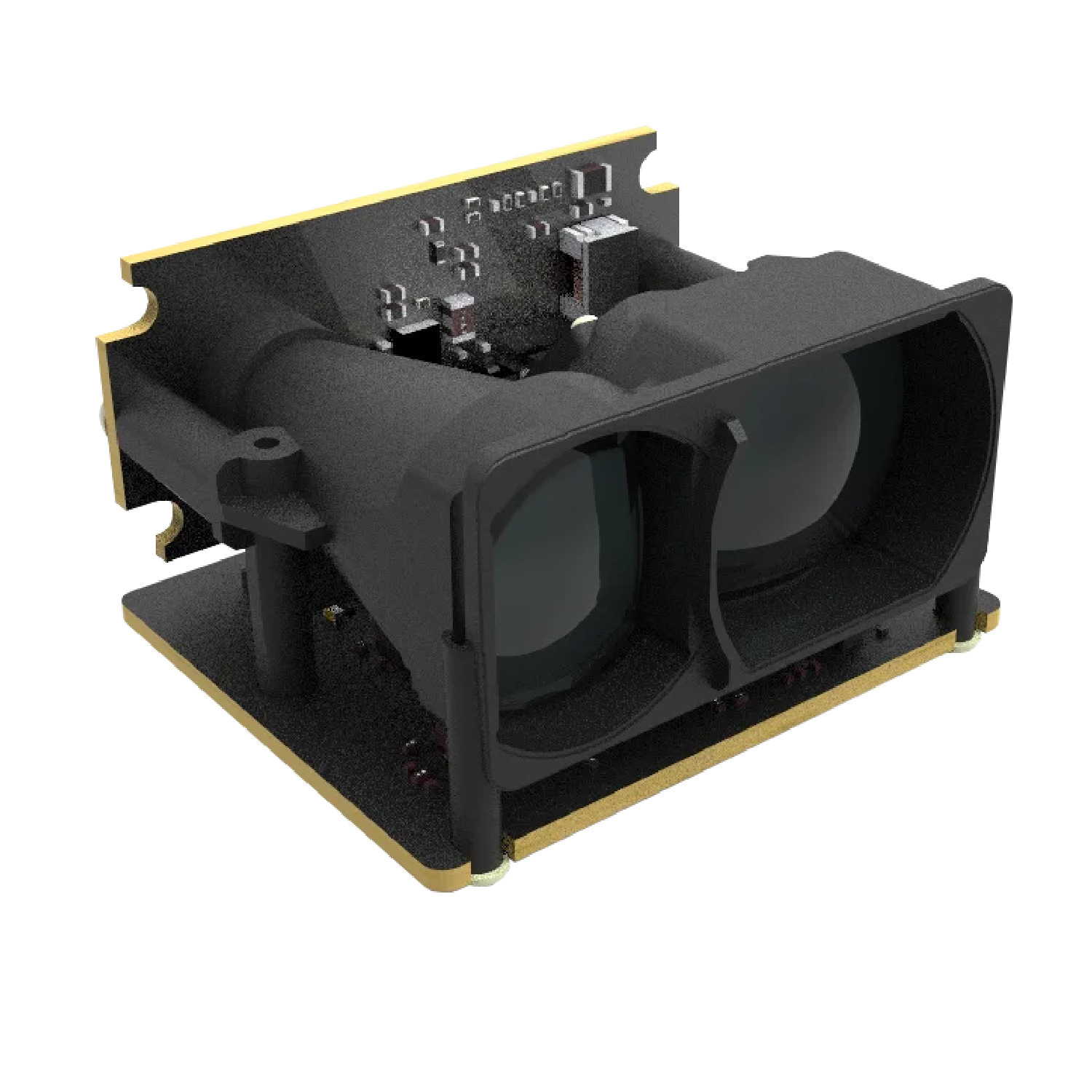

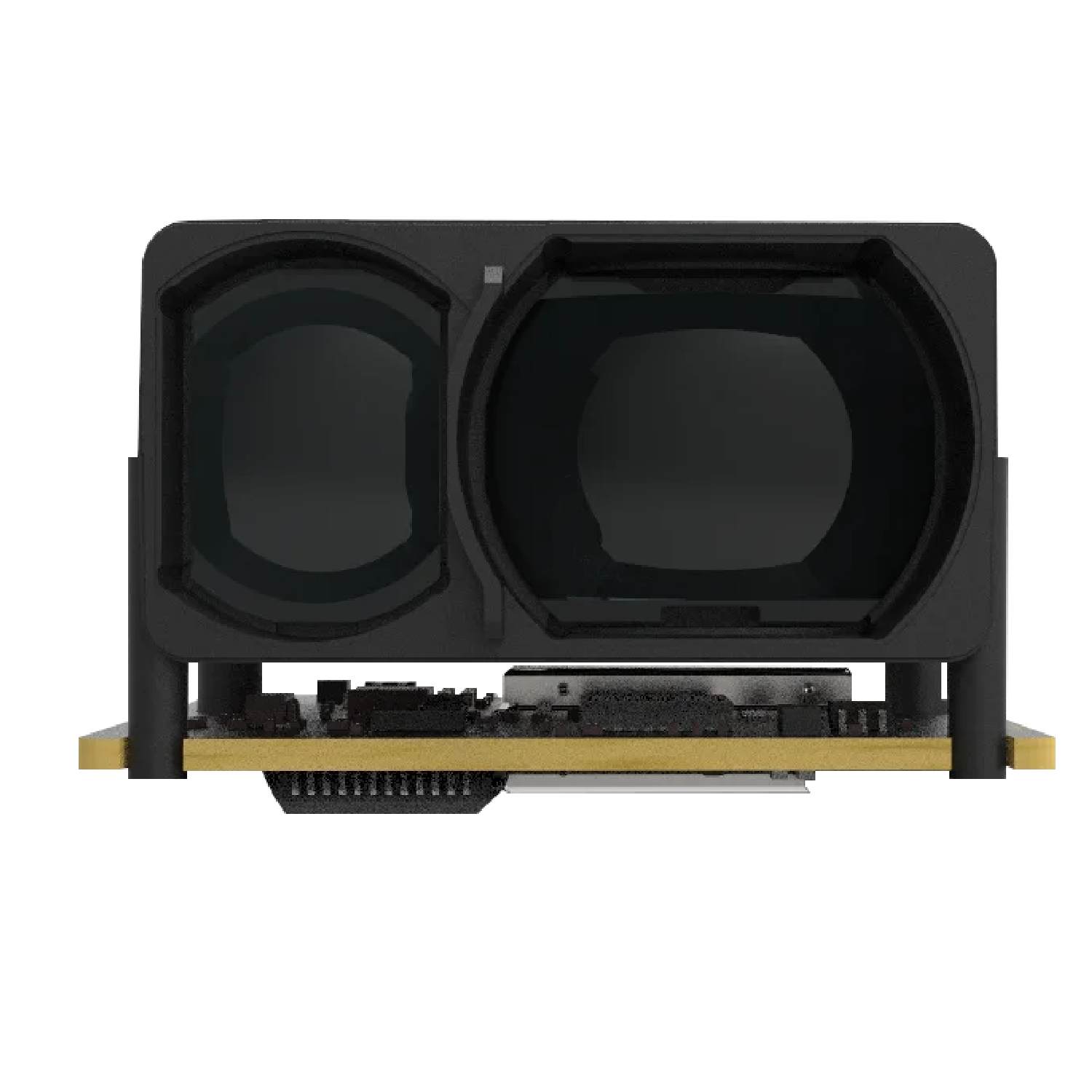

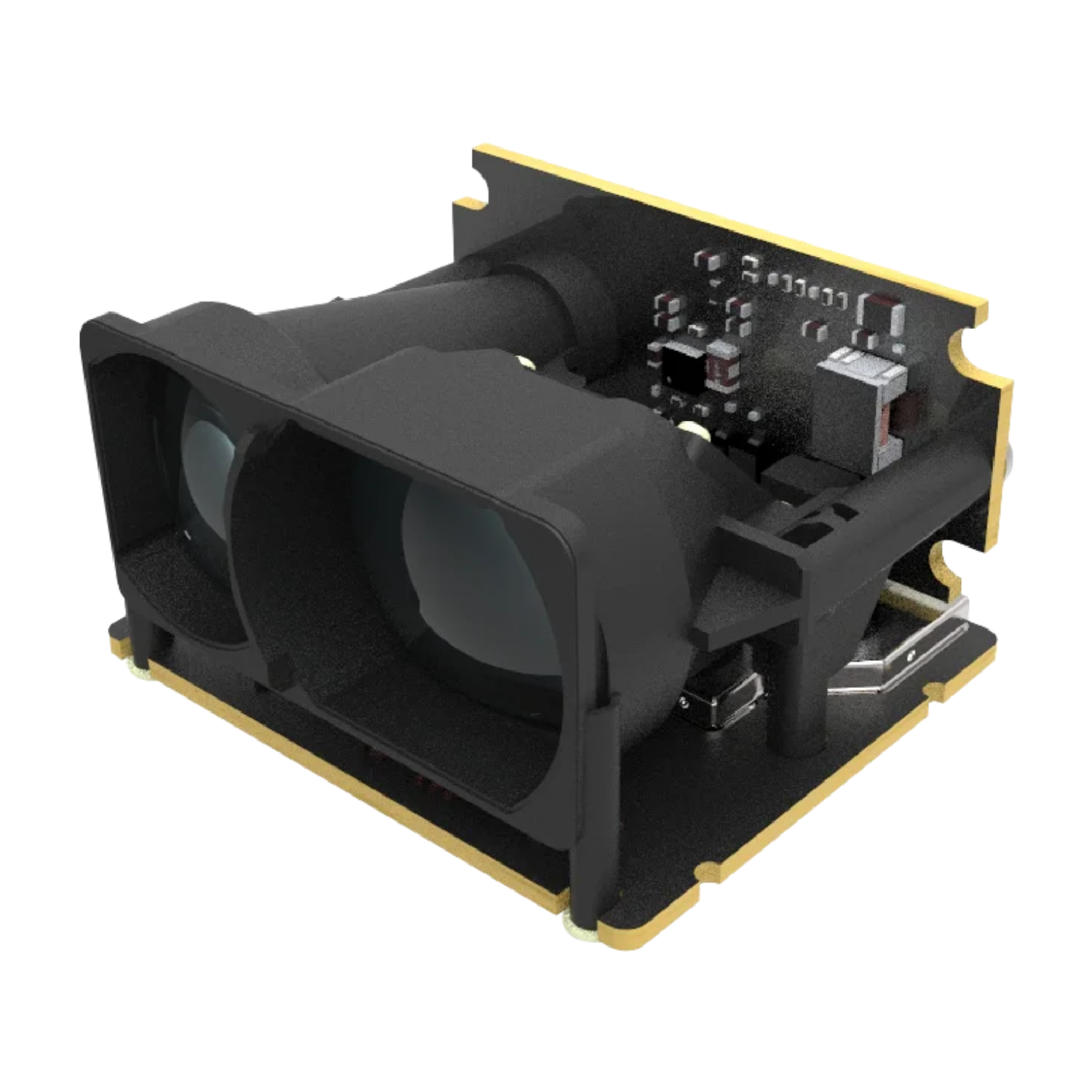

Benewake TFA170-L LiDAR Sensor 0.1–170m Long Range LiDAR Distance Sensor High Accuracy Single Point For Industrial & UAV

Benewake TFA170-L LiDAR Sensor 0.1–170m Long Range LiDAR Distance Sensor High Accuracy Single Point For Industrial & UAV

In stock

Rs. 16,144.00
Rs. 16,144.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Benewake TFA170-L Long Range High Precision Single Point LiDAR Sensor (0.1–170m) utilizes direct time-of-flight (dToF) technology. It emits a pulsed laser signal, which is reflected by the target and detected by a high-sensitivity SPAD sensor. The sensor calculates distance by measuring the time difference between transmitted and received signals, based on the speed of light.

Specifications:

  • Supply Voltage: DC 12±10%V
  • Operating Temperature: -20°C ~ +60°C
  • Connector: 1.25mm-4P
  • Detection Range: 0.1-170m@90% Reflectivity 0.1-70m@10% Reflectivity
  • Accuracy: ±10cm(<10m), 1%(≥10m)
  • Frame Rate: 0/ 20 / 50 / 100 (default) / 250Hz
  • Light Source: EEL
  • Central Wavelength: 905nm

Features:

  • Ultra Long Range 0.1 to 170 meters measurement capability
  • High Precision Accurate single-point distance detection
  • Fast Response Real-time distance measurement output
  • UAV & Drone Ready, ideal for aerial mapping and navigation
  • Industrial Grade Suitable for automation and smart systems
  • Stable Performance, Reliable readings in various environments
  • Easy Integration Supports standard communication interfaces
  • Compact Design Lightweight and easy to mount on robots & drone

Applications:

  • Level Detection, Volume Detection, Liquid Level Detection, Space & People Flow Detection
  • Robot Pallet Transport Robot Obstacle Avoidance, Crane Positioning / Obstacle Avoidance, Robot Fall Prevention & Obstacle Avoidance, truck operation
  • IoT Auxiliary Focus, Smart Trigger, Security Warning
  • Smart Parking Highway Key Area Monitoring, V2X / Holographic Intersection / Traffic Light Control, Meli train collision avoidance system, Smart Civil Aviation
  • IoT Auxiliary Focus, Smart Trigger , Security warning

Package Included:

1 x Benewake TFA170-L LiDAR Sensor
