Description:

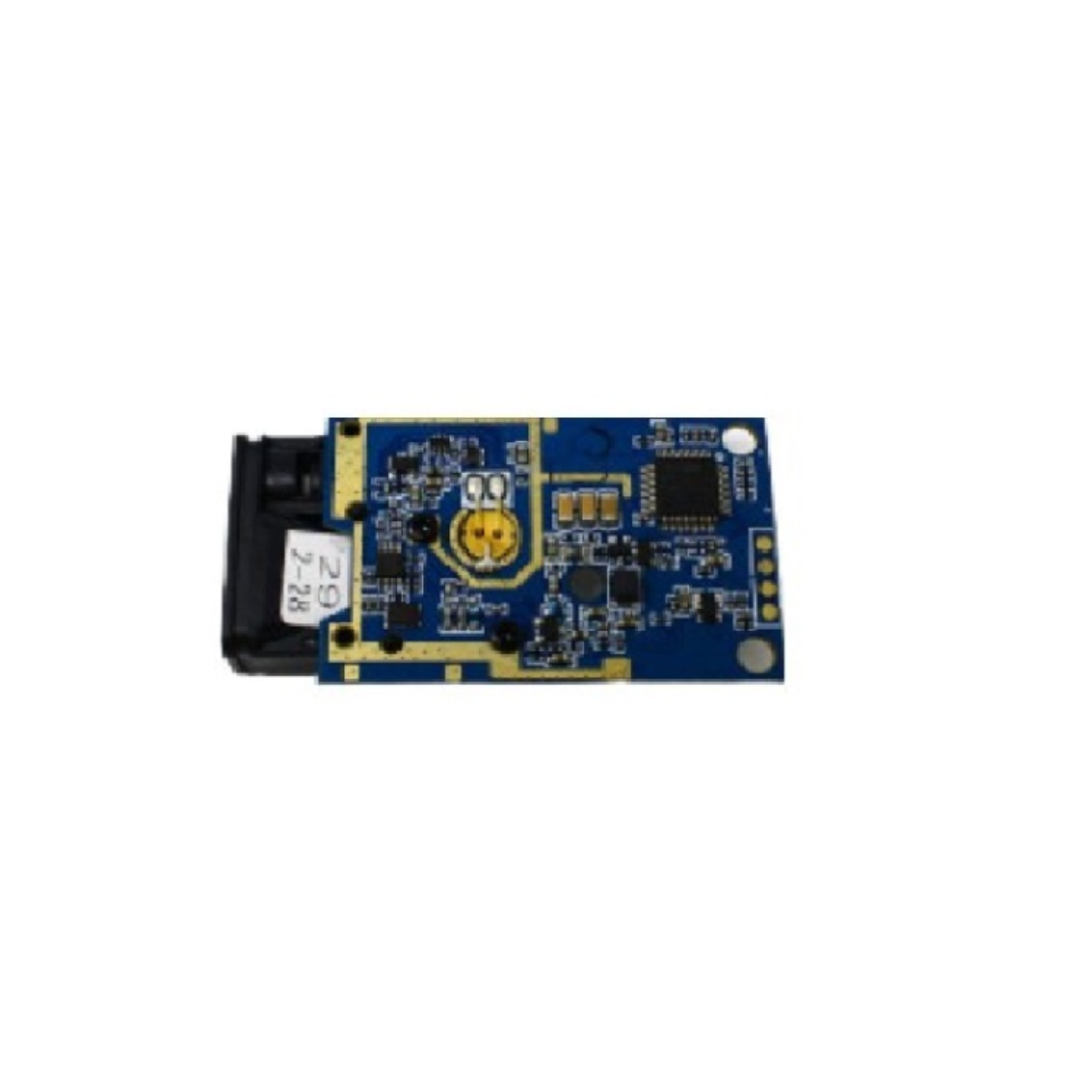

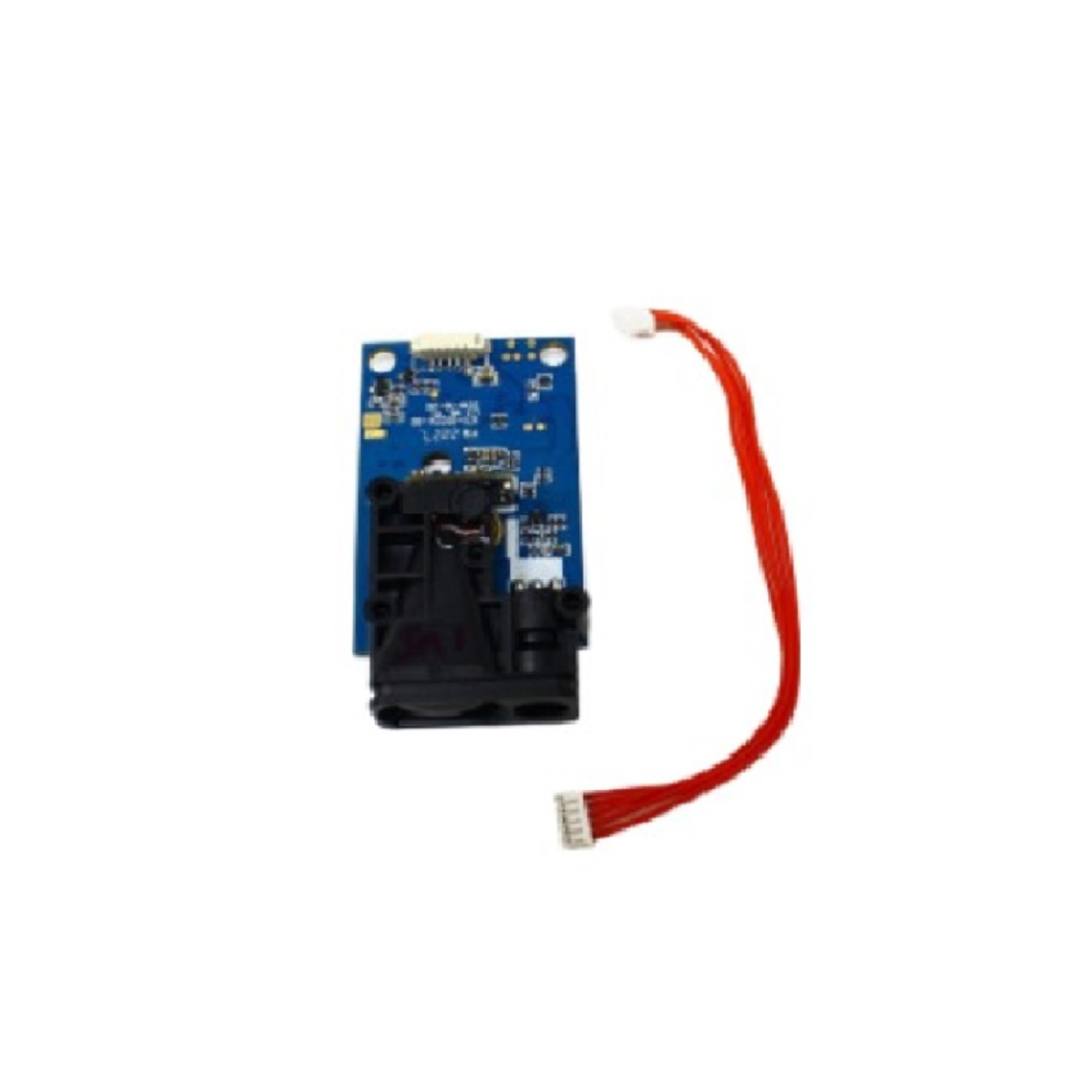

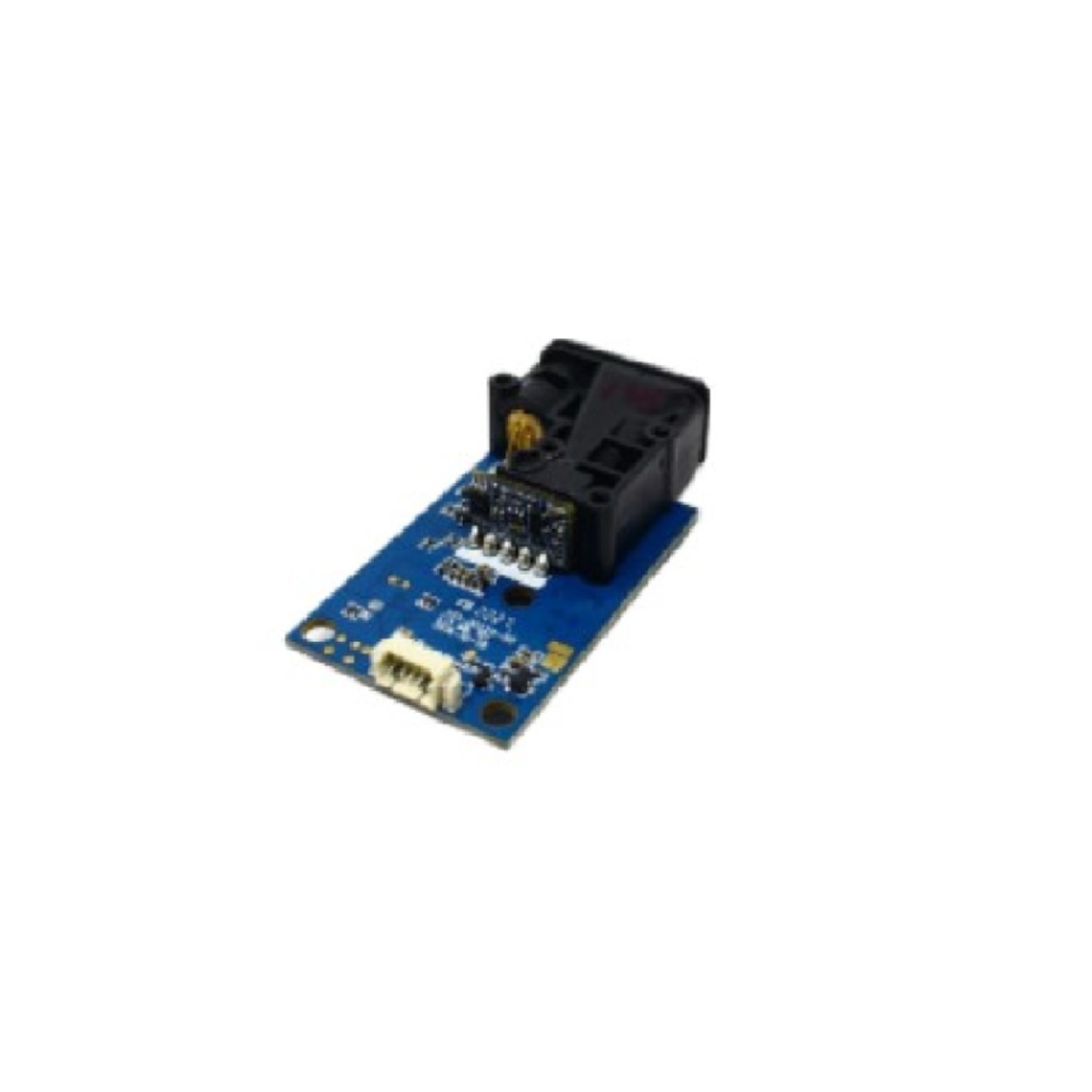

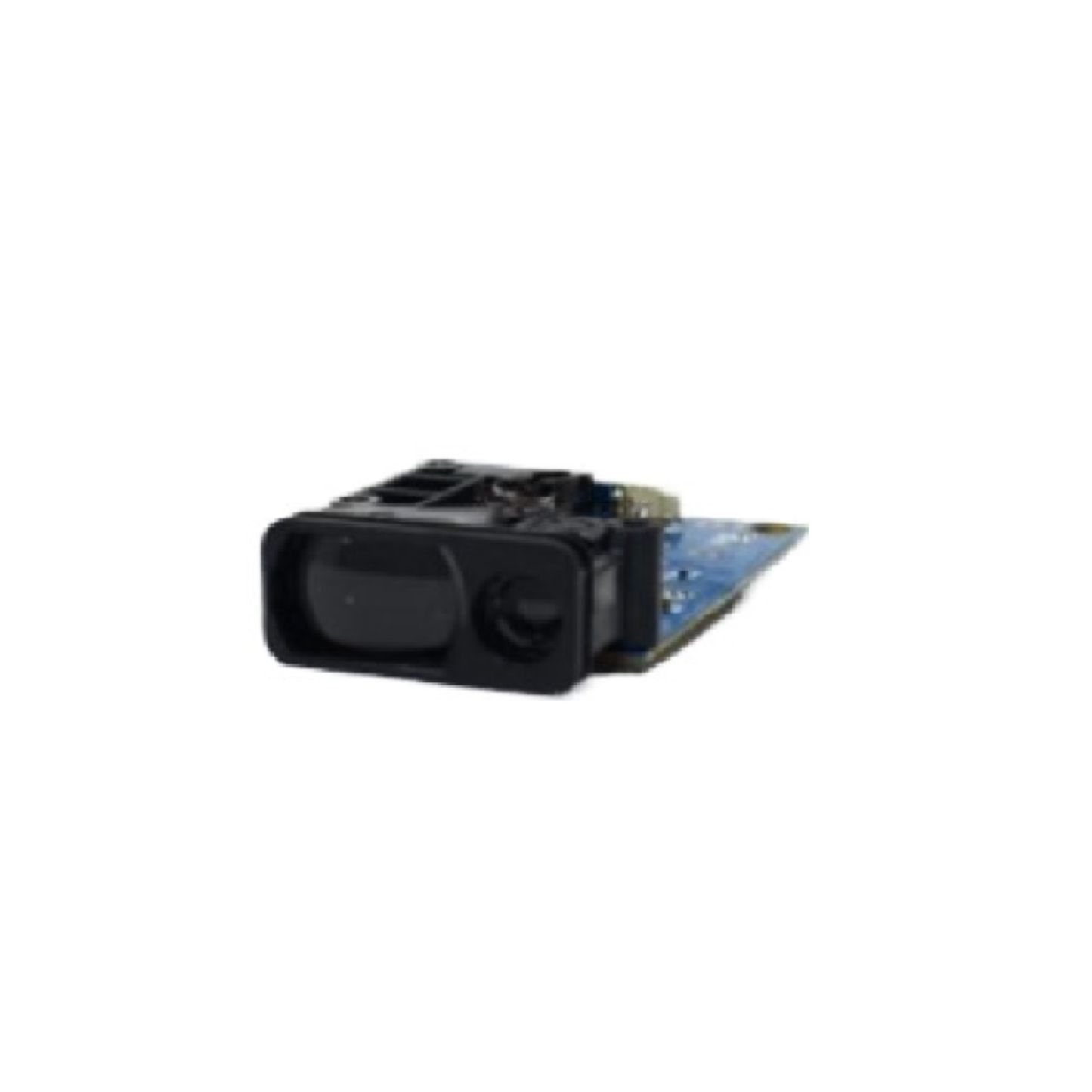

The Benewake TF40-S LiDAR sensor is a cutting-edge, high-performance LiDAR (Light Detection and Ranging) technology, offering exceptional accuracy in distance measurement and object detection. As part of Benewake’s renowned TF series, this sensor is designed for versatility, providing dependable and precise data for a wide range of applications.
Its advanced capabilities make it a favored choice across multiple industries, where reliability, durability, and high-resolution sensing are paramount. Whether for robotics, autonomous vehicles, or industrial automation, the TF40-S excels in delivering outstanding performance and resilience in demanding environments.
Specifications:
- Model Type: LiDAR Sensor
- Light Source: LD
- Accuracy: ±2mm
- Resolution: 1mm
- Frame Rate(Hz): 5Hz
- Repeatability: 1σ：<2mm
- Operating Temperature (°C): -10~50℃
- Range: 0.05-40m@90% Reflectivity 1 0.05-20m@10% Reflectivity 2
- Central Wavelength(nm): 635nm
- Lense Viewing Angle (FOV): <1mrad
- Avg. Current Used (mA): ≤180mA
- Avg. Power Consumption (W): ≤0.6W
- Peak Current (mA): ≤180mA
- Communication Level: LVTTL(3.3V)
- UART Baud Rate: 9600
- Power Supply(V): 3.3V
- Data Bit: 8 bit
- Stop Bit: 1 bit
Features:
- IP65 Rating.
- High Accuracy.
- Multi-Data Outputs.
- Customizable Settings.
- User-Friendly Interface.
- Compact and Lightweight.
- Wide Field of View (FoV).
Package Included:
1 x Benewake TF40-S LiDAR Sensor For Smart Robotics Applications
