Benewake

Benewake TF03 Industrial Lidar Sensor High-Speed Lidar Sensor With 180m Range and RS485/RS232 Interface For Industrial Automation and Robotics

Benewake TF03 Industrial Lidar Sensor High-Speed Lidar Sensor With 180m Range and RS485/RS232 Interface For Industrial Automation and Robotics

In stock

Rs. 20,324.00
Rs. 20,324.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

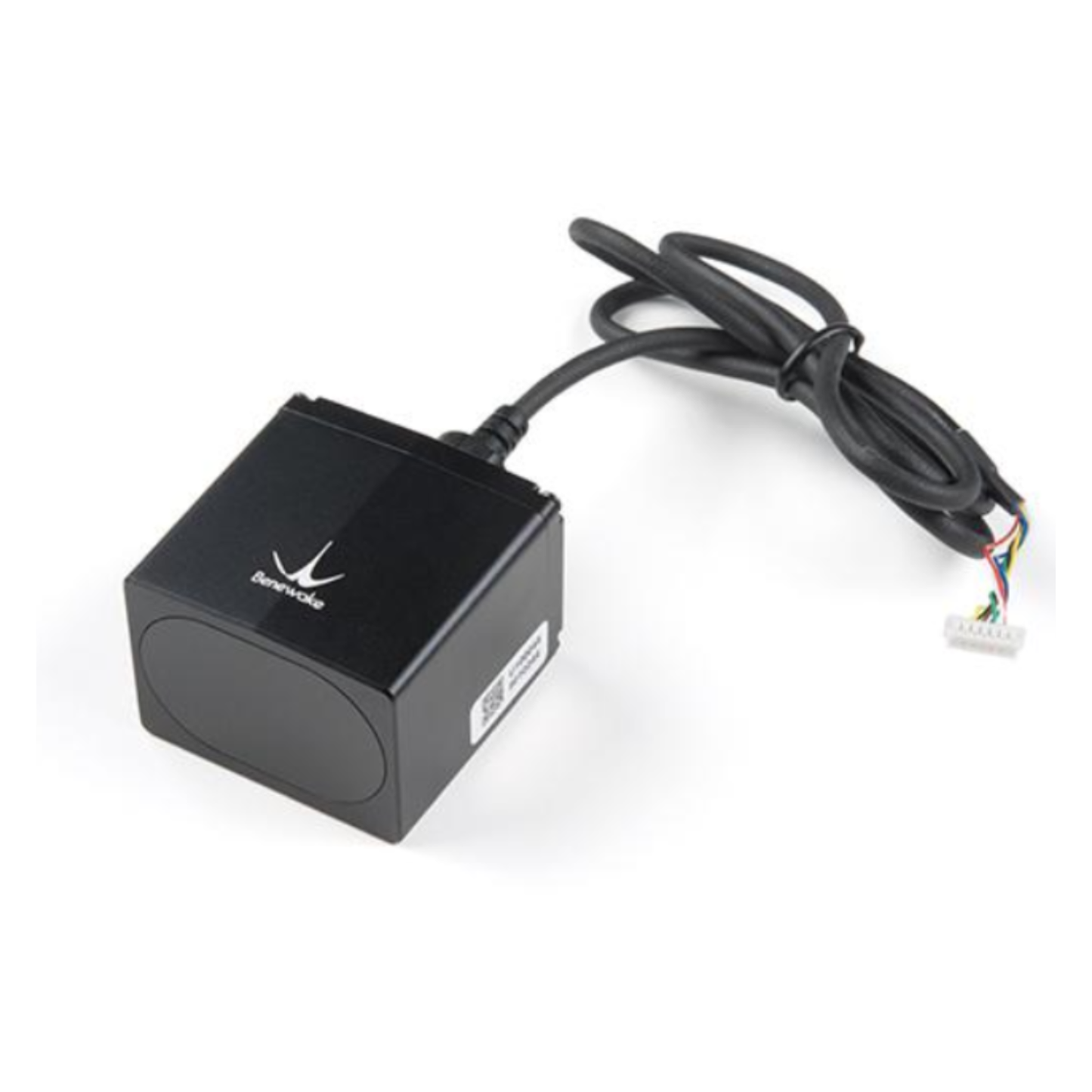

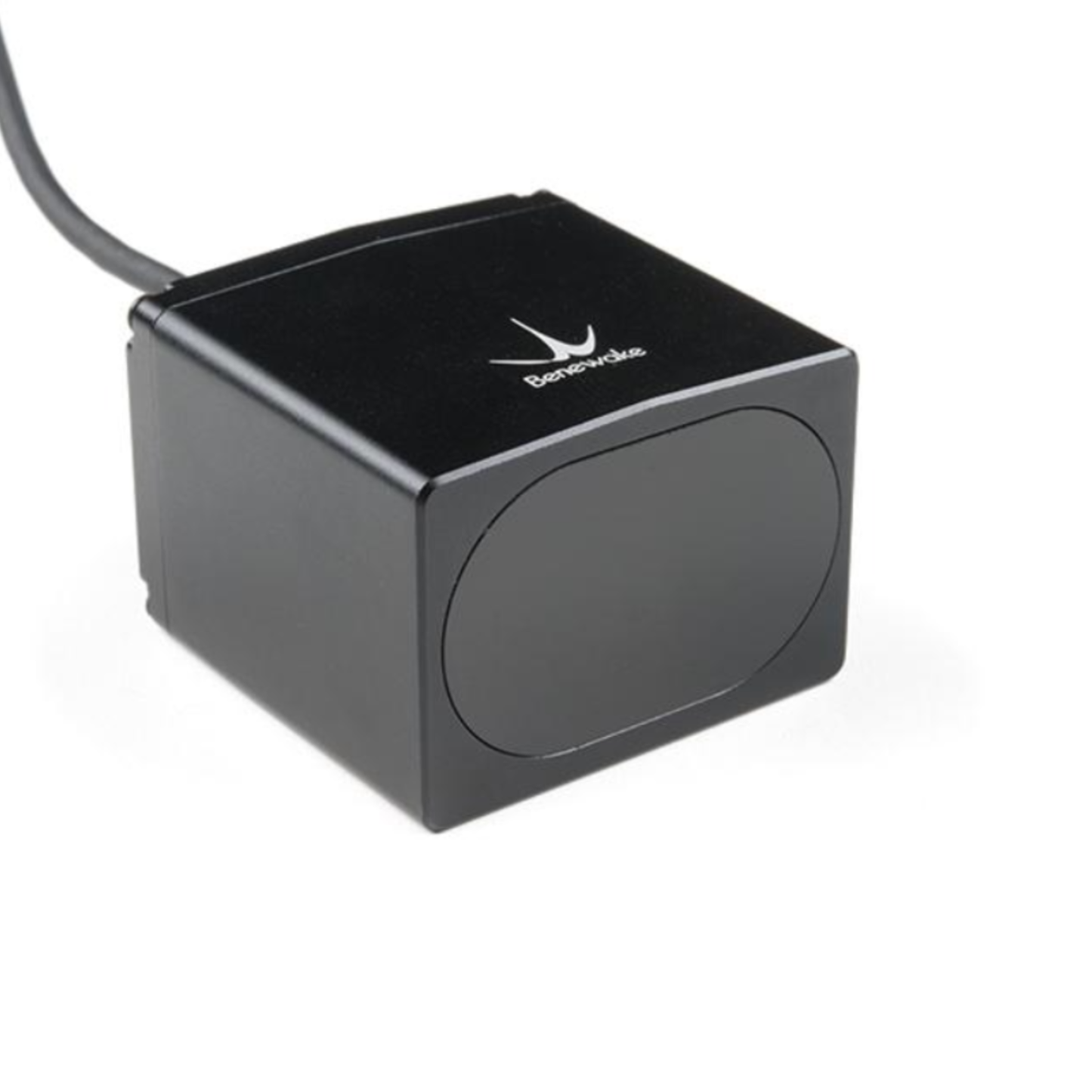

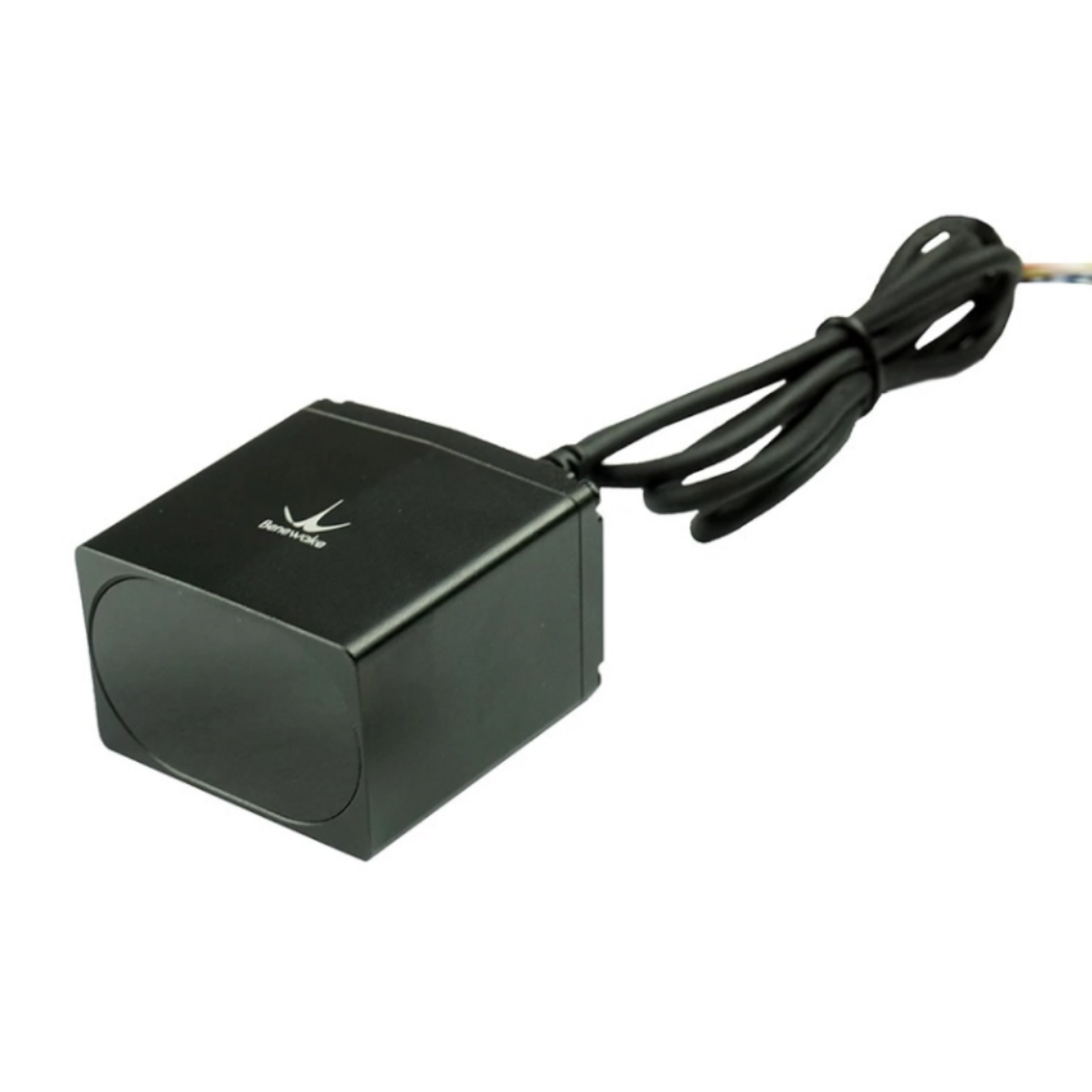

The Benewake TF03 Industrial Lidar Sensor is a high-performance, industrial-grade LiDAR with a 180-meter detection range. It excels in challenging environments, including strong sunlight, rain, fog, and snow, with built-in glare compensation. Using the pulsed time-of-flight principle and advanced signal processing, it delivers superior accuracy, resolution, and repeatability.

Compact and cost-effective, it offers multiple operating modes and supports both RS485 and RS232 communication, making it ideal for applications like drone navigation, vehicle collision avoidance, and industrial safety. The TF03-180 provides exceptional performance for diverse industrial needs.

Specifications:

  • Model Type: Industrial LiDAR Sensor
  • Distance Measuring Range(M): 180
  • Field of View (FOV): 0.5Deg.
  • Accuracy: ±10cm (within 10m), 1% (10m and further)
  • Frame Rate(Hz): 1Hz~1000Hz adjustable (default 100Hz)
  • Average Current(mA): ≤200mA @ 6V ≤100mA @ 12V ≤50mA @ 24V
  • Communication Interface: RS485/RS232
  • Photobiological Safety: CLASS 1(EN 60825)
  • Power Consumption (W): ≤1.2W
  • Ambient Light Immunity(Klux): 100Klux
  • Operating Temperature (°C): -25~60°C
  • Central Wavelength(nm): 905nm
  • Cable Length (cm): 70cm
  • Protection Level: IP67
  • Distance Resolution: 1cm
  • Repeatability: 1σ：3cm
  • Supply Voltage (V): 6V-24V

Features:

  • RS485/RS232 version.
  • Wide range, as far as 180m.
  • Multi-interface compatibility, able to be used in many fields.
  • IP67 high-strength bodywork and high reliability.
  • Small in volume and easy to integrate.
  • High-speed measuring up to 10KHz, high repeated accuracy.
  • Excellent highlight interference, able to be used outdoors.

Applications:

  • UAV Anti-collision.
  • Intelligent parking.
  • UAV Auto landing.
  • UAV Terrain following.
  • Level Measurement.
  • Crane safety operations.
  • Vehicle position sensing.
  • Robot Obstacle Avoidance.
  • UAV Height fixing / Distance-keeping.
  • Vehicle detection for barrier gate control.

Package Included:

1 x Benewake TF03 Industrial Lidar Sensor High-Speed Lidar Sensor With 180m Range and RS485/RS232 Interface For Industrial Automation and Robotics
