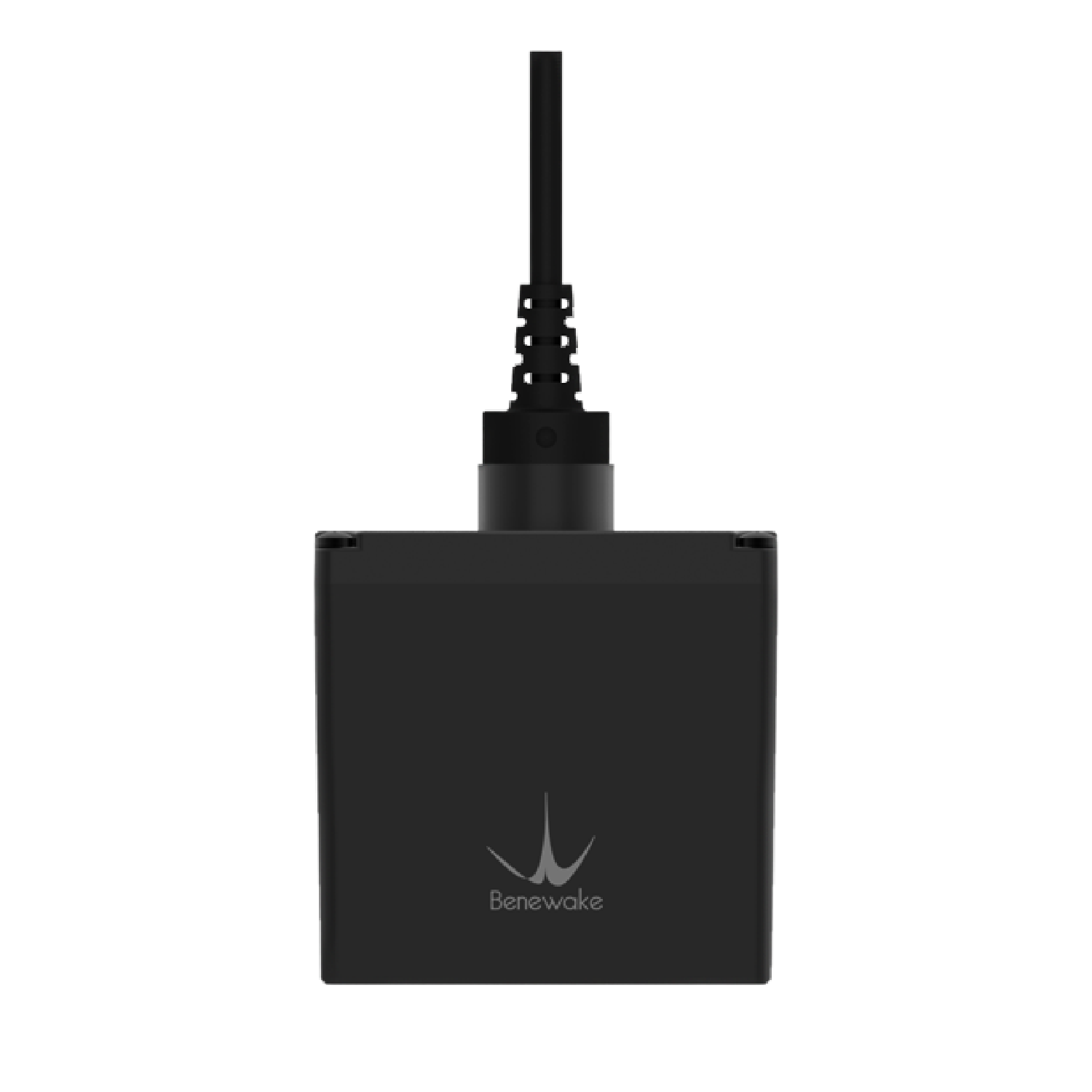

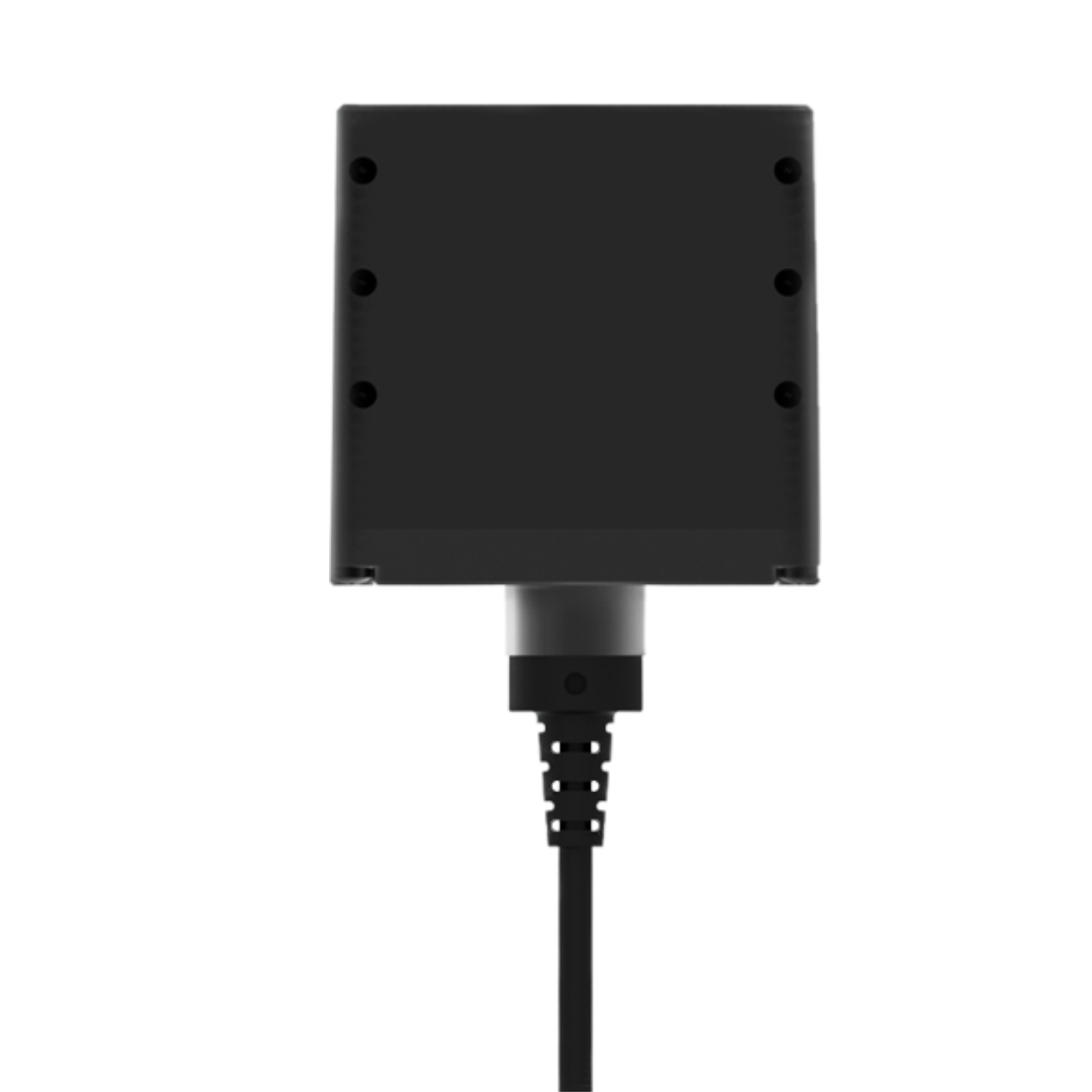

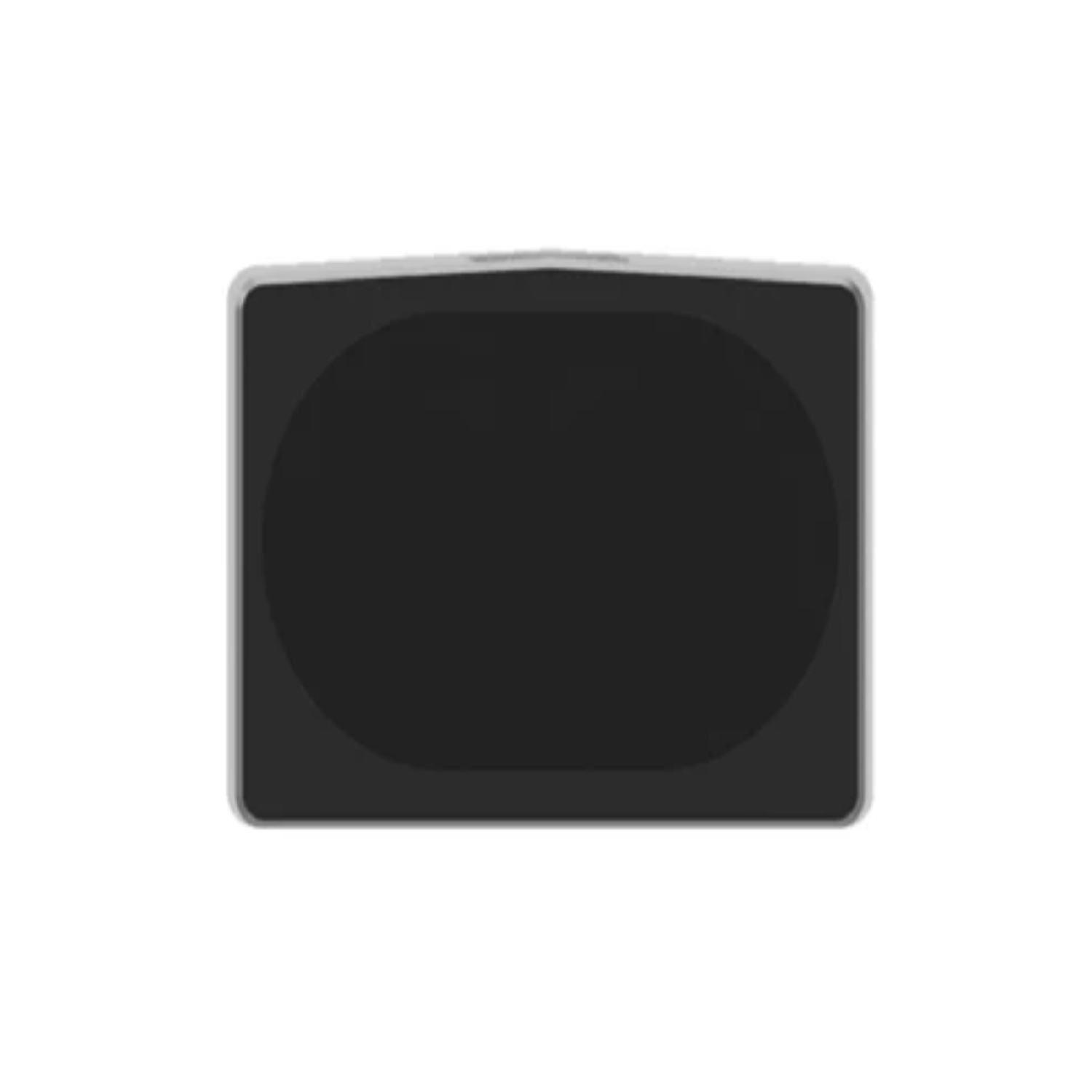

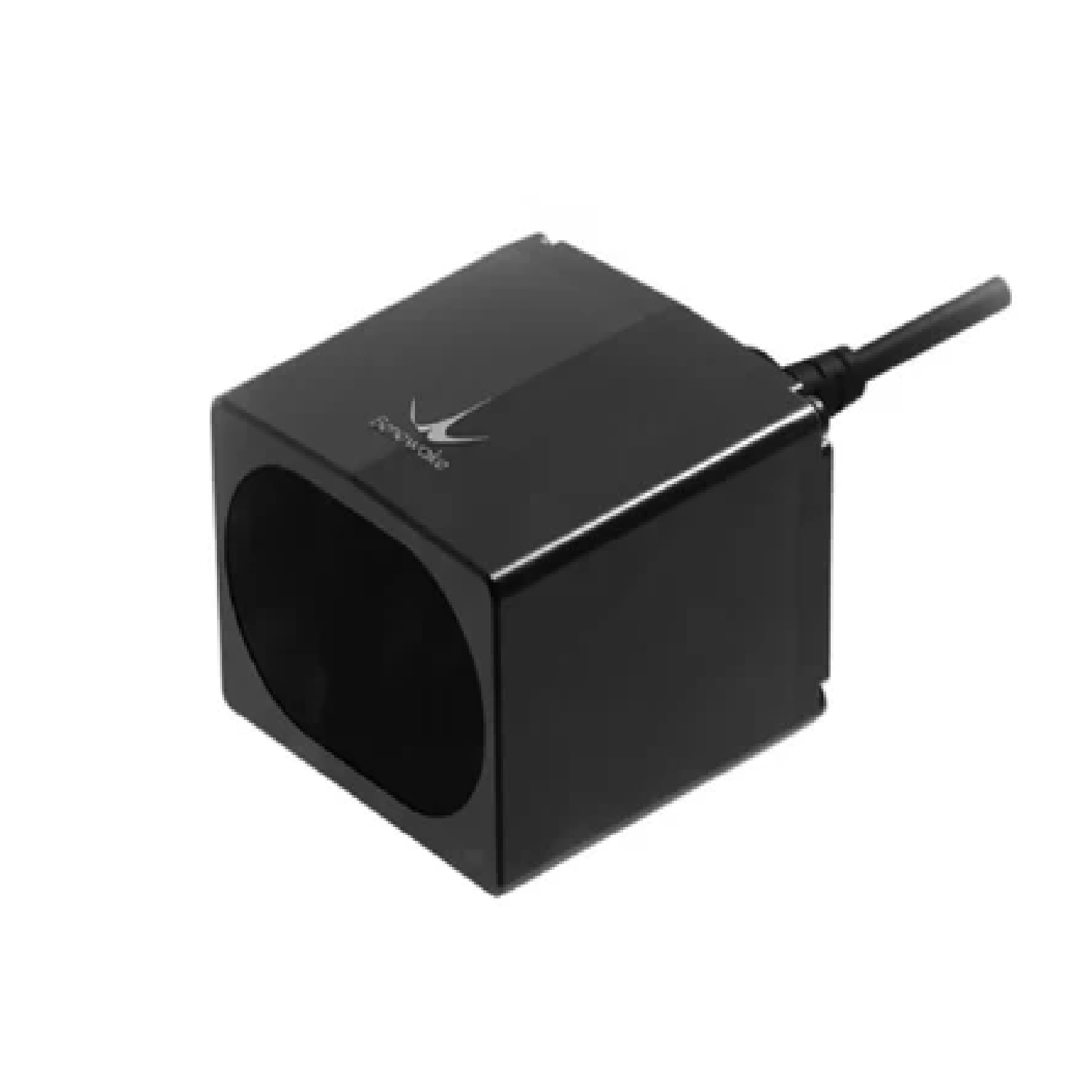

Benewake TF03-180 LiDAR Sensor 4-20mA – 0.1–180m Long Range High-Precision Distance Sensor For Robotics & Industrial Automation

Benewake TF03-180 LiDAR Sensor 4-20mA – 0.1–180m Long Range High-Precision Distance Sensor For Robotics & Industrial Automation

In stock

Rs. 20,579.00
Rs. 20,579.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Benewake TF03‑180 is a high-performance industrial LiDAR sensor with an impressive 0.1 m to 180 m detection range and 4‑20 mA analog output, making it perfect for robotics, automation, and industrial safety applications. Powered by advanced Time-of-Flight technology, it provides high-speed, accurate, and stable distance measurements even in challenging conditions such as strong sunlight, rain, fog, and snow.

Ideal for drones, traffic systems, and robotics, the TF03‑180 ensures precise, reliable measurements for critical tasks. Whether you’re operating in harsh environments or need long-range detection, this LiDAR sensor ensures dependable performance.

Specifications:

  • Model: Industrial LiDAR Sensor
  • Supply Voltage: 12V-24V
  • Operating Temperature: -25~60°C
  • Distance Measuring Range: 180M
  • Frame rate: 1Hz–1000Hz adjustable (default 100Hz)
  • Average Current (mA): ≤140 mA @ 12 V, ≤80 mA @ 24 V
  • Power Consumption: ≤2W
  • Peak Current: ≤140 mA @ 12 V, ≤80 mA @ 24 V
  • Field of View (FOV): 0.5 deg
  • Enclosure rating: IP67
  • Repeatability: 1σ: <3 cm
  • Ambient light immunity: 100K lux
  • Central wavelength: 905nm
  • Accuracy: ±10cm (within 10m), 1% (10m and further)
  • Distance resolution: 1 cm
  • Photobiological safety: CLASS 1 (EN 60825)

Application:

  • Level Measurement
  • UAV Auto landing
  • Robot Obstacle avoidance
  • UAV Anti-collision
  • UAV Height Fixing/Distance keeping
  • UAV Terrain following
  • Intelligent parking
  • Crane safety operations
  • Vehicle position sensing
  • Vehicle detection for barrier gate control

Features:

  • Wide detection range: up to 180 m (90% reflectivity).
  • 4-20 mA analog output for current measurements.
  • TTL serial port for debugging and configuration.
  • Multi-interface compatibility for diverse applications.
  • IP67-rated high-strength body for durability and reliability.
  • Compact size for easy integration.
  • High-speed measurements: up to 10 kHz with high repeatability.
  • Excellent highlight interference suppression: suitable for outdoor use.

Package Included:

1 x Benewake TF03-180 LiDAR Sensor 4-20mA—0.1–180m Long Range
