Benewake

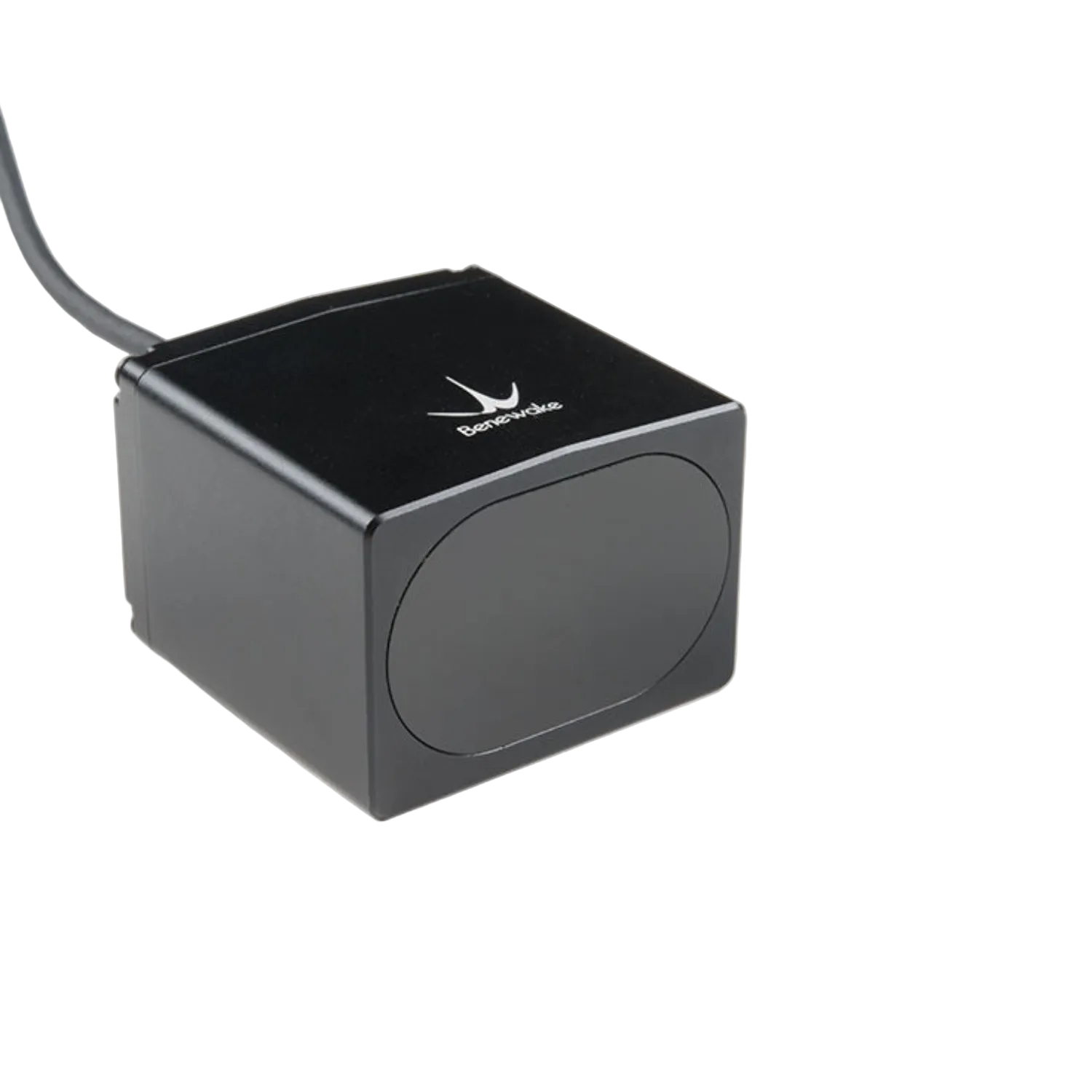

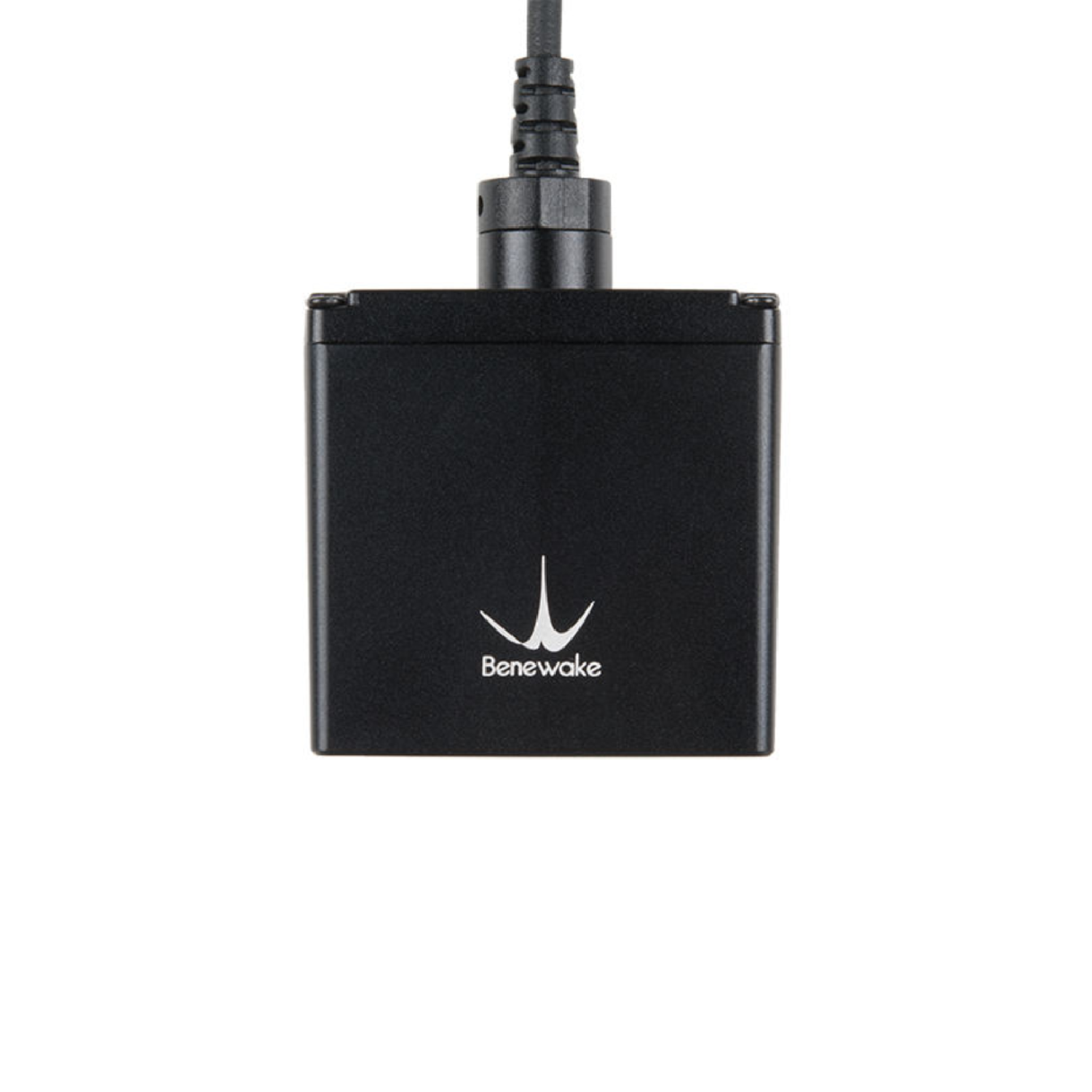

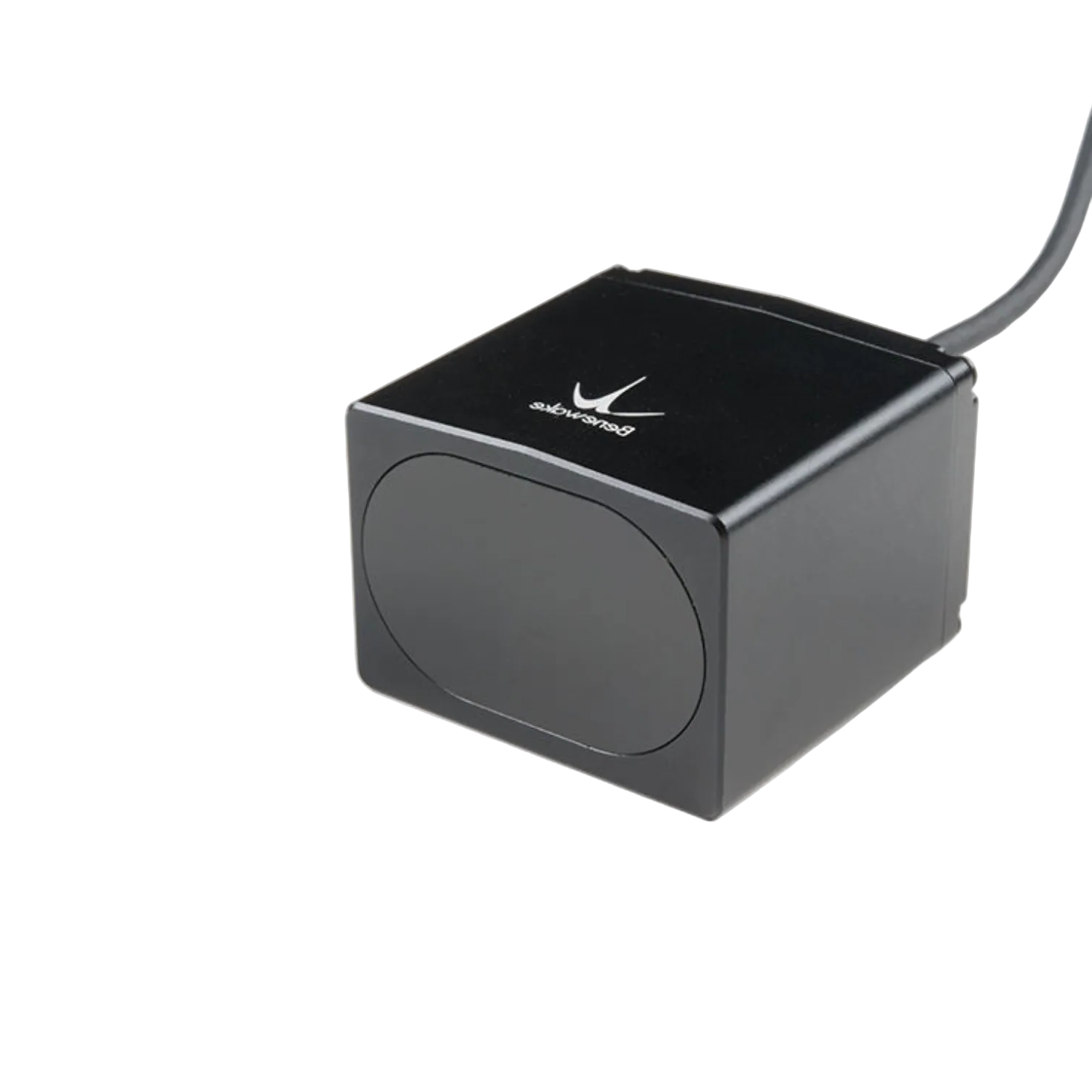

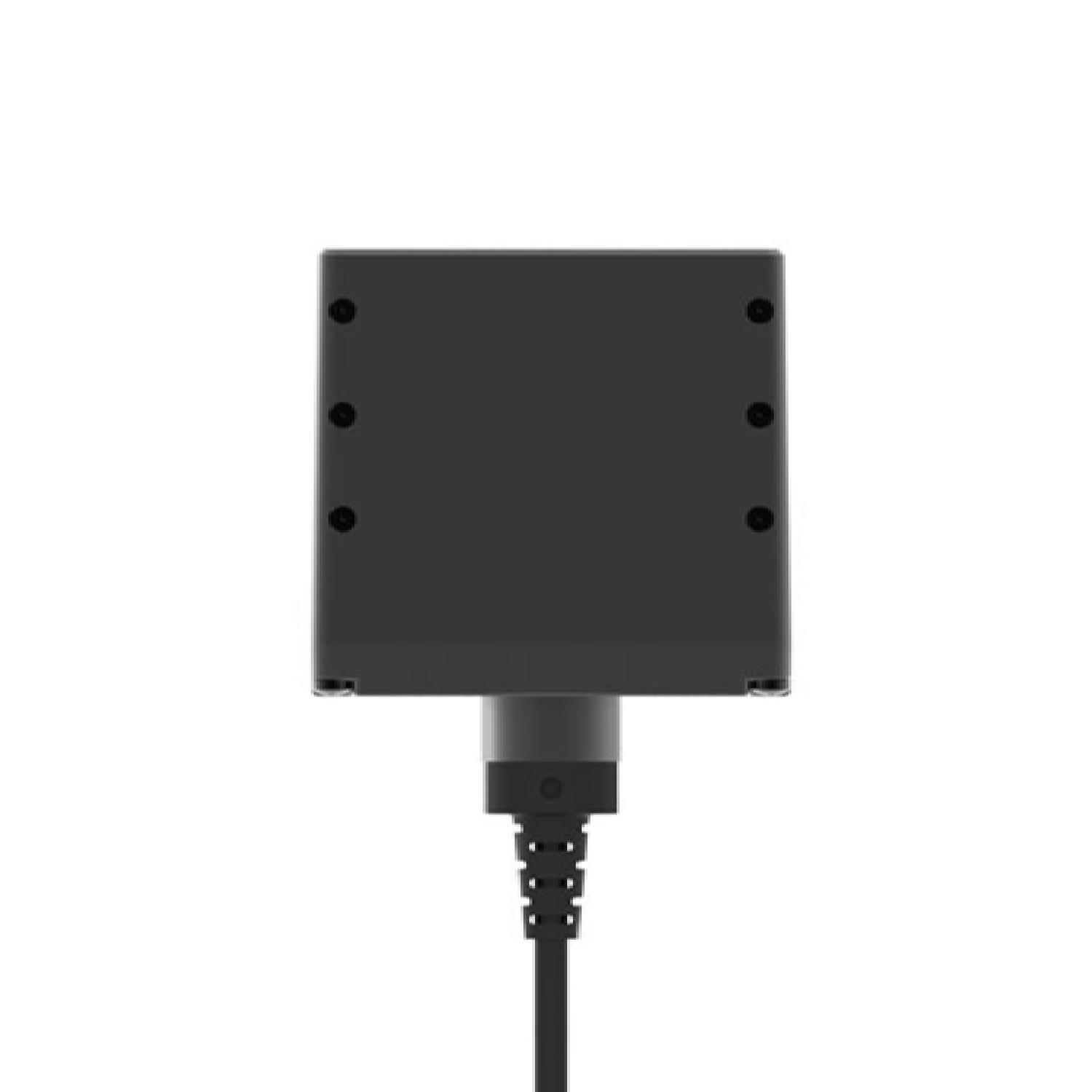

Benewake TF03-100 Industrial LiDAR Sensor 0.1–100m Long Range 4–20mA Output For High-Speed Distance Measurement

Benewake TF03-100 Industrial LiDAR Sensor 0.1–100m Long Range 4–20mA Output For High-Speed Distance Measurement

In stock

Rs. 20,279.00
Rs. 20,279.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Benewake TF03-100 is a high-performance, industrial-grade long-range LiDAR sensor designed for precise distance measurement up to 100 meters. Built using advanced pulsed Time-of-Flight (ToF) technology, it delivers exceptional accuracy, repeatability, and stability across the entire detection range.

Engineered for harsh outdoor environments, the TF03-100 features an integrated compensation algorithm that minimizes interference from strong sunlight, glare, rain, fog, and snow. Its robust optical system and advanced signal processing circuitry significantly enhance detection performance while maintaining a compact and durable design.

Specifications:

  • Field of View: 0.5 °
  • Distance Measuring Range: 0.1m~100m
  • Accuracy: ±10cm (within 10m), 1% (10m and further)
  • Distance resolution: 1cm
  • Frame rate: 1Hz~1000Hz adjustable (default 100Hz)
  • Repeatability: 1σ: <3cm
  • Ambient light immunity: 100Klux
  • Operating Temperature: -25~60°C
  • Enclosure Rating: IP67
  • Central Wavelength: 905nm
  • Photobiological Safety: CLASS 1(EN 60825)
  • Supply Voltage: 12V-24V
  • Average Current: ≤150mA @ 5V ≤80 mA @ 12V ≤50mA @ 24V
  • Power Consumption: ≤2W
  • Cable Length: 70cm

Features:

  • Long-range distance measurement from 0.1m to 100m
  • High accuracy with stable and reliable performance
  • 4–20m A analog output for industrial applications
  • Ideal for Automation, suitable for robotics, AGV & UAV use
  • High-Speed Response Real-time, fast distance output

Applications:

  • Robot Obstacle Avoidance
  • UAV Anti-Collision
  • UAV Auto landing
  • UAV Height fixing / Distance keeping
  • UAV Terrain following
  • Level Measurement

Package Included:

1 x Benewake TF03-100 Industrial LiDAR Sensor
