Description:

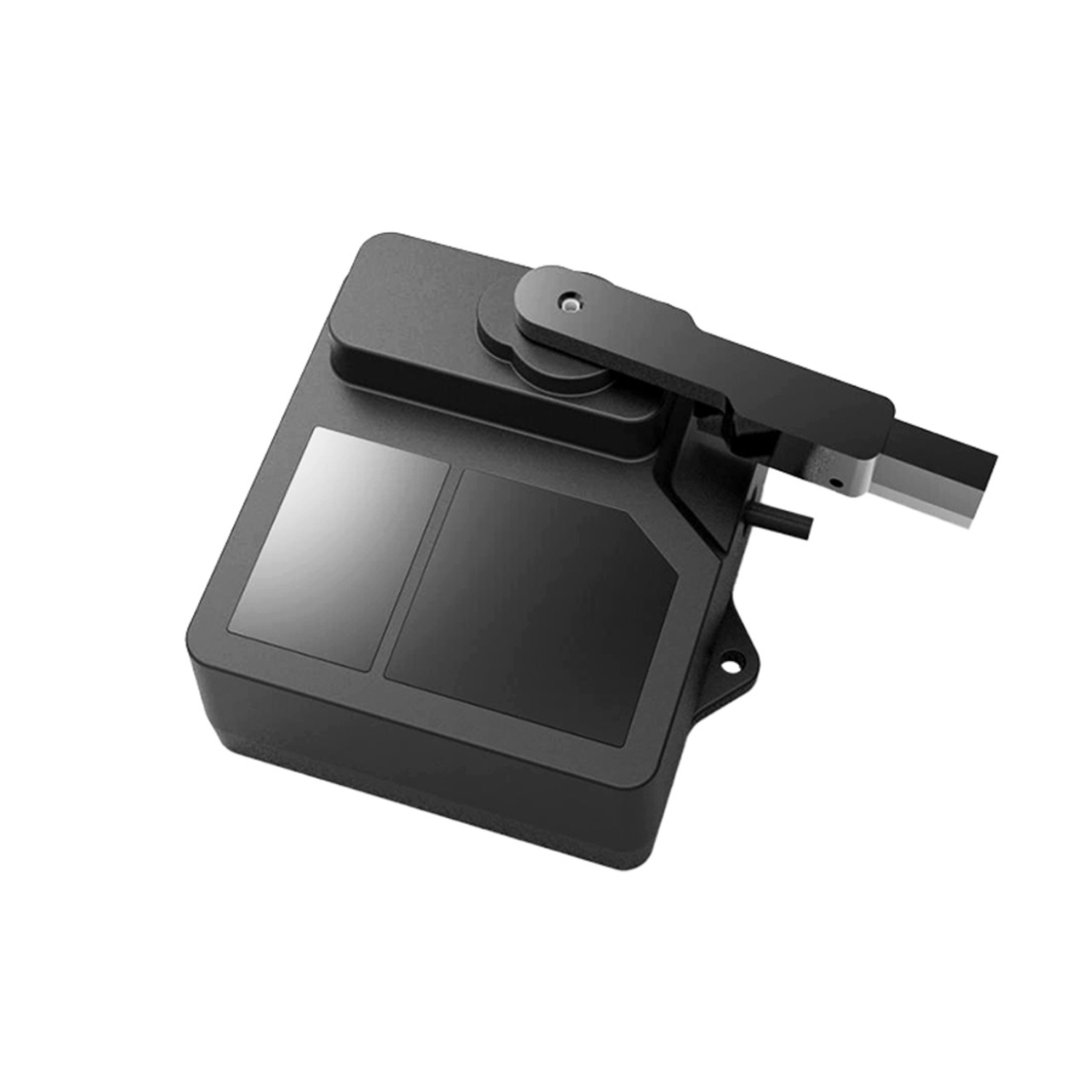

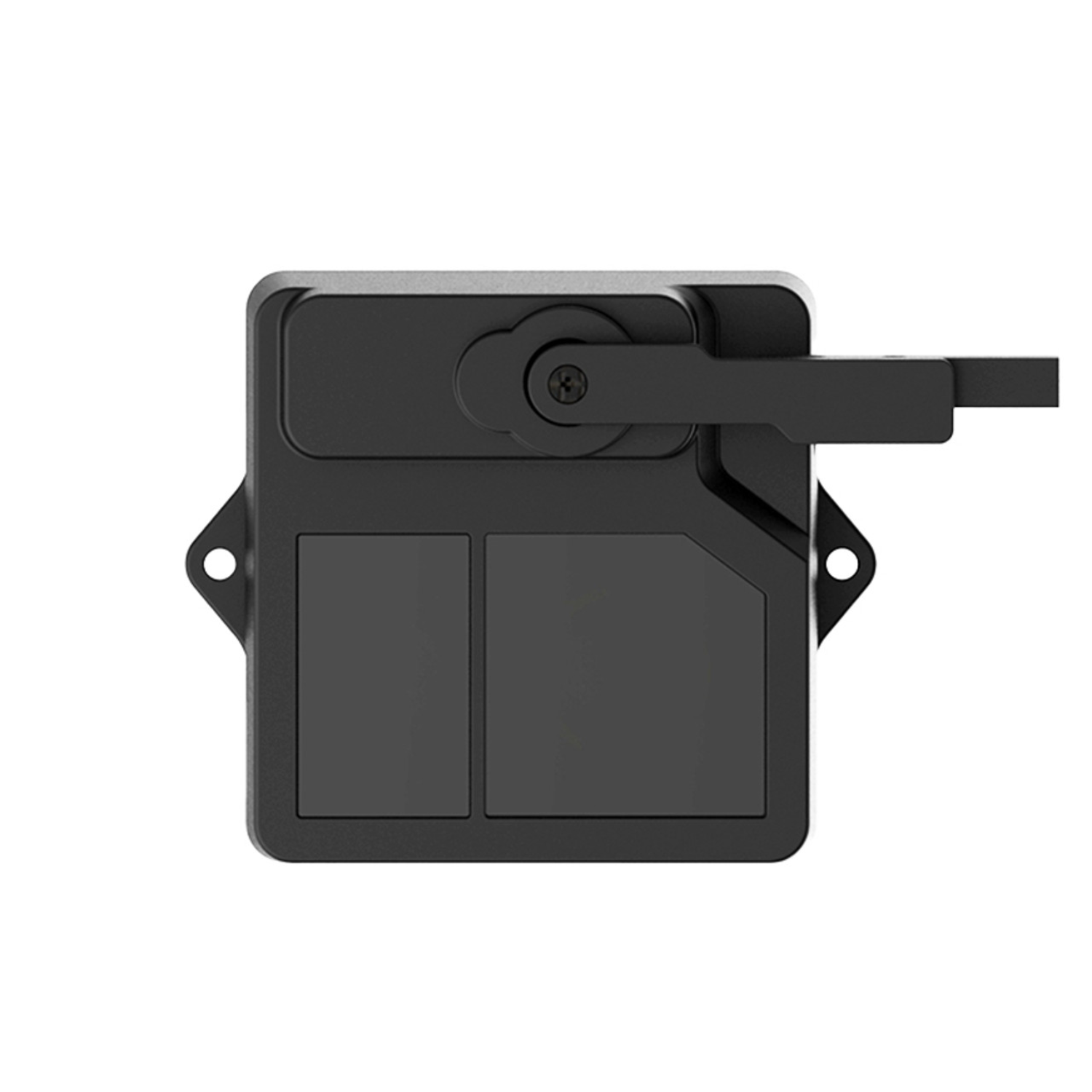

The Benewake TF02-Pro-W LiDAR Level Sensor is a high-precision level detection sensor featuring an innovative self-cleaning dust-removal wiper for continuous lens maintenance, ensuring peak performance. Leveraging Time of Flight (ToF) technology, it delivers stable, reliable ranging with a remarkable range of up to 25 meters.
Operating at a high frame rate of 1000Hz, it provides accurate results while maintaining low power consumption. With compact dimensions of 85mm x 59mm x 43mm, it is perfect for a variety of applications. Encased in an IP5X-rated enclosure, it offers exceptional dust protection and durability for long-lasting, efficient performance in challenging environments.
Specifications:
- Detection Range: 25m
- View Angle: 3°
- Accuracy: +6cm (0.1m-6m)
- Distance Resolution: 1cm
- Frame Rate(Hz): 1 to 1000
- Ambient Light Immunity(Klux): 100
- Enclosure Rating: IP5X
- Central Wavelength(nm): 850
- Supply Voltage(VDC): 5
- Avg. Current Used (mA): ≤400
- Power Consumption (W): ≤2
- Communication Mode: UART/I2C
- Storage Temperature (°C): -30°C~80°C
- Operating Temperature (°C): -20 to 60
- Peak Current (A): 1
Features:
- High range up to 25 meter
- High frame rate (Up to 1000Hz)
- Low power consumption
- Self-cleaning function
- Level Detection
- Dimension (LXHXW) 85mmX59mmX43mm
- IP5X Enclosure
Package Included:
1 X Benewake TF02-Pro-W LiDAR Sensor High-Accuracy LiDAR Level Sensor With Self-Cleaning Technology For Accurate and Reliable Level Detection
