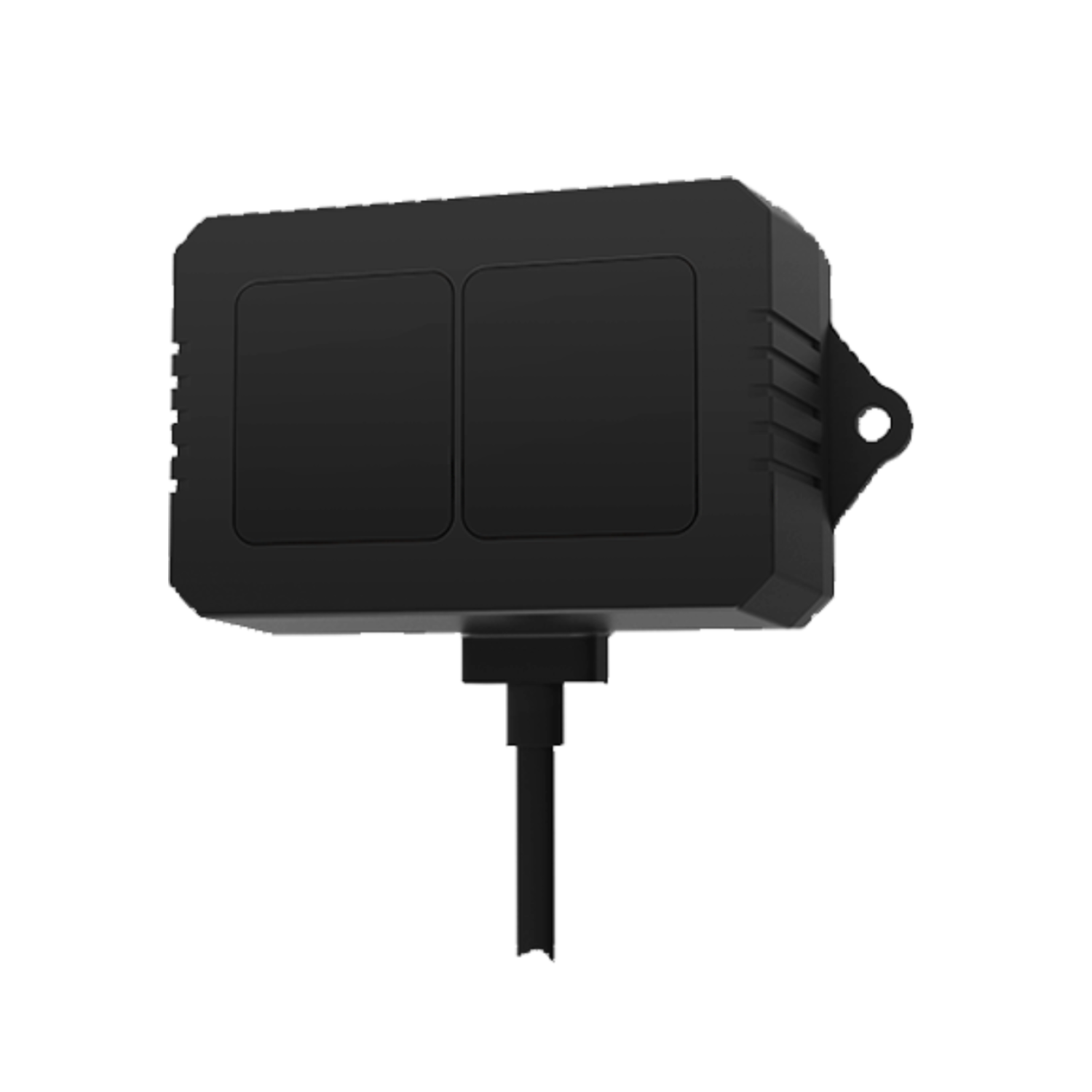

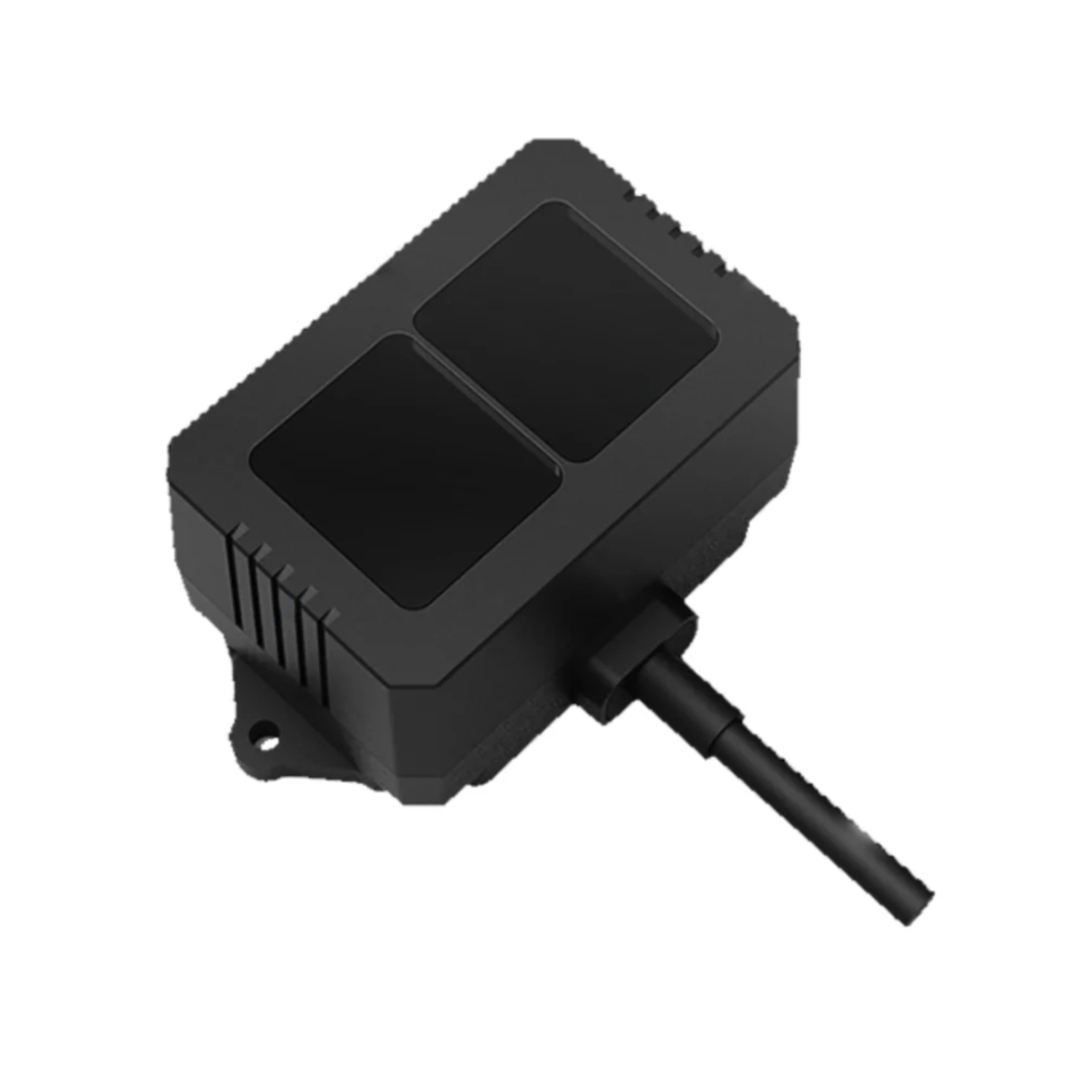

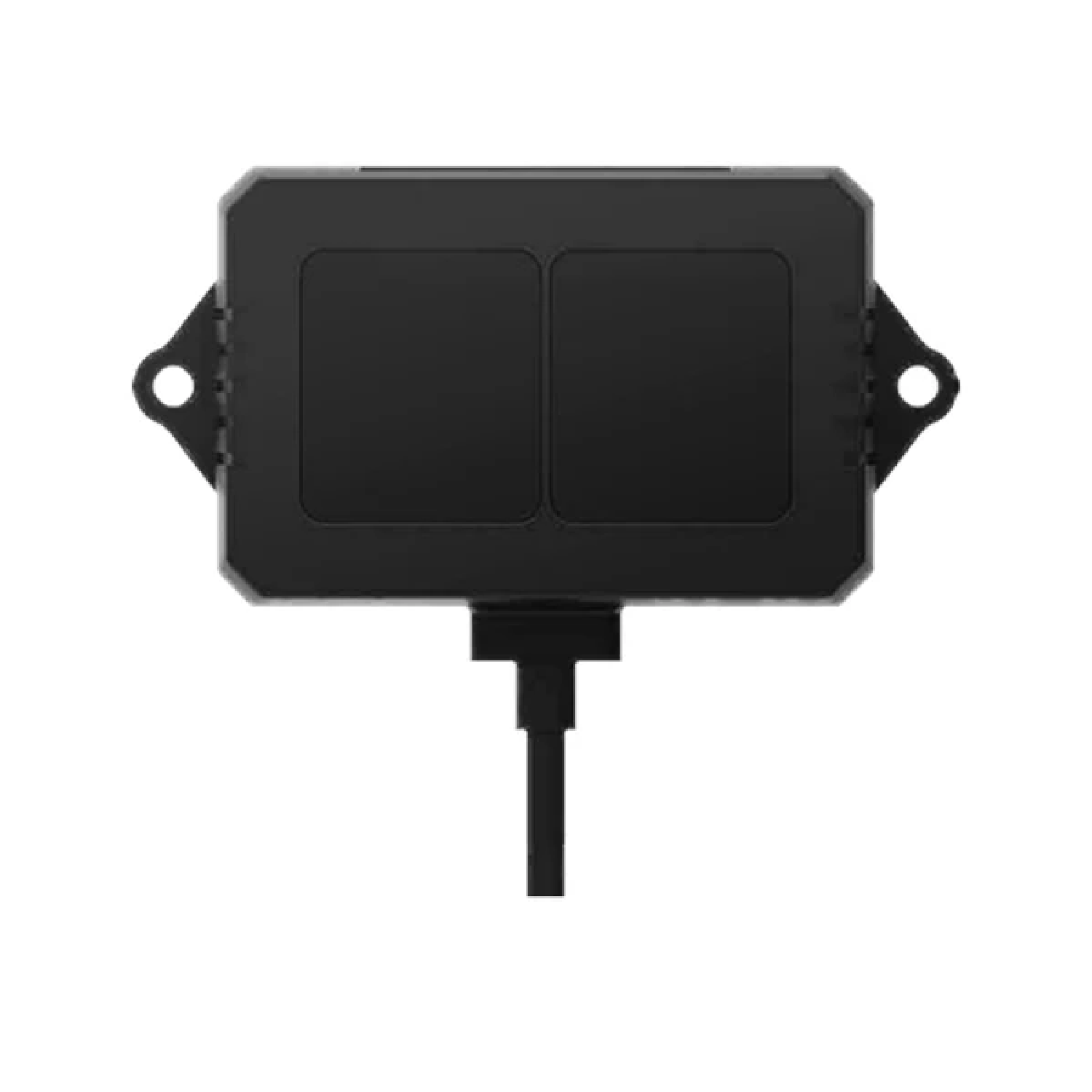

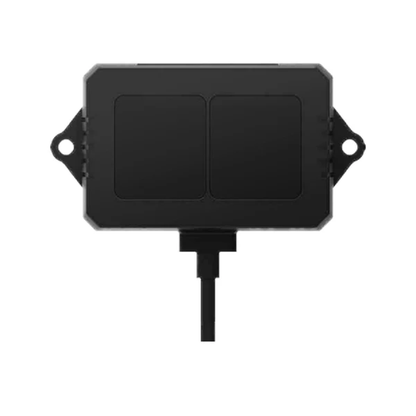

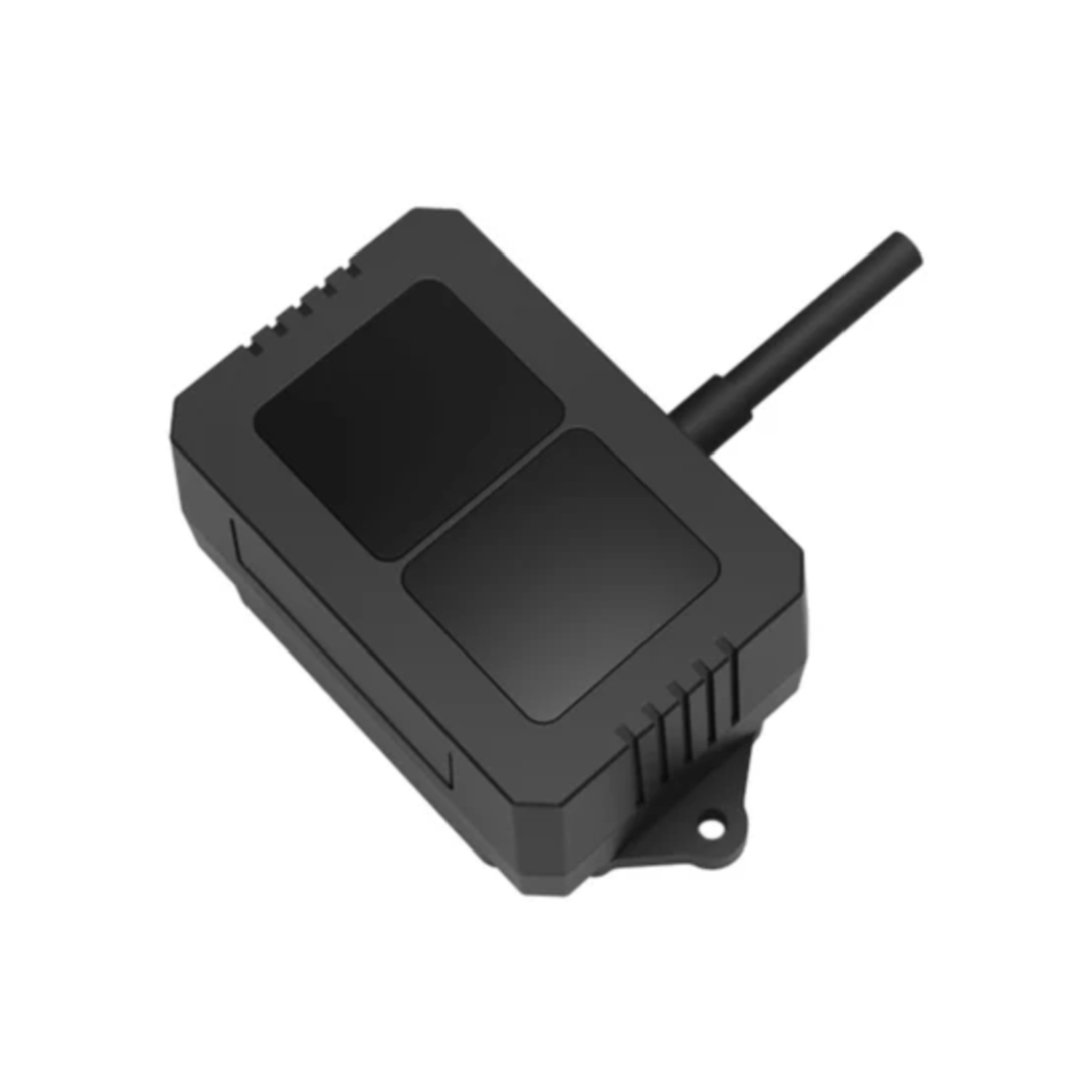

Benewake TF02-i LiDAR RS485 Module – 0.1–40m Long-Range High-Precision Sensor For Industrial, Robotics & UAV Applications

Benewake TF02-i LiDAR RS485 Module – 0.1–40m Long-Range High-Precision Sensor For Industrial, Robotics & UAV Applications

In stock

Rs. 8,042.00
Rs. 8,042.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

The Benewake TF02-i-RS485 LiDAR Sensor is a high-performance distance measurement module designed for precision, reliability, and versatility in challenging environments. With a long detection range from 0.1 m to 40 m, it delivers fast, accurate, and consistent distance measurements, making it perfect for industrial automation, robotics, drones, and UAV applications.

Specifications:

  • Model: Long Distance Sensor
  • Average Current: ≤70 mA @ 12 V
  • Peak Current: 100mA
  • Field of View (FOV): 3°
  • Distance resolution: 1 cm
  • Supply Voltage: 7–30 V
  • Power Consumption: ≤0.85W@12V
  • Communication Interface: RS485
  • Operating Temperature: 20°C-60°C
  • Operating Range: 0.1-40m
  • Enclosure rating: IP65
  • Frame rate: 1-100Hz
  • Ambient light immunity: 100K lux
  • Repeatability: 1σ: <2 cm (0.1–35 m @ 90% reflectivity)

Applications:

  • UAV auto landing
  • UAV height fixing/distance keeping
  • UAV terrain following
  • Level measurement
  • Crane safety operations
  • Robot obstacle avoidance
  • UAV anti-collision
  • Wheel-ahead detection/alert
  • Triggering switches
  • Part of rotating LiDAR systems
  • Smart parking solutions
  • Vehicle position sensing & counting
  • Vehicle detection for toll gate control
  • People counting

Features:

  • Long-Range Accuracy: Detect objects from 0.1 m up to 40 m with consistent precision.
  • High-Speed Performance: Real-time distance data for dynamic applications like UAVs and autonomous robots.
  • Durable Design: Built to withstand harsh environments and ensure stable operation.
  • Flexible Integration: The RS485 interface allows easy connection to industrial controllers, microcontrollers, and UAV systems.
  • Versatile Applications: Perfect for automation, robotics, smart industrial systems, obstacle detection, and research projects.

Package Included:

1 x Benewake TF02-i LiDAR RS485 Module – 0.1–40m Long-Range
