- Type - n-p-n
- Collector-Emitter Voltage: 45 V
- Collector-Base Voltage: 50 V
- Emitter-Base Voltage: 5 V
- Collector Current: 0.8 A
- Collector Dissipation - 0.625 W
Description:

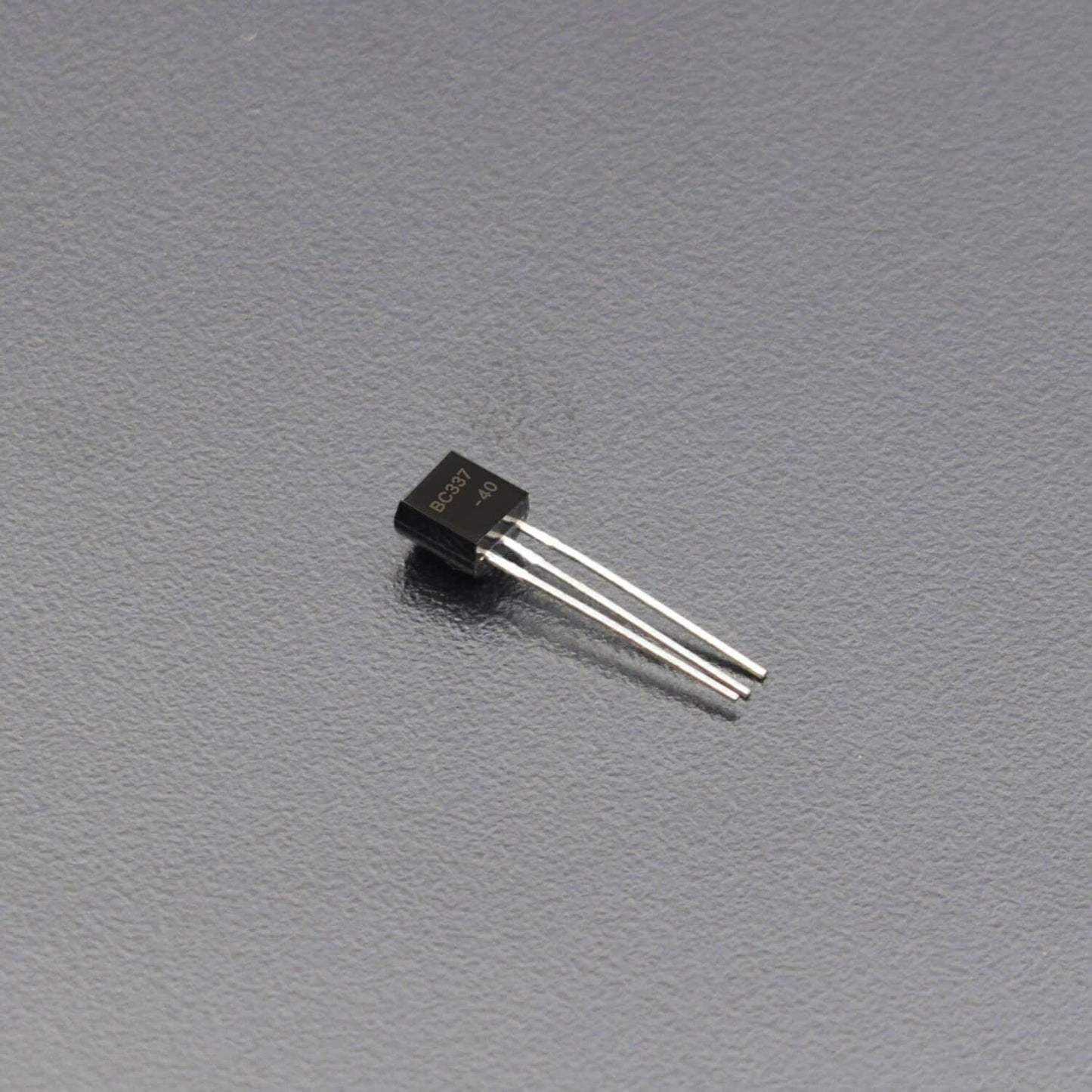

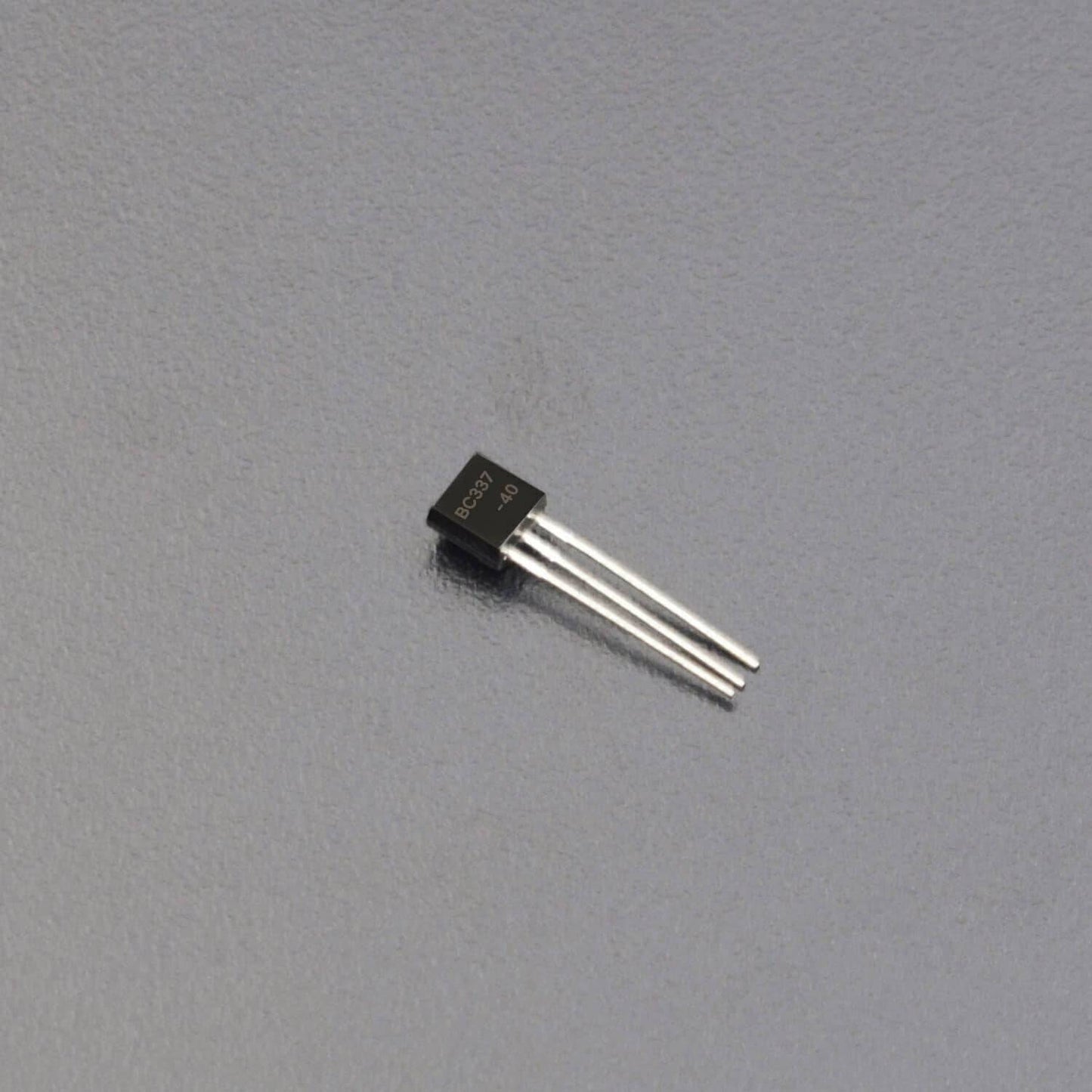

This is a NPN type BC337-40 Bipolar Transistor. It is basically used in electronic components, and mechanical fields, and in science projects, and DIY.
Specification:
- Type - n-p-n
- Collector-Emitter Voltage: 45 V
- Collector-Base Voltage: 50 V
- Emitter-Base Voltage: 5 V
- Collector Current: 0.8 A
- Collector Dissipation - 0.625 W
- DC Current Gain (hfe) - 250 to 630
- Transition Frequency - 100 MHz
- Operating and Storage Junction Temperature Range -55 to +150 °C
Pin Description:

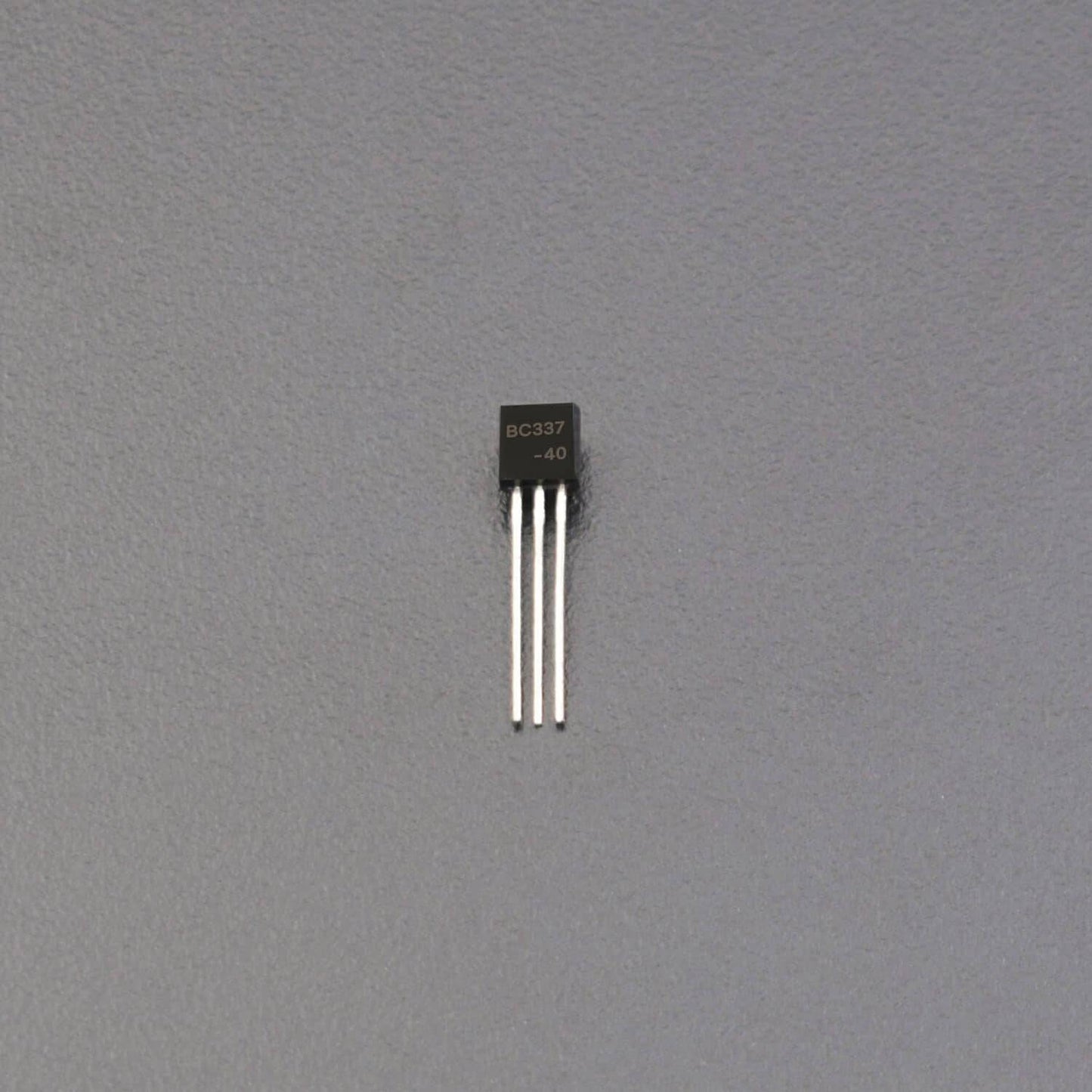

The BC337-40 is manufactured in a plastic TO-92 case. When looking at the round shaped side with the leads pointed downward, the three leads emerging from the transistor are, from left to right, the emitter, base, and collector leads.
Package Included:
1 x BC337-40 Bipolar Transistor
