- Type - n-p-n
- Collector-Emitter Voltage: 45 V
- Collector-Base Voltage: 50 V
- Emitter-Base Voltage: 5 V
- Collector Current: 0.8 A
Description:

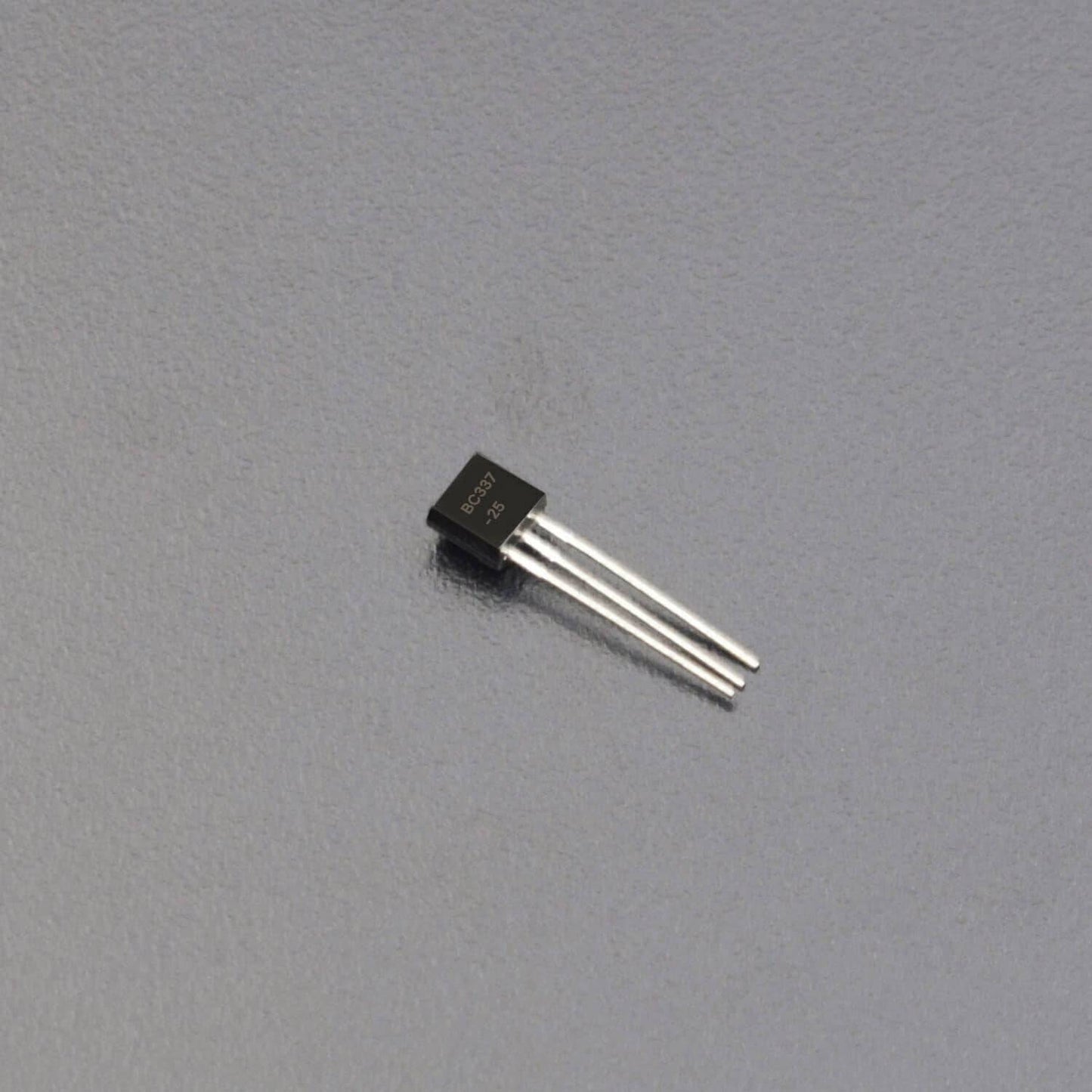

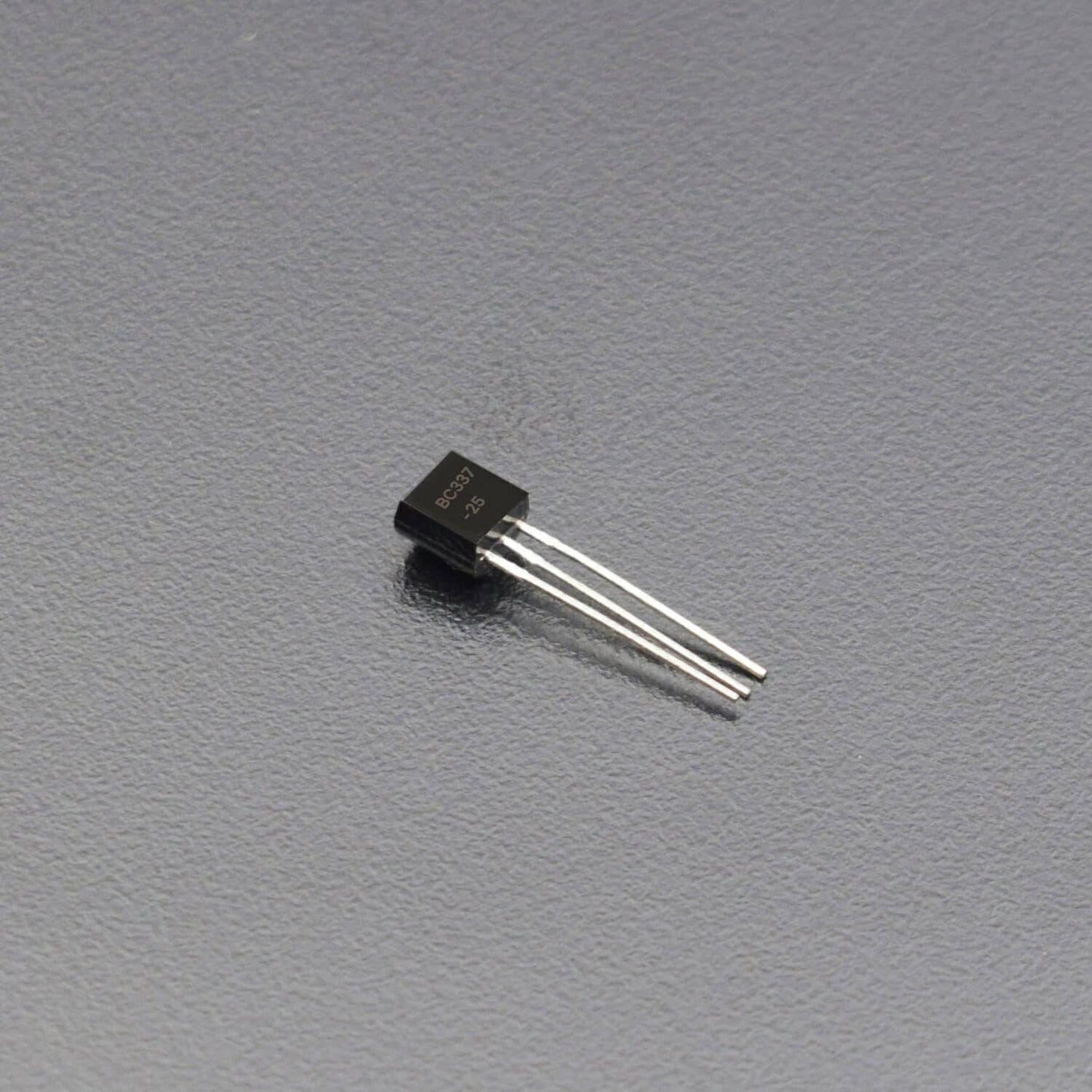

This is a PNP type BC337-25 Bipolar Transistor. The BC337-25 transistor might have a current gain anywhere between 160 and 400. It is basically used in electronic components, and mechanical fields, and in science projects, and DIY.
Specification:
- Type - n-p-n
- Collector-Emitter Voltage: 45 V
- Collector-Base Voltage: 50 V
- Emitter-Base Voltage: 5 V
- Collector Current: 0.8 A
- Collector Dissipation - 0.625 W
- DC Current Gain (hfe) - 160 to 400
- Transition Frequency - 100 MHz
- Operating and Storage Junction Temperature Range -55 to +150 °C
Pin Description:

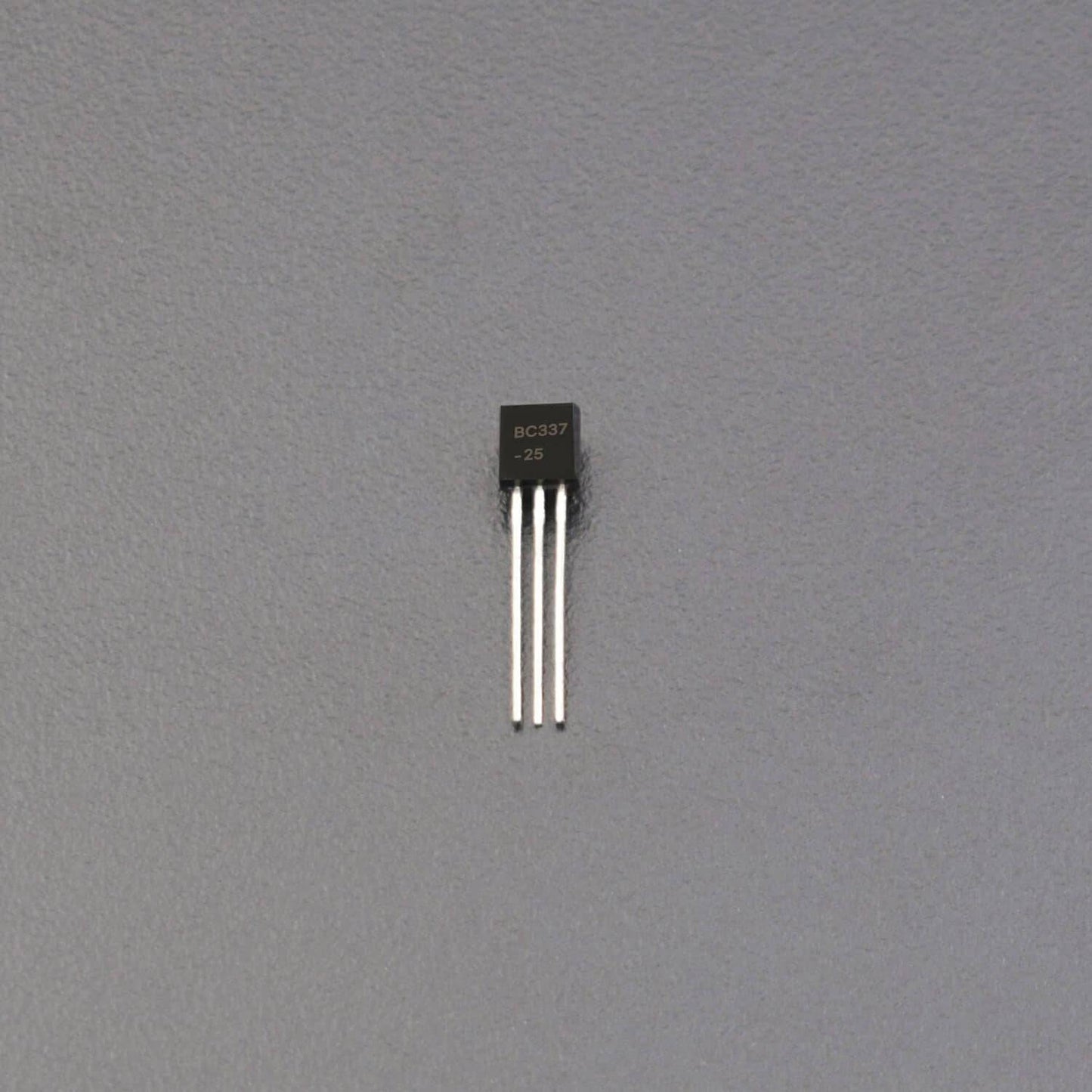

The BC337-25 is manufactured in a plastic TO-92 case. When looking at the flat side with the leads pointed downward, the three leads emerging from the transistor are, from left to right, the emitter, base, and collector leads.
Package Included:
1 x BC337-25 Bipolar Transistor
