- Input Voltage: DC 6-60V
- Display Precision: 0.1V
- Control Precision: 0.1V
- Output Type: Direct Output
Description:
This product is suitable for a 6-60V battery charging control and can set up the modes of charging voltage and stop charging voltage. Suitable for use in home chargers, solar energy, and Wind generator. Input charger 6-60v in the end, connect storage battery in OUT end. for example, setting the 12V start, and 15V stop, when the voltage is less than 12V, The relay closes and send the charging voltage of the charger to the battery, When the voltage is higher than 15V, the relay disconnect and stop charging discharges. Is quite intelligent, helping save electricity, and safe. Automatic power outage, save energy saves energy, and prolongs battery life.
Specifications:
- Input Voltage: DC 6-60V
- Display Precision:0.1V
- Control Precision:0.1V
- Output Type: direct output
- Voltage error:+/-0.1V
- Application Fields: 6-60V storage battery
- Size:81*54*24mm/3.19*2.13*0.94inch
Features:
- Suitable for use in the home charger, solar energy, Wind generator
- Input charger 6-60v in the end, connect storage battery in OUT end
- Is quite intelligent, helping save electricity, and safe
- Automatic power outage, save energy saving energy, prolonging battery life
Using Method:
In the setting of the voltage value, the start button plays the role of Up-adjust action, stop button plays the role of Down -adjust the action
- Set Starting Voltage: in a normal display voltage state, pressing the button will display the start charging voltage; long pressed for 3s the digital tube will flash; you can start or stop the button to set starting up charge voltage value
- Set Stop Voltage: in a normal display voltage state, pressing the button will display the stopping charge voltage; long press the button for 3s the digital tube will flash; you can start or stop the button to set the stopping charge voltage value.
- Factory Reset: in power on state press the start/stop button at the same time, and the digital tube will display 888; which represents factory reset settings.
Package Included:

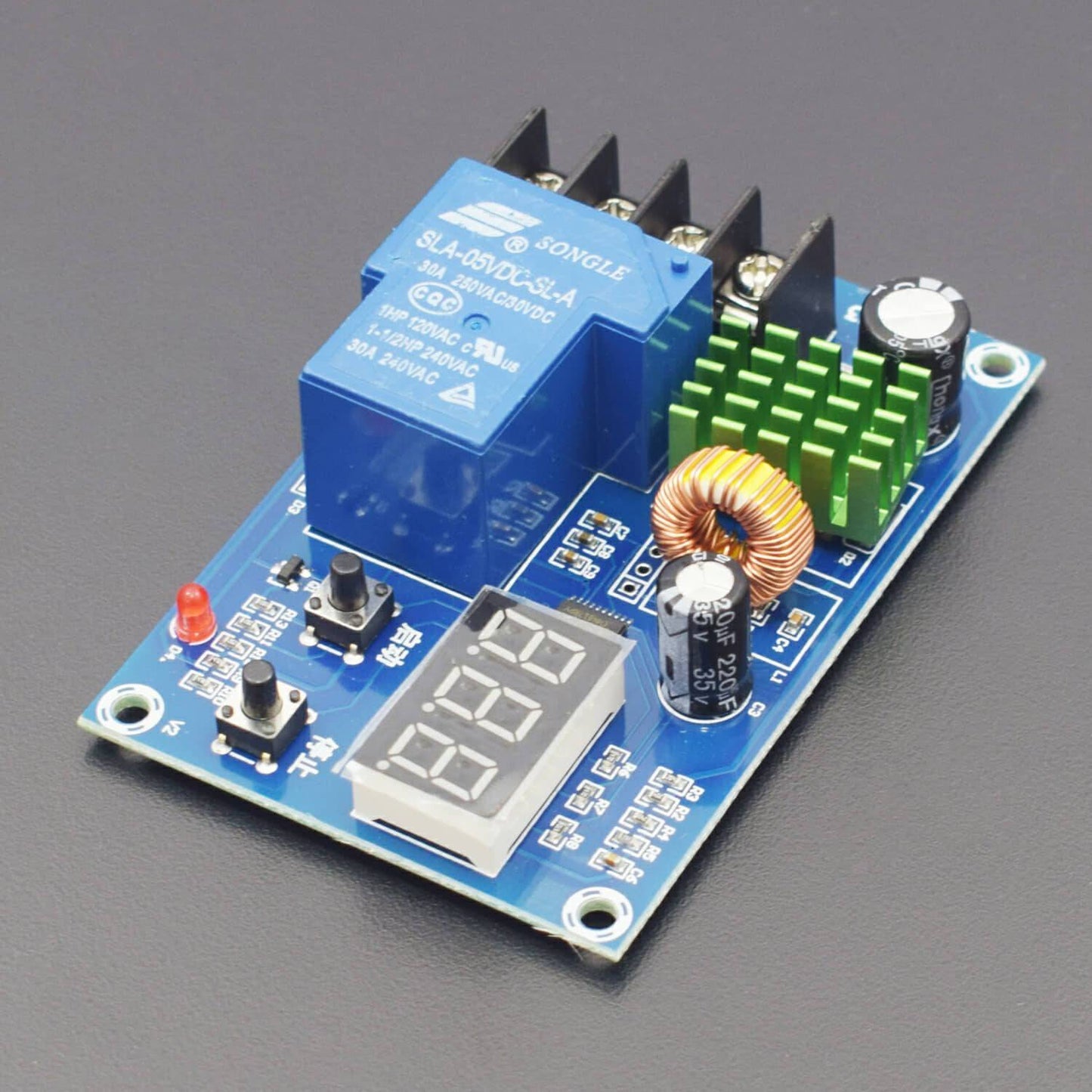

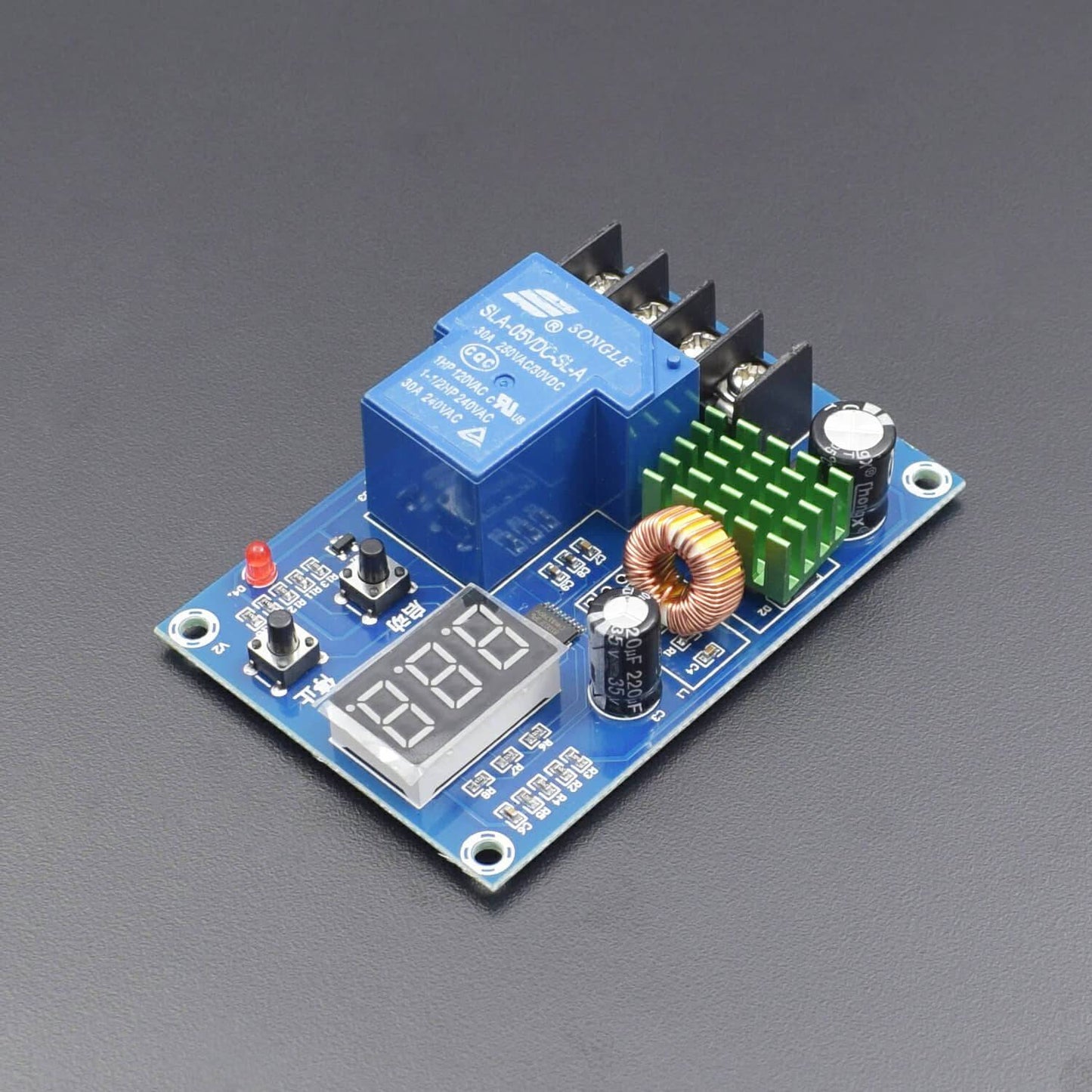

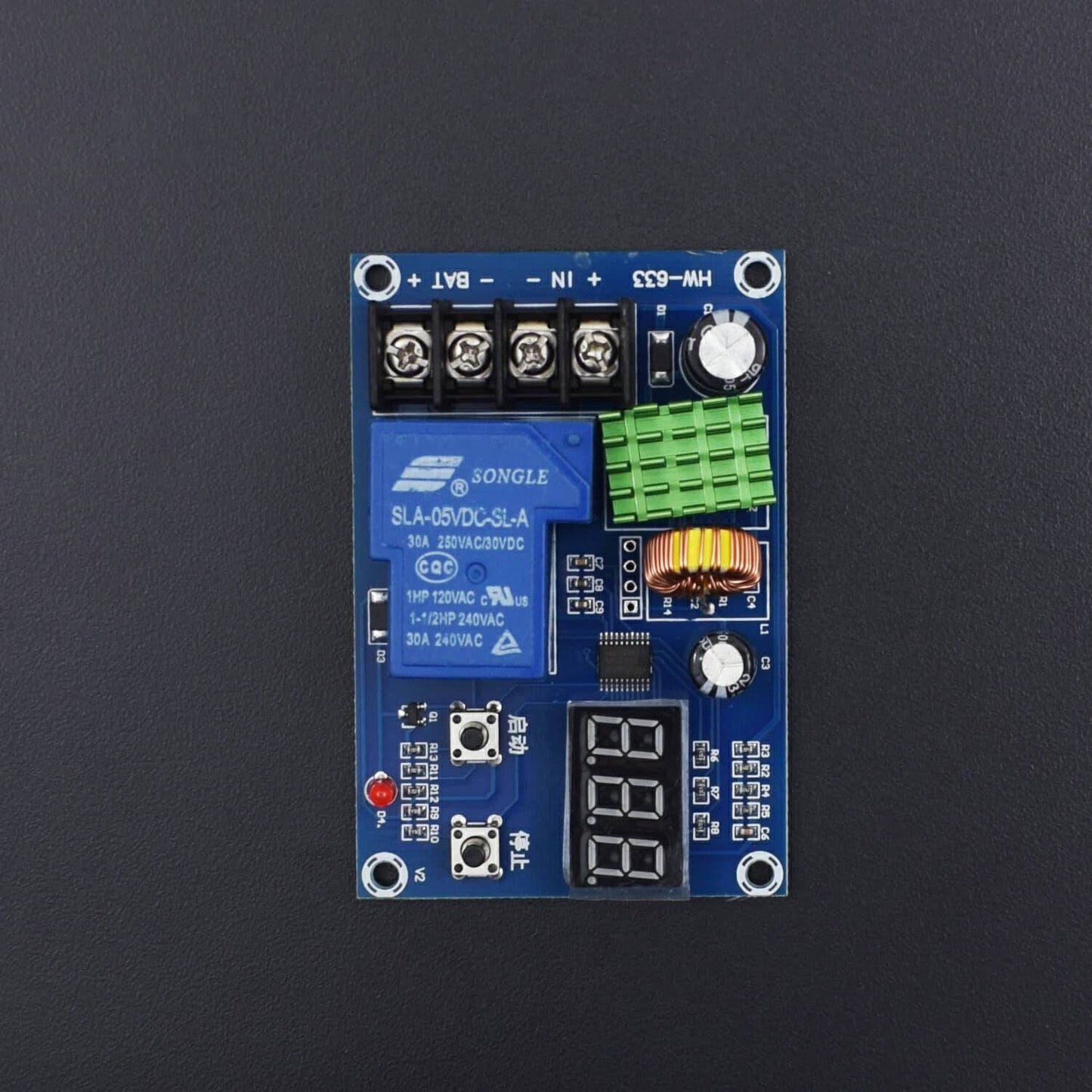

1 x Battery Charge Control Module-XH-M604 DC 6-60V Protection Board for Automatic Charging/Stop
