Description:

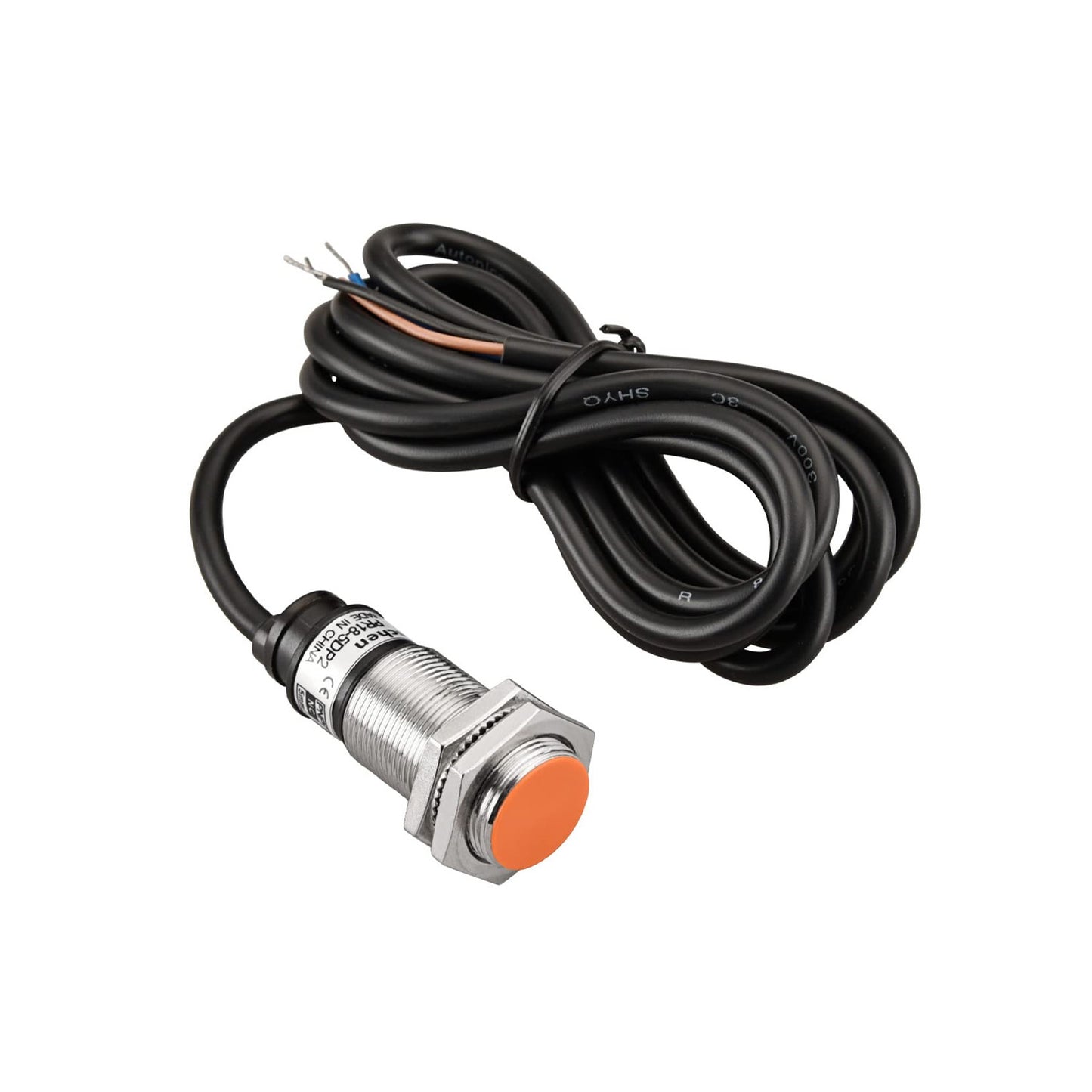

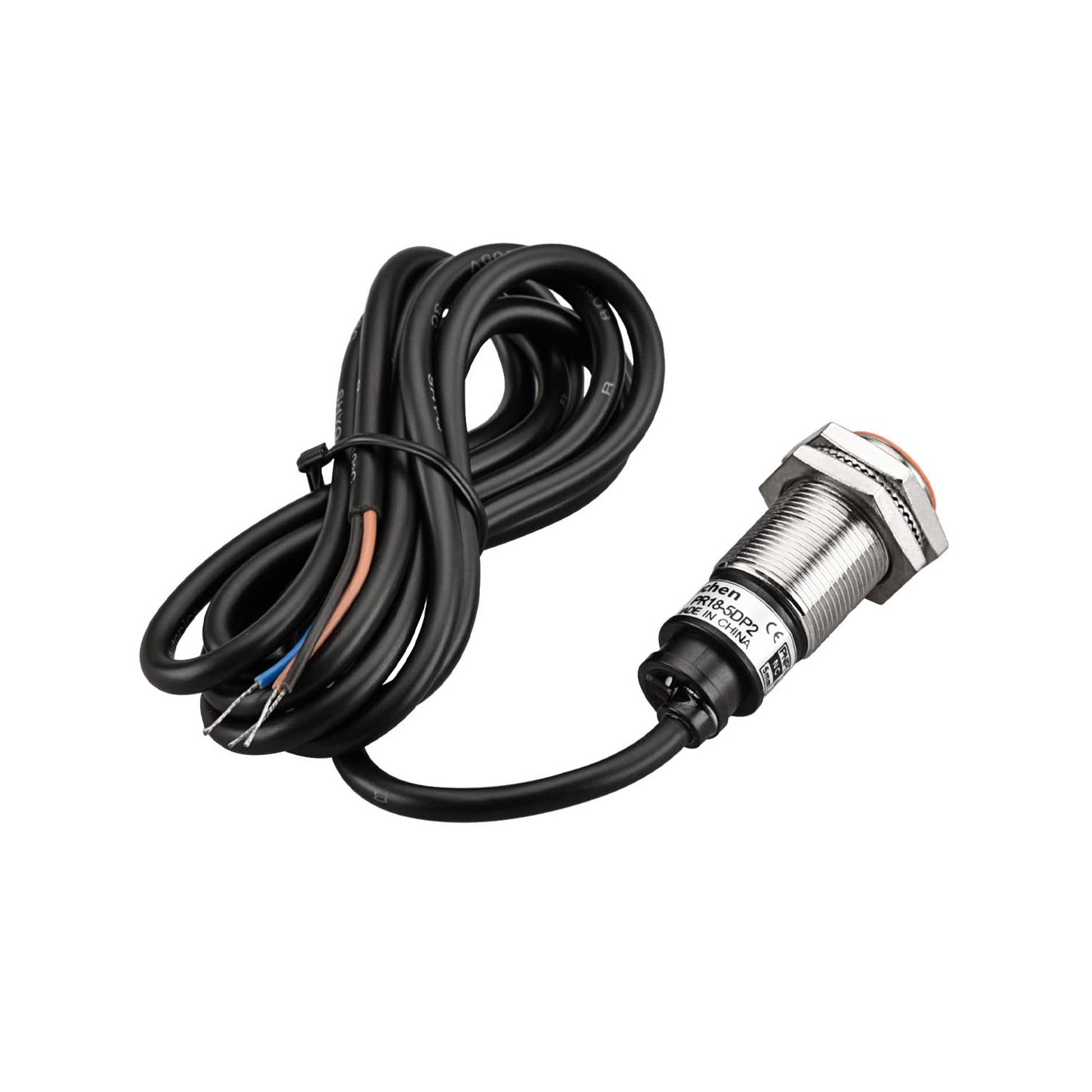

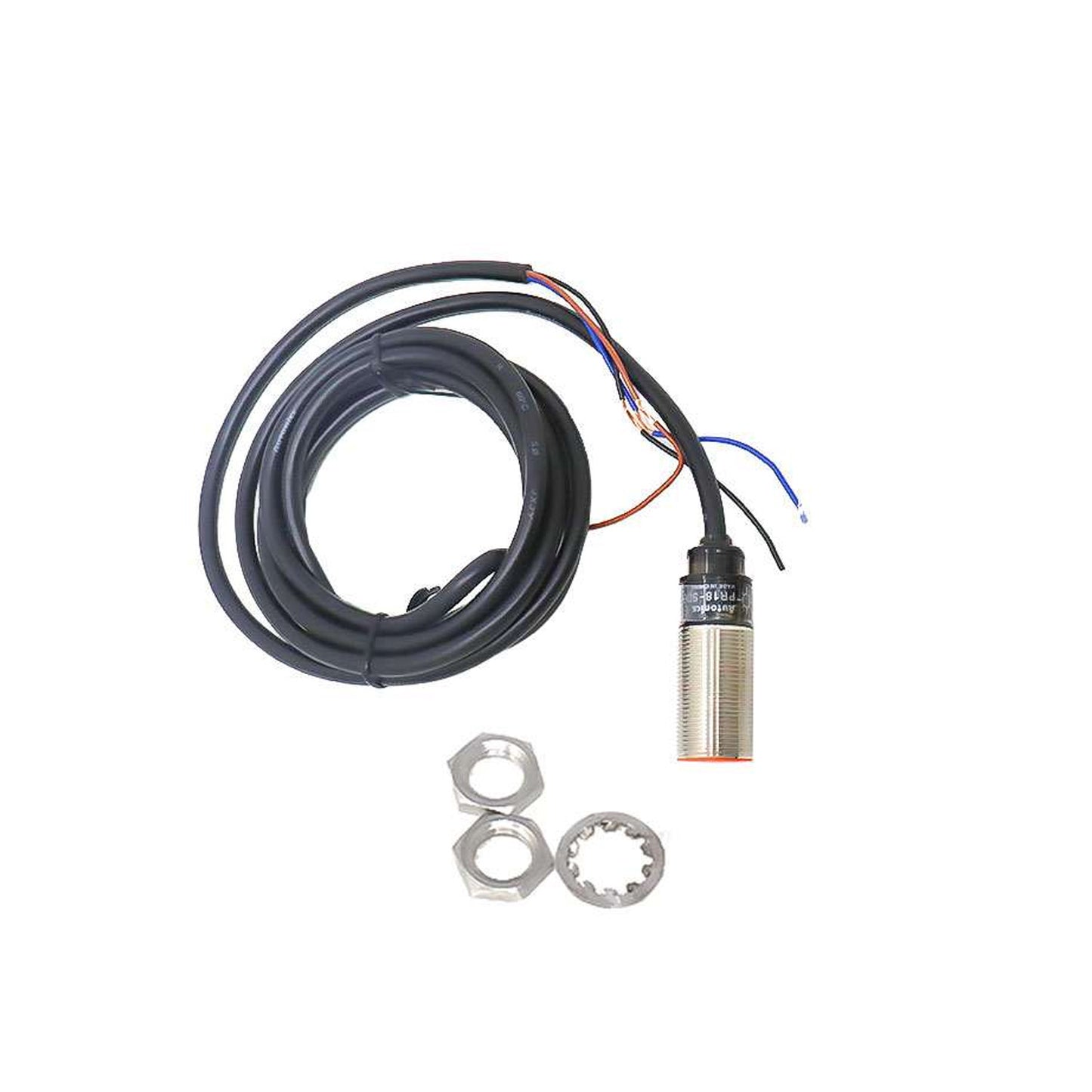

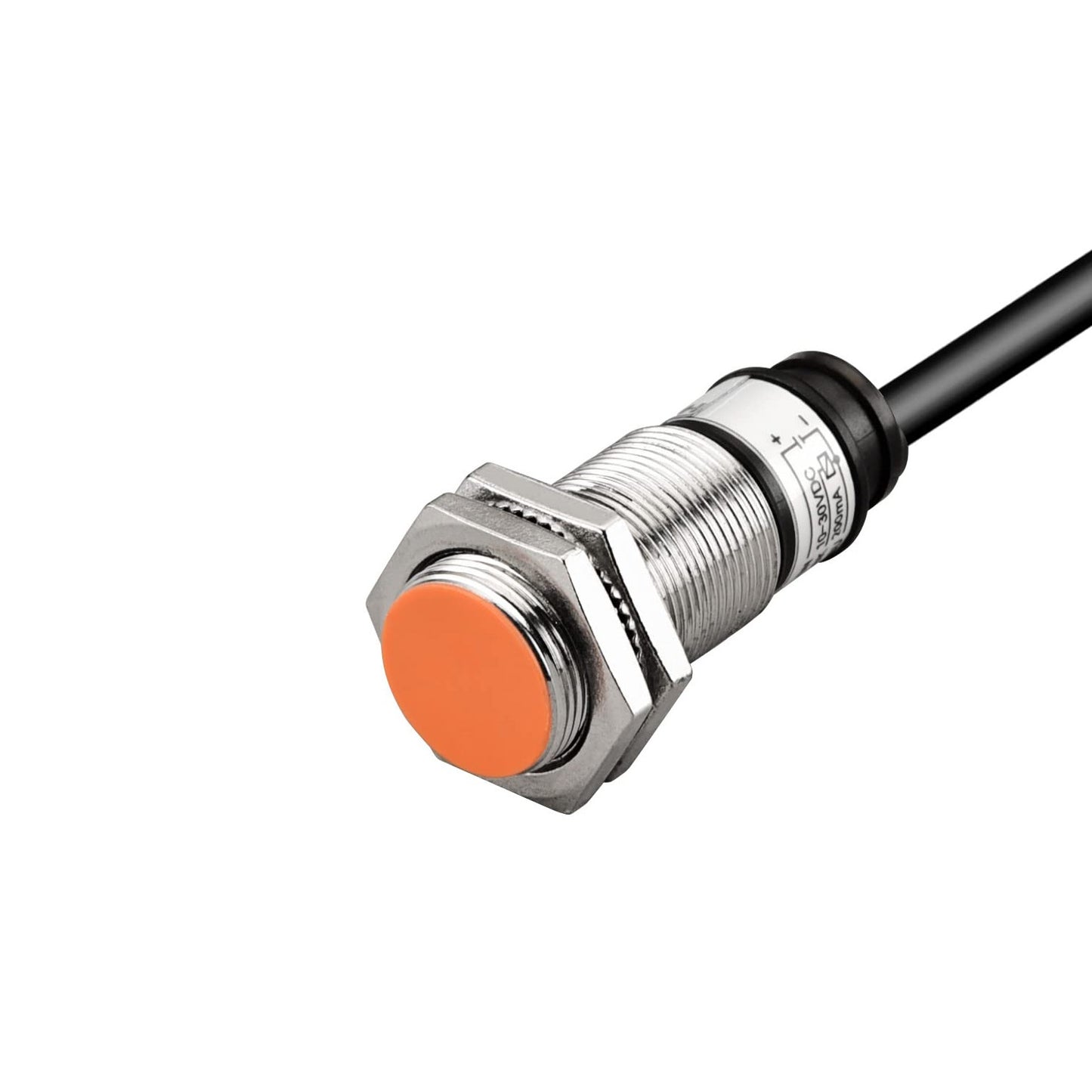

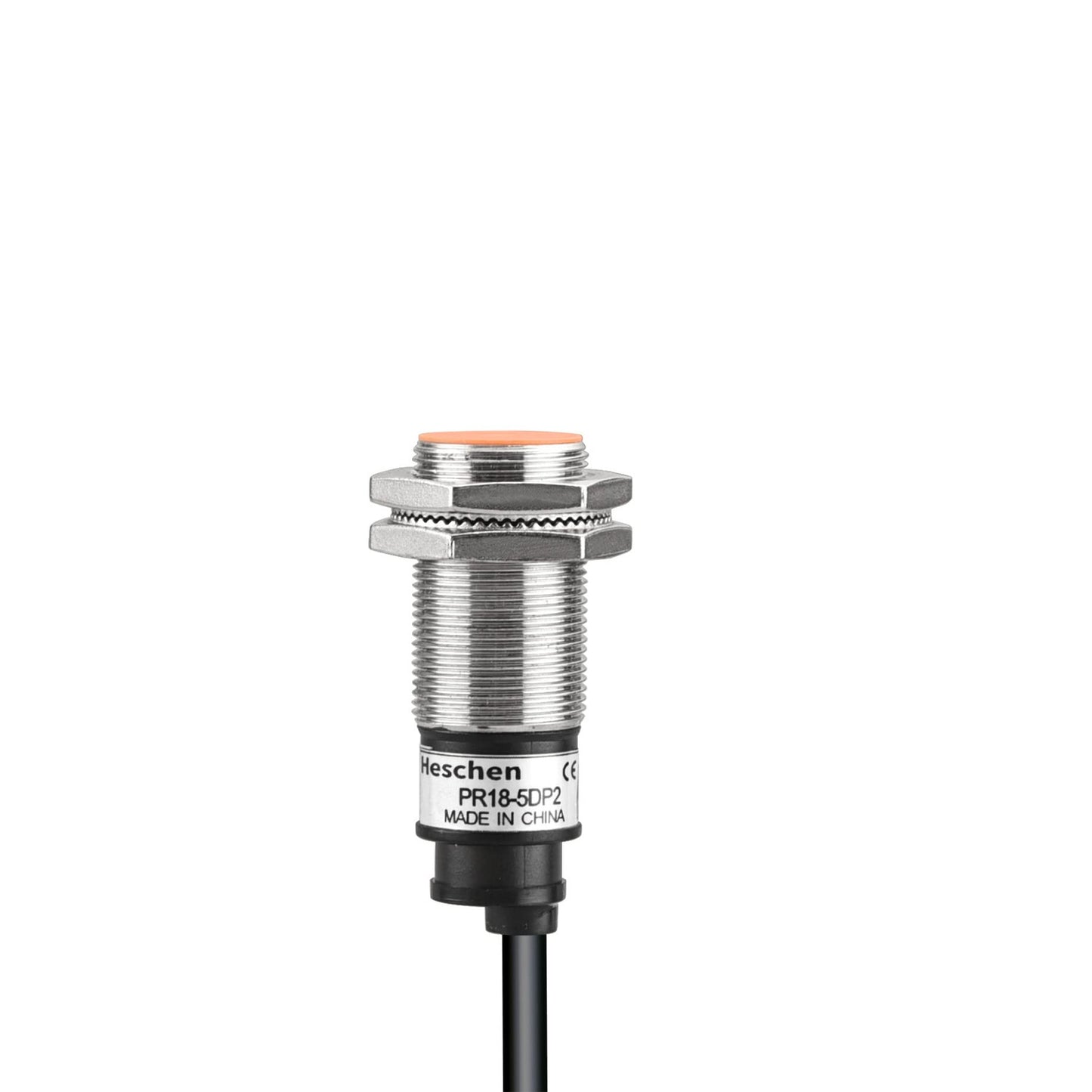

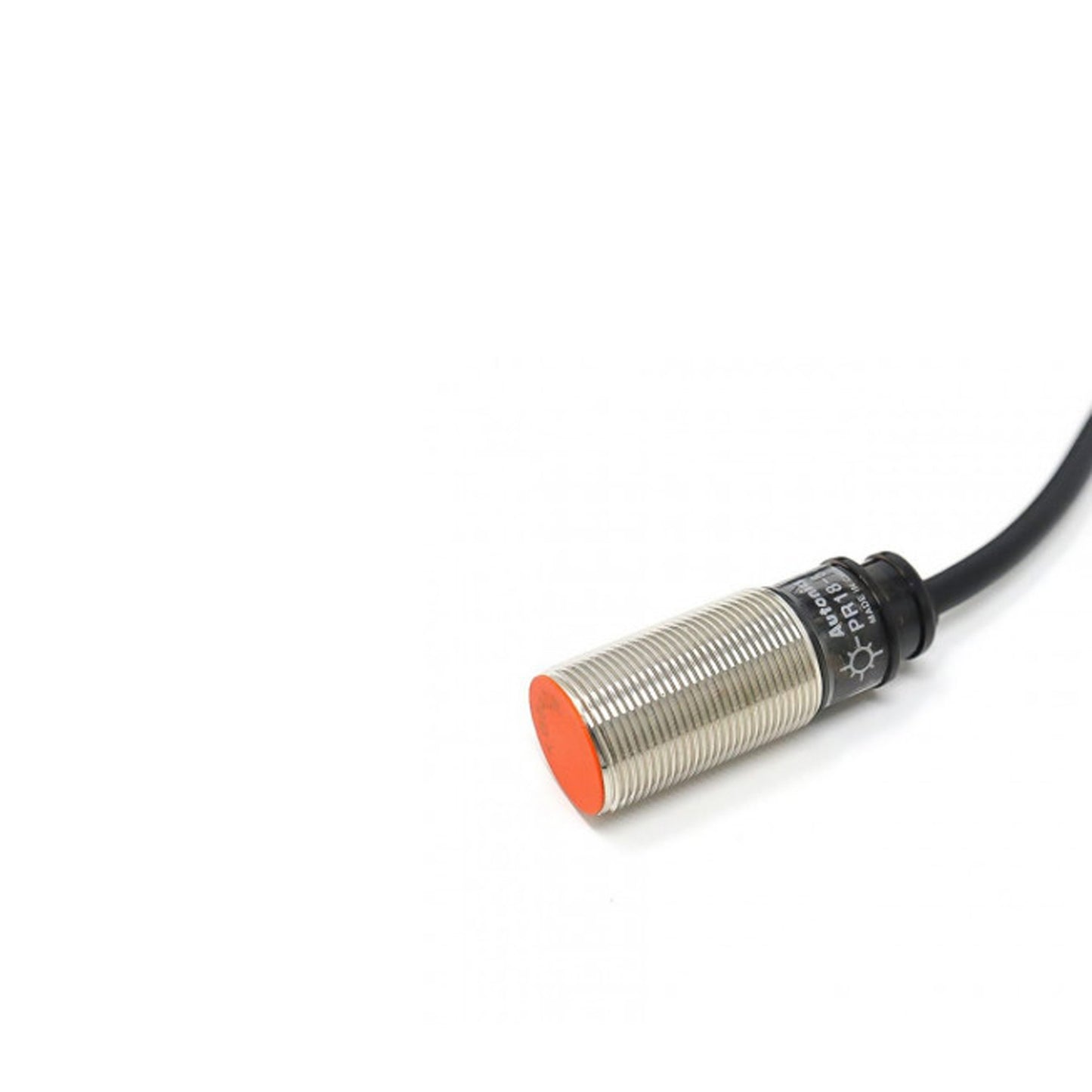

The Autonics PR18-5DP Inductive Proximity Sensor features solid sensing performance and excellent noise immunity with a specialized sensor IC developed by Autonics.DC 10-30V Sensor Available in various sizes and sensing distances, the standard cylindrical inductive Autonics M18 Inductive Proximity Sensor can be used in diverse applications requiring non-contact detection of metallic objects.
Specifications:
- Model: Inductive Proximity Sensor
- Operating Voltage: 10 ~ 30V DC
- Detection Distance: 5mm
- Outer Thread Size: M18
- Object Type: Inductive
- Output Type: PNP Normally Open Three-line
- Installation Type: Non-Flush (Unshielded)
- Max Output Current: 200mA
- Response Frequency: 500Hz
- Setting Distance: 0 to 3.5mm
- Insulation Resistance: 50M
- Operating Temperature: -25 to 70C
- Storage Condition: -30 to 80C
- Cable Dimensions: 5, 3-Wire, 2 Meter
Features:
- Long life cycle high reliability, and simple operation.
- IP67 protection structure (IEC standard).
- Replaceable for micro switches and limit switches.
- Built-in reverse polarity protection circuit (DC 3-wire type).
- Built-in surge protection circuit.
- Built-in overcurrent protection circuit (DC type).
- Improved the noise resistance with a dedicated IC.
Package Included:
1 x Autonics PR18-5DP Inductive Proximity Sensor DC 10-30V Sensor Autonics M18 Inductive Proximity Sensor PNP-NO Proximity Sensor With 5mm Sensing Distance Unshielded Metal Detection Sensor Industrial Automation Sensors
