Description:

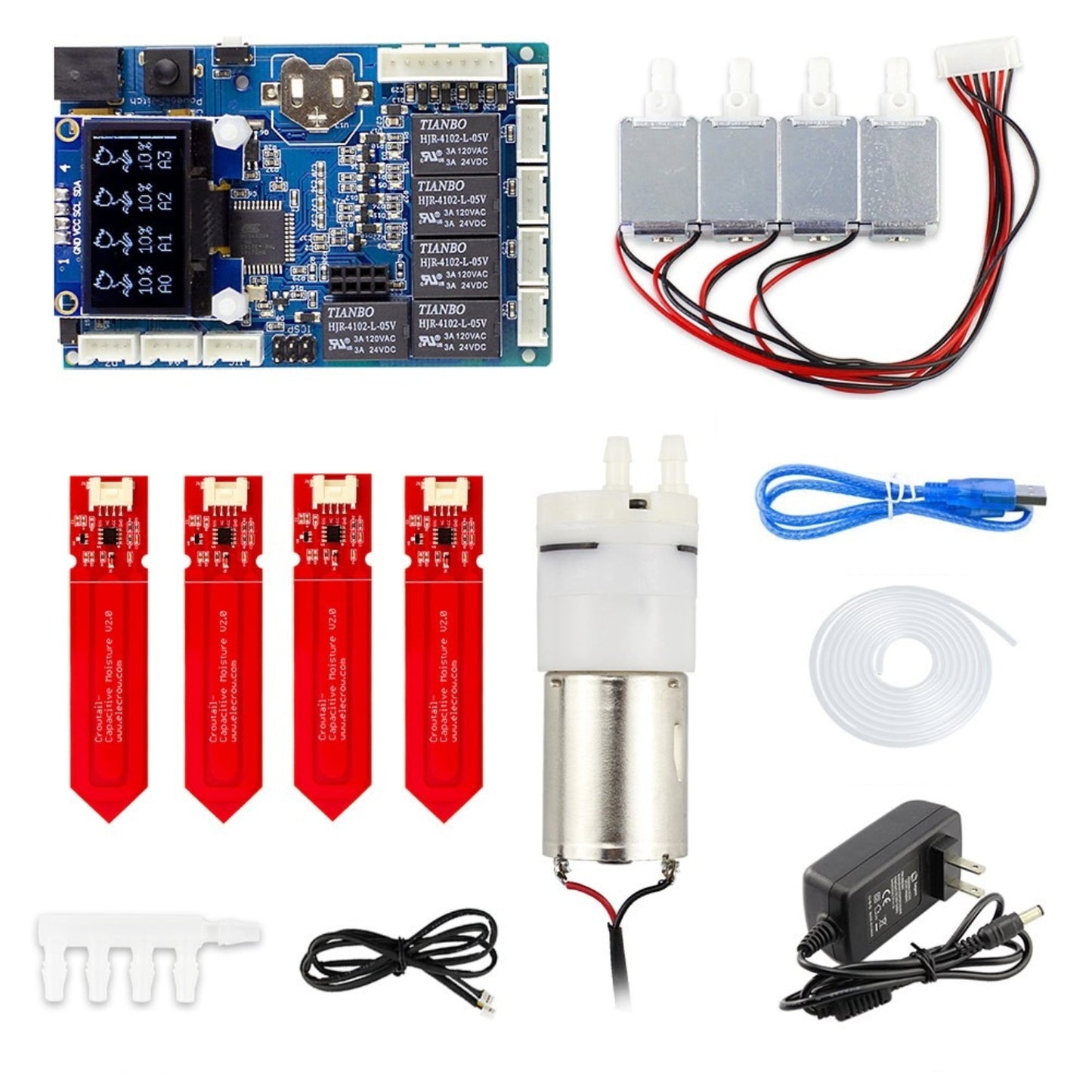

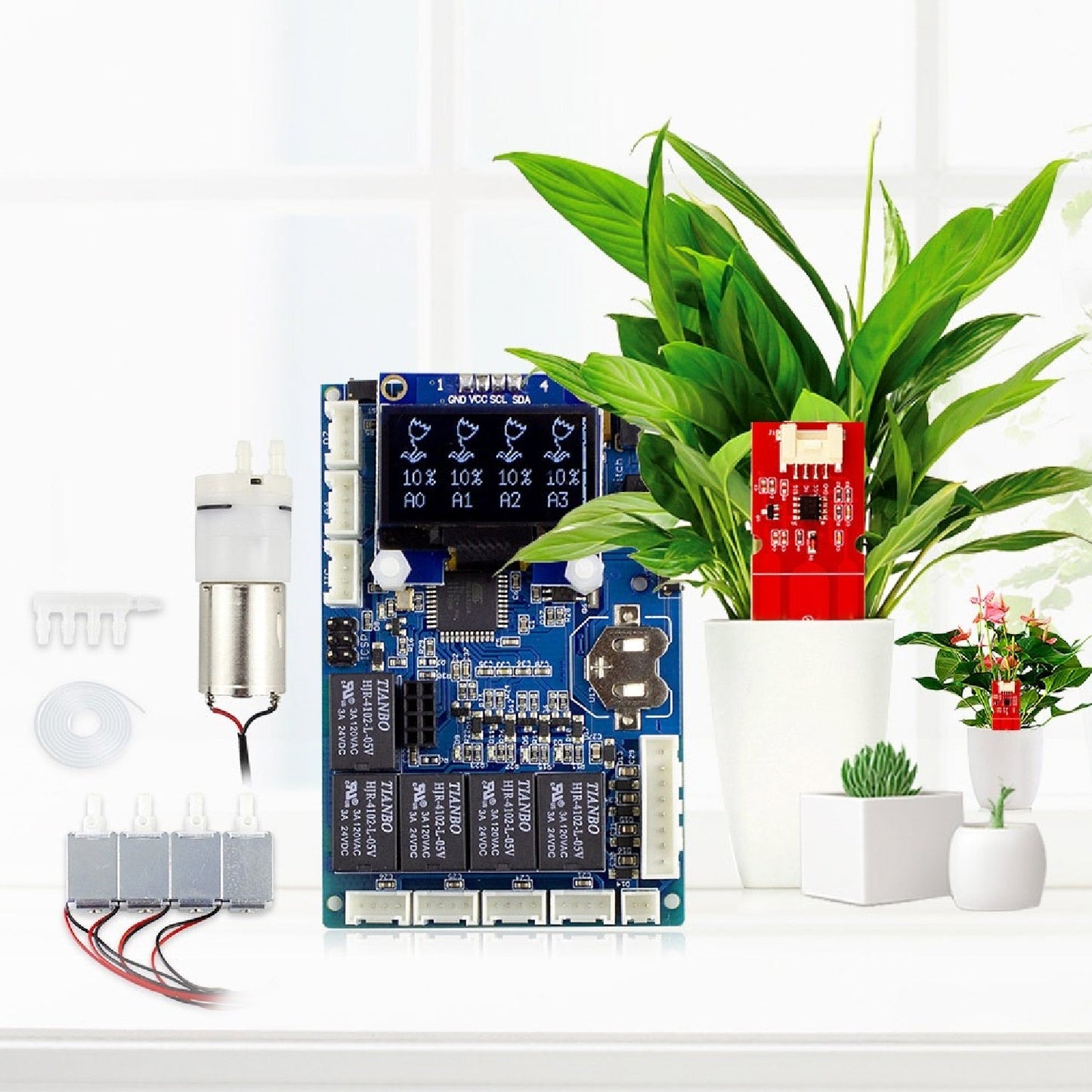

Our DIY Smart Plant Watering System 2.1 is based on Arduino Leonardo which has been integrated into the mainboard. We add an RTC to set timing watering and a 0.96 inch OLED to show the time and the soil moisture status. The smart watering system includes a pump, capacitive soil moisture sensors, a water switch to redirect the water to up to 4 plants, and pipes for the water to go through. Compared with the resistance moisture sensor, the soil moisture sensor is made of a corrosion-resistant material, which will provide a long service life. The Arduino Smart Watering Kit provides all your smart plant monitoring systems with ease of use and unlimited options!

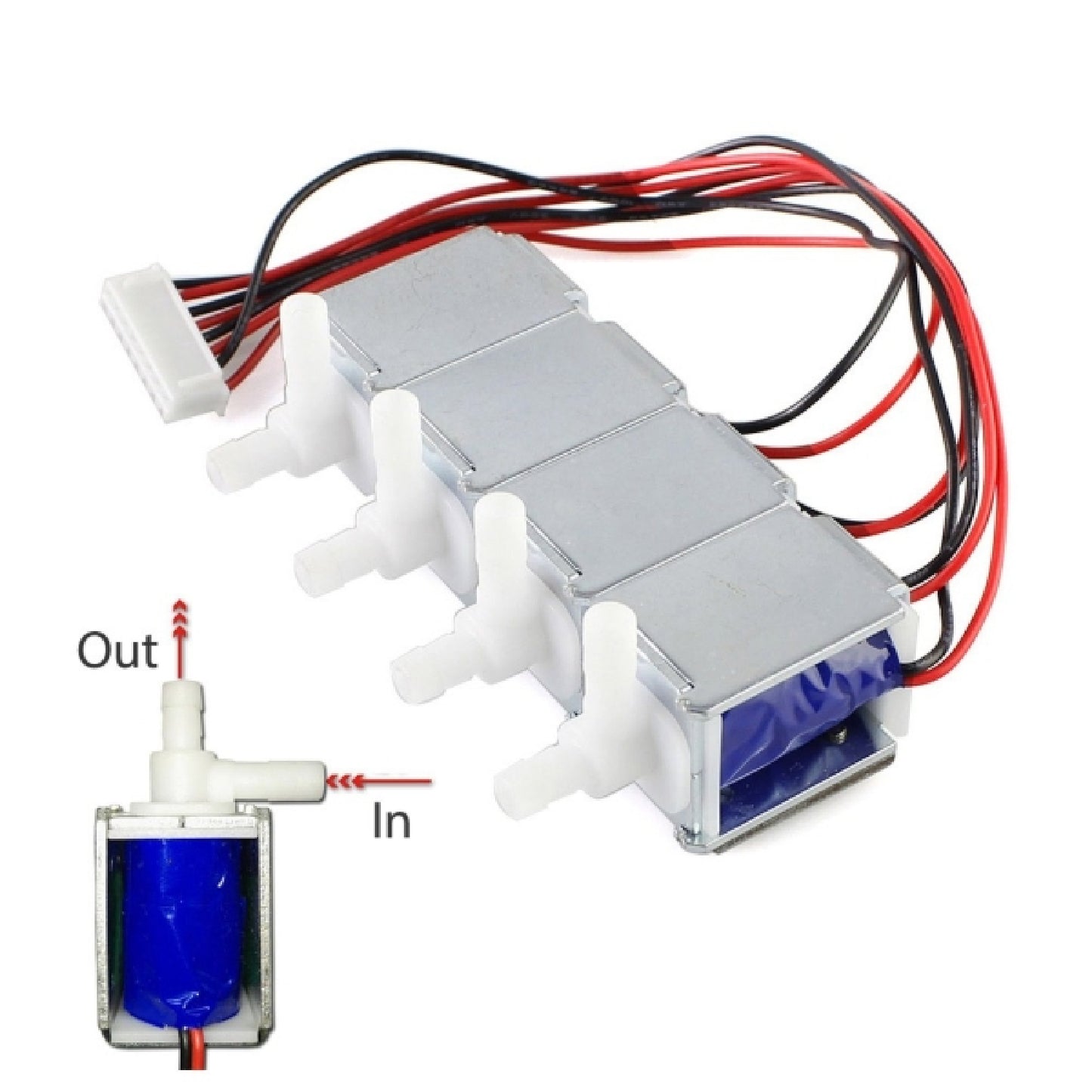

DIY Smart Garden Kit power the board after uploading the Arduino program we attached to the wiki, the board uses the 4 soil moisture sensors to determine the soil level in the plant. DIY Smart Plant Watering System board will send the command to the switch to open a specific channel for a specific plant that needs water currently (up to 4 plants at once). Afterward, the board will send the command to turn on the pump and suck water into the switch, the switch will separate the stream and will give just enough water for your plants. Then it will close the pump and the switch and continue to check when your plant needs water.This board is different from the last version, it only can be used for the smart watering system.
Note: Please use the DC power to power the board first when you try to upload new code into it.
Specifications:
- Length of water pipe: 5m
- Length of 4 Pin Crowtail cable: 1m
Features:

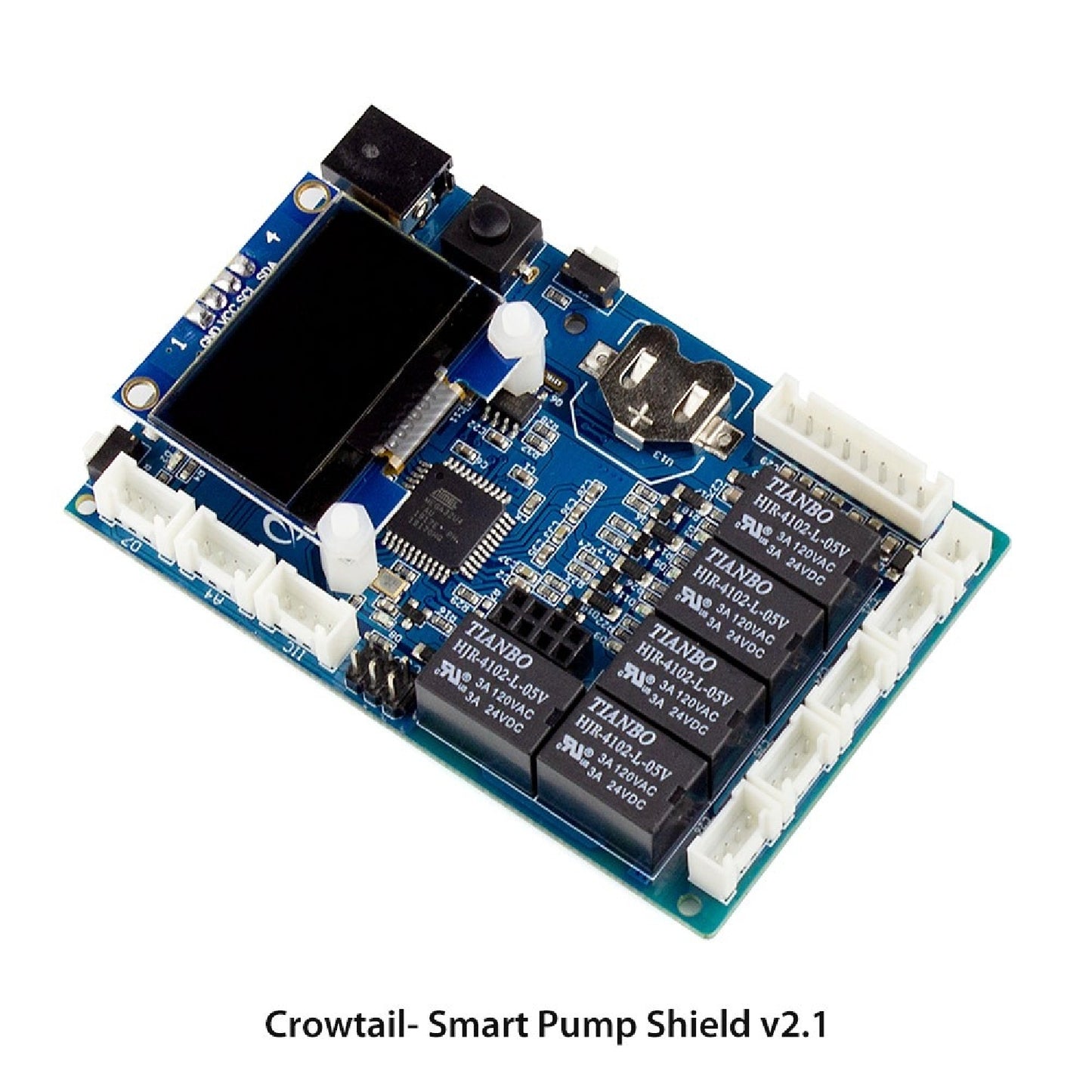

- Integrated Arduino UNO into the mainboard, program it easily.
- Eliminates the need for messy jumpers and breadboards, connect all sensors and modules with ease.
- Power the board with a single 12V power supply directly.
- 4 interfaces for sensors, one interface for water switch and one interface for motor or pump.
Package Included:

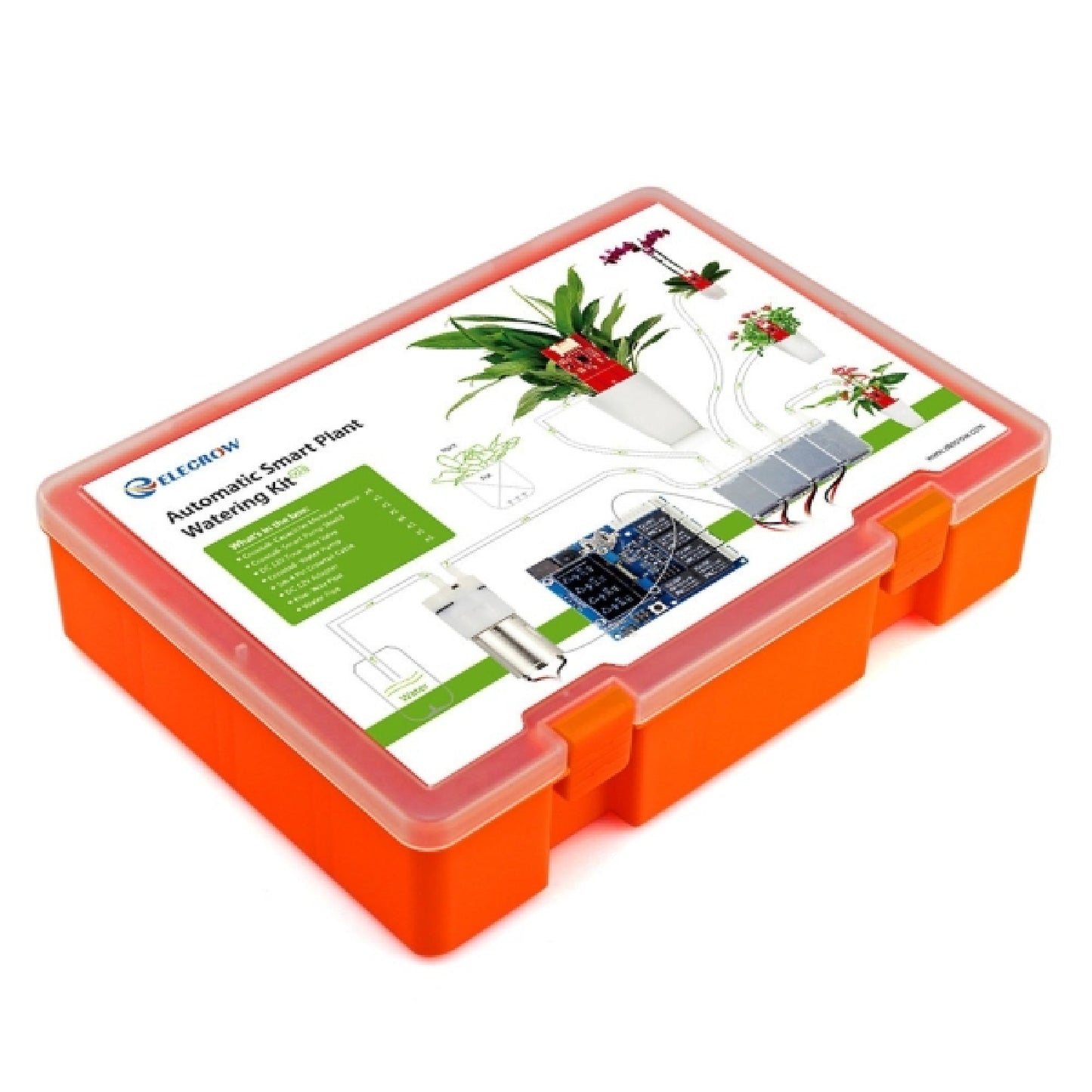

1 x Automatic Smart Plant Watering Kit 2.1 for Arduino DIY Arduino-Based Automatic Plant Watering Kit Are Effortless Plant Maintenance For Indoor Plant Care
