ATTINY85 Development Board ATTINY85 USB Development Board ATTINY85 Module - NA081

ATTINY85 Development Board ATTINY85 USB Development Board ATTINY85 Module - NA081

SKU:NA081

176 in stock

Regular price Rs. 215.00
Regular price Sale price Rs. 215.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

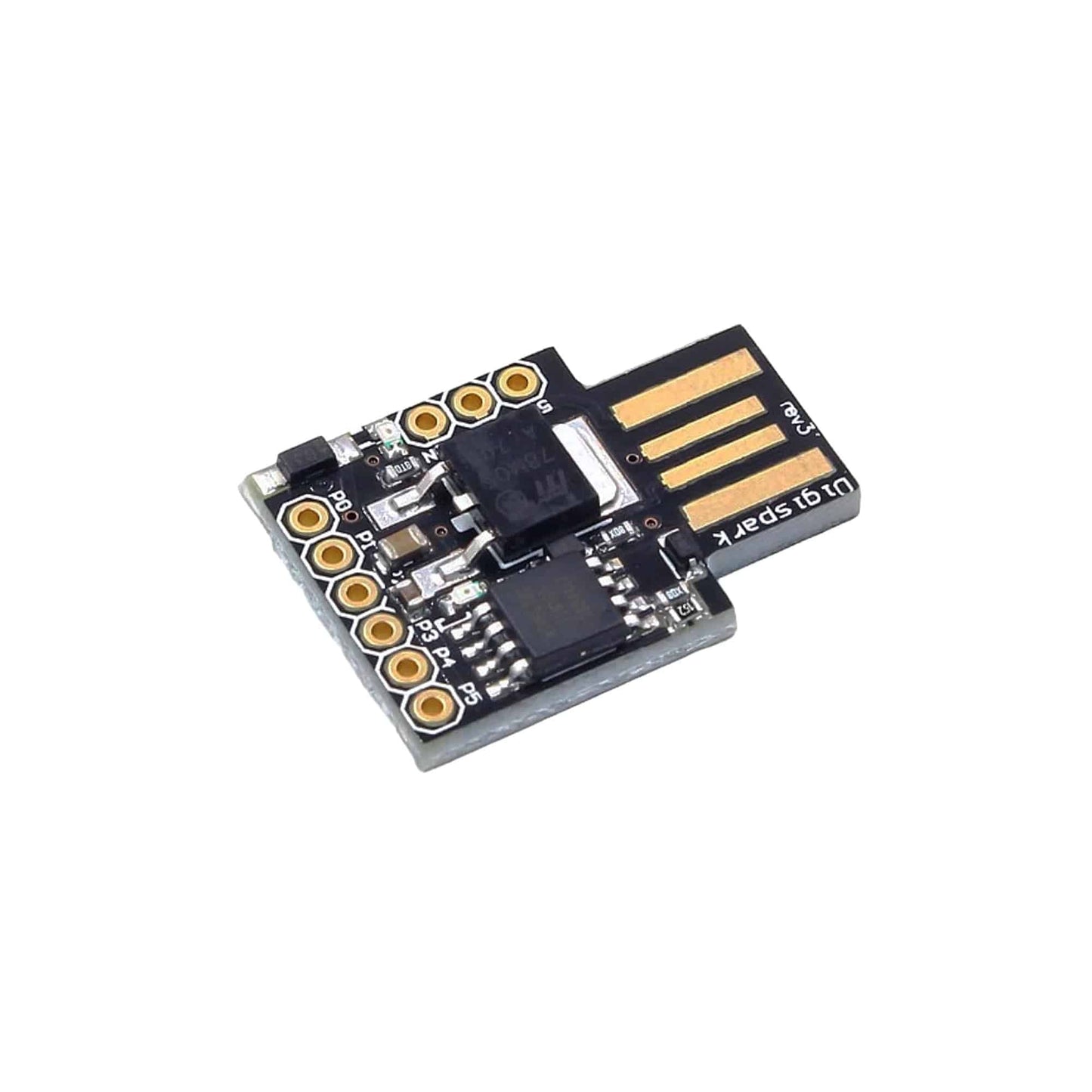

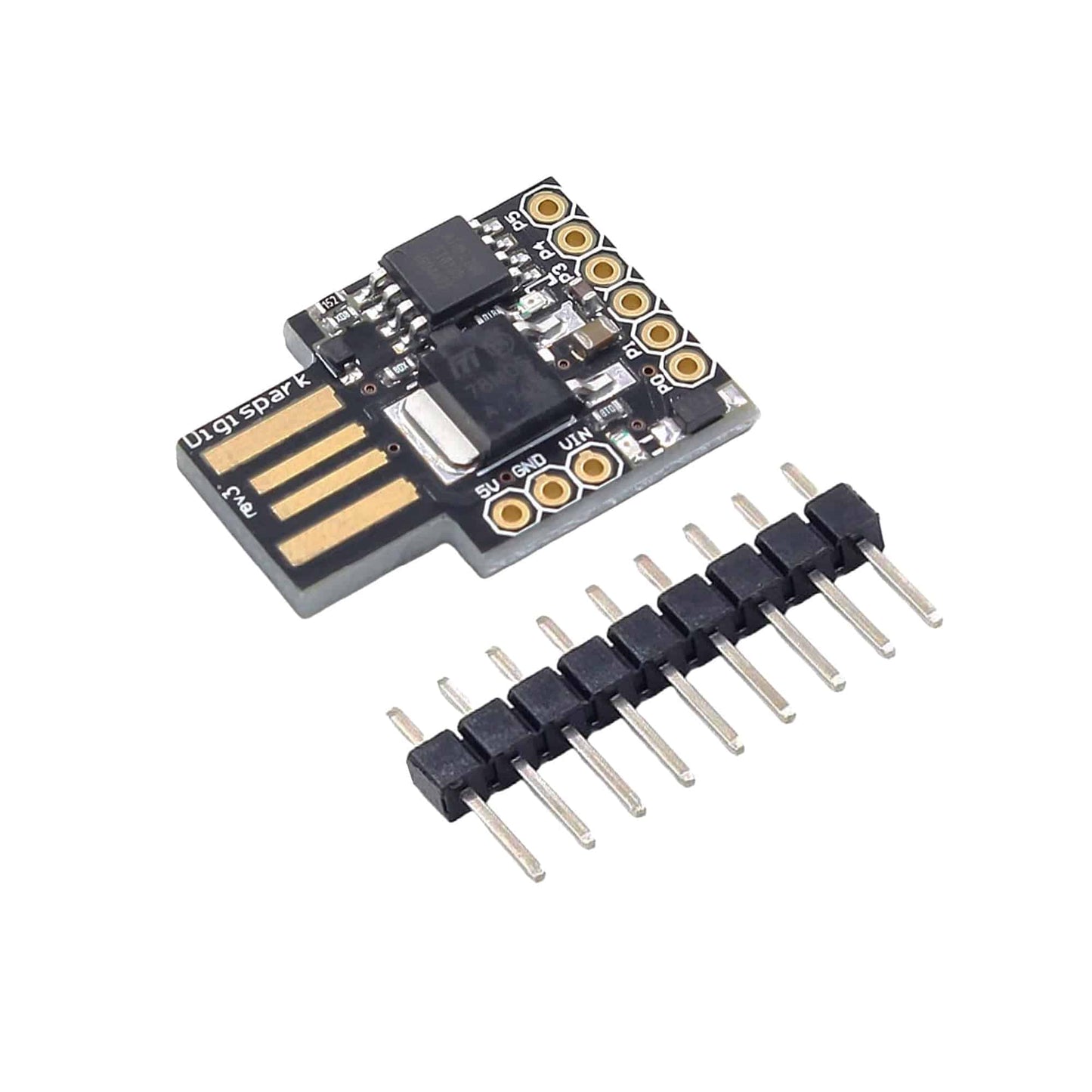

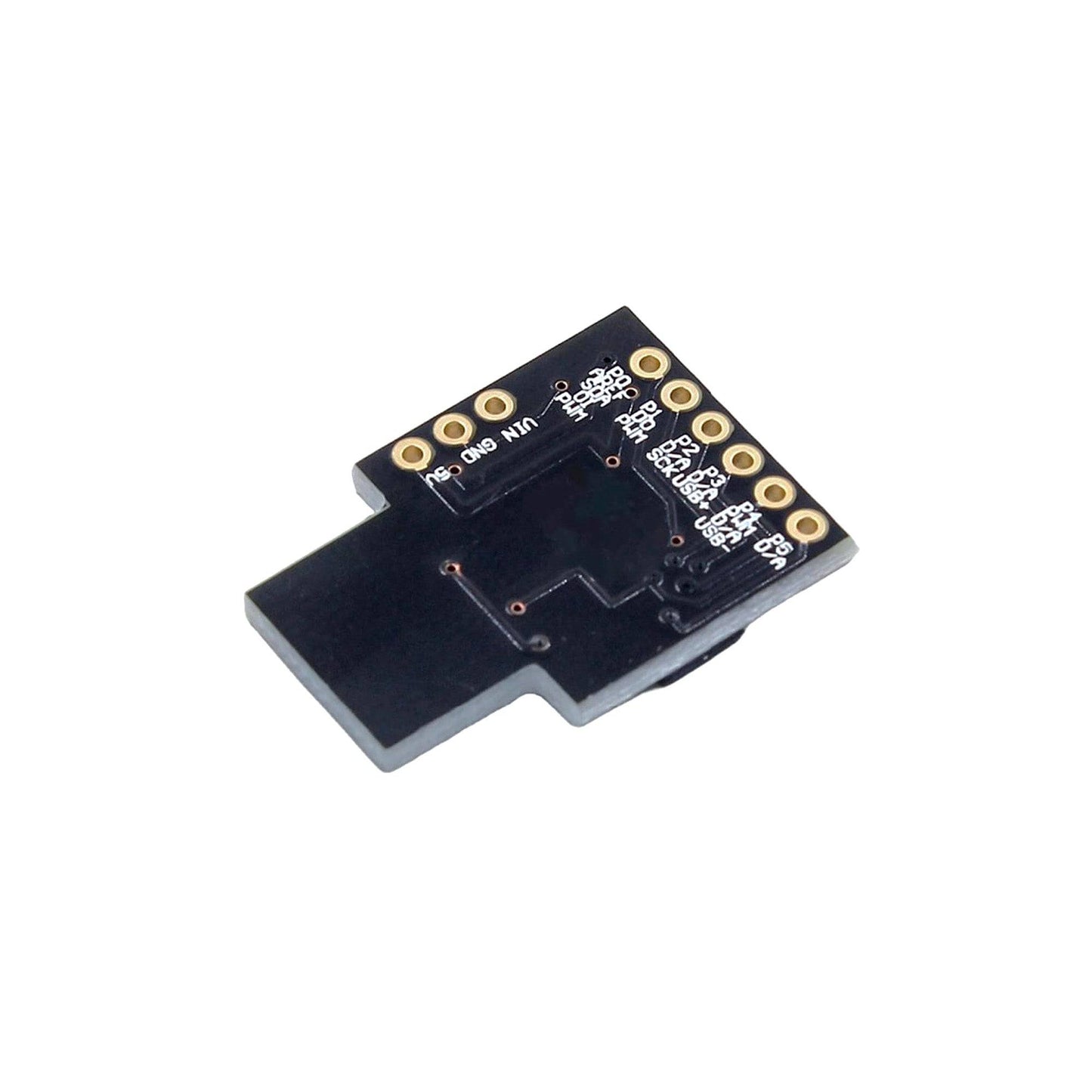

The ATTINY85 Development Board is similar to the Arduino, but cheaper and smaller (of course a bit less powerful). With a whole host of shields to extend its functionality and the ability to use the familiar Arduino IDE, this ATTINY85 Development Board is a great way to jump into microcontroller electronics.

ATTINY85 Development Board come with a USB interface. Coding is similar to Arduino, and it uses the familiar Arduino IDE for development. This is a digispark clone. ATTINY85 Development Board has 6 ports with several functions. Depending on the programming (with Arduino IDE) can it have 6 digital I/O, 4 analog inputs or 3 PWM outputs? It can be powered by a USB port or an external power supply of 6-35V DC.

Features:

  • Support for the Arduino IDE 1.0 + (OSX/Windows/Linux)
  • Power via USB or External Source or 7-16 v to 5 v (automatic selection)
  • The On–board, 150 ma 5 v Regulator
  • Built-in USB and serial was debugging)
  • 6 I/O Pins (2 inform the for USB only if your program actively communicates over USB, otherwise you can use all 6 even if you are programming via USB)
  • 8 k Flash Memory (about 6 k after bootloader)
  • The I2C and SPI (vis USI)
  • PWM on 3 pins (more possible with Software PWM)
  • The ADC on 4 pins
  • The Power LED and the Test/Status LEDs

Package Included:

1 x ATTINY85 Development Board ATTINY85 USB Development Board ATTINY85 Module
