Description:

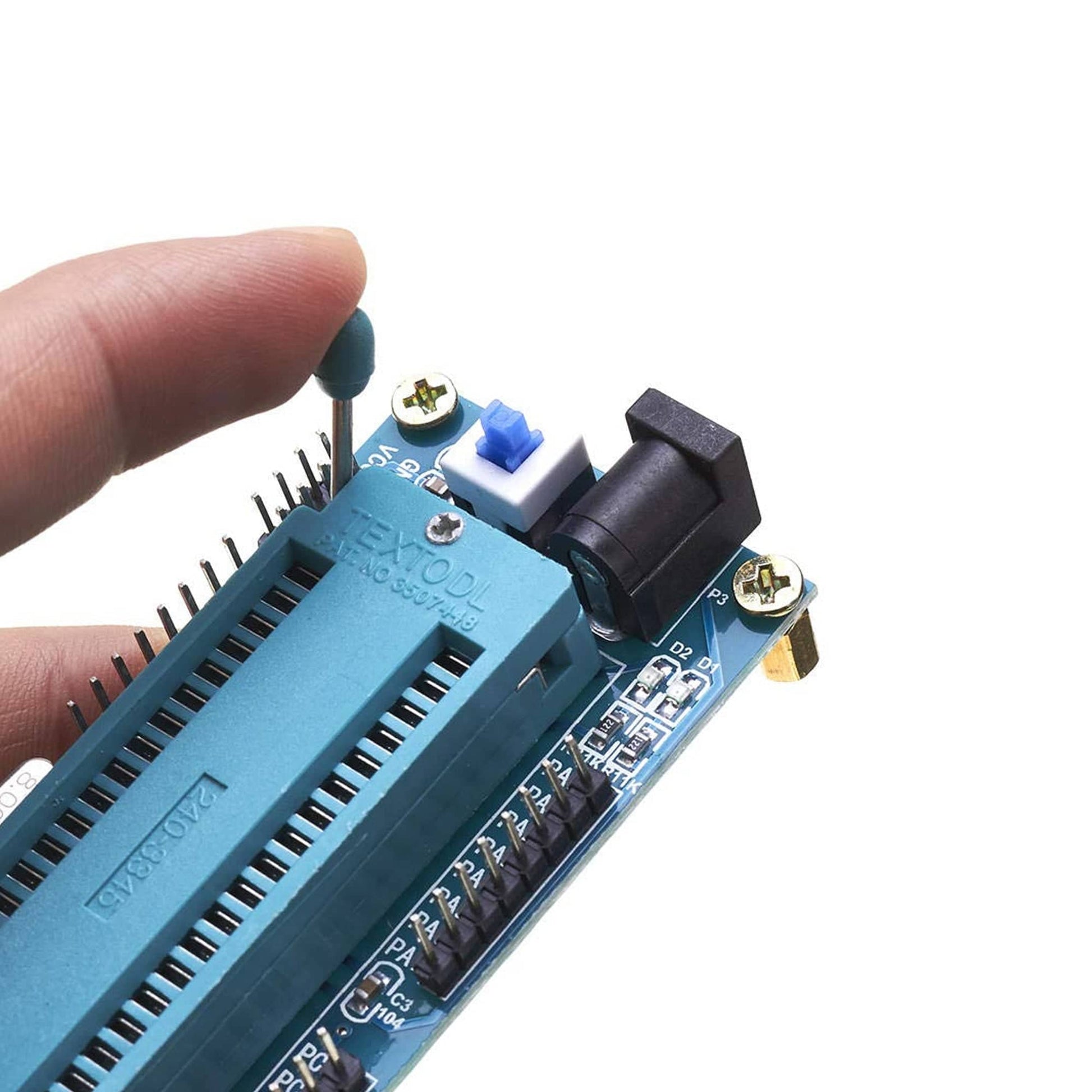

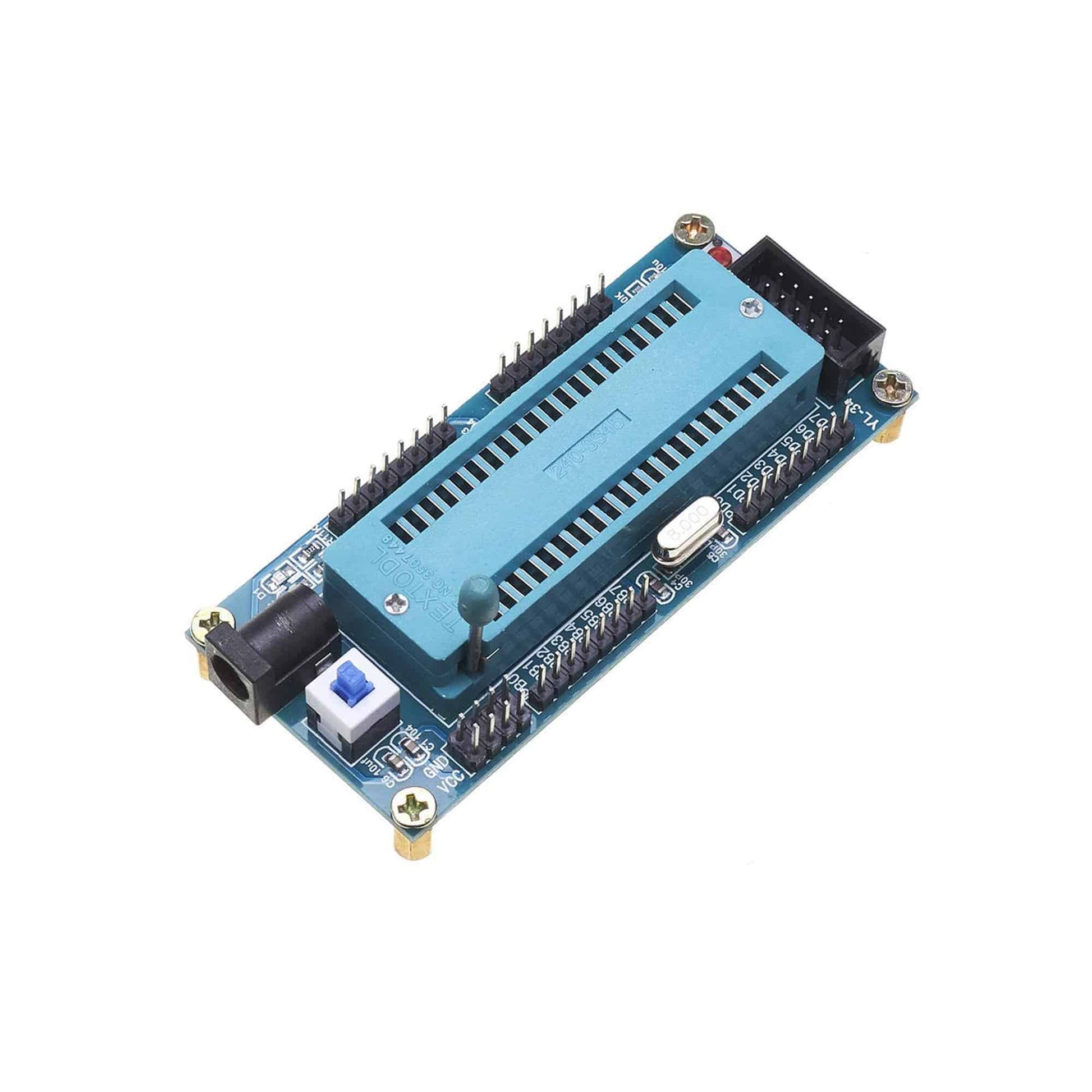

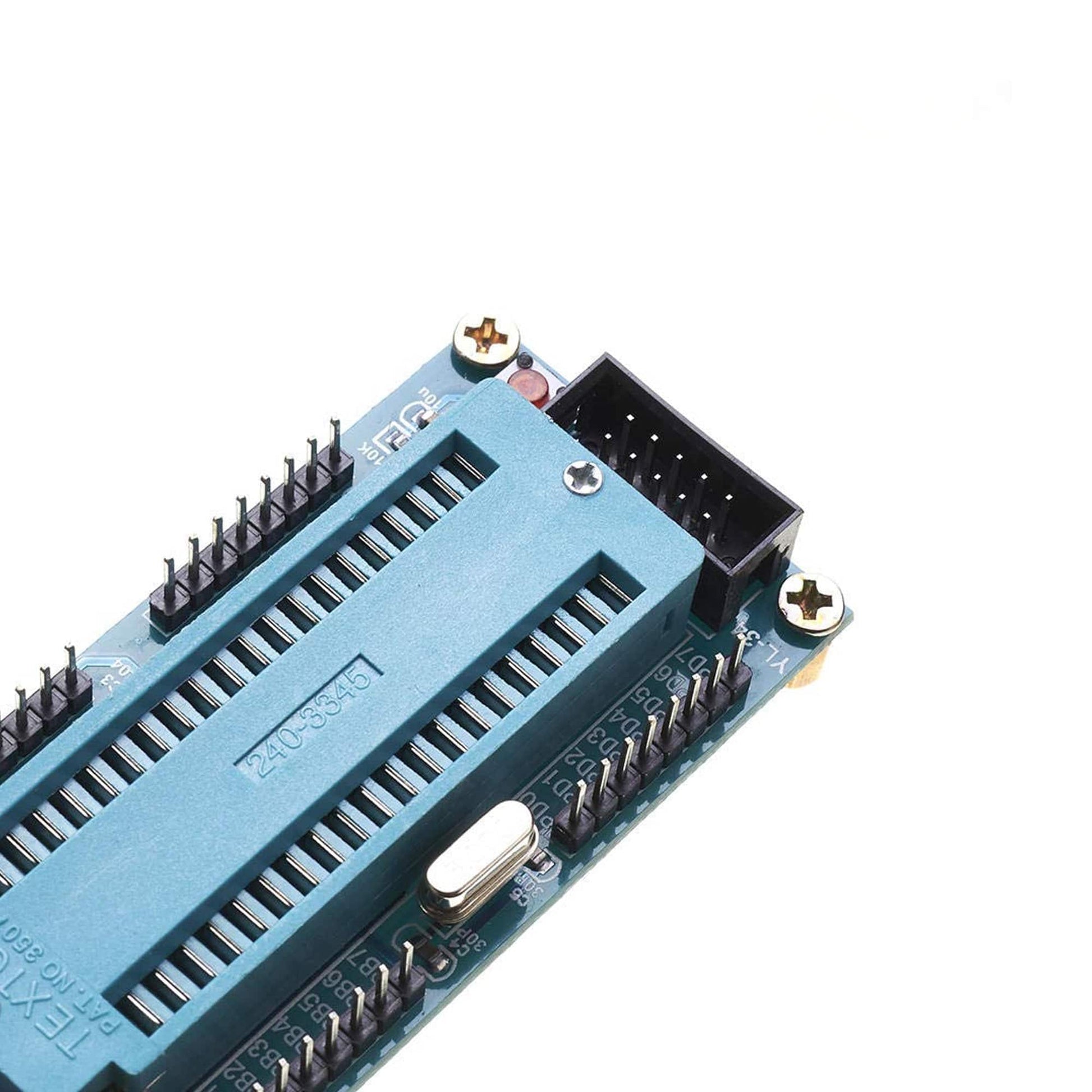

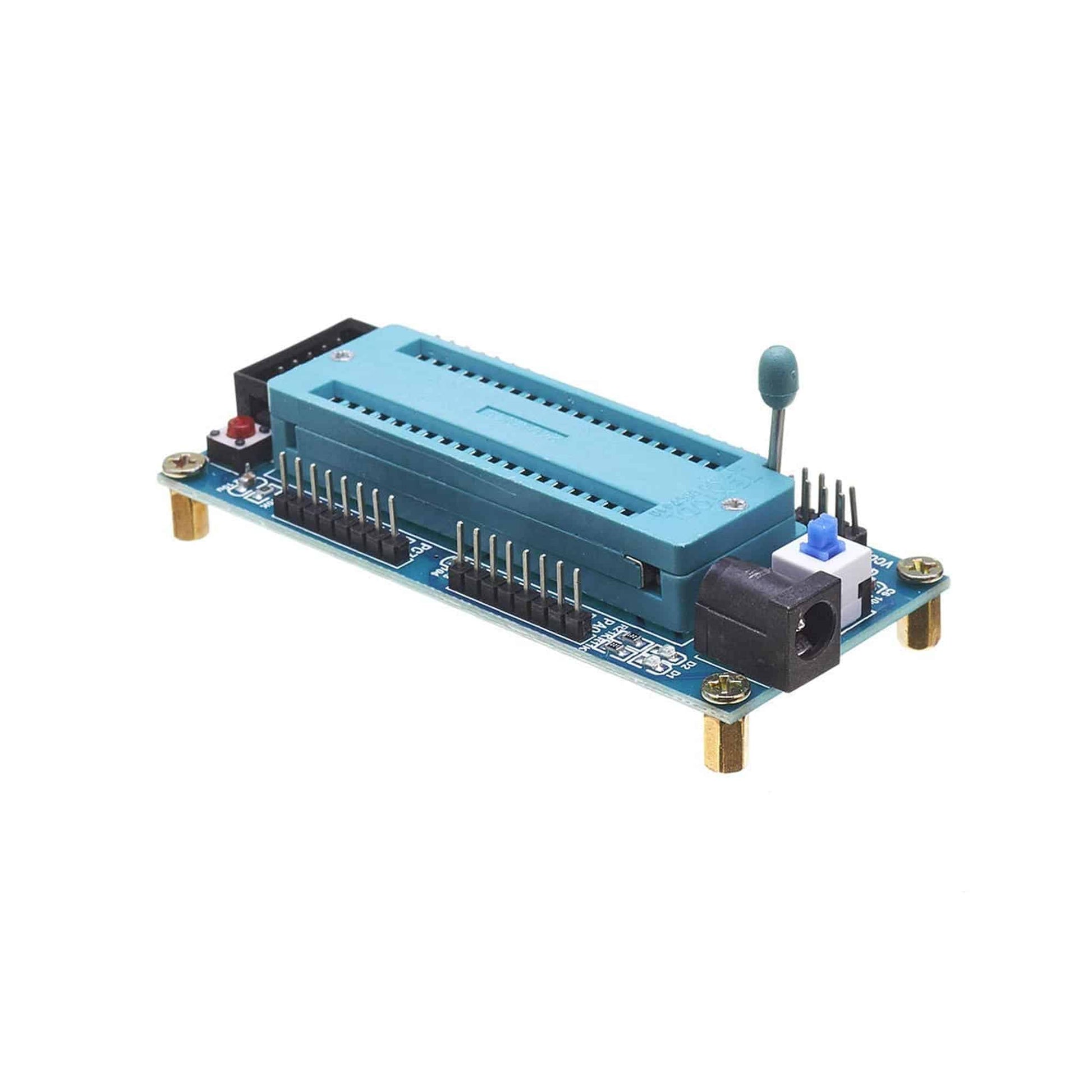

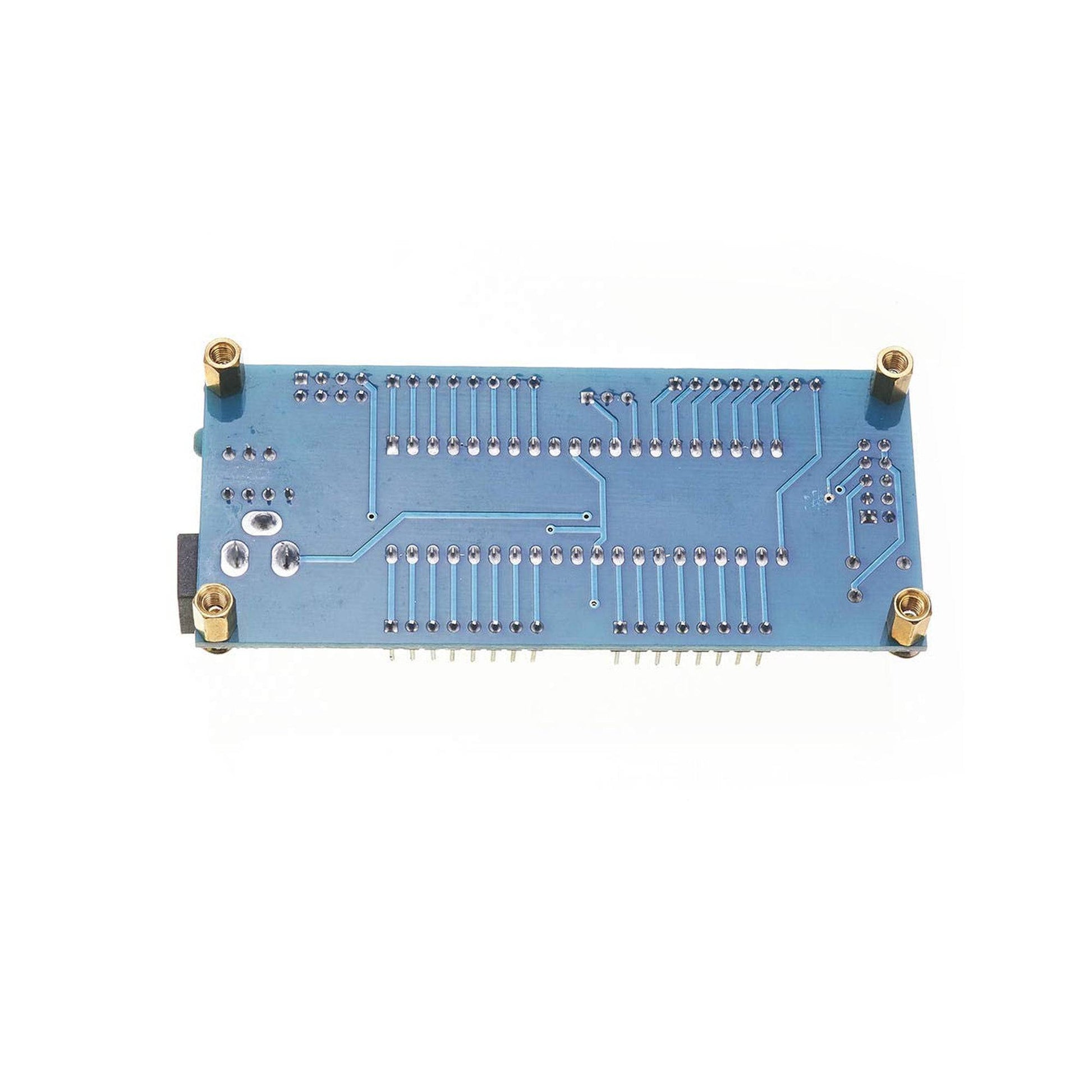

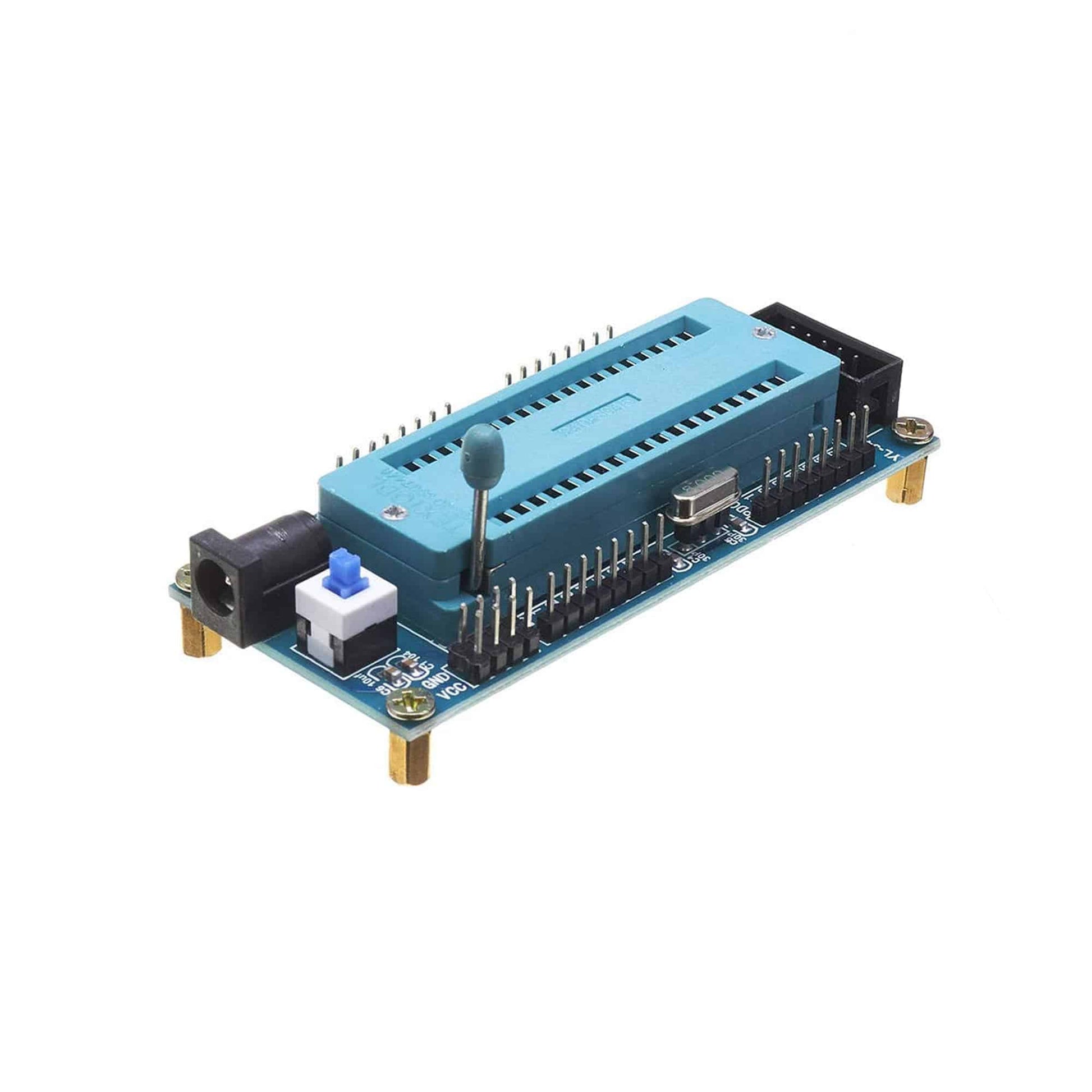

This is the ATMEGA16 Minimum System Development Board.
Getting a personal ATMEGA16 Minimum System Development Board will help to stimulate your intelligence and inspiration. A bare board may sometimes be more helpful than an assembled one for a learner. Come here and have a look at our ATMEGA16 Minimum System Development Board ISP Atmega16 Atmega32.
Adopting top-quality material and with advanced techniques, this ATMEGA16 Minimum System Development Board is authentically reliable. No soldering and no assembling, you can DIY whatever circuit you prefer. It is really a good assistant during your development.
Note: This minimum system development board without an AVR chip, you need to purchase the chip in additional!!!
Specifications:
- Support Chips: ATmega16/ATmega32
- Reset Button: YES
Features:
- 32 I/O pin all the leads.
- Classic ATmega16 minimum system, eliminating the hassle of soldering.
- Crystal: The socket hole welding facilitates the buyer to replace the crystal, 8M crystal.
- Support chips: ATmega16/ATmega32 and chips which pin-compatible.
- Power supply: power adapter or external expansion pin power supply (not support ISP download interface power supply)
- DC-005 Power Block (supporting the transposon is 5.5*2.1mm).
- Expand outside 4 channel VCC, GND.
- Reset: Power-on-reset and reset button.
- Power LED (D1) and the program run indicator (D2).
- Standard ISP download interface.
Package Included:
1 x ATMEGA16 Minimum System Development Board ATMEGA16 ATmega 32 ISP AVR Minimum Development System Board Module
