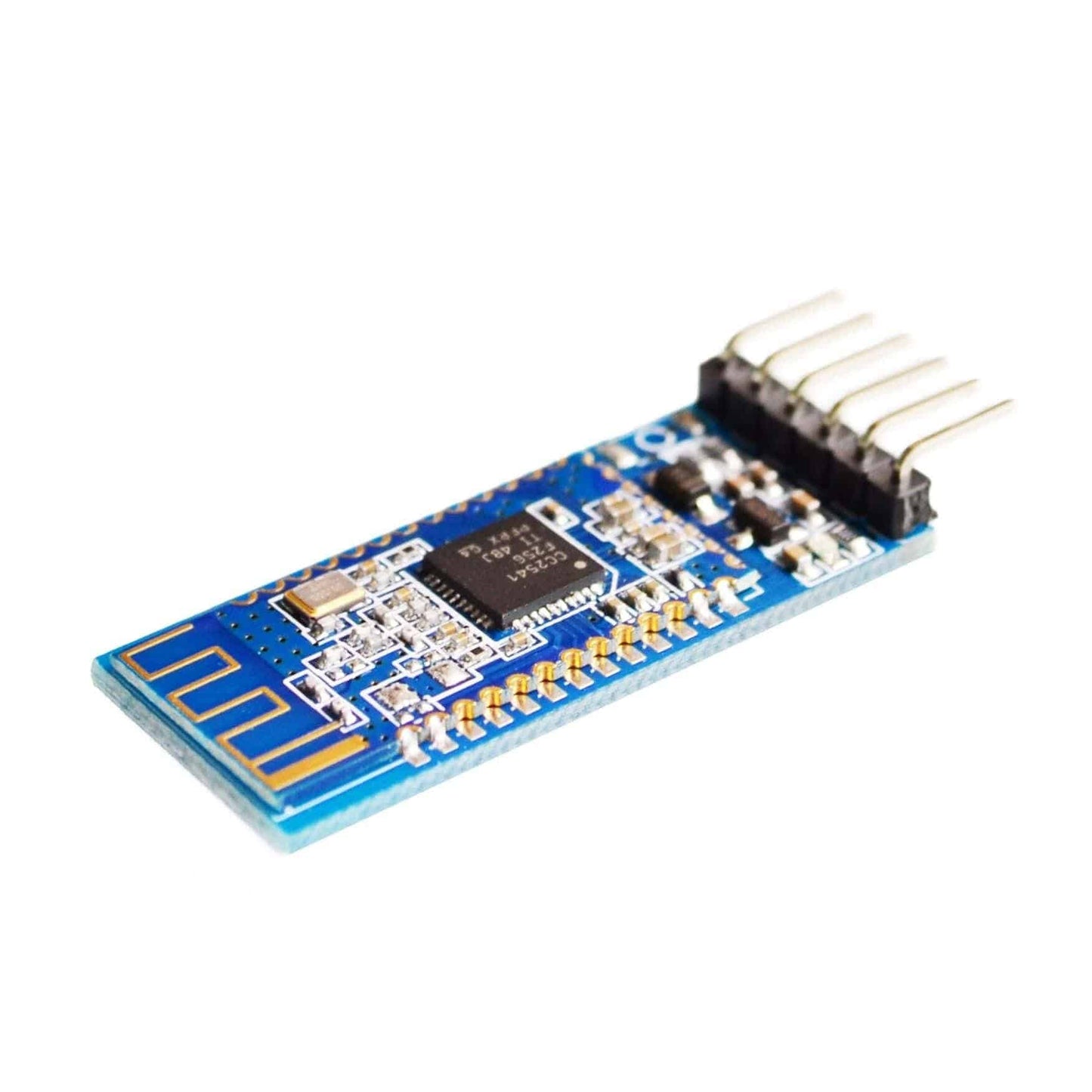

AT-09 Android IOS HM-10 BLE Bluetooth 4.0 CC2540 CC2541 Serial Wireless Module - AA168

AT-09 Android IOS HM-10 BLE Bluetooth 4.0 CC2540 CC2541 Serial Wireless Module - AA168

AA168

In stock

Rs. 280.00
Rs. 280.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Power input: 3.6V - 6V DC (Can not higher than 6V)
  • Size: 43mm x 15mm
  • Color: Blue
  • Net Weight: 4g
  • This small size BT 4.0 transceiver module allows your device communicate with IOS Android.
  • It is eay to use and completely encapsulated.
  • You can set it as slave or master.
  • You can use AT command set the baudrate.

Description:

The HM-10 is a small 3.3v SMD Bluetooth 4.0 BLE module based on the TI CC2540 or CC2541 Bluetooth SOC (System On Chip).

The HM-10 is has become a very popular Bluetooth 4 BLE module for use with the Arduino. In part due to the standard UART serial connection that makes it fairly straightforward to connect to an Arduino. The UART layer is a good thing and a bad thing, it allows ease of use but it hides the BLE layer so you have no control over the actual BLE side of things. The HM-10 is Bluetooth version 4.0 only. This means it cannot connect to Bluetooth 2/2.1 modules such as the HC-06 and HC-05.

Features:

  • This small size BT 4.0 transceiver module allows your device to communicate with IOS Android.
  • It is easy to use and completely encapsulated.
  • You can set it as slave or master.
  • You can use AT command set the baud rate.
  • Ultra-low standby power consumption 90uA ~ 400uA. Built-in PCB antenna.
  • Compatible with HM-10 Module protocol.
  • Ultra-low standby power consumption 90uA ~ 400uA.
  • Built-in PCB antenna.
  • Password: 1234 or 0000

Specifications:

  • Power input: 3.6V - 6V DC (Can not higher than 6V)
  • Size: 43mm x 15mm
  • Color: Blue
  • Net Weight: 4g

Package includes:

1 x AT-09 BLE BT 4.0 Serial Wireless Module
