ASAIR AHT20 Temperature and Humidity Sensor -40°C to +85°C Integrated Environmental Sensor Module For Weather Monitoring

ASAIR AHT20 Temperature and Humidity Sensor -40°C to +85°C Integrated Environmental Sensor Module For Weather Monitoring

In stock

Rs. 51.00
Rs. 51.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

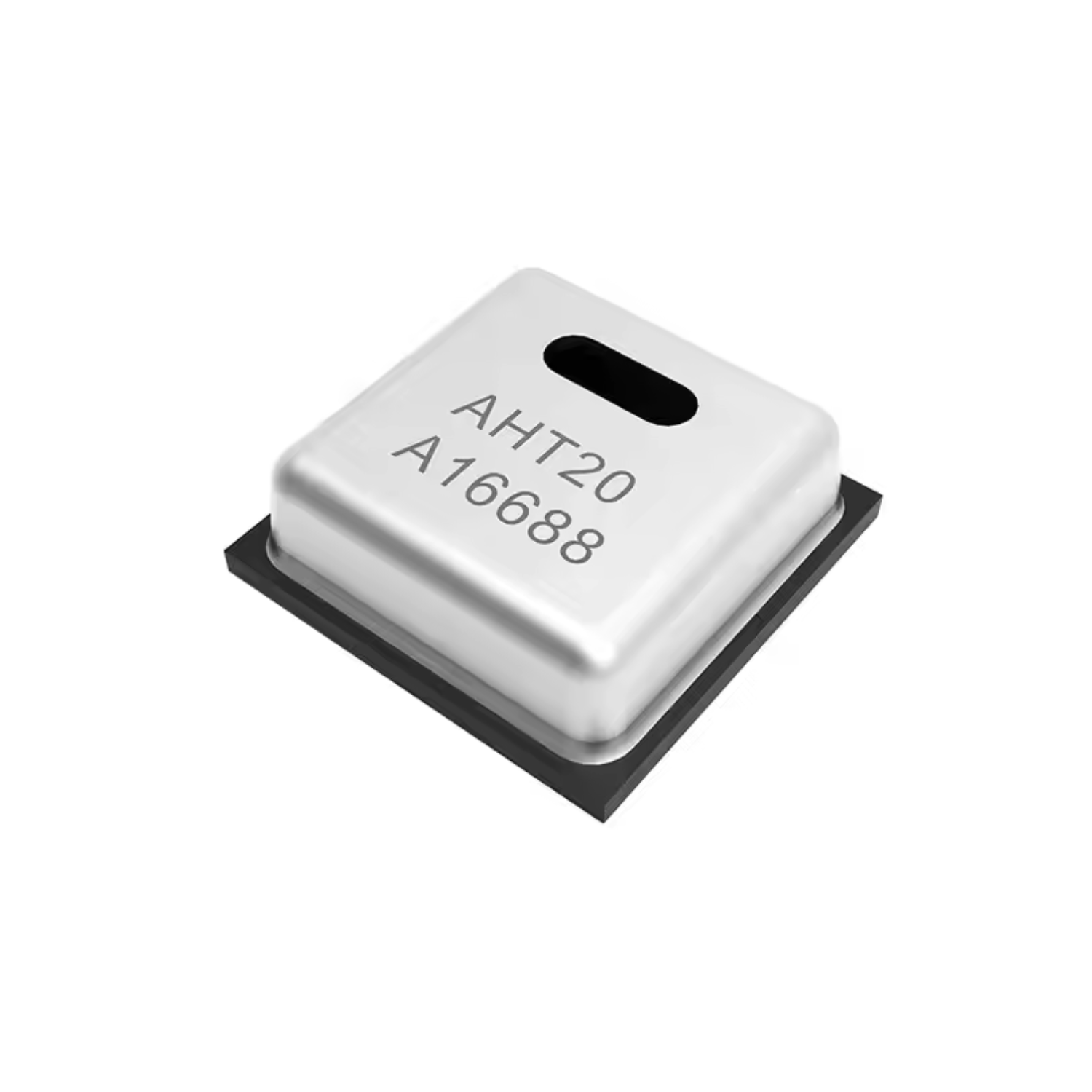

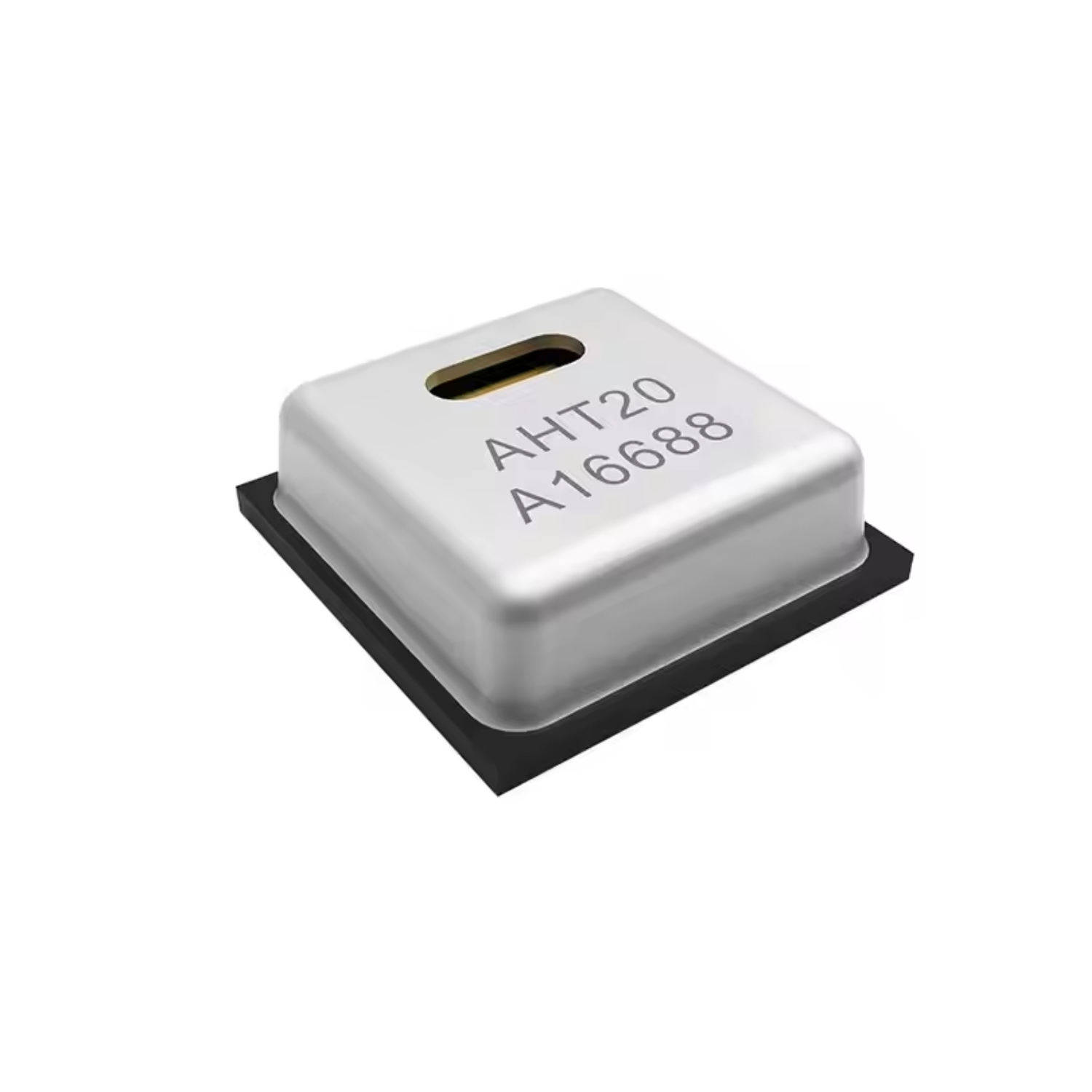

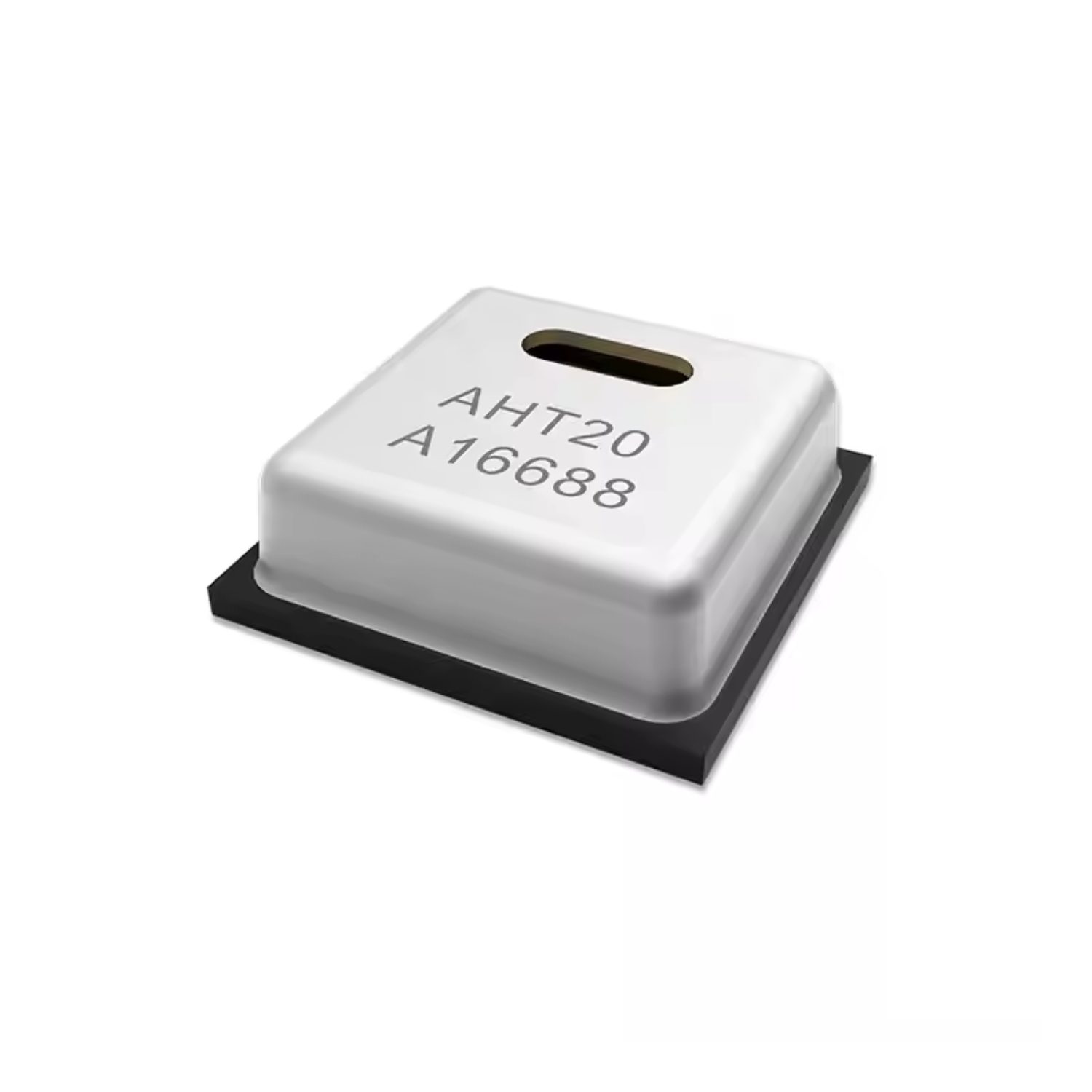

The ASAIR AHT20 Temperature and Humidity Sensor leverages advanced technology to provide highly accurate and reliable temperature and humidity measurements. Featuring a custom-designed ASIC, an optimized MEMS capacitive humidity sensor, and an on-chip temperature sensor, this next-generation device offers superior performance and stability, even in challenging environments.

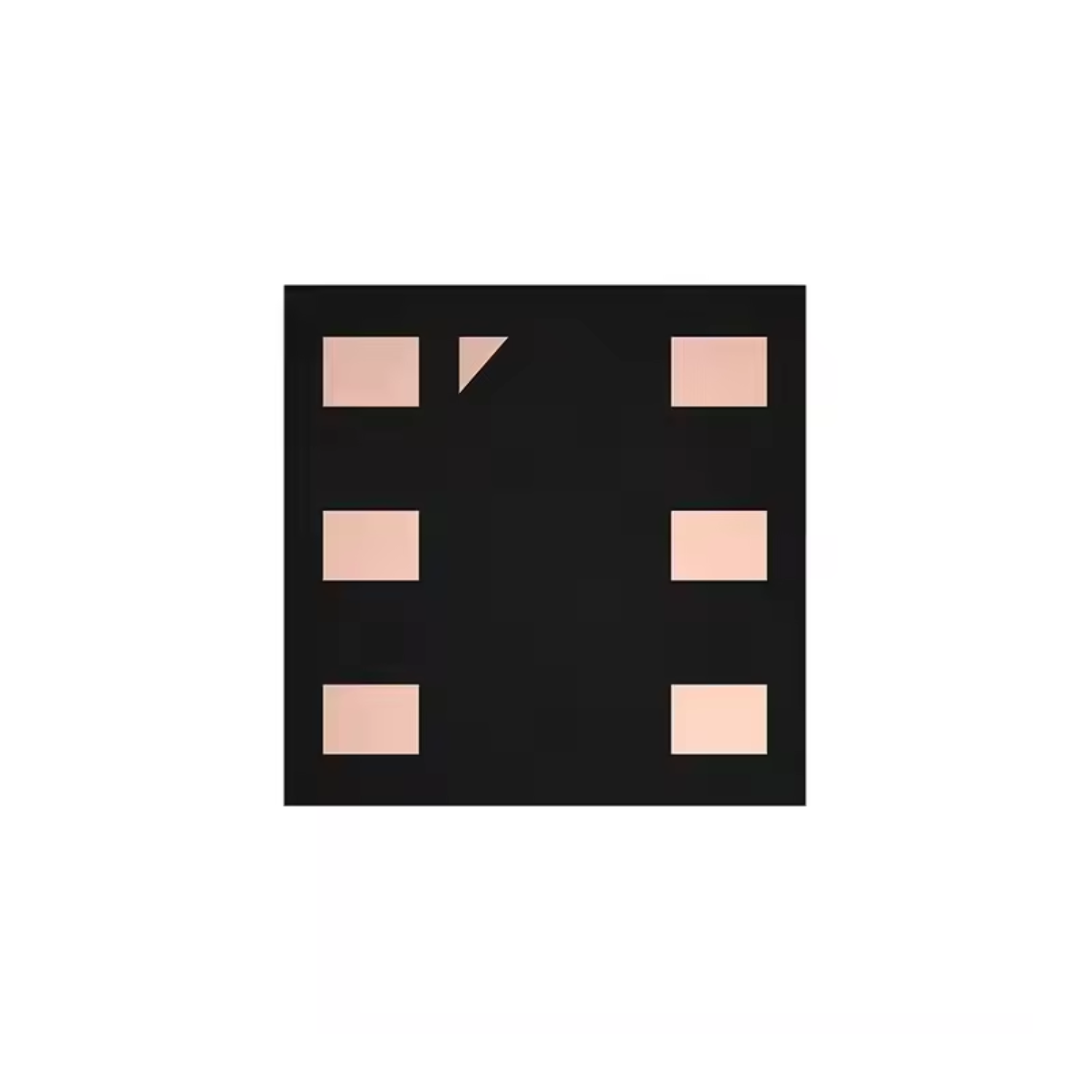

 Encapsulated in a space-saving 3x3x1.0mm DFN package, suitable for reflow soldering, the AHT20 outputs calibrated digital data through a standard I²C interface. Every sensor undergoes thorough calibration and testing, with lot numbers printed for traceability. The AHT20's miniaturization and improved design lead to enhanced cost-effectiveness and incorporate advanced power-saving features, making it ideal for a wide range of applications.

Specifications:

  • Item Type: Sensor
  • Model Type: Temperature and Humidity Sensor
  • Rated Voltage: 2 to 5.5V
  • Interface: Grove I2C Interface
  • Humidity Range: 0% to 100% RH
  • Operating Temperature: 40°C to +85°C
  • Resolution Temperature: 0.01℃, Humidity: 0.024% RH

Features:

  • Full calibration for accurate readings.
  • Easy digital output via I2C interface.
  • Excellent long-term stability for reliable data.
  • SMD package designed for reflow soldering.
  • Quick response and strong anti-jamming capability.

Package Included:

1 x ASAIR AHT20 Temperature and Humidity Sensor
