AS5600 Magnetic Encoder Module High-Resolution Magnetic Position Sensor Compact Magnetic Encoder Module Magnetic Rotary Encoder Module For Precise Position Sensing

Description:

The AS5600 Magnetic Encoder is a sophisticated non-contact angle sensor that leverages magnetic field variations to precisely determine rotational position. Employing the Hall effect, it translates subtle magnetic fluctuations into precise electrical signals, enabling accurate position feedback across a diverse spectrum of applications.

Featuring a 12-bit resolution and a versatile array of output modes, this sensor excels in demanding applications requiring high-precision angle measurements, such as robotics, motor control, and 3D printing.

Specifications:

• Resolution: 12-bit DAC output
• Model: Magnetic encoder sensor module AS5600
• Power Supply: 3.3V DC
• Interface: I2C, PWM, and analog voltage
• Operating Temperature (°C): -40°C to 125°C

Features:

• Output Modes: Supports multiple output formats including I2C, PWM, and analog voltage.
• 12-bit DAC Output Resolution: Provides 4096 positions per revolution for high precision.
• Non-contact Magnetic Induction: Uses magnetic field changes to measure angle without physical contact.
• Hall Effect Sensor: Uses the Hall element to measure magnetic field strength and output proportional voltage.
• Wide Operating Temperature: Works reliably in environments from -40°C to 125°C.

Package Included:

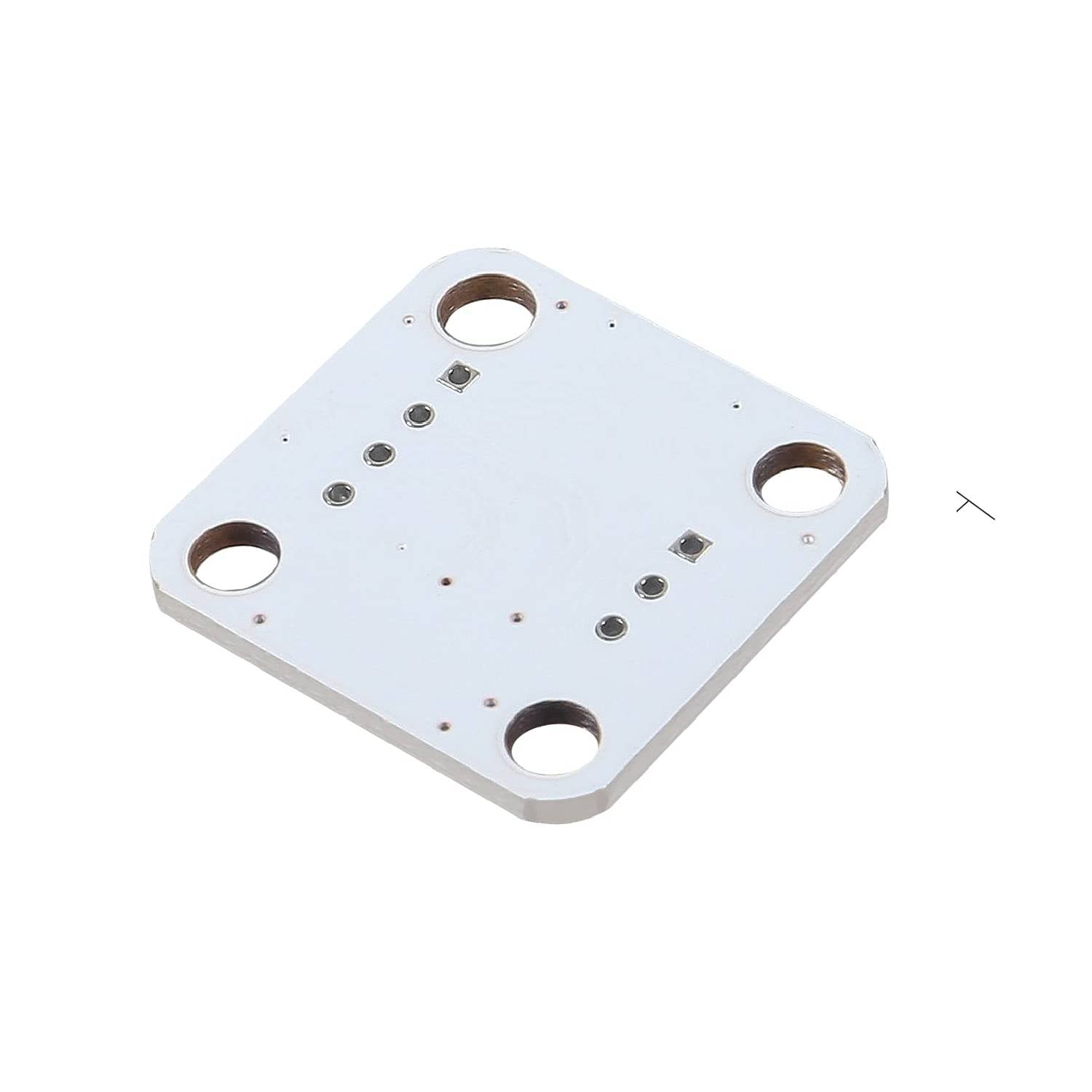

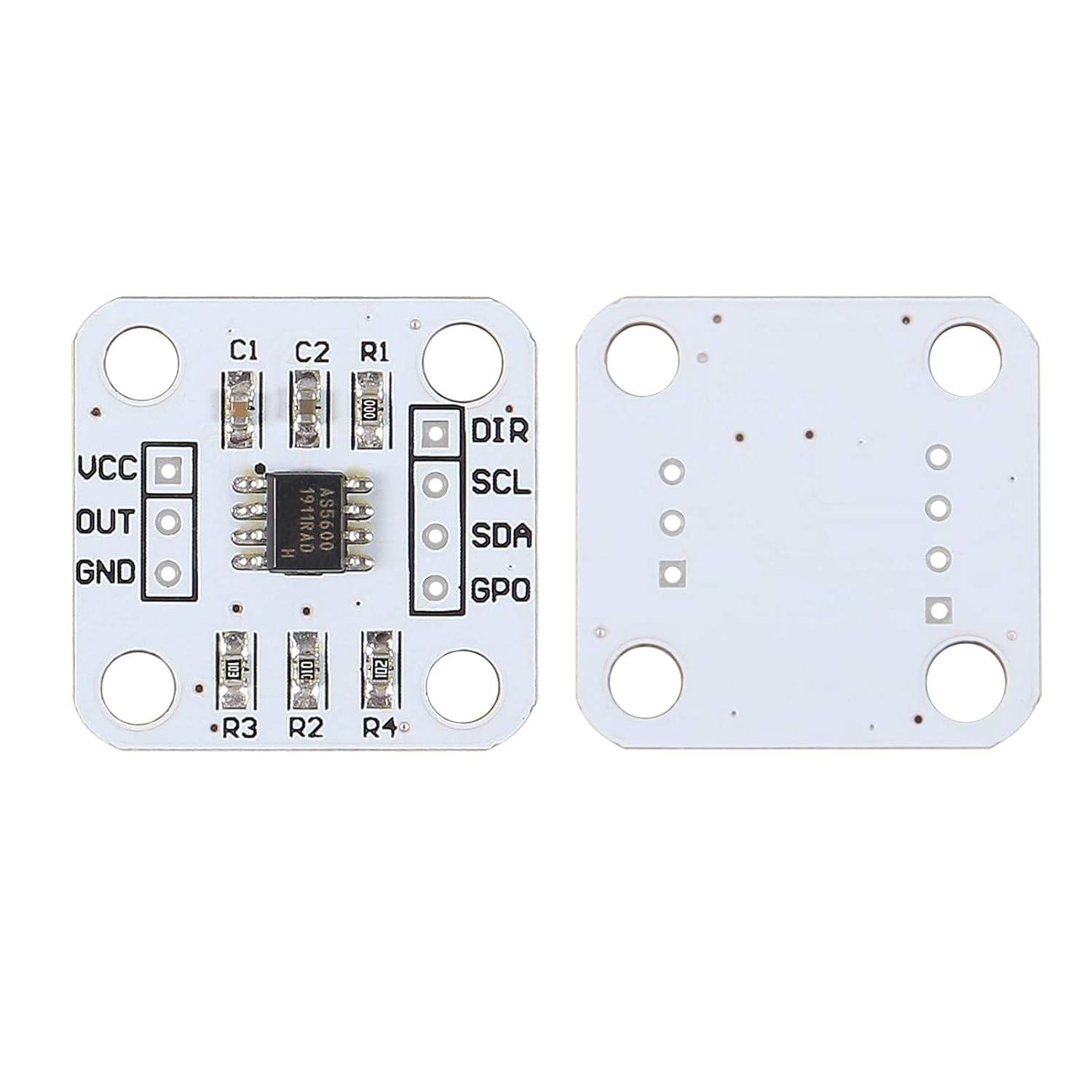

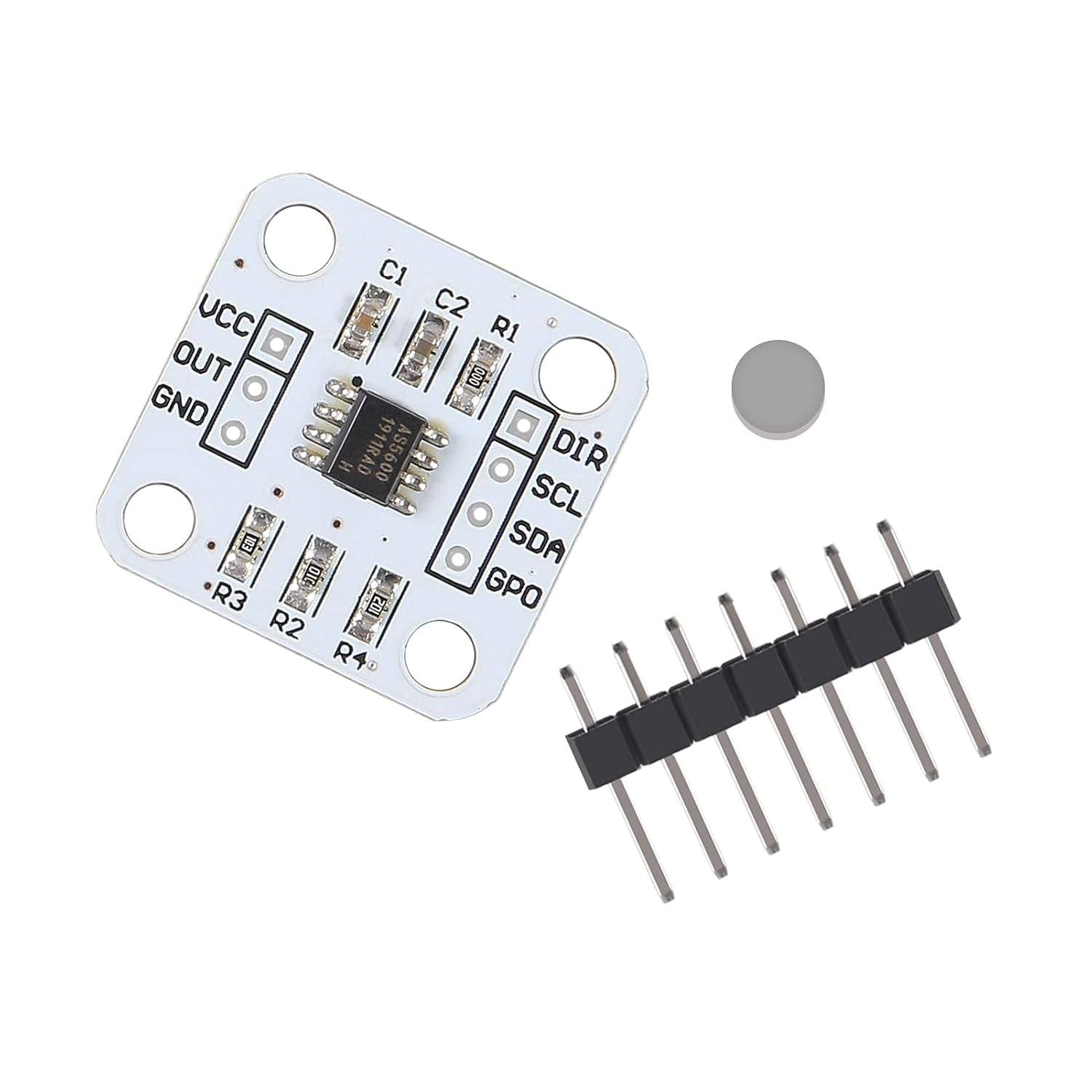

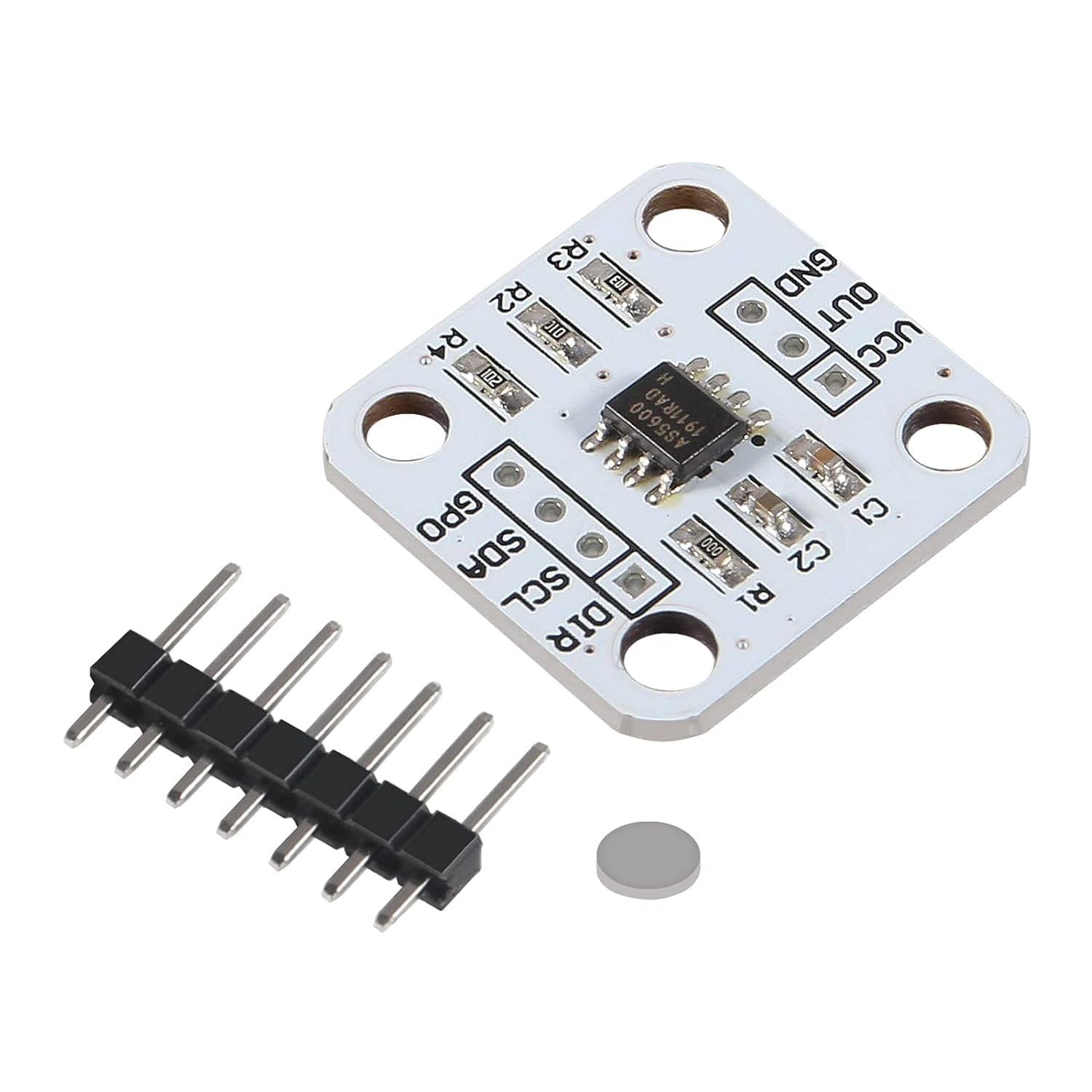

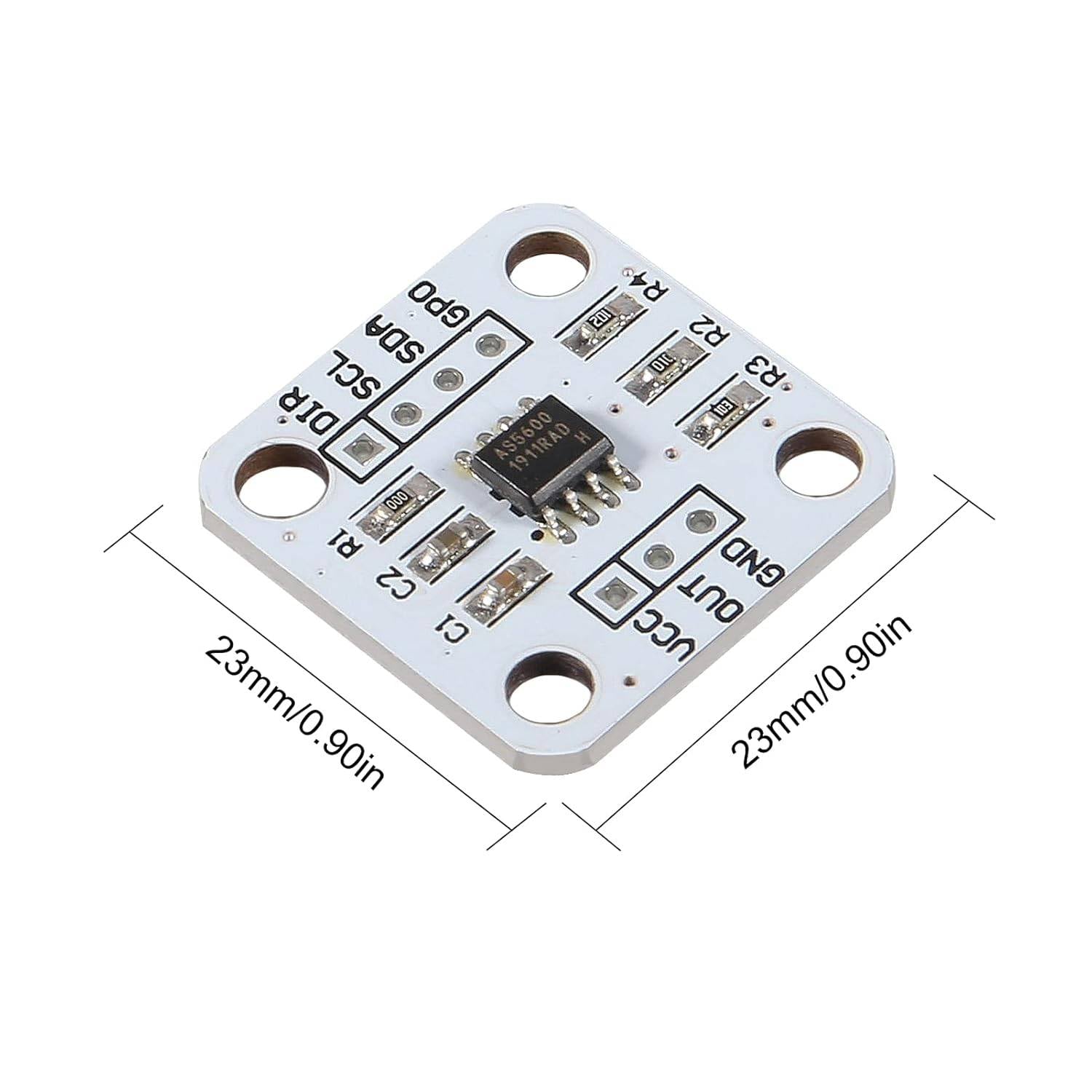

1 x AS5600 Magnetic Encoder Module
