Arduino Pro Opta Ext A0602 Module The Advanced I/O Expansion Module for Opta-Based Industrial Automation

Arduino Pro Opta Ext A0602 Module The Advanced I/O Expansion Module for Opta-Based Industrial Automation

In stock

Rs. 18,460.00
Rs. 18,460.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

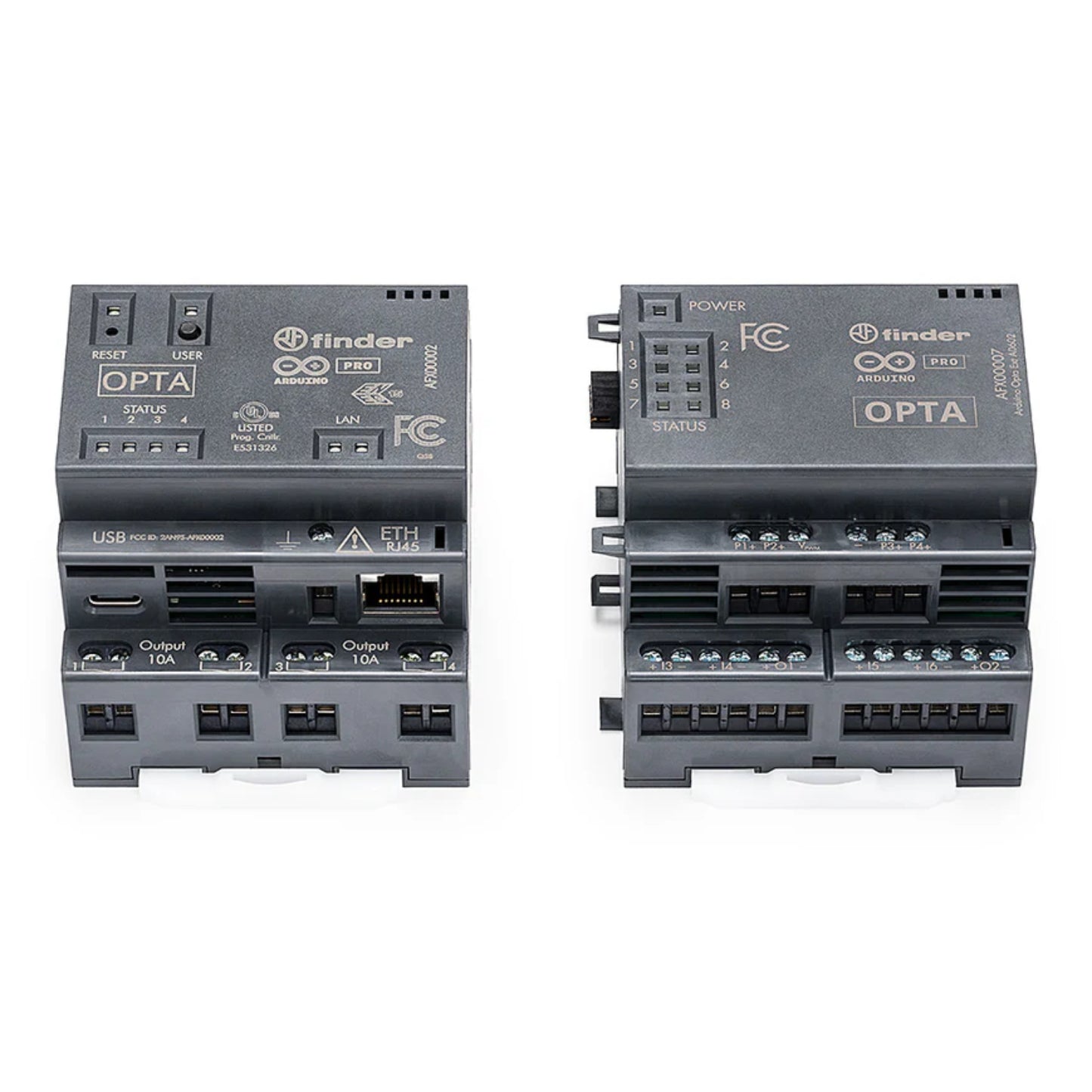

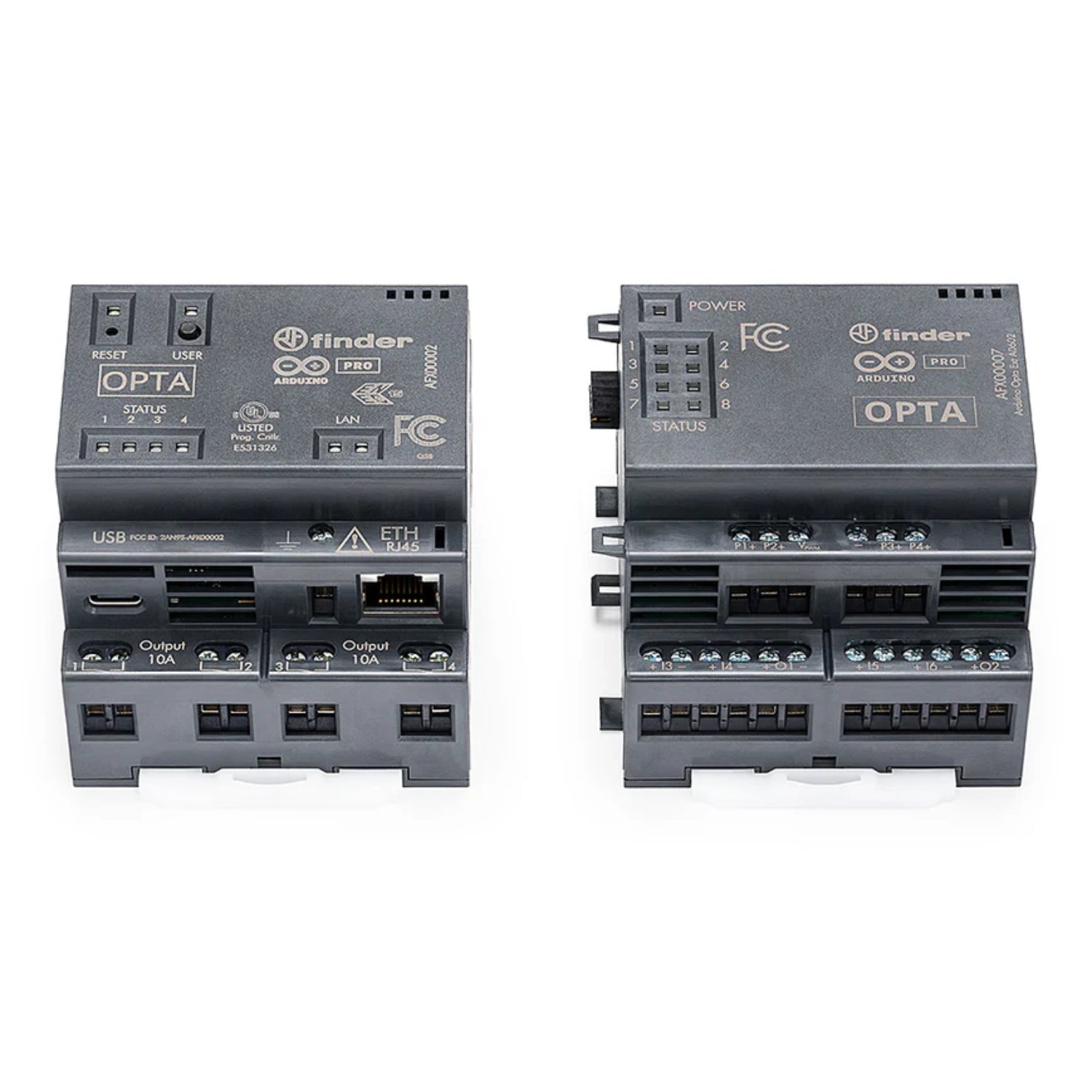

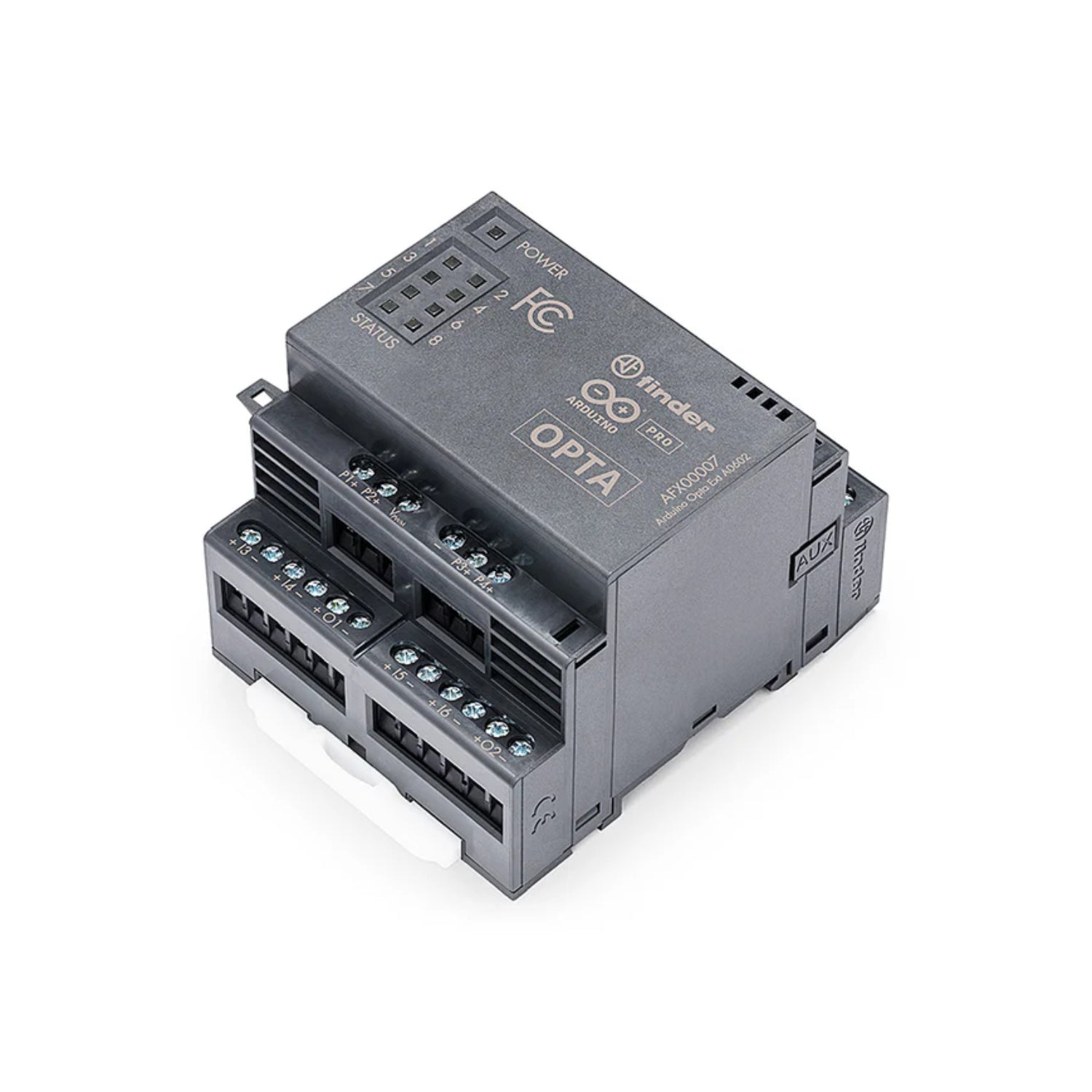

Elevate your industrial and automation projects with the Official Arduino Pro Opta Ext A0602. This advanced expansion module effortlessly snaps onto the Arduino Opta, unlocking a new level of control and monitoring. With its comprehensive I/O array—including 6 programmable inputs, 2 programmable outputs, and 4 PWM outputs—you can easily expand your system's functionality.

Use it to enhance real-time control, improve monitoring, and enable predictive maintenance. The module is fully compatible with both the Arduino ecosystem and PLC IDE IEC 61131-3 programming environments, giving you the flexibility to work in your preferred system.

Specifications:

  • Supply Voltage: 12V-24V
  • Transient Overvoltage Protection: Yes (up to 40 V)
  • Channels: 8x: I1, I2, I3, I4, O1, I5, I6, O2
  • Channels programmable as inputs: I1, I2, I3, I4, O1, I5, I6, O2
  • Degree of Protection: IP20
  • Analog Input resolution: 16 bit
  • Noise Rejection: Optional noise rejection between 50 Hz and 60 Hz
  • Analog input current: 0-25 mA
  • Analog input LSB value: 381.5 nA
  • Short circuit current limit: Min: 25 mA, Max 35 mA (externally powered).
  • Programmable current limit: 0.5 mA to 24.5 mA (loop powered)

Features:

  • Scalable and Expandable: Connect up to five snap-on expansion modules to add more I/O and functionality as your projects grow.
  • Dual Programming Support: Program with the familiar Arduino IDE or use a PLC IDE for IEC 61131-3, giving you the flexibility of both environments.
  • Seamless Cloud Integration: Monitor and visualize real-time data from your system remotely by easily integrating with the Arduino Cloud.
  • Industrial-Grade Reliability: Built to last with industrial certifications, ensuring a durable and safe solution for professional applications.
  • Easy DIN Rail Installation: Quickly and securely mount the module onto standard DIN rails, making setup simple and efficient.
  • Simplified Development: Leverage the low-code PLC IDE with pre-mapped resources to quickly create and deploy your automation logic.

Useful Link:

Datasheet

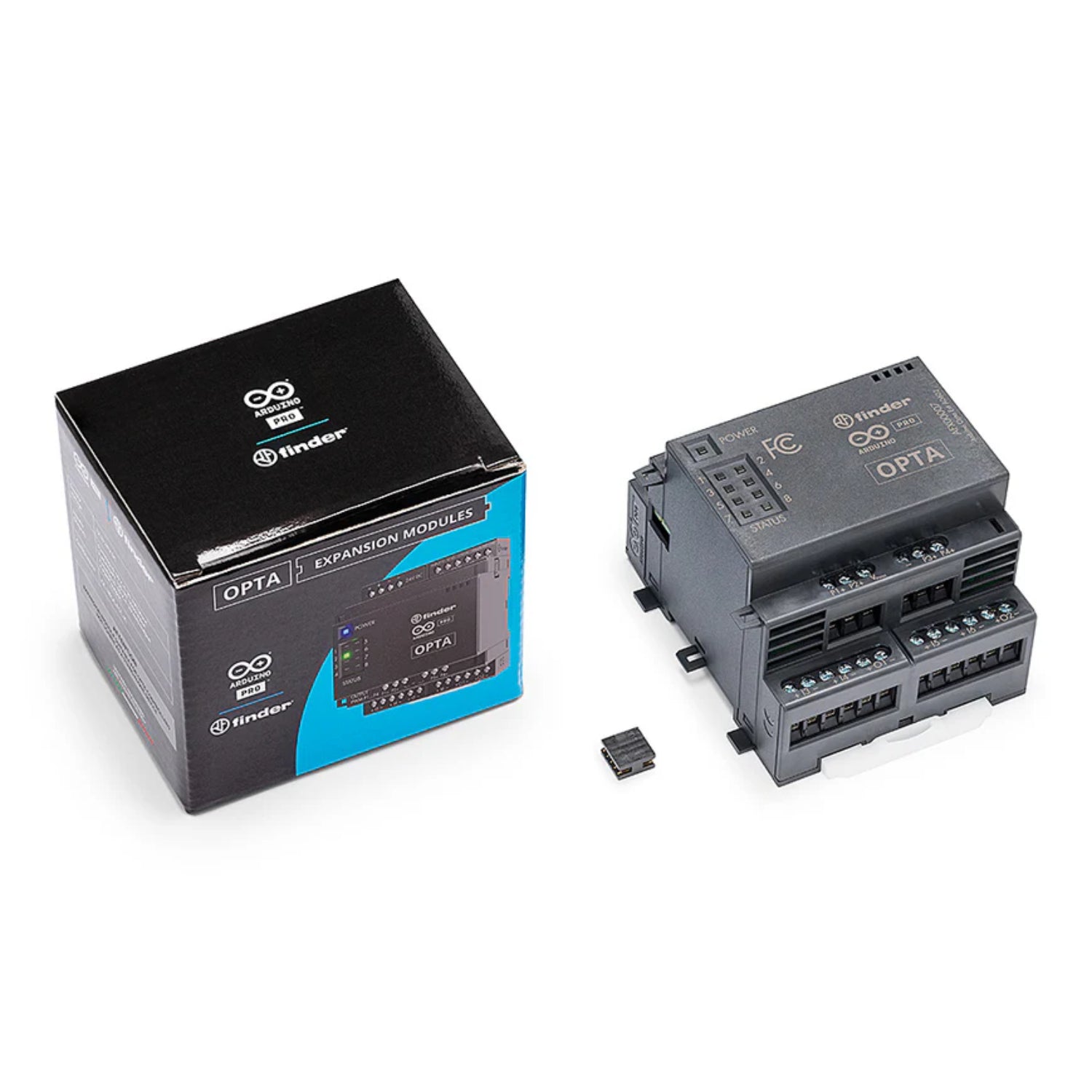

Package Included:

1 x Official Arduino Pro Opta Ext A0602
