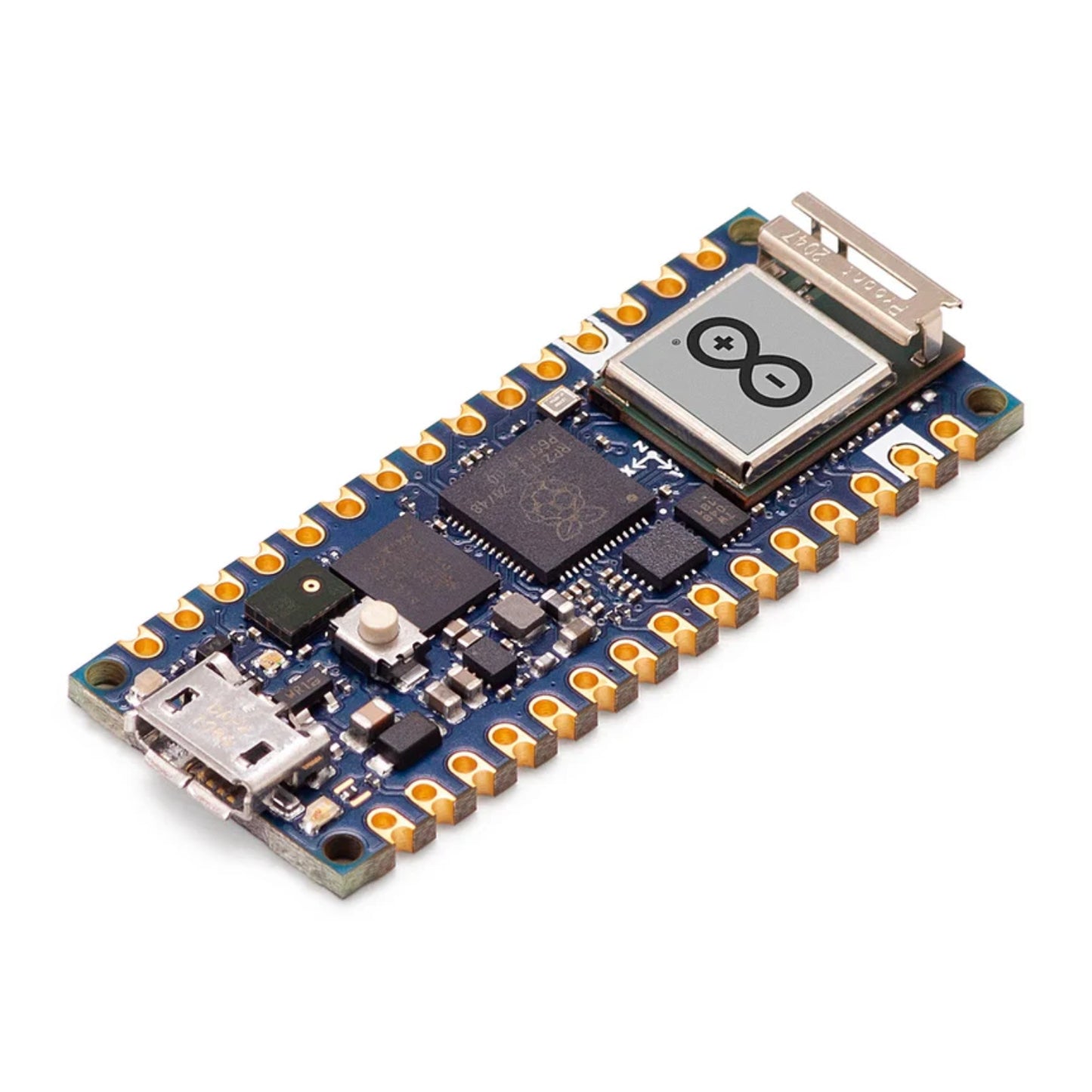

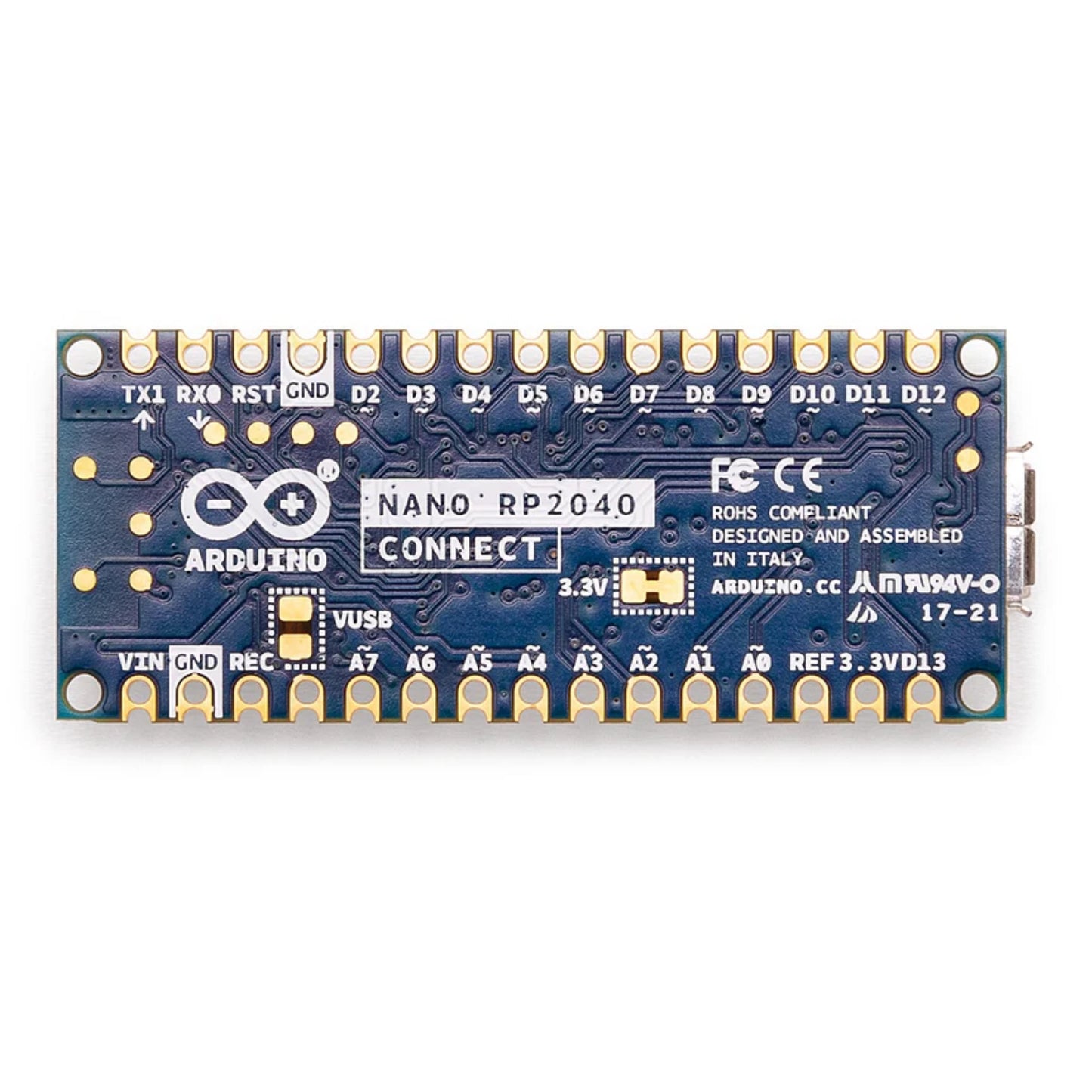

Official Arduino Nano RP2040 Connect Bare Board Without Headers For Custom IoT & Embedded Applications

Official Arduino Nano RP2040 Connect Bare Board Without Headers For Custom IoT & Embedded Applications

In stock

Rs. 1,822.00
Rs. 1,822.00
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

Meet the Arduino Nano RP2040 Connect, the only connected RP2040 board that packs BIG features into a compact Arduino Nano form factor. Powered by the dual-core Raspberry Pi RP2040 (133MHz, 264KB SRAM, 16MB Flash), its true strength lies in its onboard WiFi and Bluetooth connectivity via the u-Blox NINA-W102. Full Arduino Cloud compatibility, a 9-axis IMU, and a built-in microphone transform your projects into powerful, connected creations. It's the premium choice for upgrading or unlocking new IoT possibilities.

Specifications:

Board



Nano RP2040 Connect

SKU: ABX00052

Microcontroller

Raspberry Pi® RP2040

USB connector

Micro USB

Pins

Built-in LED pin

13

Digital I/O Pins

20

Analog Input Pins

8

PWM pins

20 (Except A6, A7)

External interrupts

20 (Except A6, A7)





Connectivity





Wi-Fi

Nina W102 uBlox module

Bluetooth®

Nina W102 uBlox module

Secure element

ATECC608A-MAHDA-T Crypto IC

Sensors

IMU

LSM6DSOXTR (6-axis)
Microphone  MP3DT06JTR

Communication

UART

Yes

I2C

Yes

SPI

Yes

Power

Circuit operating voltage

3.3V

Input Voltage (VIN)

4-20V

DC Current per I/O pin

8 mA

Clock speed

Processor

133 MHz

Memory

AT25SF128A-MHB-T

16MB Flash IC

Nina W102 uBlox module

448 KB ROM, 520KB SRAM, 16MB Flash

Dimensions

Weight

6 g

Width

18 mm

Length

45 mm

Features:

Raspberry Pi RP2040 Microcontroller:
  1. 133MHz 32bit Dual Core Arm Cortex-M0+
  2. 264kB on-chip SRAM
  3. Direct Memory Access (DMA) controller
  4. Support for up to 16MB of off-chip Flash memory via a dedicated QSPI bus
  5. USB 1.1 controller and PHY, with host and device support
  6. 8 PIO state machines
  7. Programmable IO (PIO) for extended peripheral support
  8. 4-channel ADC with internal temperature sensor, 0.5 MSa/s, 12-bit conversion
  9. SWD Debugging
  10. 2 on-chip PLLs to generate USB and core clock
  11. 40nm process node
  12. Multiple power mode support
  13. USB 1.1 Host/Device
  14. Internal Voltage Regulator to supply the core voltage
  15. Advanced High-performance Bus (AHB)/Advanced Peripheral Bus (APB)
U-blox® Nina W102 WiFi/Bluetooth Module:
  1. 240MHz 32bit Dual Core Xtensa LX6
  2. 520kB on-chip SRAM
  3. 448 Kbyte ROM for booting and core functions
  4. 16 Mbit FLASH for code storage including hardware encryption to protect programs
    and data
  5. 1 kbit EFUSE (non-erasable memory) for MAC addresses, module configuration,
  6. Flash-Encryption, and Chip-ID
  7. IEEE 802.11b/g/n single-band 2.4 GHz WiFi operation
  8. Bluetooth 4.2
  9. Integrated Planar Inverted-F Antenna (PIFA)
  10. 4x 12-bit ADC
  11. 3x I2C, SDIO, CAN, QSPI
Memory:
  1. AT25SF128A 16MB NOR Flash
  2. QSPI data transfer rate up to 532Mbps
  3. 100K program/erase cycles

Useful Link:

Arduino Nano RP2040 Connect datasheet

Package Included:

1 x Arduino Nano RP2040 Connect without Header
