Arduino MP3 shield board with TF card FOr Arduino Development Board-RC016

Arduino MP3 shield board with TF card FOr Arduino Development Board-RC016

SKU:RC016

Low stock: 1 left

Regular price Rs. 2,380.00
Regular price Sale price Rs. 2,380.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • A line_in input interface
  • Power indicator
  • 3.3V and 2.8V of LDO chip AMS-1117 on board provides up to 800mA current
  • A single power supply: +5 VDC
  • 12.288 Mhz crystal

Description :

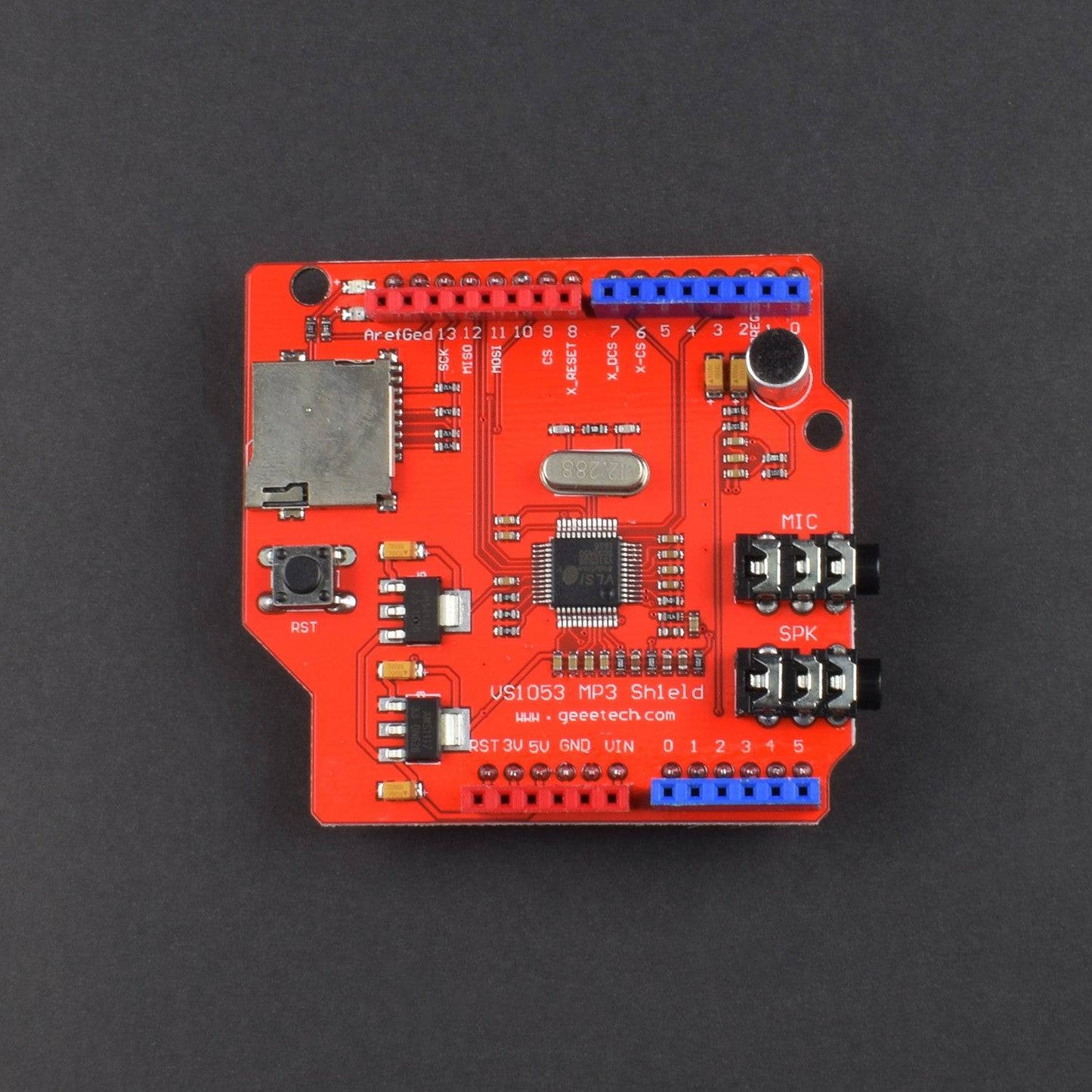

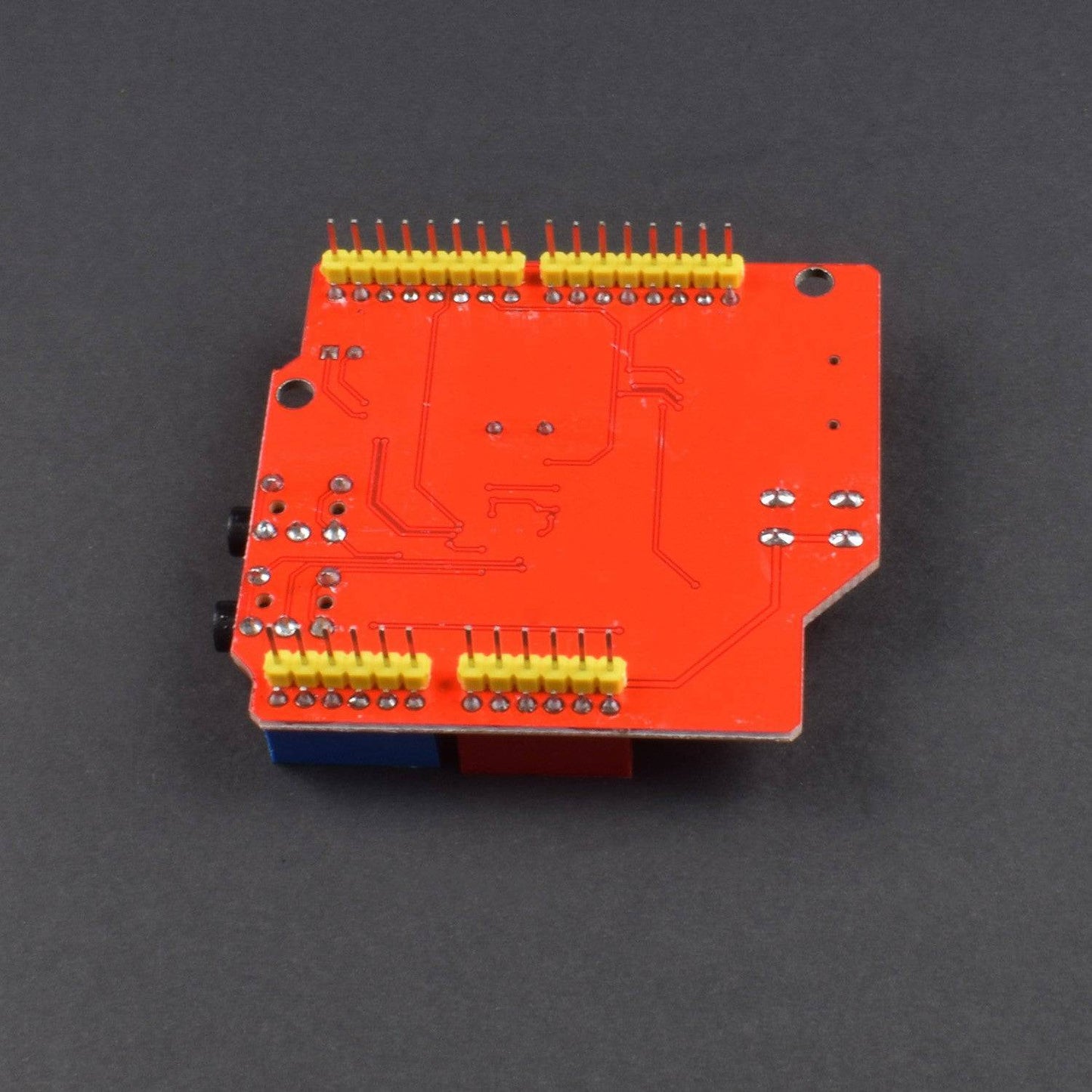

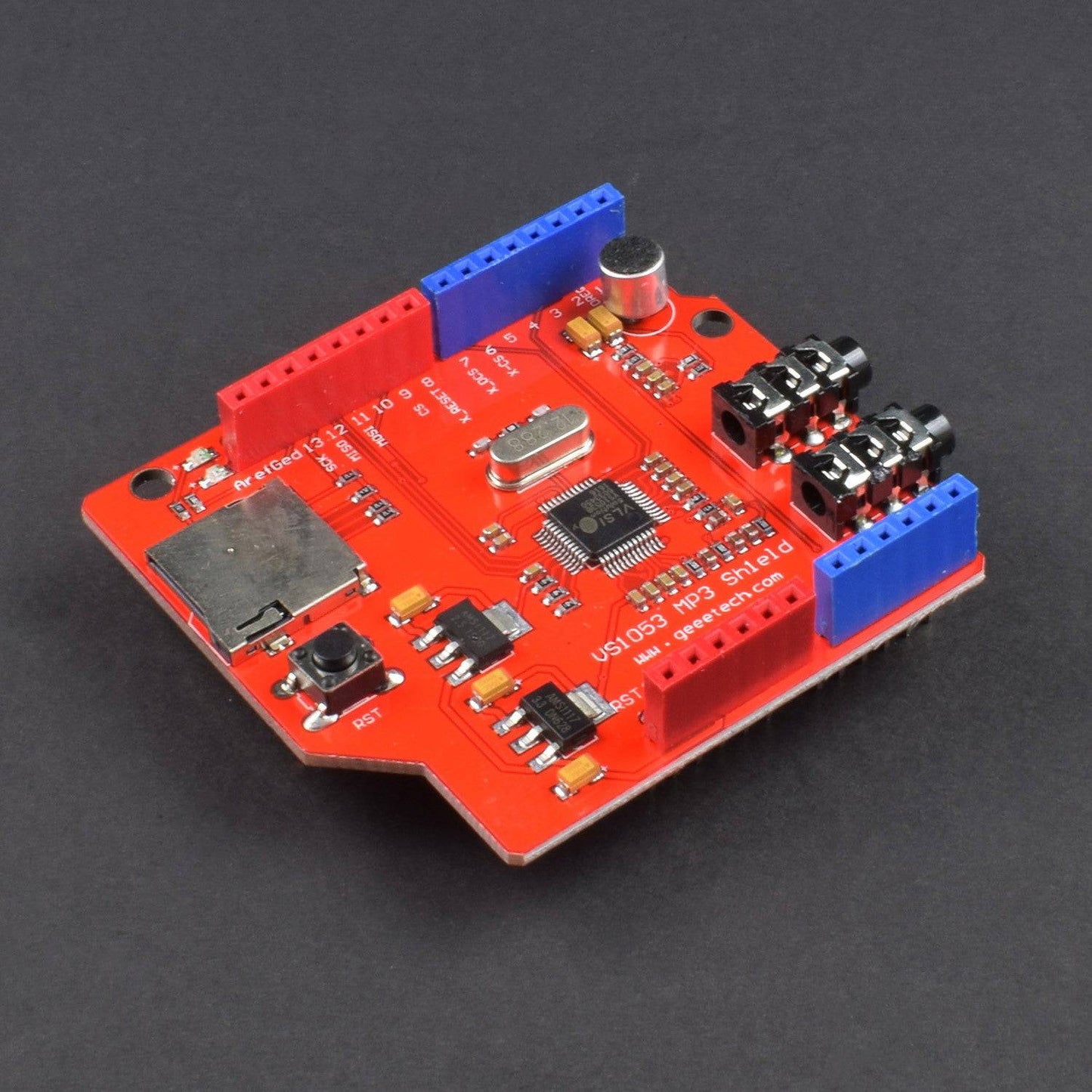

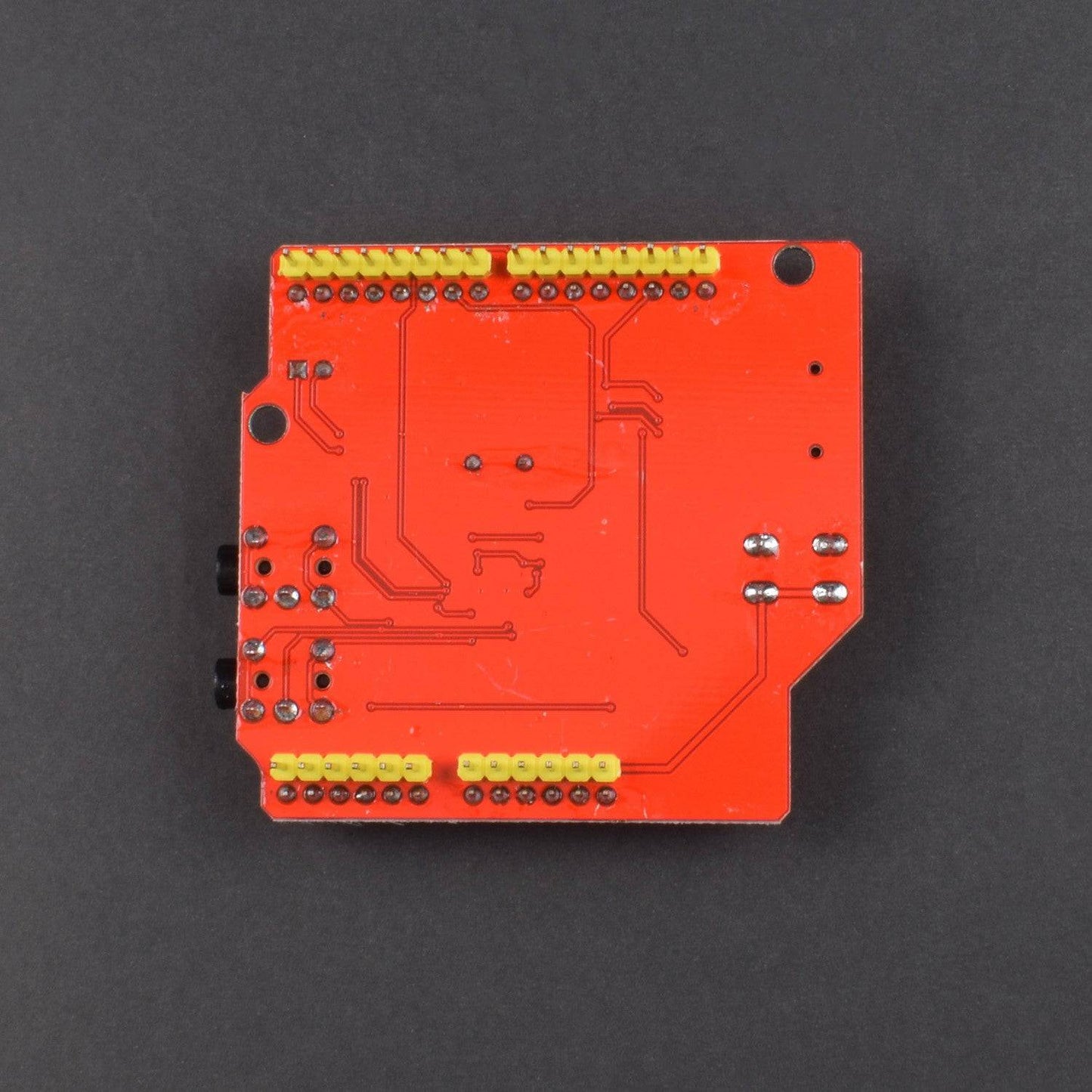

his MP3 shield board is designed based on VS1053B from VLSI. using this shield you can plug in your Arduino UNO/MEGA directly as showing in the pic, don't' need to hook up with jumpers, it's becoming easier to play music compared with the tiny mp3 breakout board. VS1053 is a versatile MP3 codec processor that is capable of decoding a variety of music formats, including Ogg Vorbis/MP3/AAC/WMA/MIDI audio. For the best headphone listening experience, the VS1053 includes EarSpeaker spatial processing which accurately simulates how a room with stereo loudspeakers would sound. In addition to being able to decode all major formats, VS1053 is capable of recording in Ogg Vorbis file. With the TF card slot on the other side of the board, you can play mp3 files from TF card using this breakout. It is easy to drop it in your project or make an mp3 player using your Arduino or other microcontrollers. Features Can play a variety of music formats, support for OGG encoding real-time recording SPI interface, the control signal lines are led out A headphone and stereo output A microphone for recording A line_in input interface Power indicator 3.3V and 2.8V of LDO chip AMS-1117 on board, provides up to 800mA current A single power supply: +5 VDC 12.288 Mhz crystal TF card slot

Features and Specification:

  • Variety of music formats, support for OGG encoding real-time recording
  • SPI interface, the control signal lines are led out
  • A headphone and stereo output
  • A microphone for recording
  • A line_in input interface
  • Power indicator
  • 3.3V and 2.8V of LDO chip AMS-1117 on board provides up to 800mA current
  • A single power supply: +5 VDC
  • 12.288 Mhz crystal
  • TF card slot
  • Decodes formats
  • Ogg Vorbis
  • MP3 = MPEG 1 & 2 audio layer III (CBR+VBR+ABR)
  • MP1 & MP2 = MPEG 1 & 2 audio layers I & II optional
  • MPEG4 / 2 AAC-LC(+PNS), HE-AAC v2 (Level 3) (SBR + PS)
  • WMA4.0/4.1/7/8/9 all profiles (5-384 kbps)
  • FLAC lossless audio with software plugin (up to 24 bits, 48 kHz)
  • WAV (PCM + IMA ADPCM)
  • General MIDI 1 / SP-MIDI format 0
  • Encodes formats from mic/line
  • Ogg Vorbis with software plugin
  • IMA ADPCM
  • 16-bit PCM

Package Included :

1 x Arduino MP3 Shield Board
