Arduino Mega Pololu Compatible Shield RAMPS 1.4 for 3d printer, Prusa Mendel - RS1063

Arduino Mega Pololu Compatible Shield RAMPS 1.4 for 3d printer, Prusa Mendel - RS1063

SKU:RS1063

42 in stock

Regular price Rs. 240.00
Regular price Sale price Rs. 240.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Supply Voltage: 12 V
  • Fused at 5A for additional safety and component protection
  • Heated bed control with additional 11A fuse
  • I2C and SPI pins left available for future expansion.
  • 2 stepper motor for Z axis in parallel

Description:

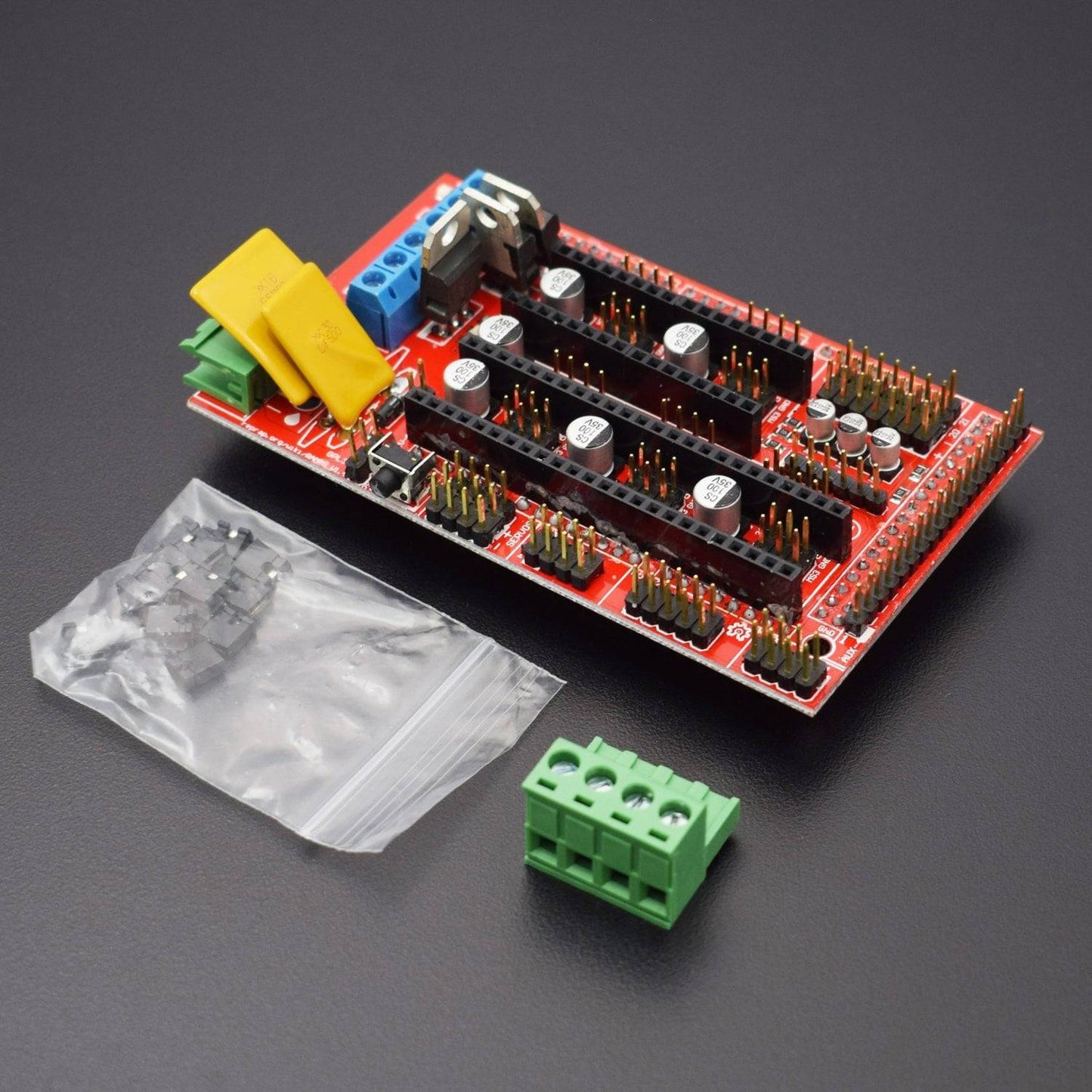

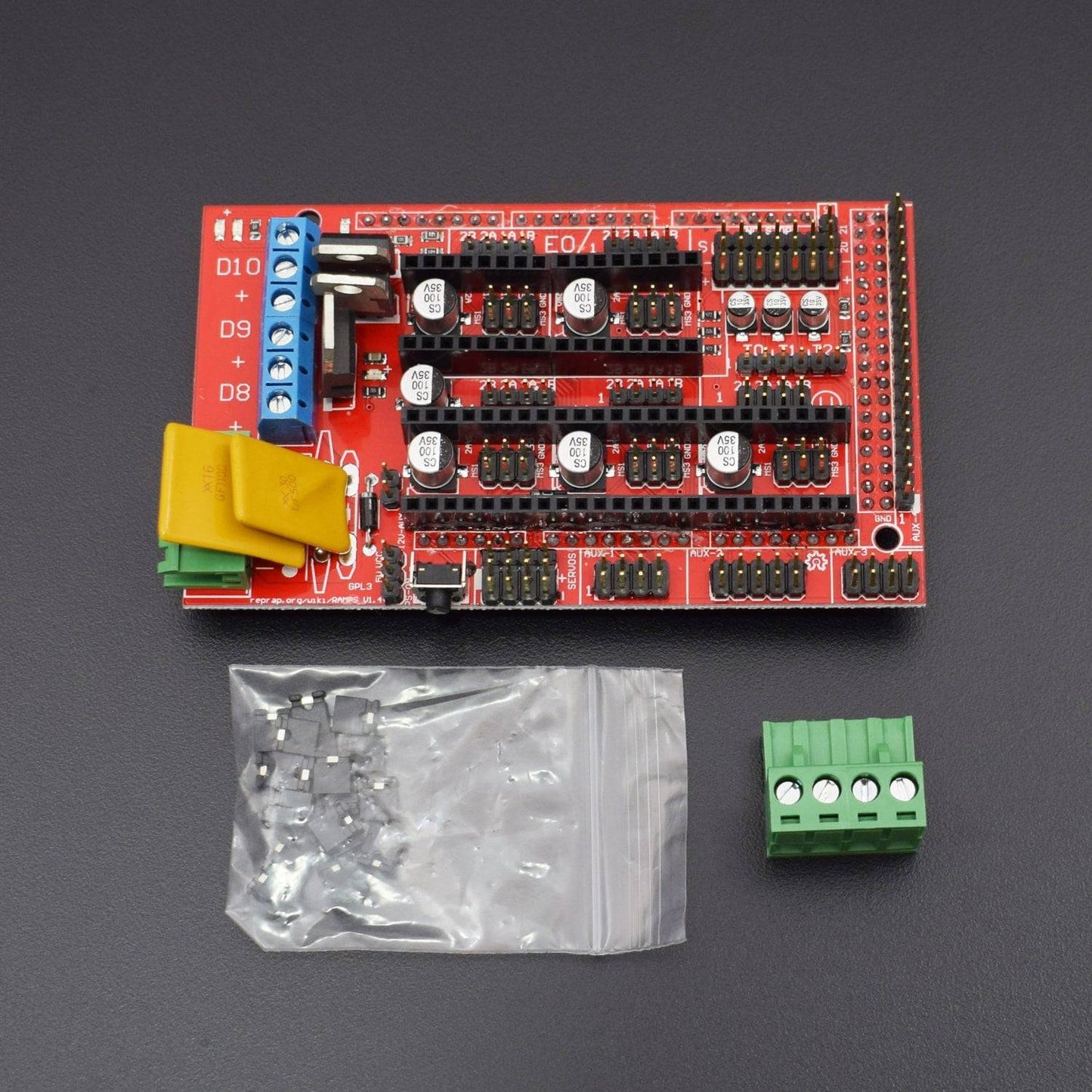

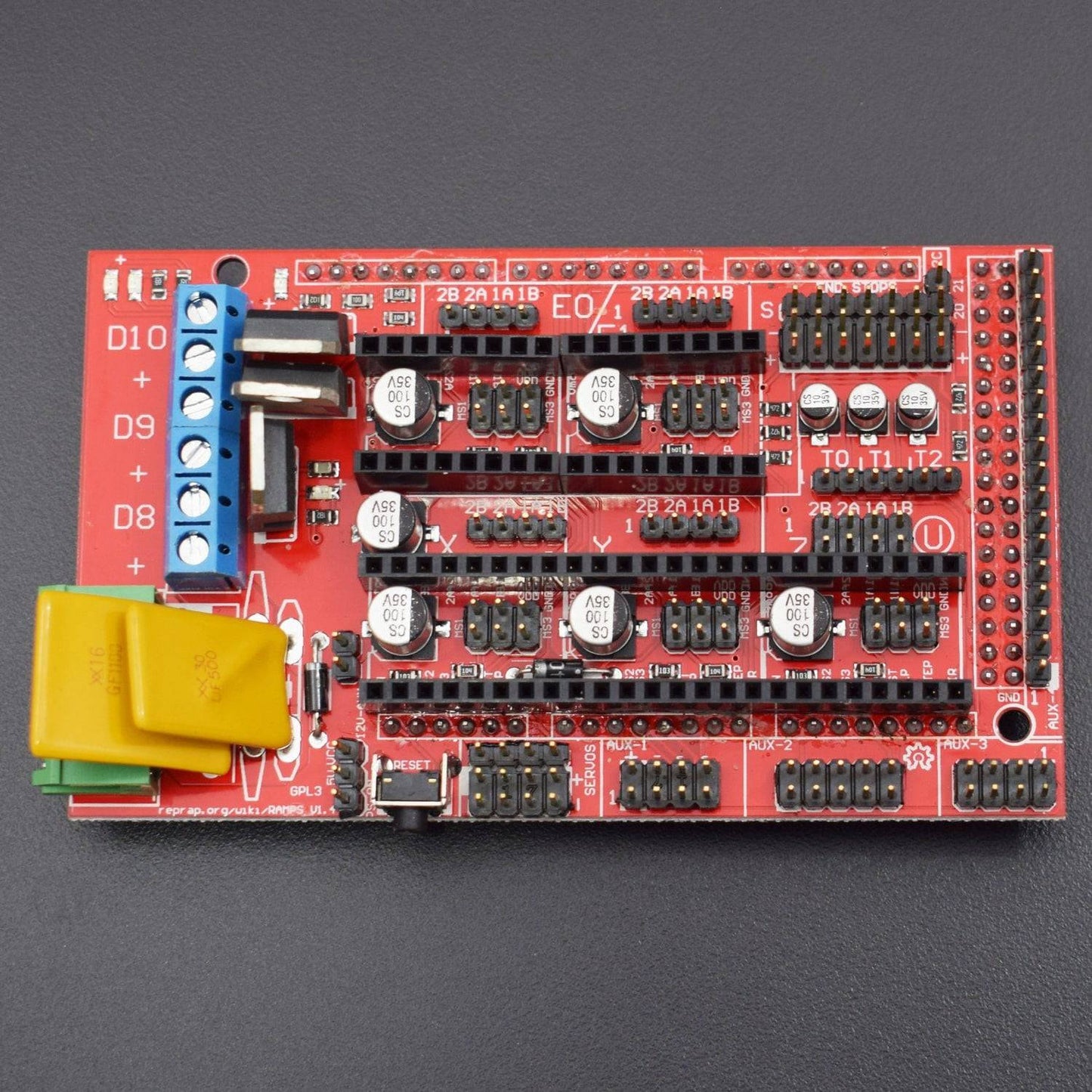

This RAMPS stands for Rep Rap Arduino-compatible MEGA Pololu Shield. It is built for combining all electronic components needed for your Rep Rap 3D printer on one shield. This means that you can control up to 5 stepper motors, 3 temperature sensors, 6 end switches, 1 heat bed, 1 fan and 1 extruder with this shield. Connection possibility for 5 stepper motors, 3 temperature sensors, 6 end switches, 1 heat bed, 1 fan and 1 extruder. For use with Arduino Mega 1280 and Arduino Mega 2560.

Specification:

  • Supply Voltage: 12V
  • Fused at 5A for additional safety and component protection
  • Heated bed control with additional 11A fuse
  • Pololu boards are on pin header sockets so they can be replaced easily or removed for use in future designs.
  • I2C and SPI pins are left available for future expansion.
  • 2 stepper motor for Z axis in parallel

Features:

  • Standard interfaces (as that of the extruder)
  • Reserved GCI like I2C and RS232
  • MOSFET 3 MOSFET is applied to the heater/ fan and thermistor circuit.
  • Another 5A was added to protect the component parts.
  • An 11A fuse is added to the hotbed.
  • Support 5 stepper drive board
  • The adoption of Pin Header as Pololu makes it more convenient to repair or change.
  • I2C and SPI are reserved for expanding
  • All the MOSFET can be controlled by PWM
  • Use the interface of the servo motor to adjust the level of the printing platform automatically.
  • Adding an SD module for the SD ramps module.
  • LED can indicate the status of the heater (the opening and close of MOS).
  • Expandable to control other accessories.

Caution:

  • Please read the technical parameters of the board carefully before you use it;
  • Only connect the mega2560 board with the computer via the USB cable while programming firmware;
  • Reversed connection of the power supply or the motor driver may cause the board to burn, please confirm again before power is on;
  • Only power on the Ramps 1.4 while testing the product, supply power to the mega2560 board may cause burning the board;
  • Select the appropriate load according to the board voltage/current requirement, if the work current exceeds the load of the board it may cause the board to burn.

Software:

  • Compiling environment: Arduino IDE
  • Firmware: Marlin
  • PC software: Print run, Repetier-Host

Package Included:

1 x Arduino Mega Pololu Compatible Shield RAMPS 1.4 for 3d printer, Prusa Mendel
