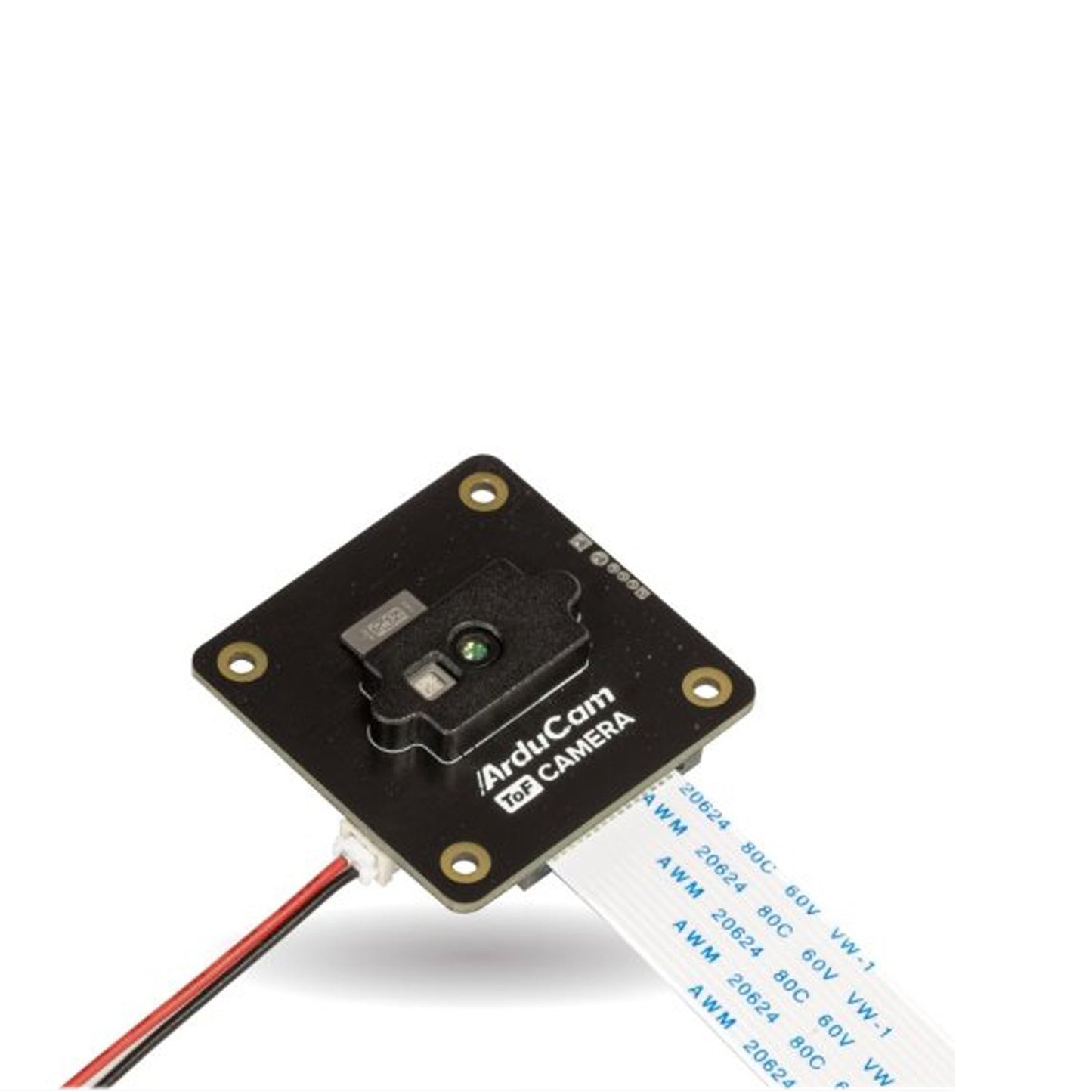

Description:
This Arducam ToF Camera Module is a Time of Flight (ToF) camera module from Arducam. It features a MIPI-CSI 2 connection and offers up to a 4-meter measuring range with sub-2cm precision. It was designed and optimized exclusively forRaspberry PiNvidia Jetsonboards.
Specifications:
- Item Type: ToF Camera
- Resolution: 240×180
- Image Size: 1/6″
- Max. Frame Rate (sensor): 120fps
- Raspberry Pi OS: Bullseye (32-bit/64-bit) 01/28/22 or later releases
- TDP: 3.5W Power supply for Pi should be at least 5V/4A
- Modulation frequency: 75MHz/37.5MHz
- View angle: 70° Diagonal
- Measurement Distance (m): Far Mode: 4m Near Mode: 2m
- Light Source: 940nm VCSEL illuminator
- Interface: MIPI (2-Lane)
- Output Format: 4-phase RAW Frame, Depth Frame, Grayscale Amplitude Frame
Features:
- From 2D to 3D, It’s Fully Customizable
- 2M or 4M, With Cable Extension
- Making 3D Imaging Easier and Affordable
How Time of Flight (ToF) Works:
- A ToF Camera emits modulated lights (CW method) and uses the time it takes for the said lights to be reflected back to measure the distance/depth info of any given object/scene, and you can obtain depth data (X, Y Z coordinate position) in every pixel.
- Light travel is calculated withd=C/2f, where C is the speed of light and f is the modulation frequency.

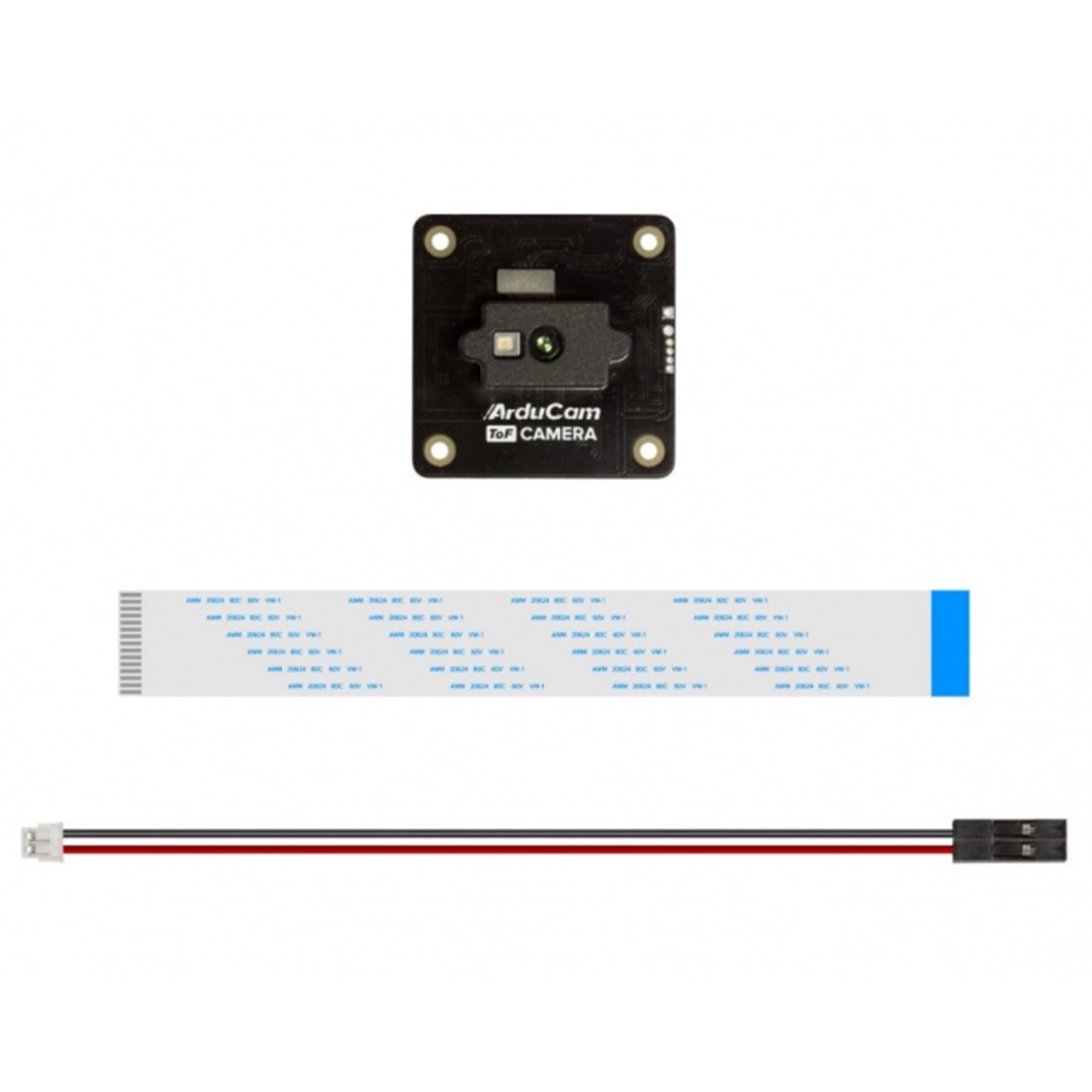

Package Included:
1 xArducam ToF Camera Module Arducam ToF Camera For Raspberry Pi 2D to 3D, Fully Customizable Camera For Raspberry Pi Arducam ToF Camera For Real-Time Depth Mapping on Raspberry Pi
