- Sensor: 1/4" OV5647
- Resolution: 5MP 2592×1944
- Frame Rate: 30fps@1080p, 60fps@720p, 90fps@480p
Description:

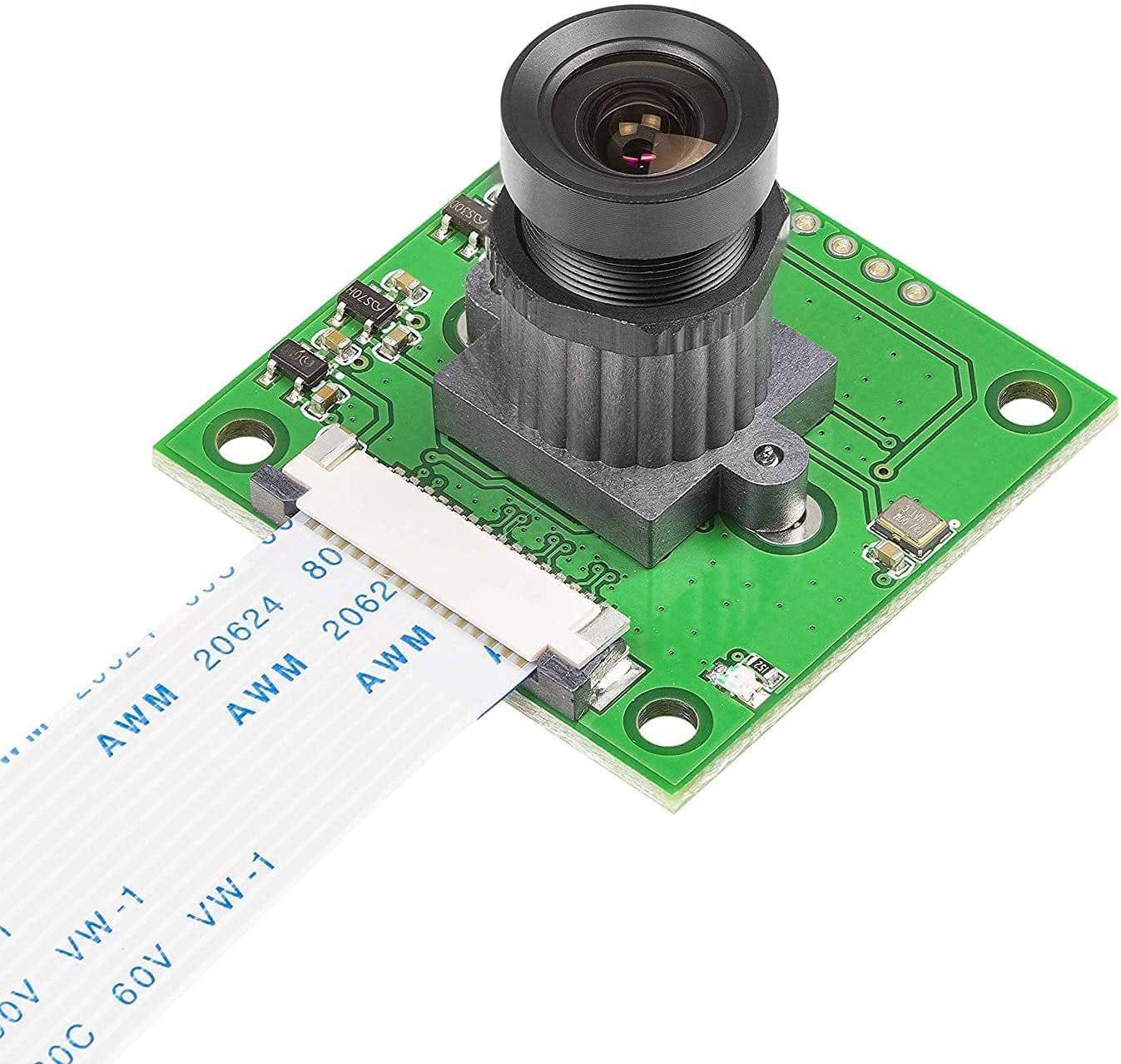

It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing with the camera. *The cable for Pi zero is sold separately. The board itself is tiny, at around 36mm x 36mm, which makes it perfect for applications where size and image quality are essential. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the processor on the Pi via the CSI bus, a higher bandwidth link that carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi. From less than an inch to infinity, you get easy focus control on a 5MP Raspberry Pi camera simply by spinning and tuning the lens and the locking ring. software autofocus/manual focus.
Specification:
- Sensor: 1/4" OV5647
- Resolution: 5MP 2592×1944
- Frame Rate: 30fps@1080p, 60fps@720p, 90fps@480p
- Mount: M12×P0.5
- The angle of view (FOV): 56°(H)
- Focal Length: 4mm (You can screw the lens for focusing**)
- Dimension: 36×36 mm, 4 mounting holes
Features:
- Focus the sharpest way.
- The board itself is tiny.
Application:
This Camera module for Raspberry Pi works natively with the commands and scripts on operation systems like Raspbian, OctoPi, MotionEyeOS and so on.
Package Included:
1 x Arducam Adjustable and Interchangeable Lens M12 Module, Focus and Angle Enhancement for Raspberry Pi 4/3/3 B+
