Description:

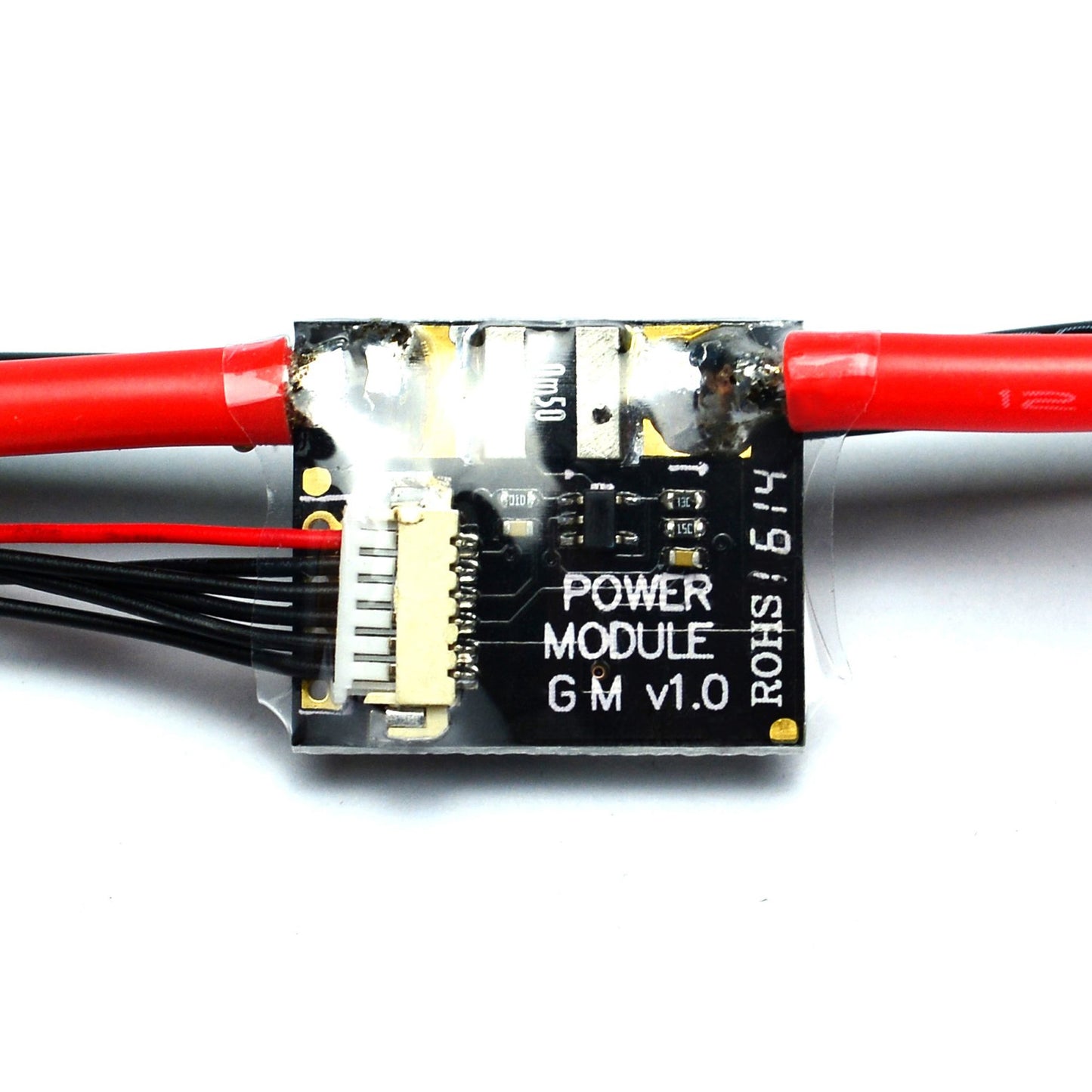

The APM 2.5 Power Module is a simple way of providing your APM 2.5 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The onboard switching regulator outputs 5.3V and a maximum of 2.25A from up to a 4S LiPo battery. The Power Module comes completely assembled with Deans connectors, and wrapped in shrink tubing for protection.
Specifications:
- Max input voltage: 20V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 2.25A max
- 6-pos DF13 cable plugs directly to APM 2.5's 'PM' connector
Features:
- Voltage and current measurement configured for 5V ADC.
- Switching regulator outputs 5.3V and 3A max.
- 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector.
- Supports from 2 cell to 6 cell battery.
Function:
Used to detect the battery voltage and the battery current, the flight control board receives two signals, calculates the remaining battery power, estimate the remaining flight time. In addition, the module also comes with a BEC function, you can output 5.3 DC, 3A maximum continuous current for the flight control board to provide a stable power supply. Another signal cable connector is used in Japan's original fittings, non-domestic joint, so the APM flight control board and reliable connection between the power supply module.
*Note:The Power Module is only designed to power APM, an RC receiver and APM accessories (GPS, 3DR radio). It is notdesigned to power servos. Use your aircraft's own ESC/BEC for that.
Package Included:

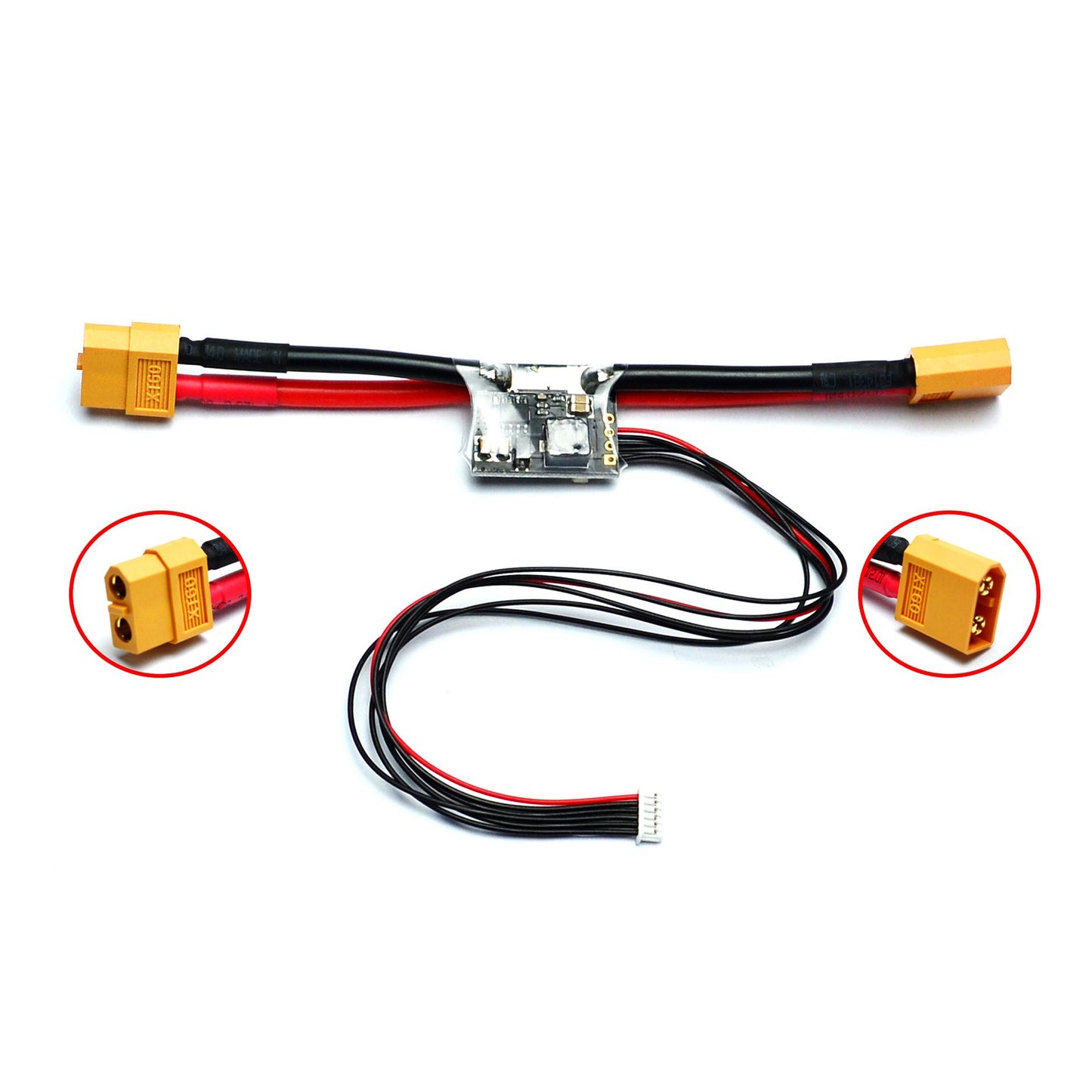

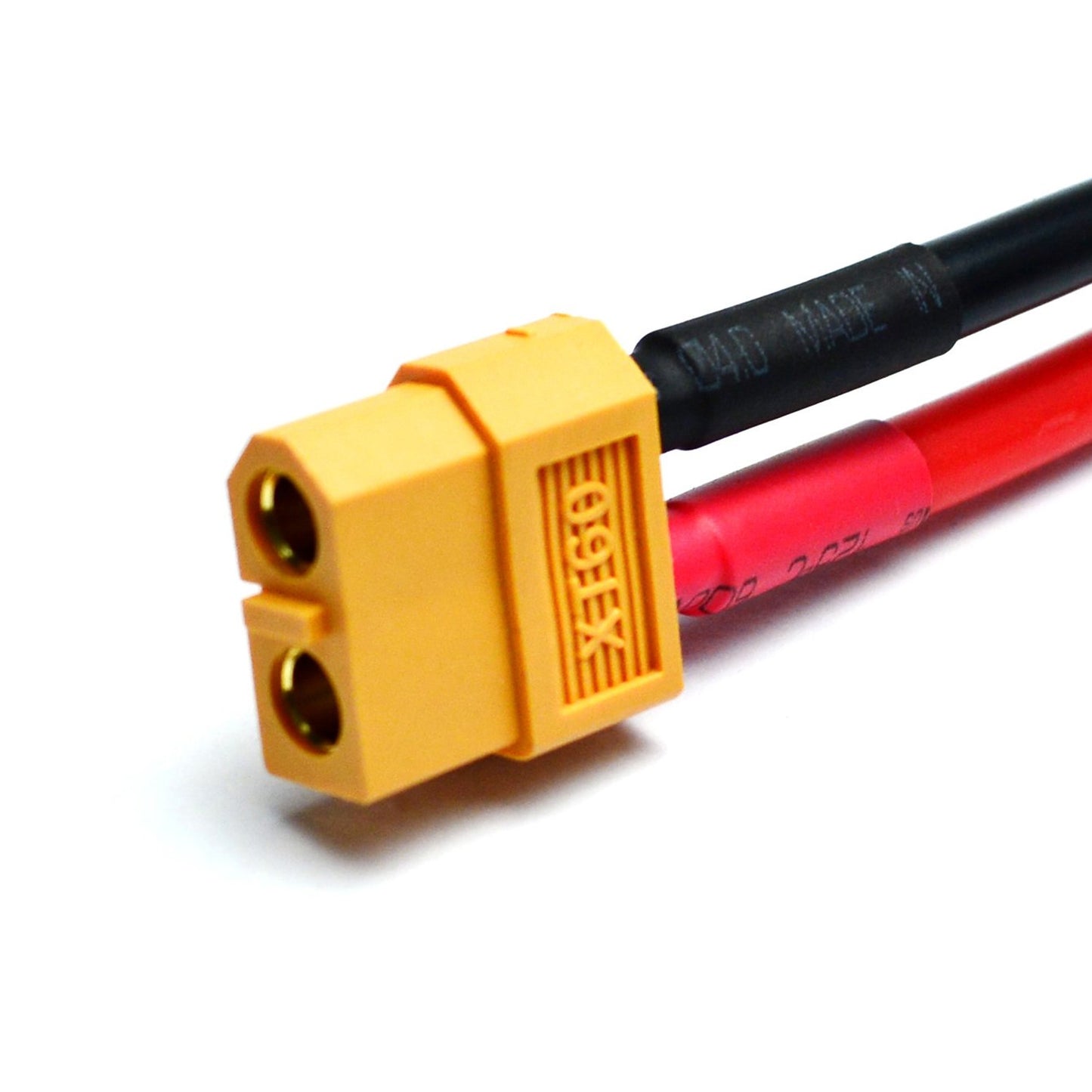

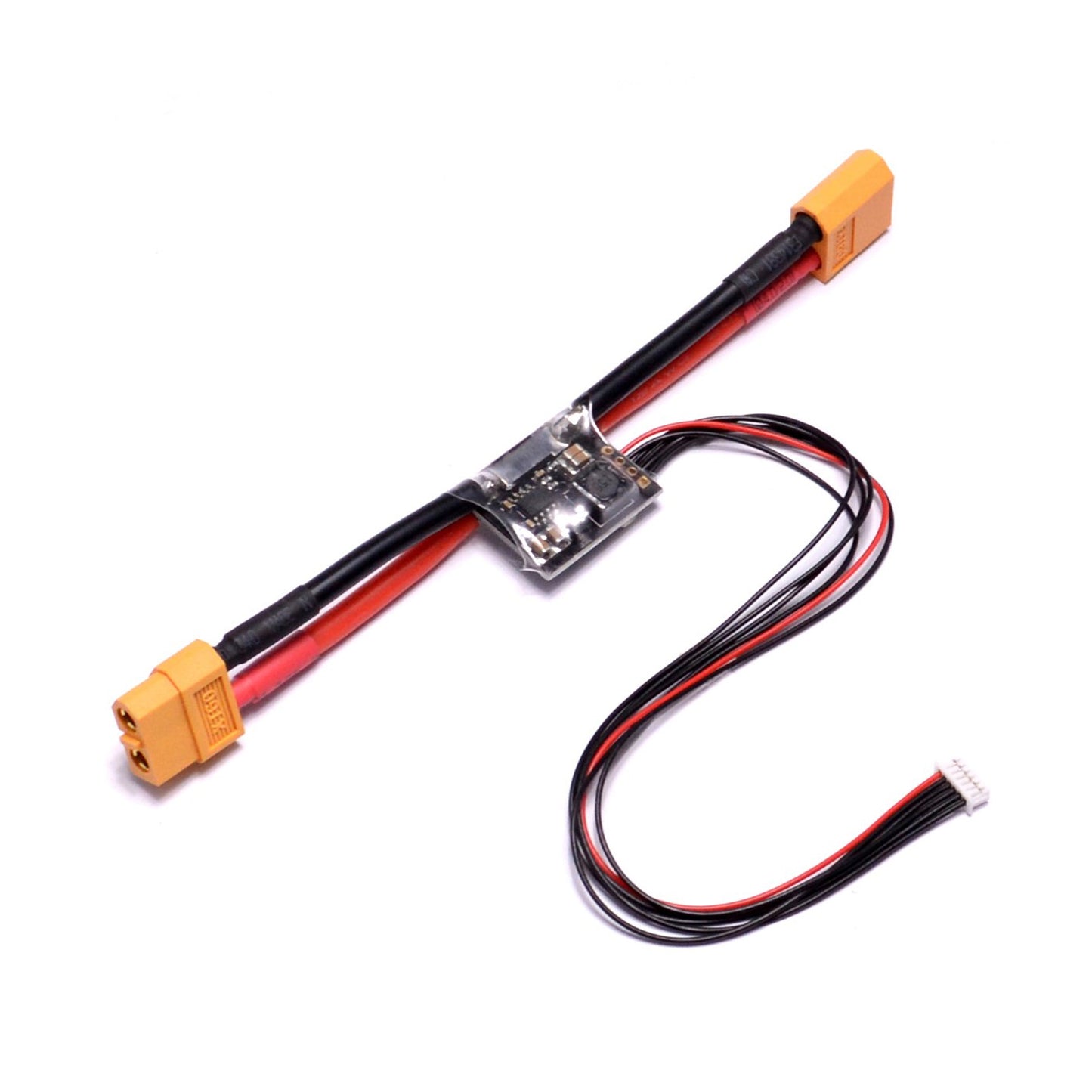

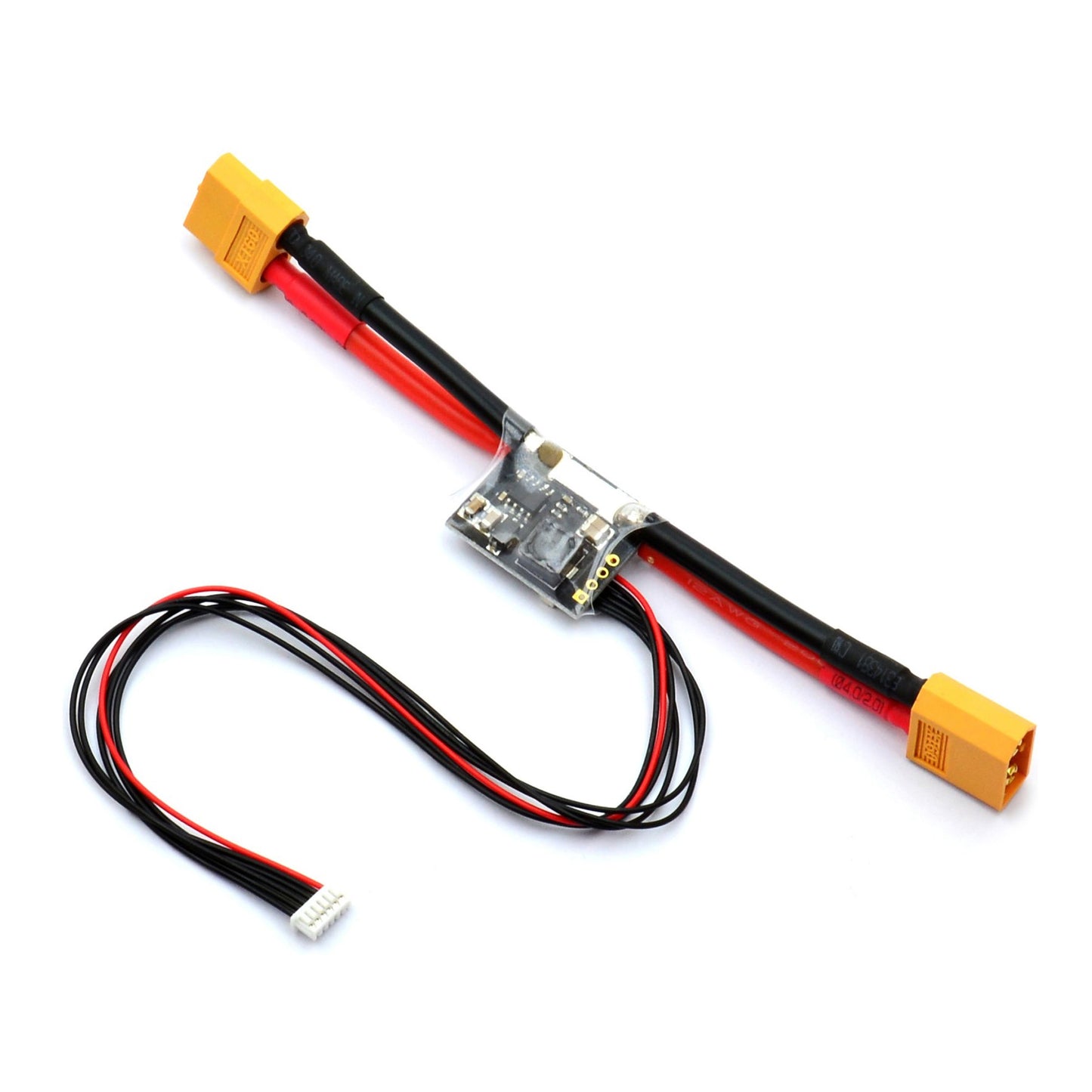

1 x APM Power Module V1.0 XT60 Plug for APM2.8 APM2.6 APM Pixhawk Flight Controller
