Description:
The APM 2.8 is the latest evolution of the popular APM 2.6 flight controller, designed to provide superior stability and control for your aerial and ground-based robotic projects. it comes with built-in compass flexibility to enjoy the freedom to choose between the integrated compass for convenient setup or utilize an external compass for optimal performance in challenging magnetic environments.
This versatile shock absorber offers a range of applications, from isolating sensitive flight controllers to providing stable camera mounts. comes with superior vibration absorption to effectively reduce vibrations transmitted to mounted components, ensuring smoother operation and improved performance.
The NEO-M8N represents a significant leap forward in GPS technology, offering unparalleled accuracy and power efficiency. comes with unmatched precision achieving sub-meter accuracy with a typical horizontal accuracy of 0.9 meters, a substantial improvement over the previous generation NEO-7N's 1.4-1.6 meters.
This innovative mount provides a secure and convenient solution for attaching your GPS module to your aircraft. comes with quick and easy installation the included laser-cut adhesive pad allows for fast and secure attachment of your GPS module.
This essential accessory provides a streamlined solution for powering your APM 2.5 flight controller while enhancing its capabilities. clean power delivery delivers clean, stable power from your LiPo battery to the APM 2.5, ensuring optimal performance and reliability.
Specifications:
- Input Voltage(V): 28
- Current Sensing(A): 90
- Battery Support: 6S
Features:

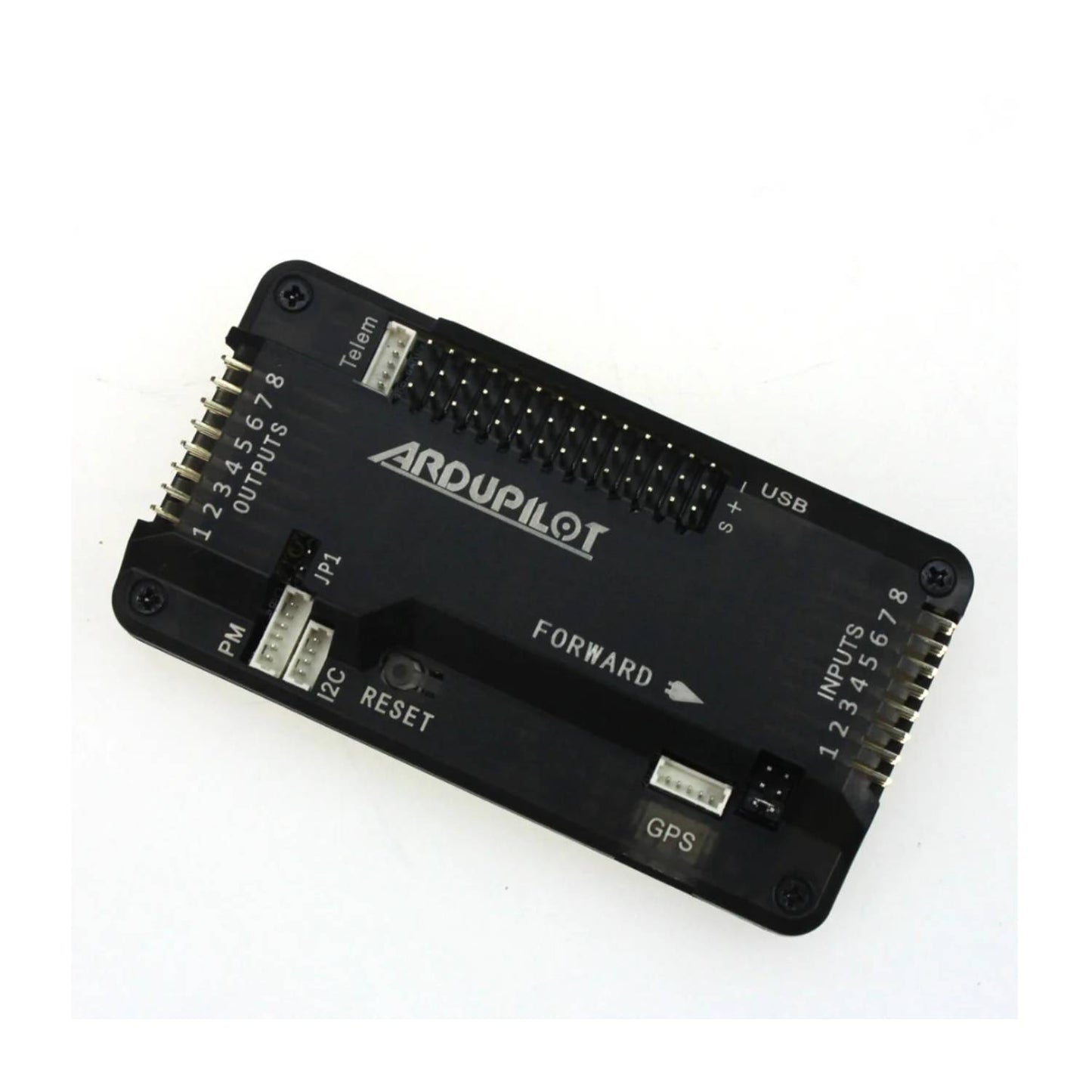

APM 2.8 Flight Controller:
- Needle: straight.
- Power supply: LP2985-3.3.
- Max voltage: 16V.
- Add a 47uF tantalum capacitor.
- Port: MUX (UART0, UART2, mnnI2, and OSD are optional, OSD is the defaulted output).
- Arduino Compatible!
- Includes 3-axis gyro, accelerometer, along with a high-performance barometer
- Onboard 4 MegaByte Dataflash chip for automatic data logging.
- Optional off-board GPS, a uBlox LEA-6H module with Compass.
- One of the first open-source autopilot systems to use Invensense’s 6 DoF Accelerometer/Gyro MPU-6000.
- Barometric pressure sensor upgraded to MS5611-01BA03, from Measurement Specialties.
- Atmel’s ATMEGA2560 and ATMEGA32U-2 chips for processing and USB functions respectively.

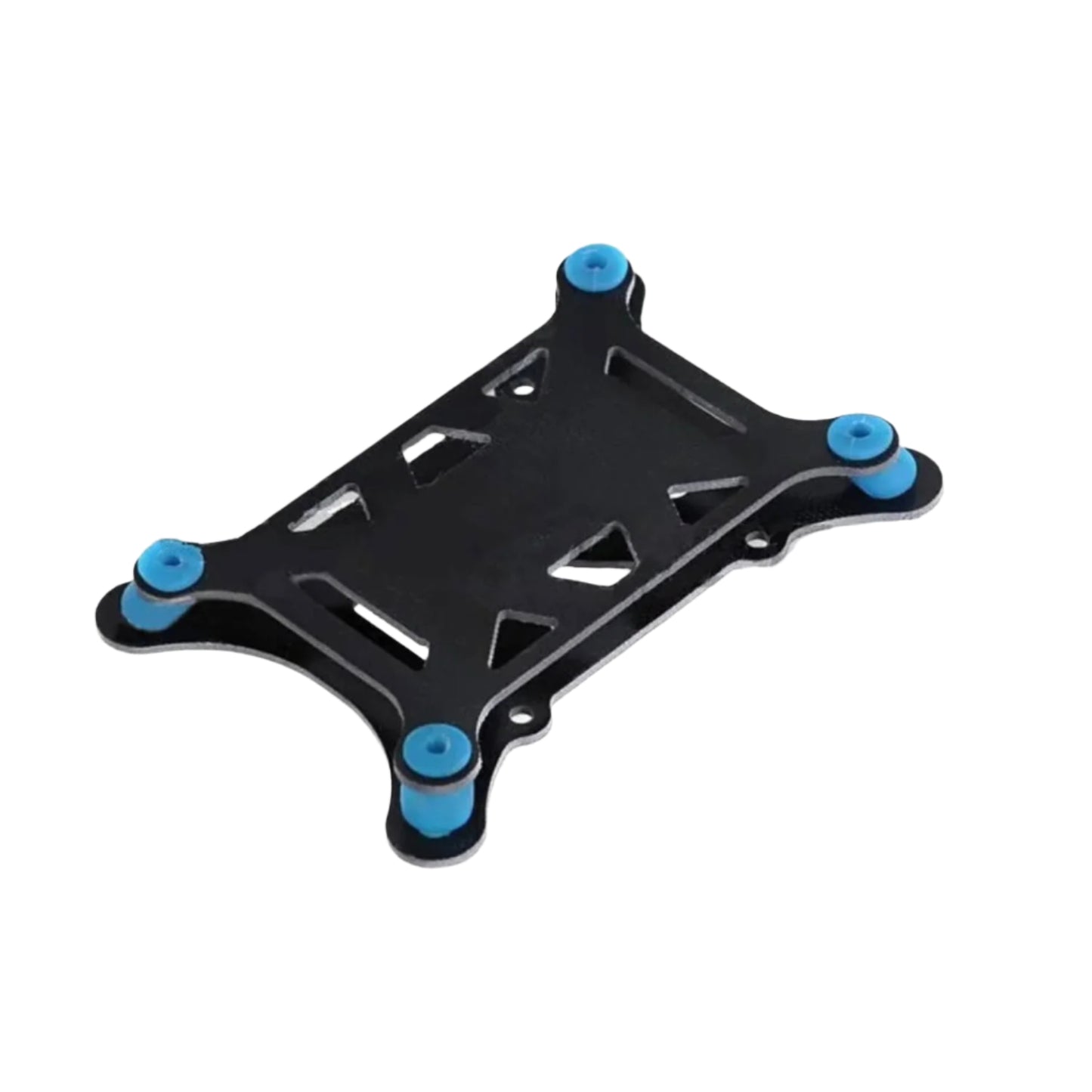

Anti-vibration/Shock Absorber:
- Color: Black
- Material: Glass fiber
- Suit for different open source flight controllers, like APM 2.5/2.6/2.8, KK, MWC, and Pixhawk 2.4

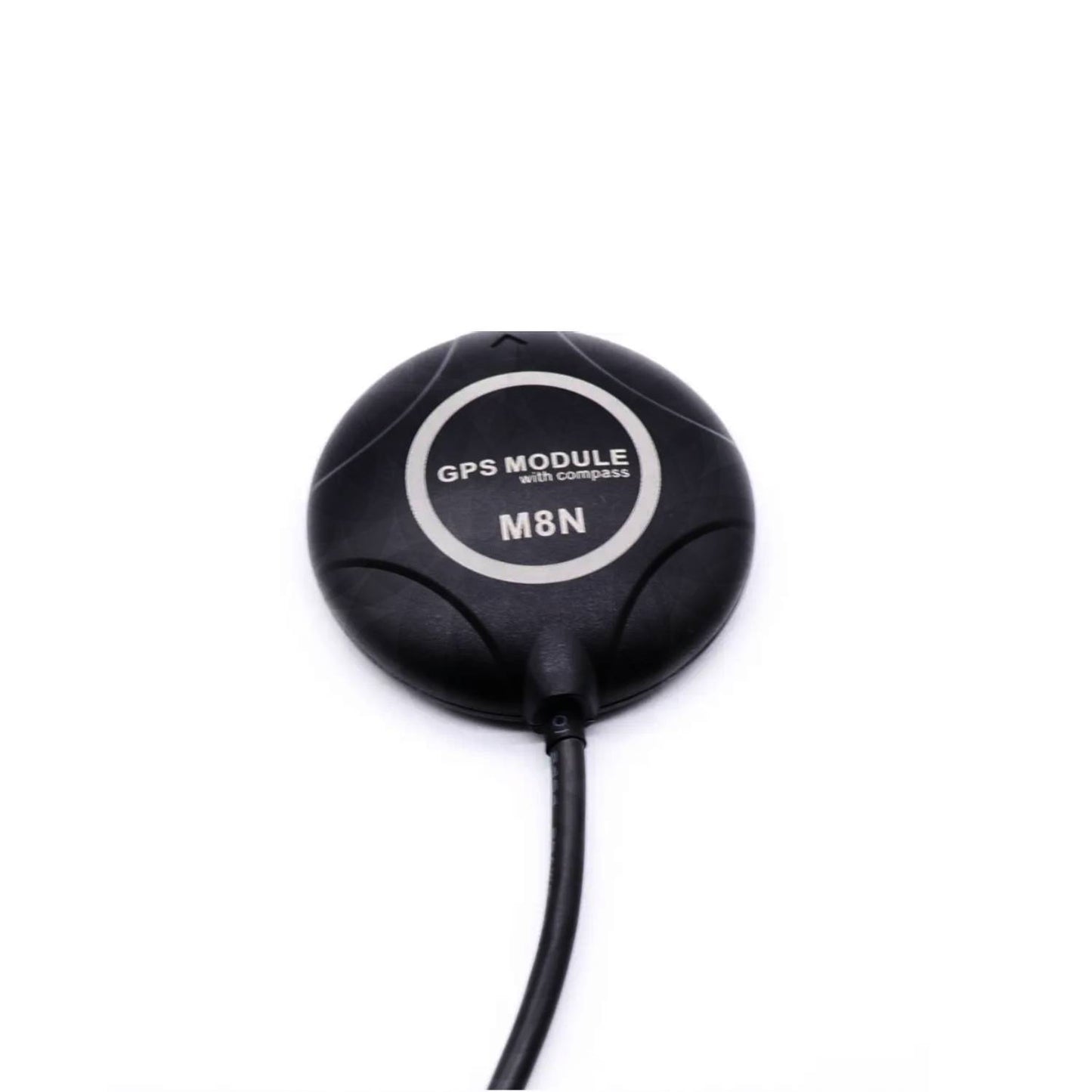

NEO-M8N GPS Module:
- Receiver type 72-channel u-box M8 engine.
- GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1.
- SBAS L1 C/A: WAAS, EGNOS, MSAS.
- Galileo-ready E1B/C (NEO-M8N).
- Nav. update rate1 Single GNSS: up to 18 HZ.
- Concurrent GNSS: up to 10 Hz.
- Position accuracy2 2.0 m CEP.
- Acquisition2 Cold start: 26 s.
- Aided starts: 2 s.
- Reacquisition: 1.5 s.
- Sensitivity2 Tracking & Nav: –167 dBm.
- Cold start: –148 dBm.
- Hot starts: –156 dBm.
- Assistance AssistNow GNSS Online.
- Assist Now GNSS Offline (up to 35 days)3.
- Assist Now Autonomous (up to 6 days).
- OMA SUPL 3GPP compliant
- Oscillator TCXO (NEO-M8N/Q).
- Crystal (NEO-M8M).
- RTC crystal Built-In.
- Noise figure On-chip LNA (NEO-M8M). Extra LNA for.
- lowest noise figure (NEO-M8N/Q).
- Anti-jamming Active CW detection and removal.
- Extra onboard SAW bandpass filter (NEO-M8N/Q).
- Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N).
- Supported antennas Active and passive.
- Odometer Travelled distance.
- Data logger For position, velocity, and time (NEO-M8N).

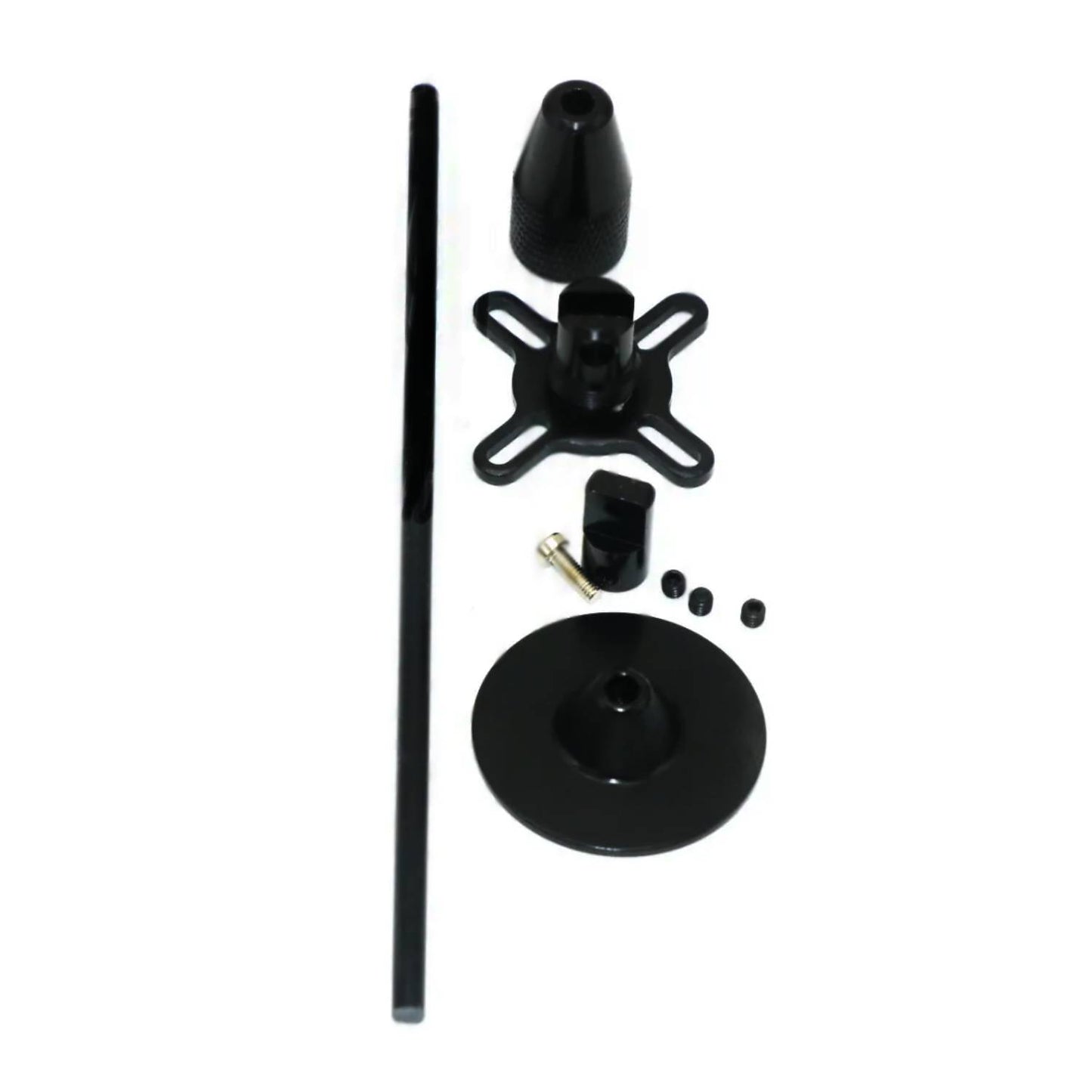

GPS Mount:
- Material: CNC Aluminum alloy, carbon glass fiber rod
- Mounting rod diameter: 4mm
- length of rod: 14 cm.
- GPS plate diameter: 40 mm.
- Base plate diameter: 35 mm
- Mounting hole spacing: 16-35mm
- Weight: 20g
- Colour: Anodised black
- Note: Adhesive Pad is not included.

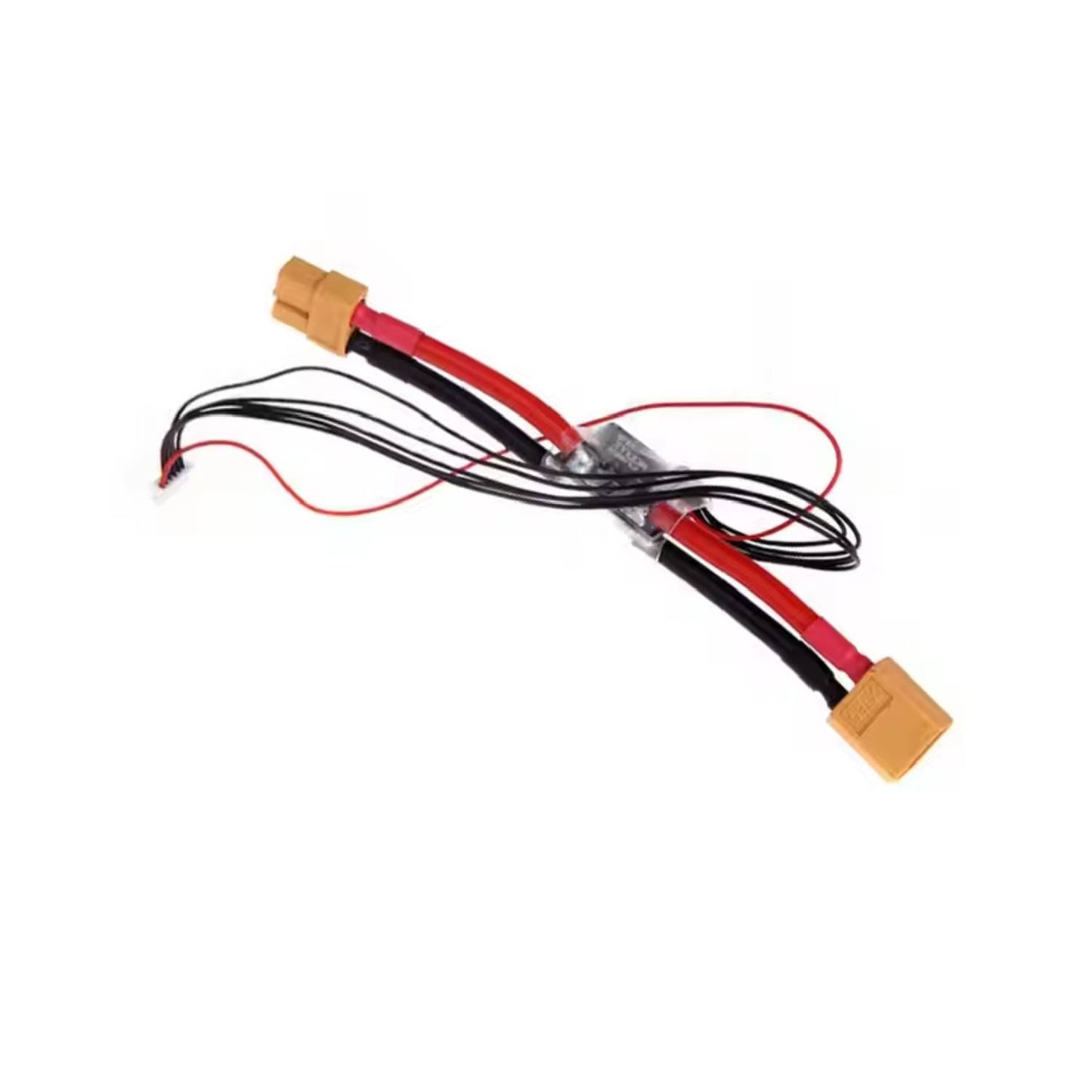

Power Module V1.0:
- Max input voltage: 28V
- Max current sensing: 90A
- Voltage and current measurement configured for 5V ADC
- Switching regulator outputs 5.3V and 3A max
- 6-pos DF13 cable plugs directly to APM 2.5’s ‘PM’ connector
- Support 6S battery

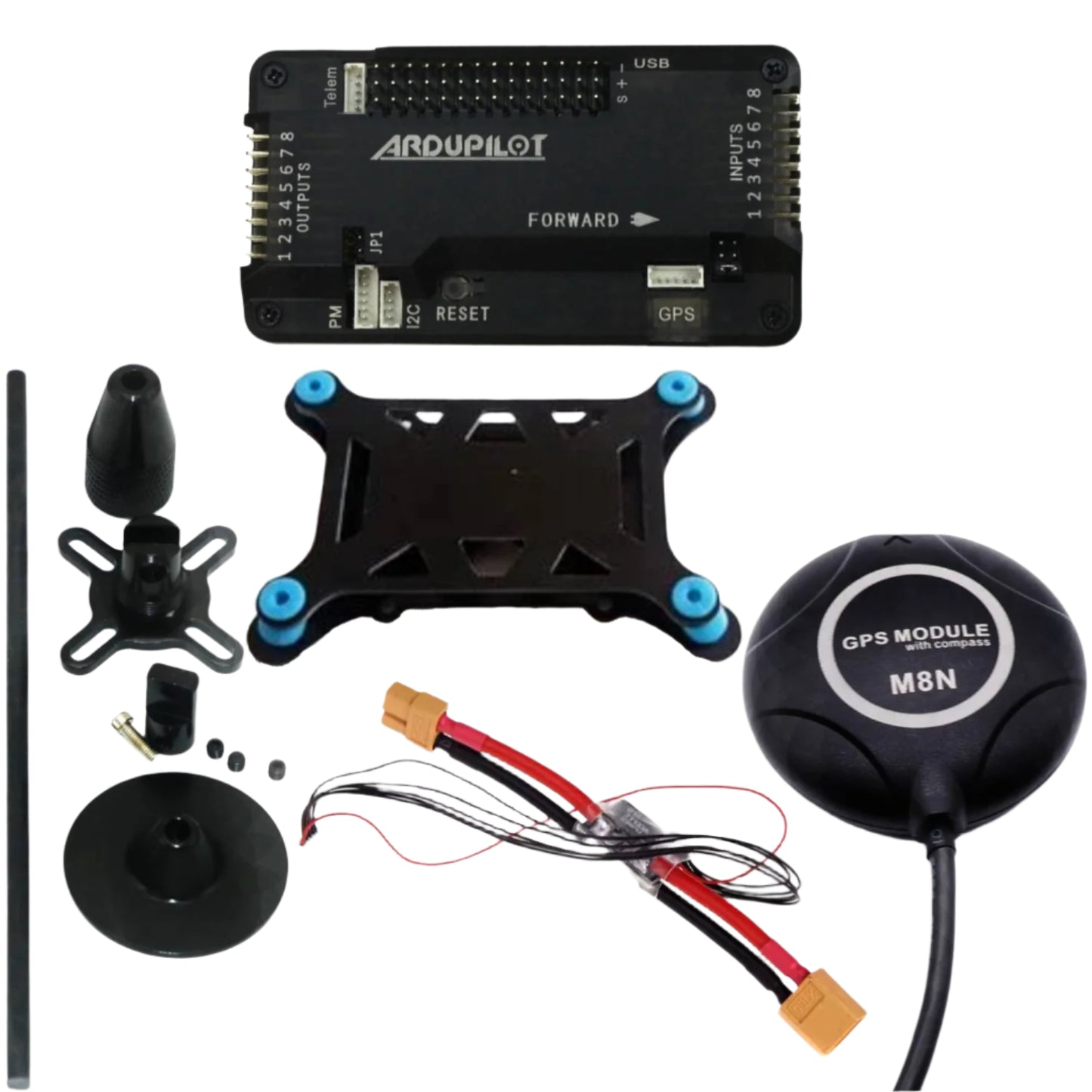

Package Included:
-
1 x APM 2.8 Flight Controller.
- 2 x Connecting Wires
- 1 x Anti-vibration/Shock absorber Set.
- 1 x NEO-M8N GPS Module
- 1 x GPS Mount
- 1 x Power Module V1.0
