Description:

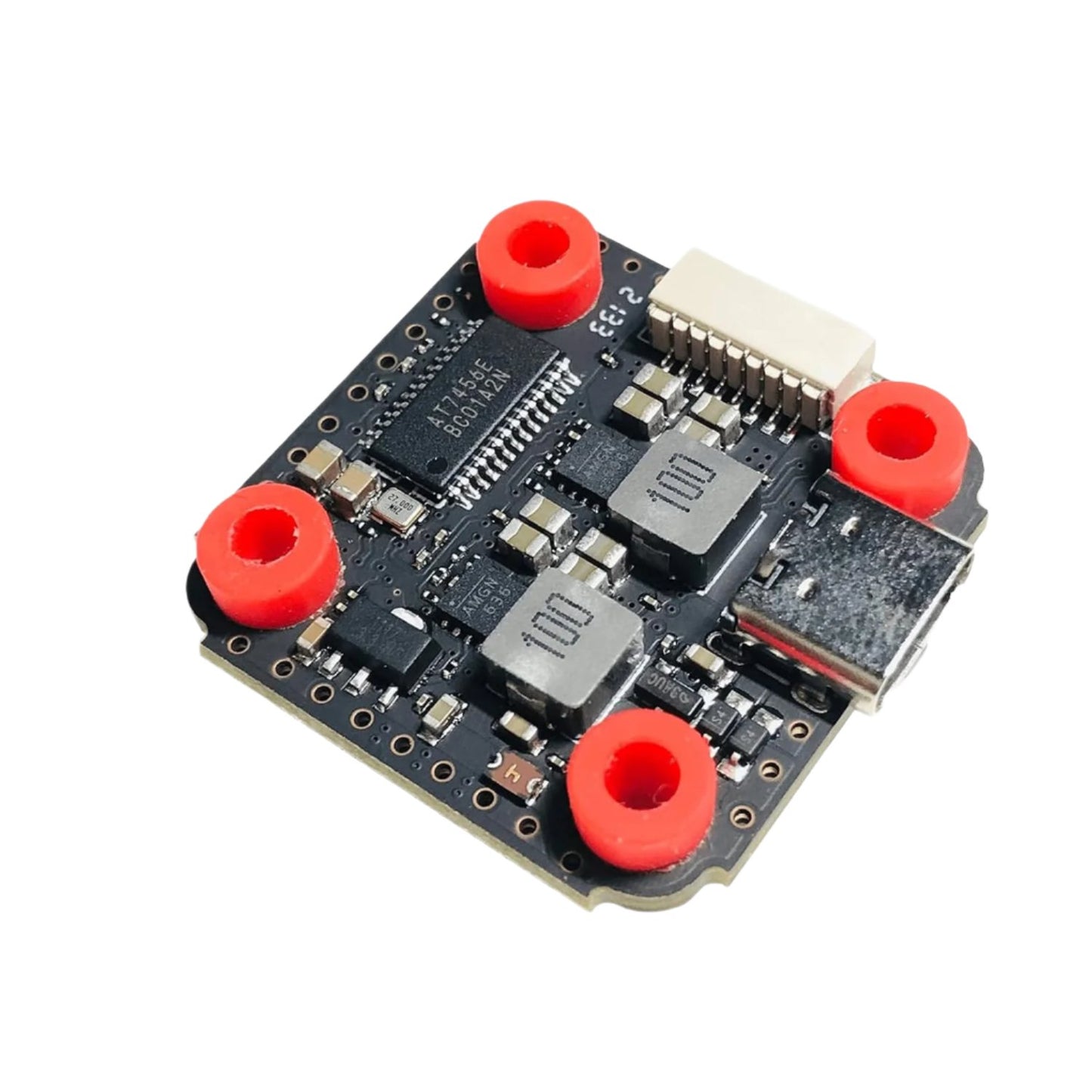

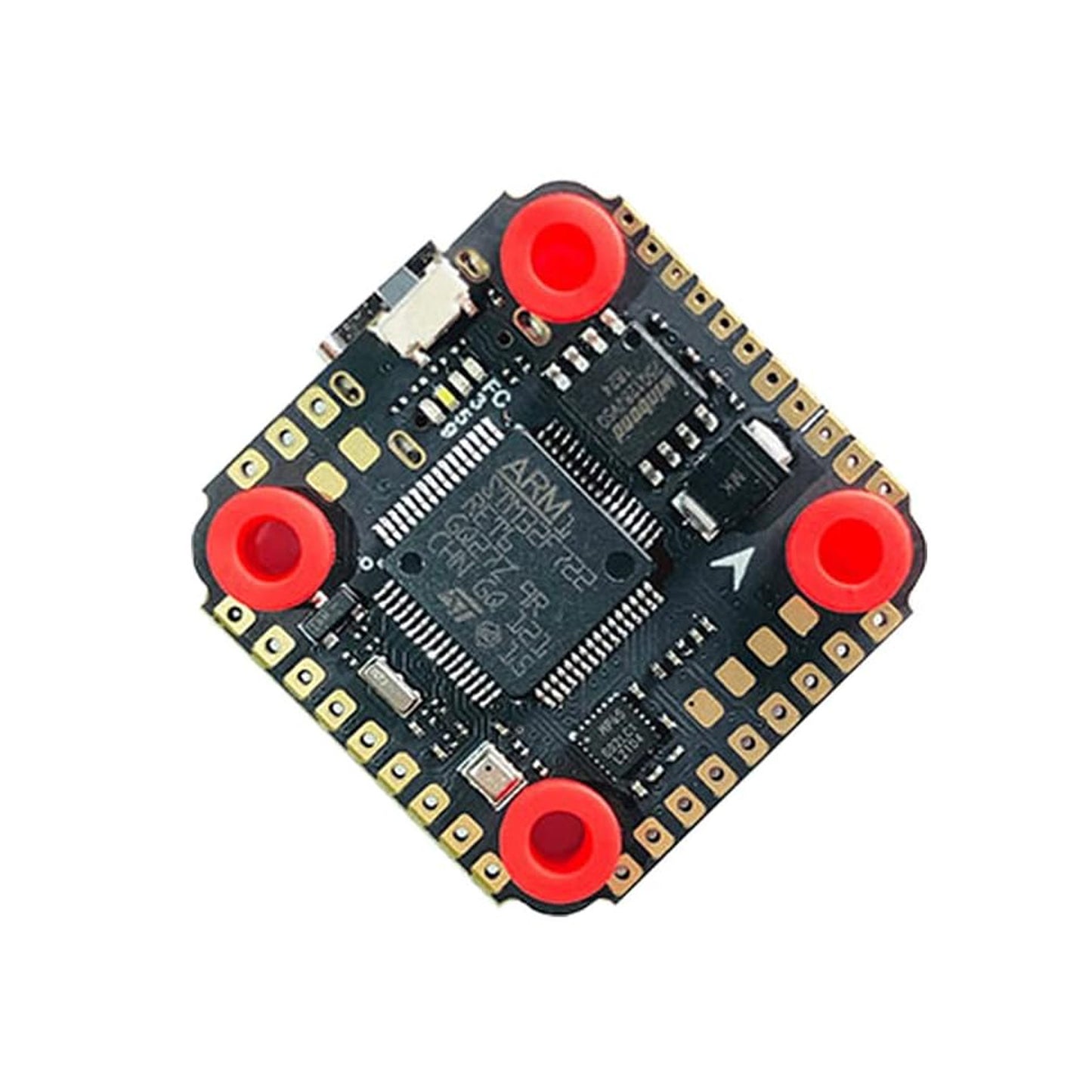

The Aocoda F7 Mini V1.0 Flight Controller determines the intended speed for each of the four motors using the information obtained by the sensors. The Electronic Speed Controllers (ESCs) receive this desired speed from the flight controller and convert it into a signal that the motors can interpret.
The flight controllers employ the MPU6500, the most popular IMU sensor. This is because it can sample the gyro at 8kHz over an SPI interface and has a good vibration tolerance.
Specifications:
- Item Type: Flight Controller
- Model: F7 MINI V1.0

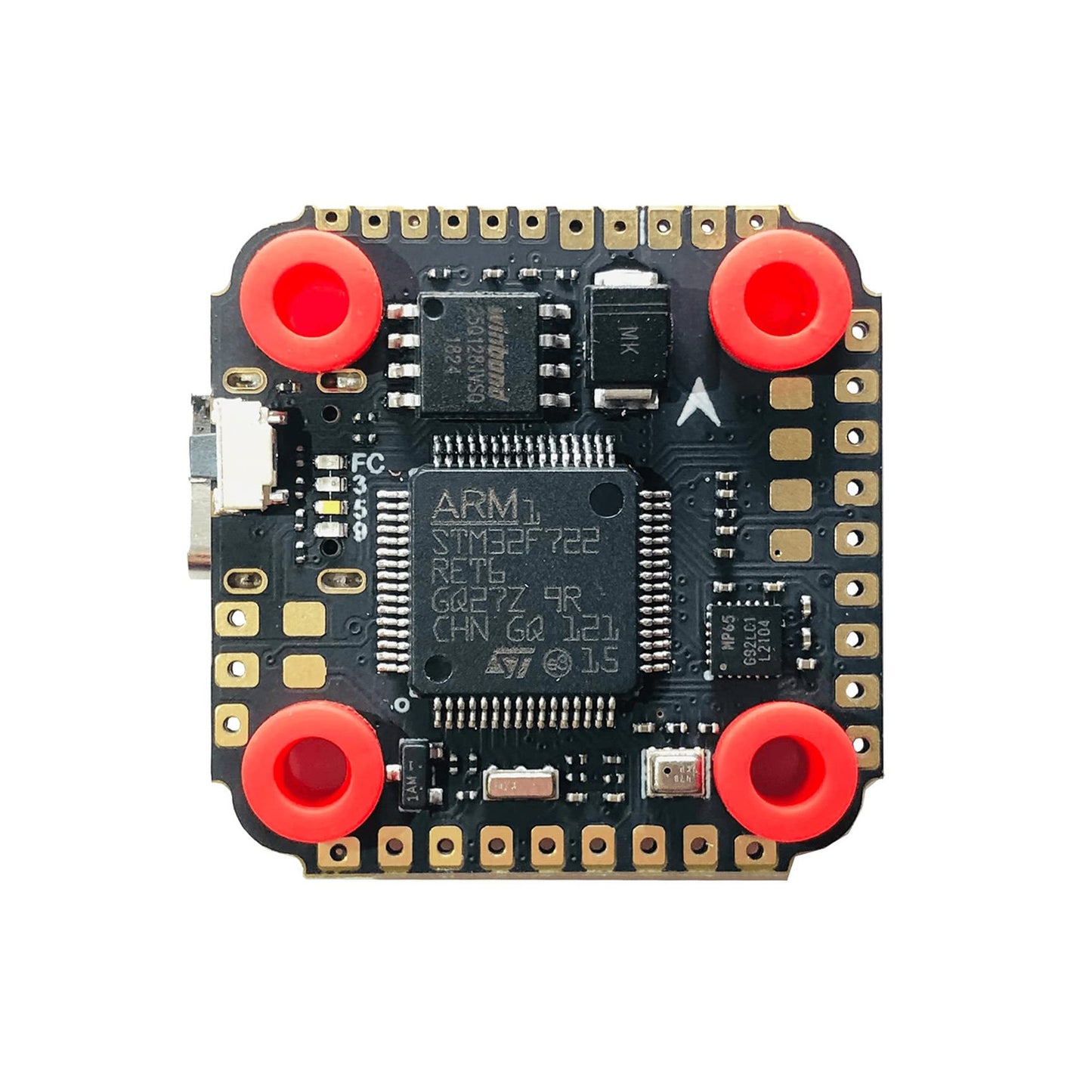

- Main Control Chip: ARM STM32F722RET6
- Battery Input Voltage (V): 3-6S Lipo
- Barometer: BMP280
- Power Port: 1 C-Type
- Firmware: AOCODAF722MINI
Features:
- Lightweight, Easy to connect
- Compact in size
- The flight controller comes with an ARM processor
- High-performance efficient flight controller ESC
- Compact size
- Easy to Connect
Package Included:
1 x Aocoda F7 Mini V1.0 Flight Controller F7 Mini FC For Huafei Racing Drones RC Flight Controller With OSD Barometer Black Box For RC FPV Quadcopter Drones
