Anycubic Photon Mono M7 MAX 7K Resin 3D Printer High-Speed Large Format MSLA UV LCD Printer - RS10077

Description:

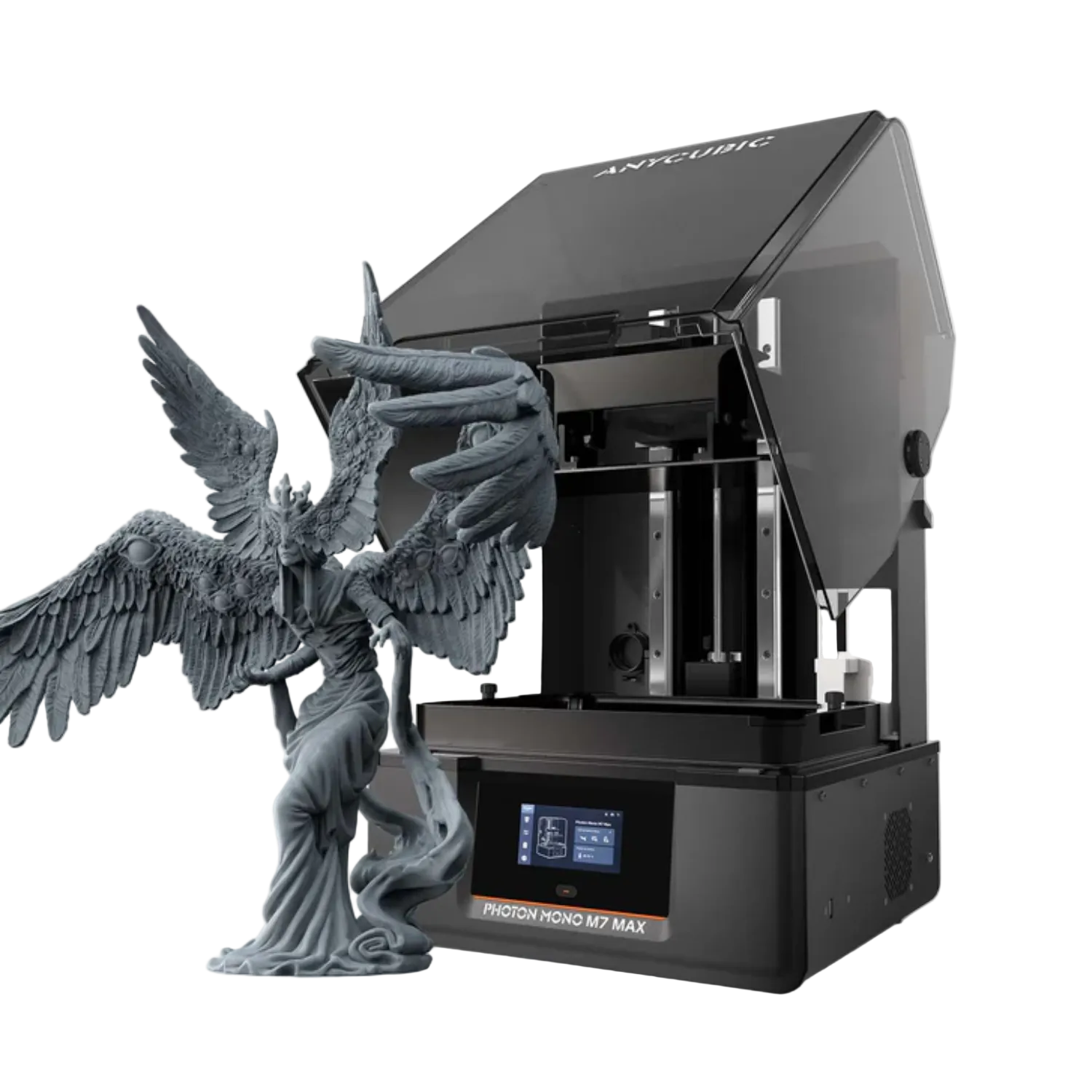

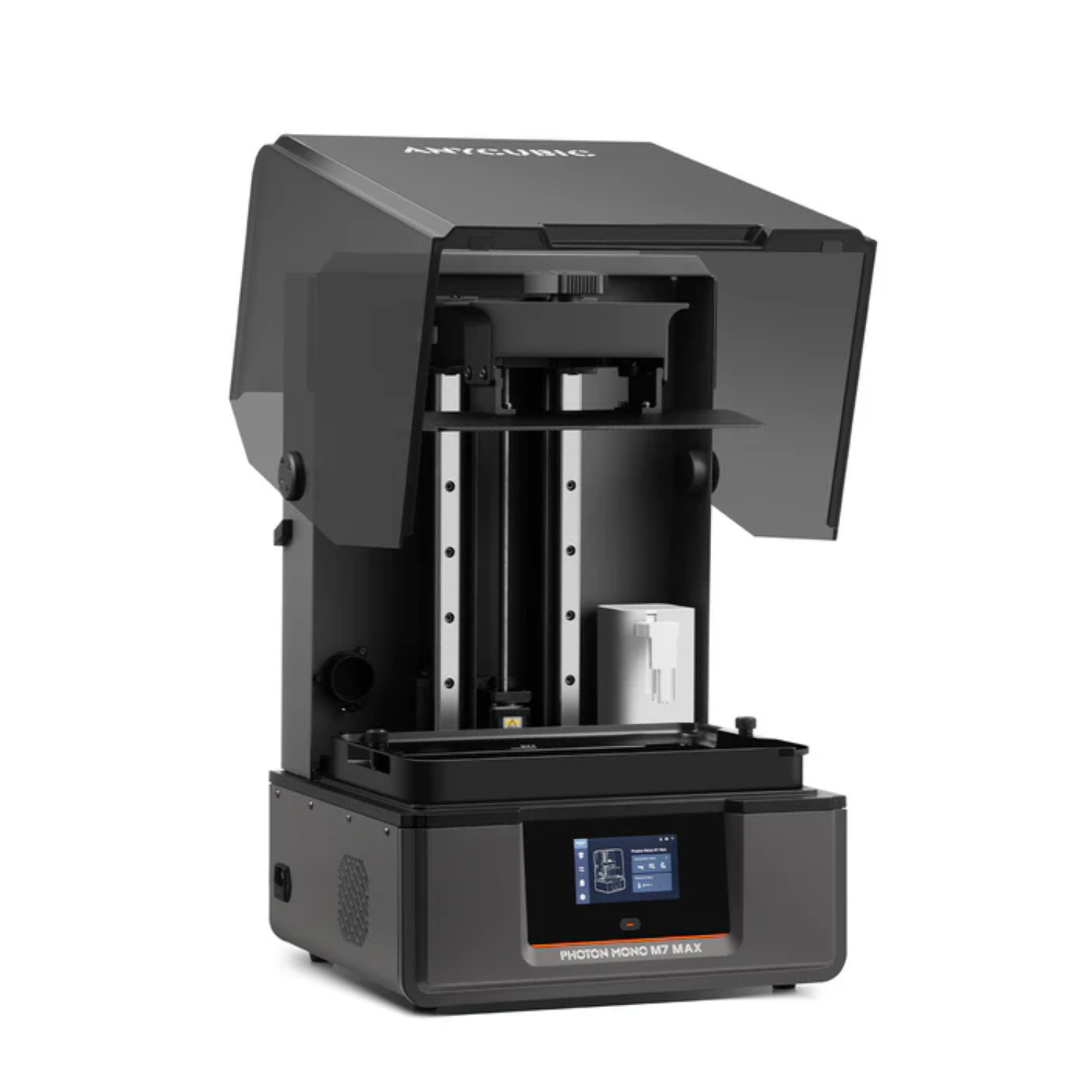

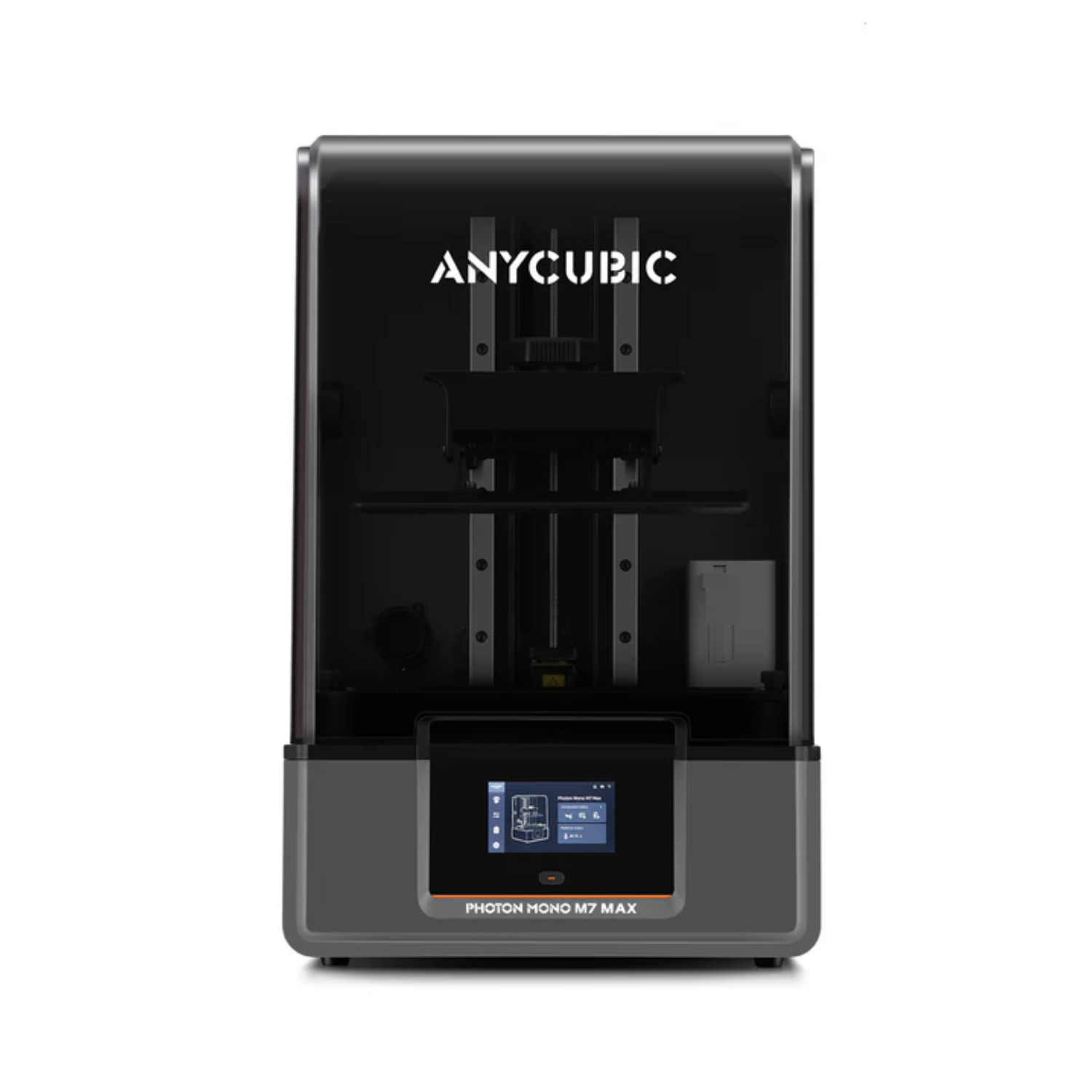

The Anycubic Photon Mono M7 Max is a professional-grade large-format resin 3D printer designed for engineers, designers, manufacturers, dental professionals, hobbyists, and makers who require exceptional precision, high-speed performance, and an expansive printing area. Featuring a massive 298 × 164 × 300 mm (14.7 L) build volume, it allows users to print large models or multiple parts simultaneously, making it ideal for rapid prototyping, batch production, product development, miniatures, and detailed creative projects.

Powered by a 13.6-inch 7K monochrome LCD and the advanced LighTurbo 3.0 optical system, the Photon Mono M7 Max delivers outstanding print accuracy, crisp details, and smooth surface finishes. The integrated COB light source, combined with a Fresnel lens and advanced light uniformity algorithm, ensures consistent UV exposure for reliable curing and high-quality results. With printing speeds of up to 86 mm/h when used with compatible high-speed resin, it offers excellent productivity without compromising precision.

To enhance reliability and ease of use, the printer features resin temperature control, automatic resin recycling, Intelligent Release 2.0 for optimised peeling performance, resin level monitoring, residue detection, failed print detection, and release film lifespan management. Supporting USB, Wi-Fi, and scheduled LAN file transfer, the Anycubic Photon Mono M7 Max provides a seamless, efficient, and user-friendly resin printing experience for both professional and advanced personal applications.

Specifications:

• Item Type: Anycubic Photon Mono M7 Max

• Printing Volume: 298 × 164 × 300 mm (14.7 L)

• LCD Screen: 13.6-inch monochrome LCD, 7K resolution

• Printing Speed: Max ≤63 mm/h; High-Speed Resin (0.1 mm): ≤86 mm/h

• Layer Height Range: 0.01 – 0.15 mm

• X/Y Resolution: 46 × 46 μm

• Light Source: COB Light Source + Fresnel Lens + Light Uniformity Algorithm

• Light Intensity: 4500 ±10% μW/cm²

• Build Platform: Laser-Engraved Aluminum Build Plate

• Release Film: Improved ACF Film

• Z-Axis: Dual Linear Rails with 10 μm Precision

• Machine Leveling: 4-Point Manual Leveling

• Resin Auto-fill Unit: Supported

• Dynamic Temperature Control Resin Vat: Supported (20–40°C)

• Power Loss Resume: Supported

• File Transfer: USB / Wi-Fi / LAN (Scheduled)

• Operating Screen: 4.3-inch Touch-Control Display

• Slicing Software: Photon Workshop, Chitubox, LycheeSlicer (Scheduled)

• Power Supply: 180 W
• Printing Speed:

Features:

• Large 14.7 L Build Volume: A 298 × 164 × 300 mm print area for large models and batch production.
• A 13.6-inch 7K mono LCD produces ultra-sharp details, smooth surfaces, and high-resolution prints.
• The LightTurbo 3.0 Optical System delivers precise, uniform, and consistent UV light exposure.
• High-Speed Printing: Prints up to 86 mm/h with compatible high-speed resin.
• COB Light Source: A Fresnel lens and light-uniformity technology ensure reliable curing accuracy.
• Dynamic Resin Temperature Control Maintains optimal resin temperature between 20–40°C for stable printing.
• Automatic Resin Management: Auto-fill and resin recycling reduce waste and improve efficiency.
• Intelligent Release 2.0 optimises layer separation for higher print success rates.
• Smart Print Monitoring detects resin level, residue, failed prints, and release film lifespan automatically.
• USB, Wi-Fi, and LAN Connectivity Supports flexible file transfer and scheduled network printing.

Package Included:

1 x Anycubic Photon Mono M7 MAX 7K Resin 3D Printer
