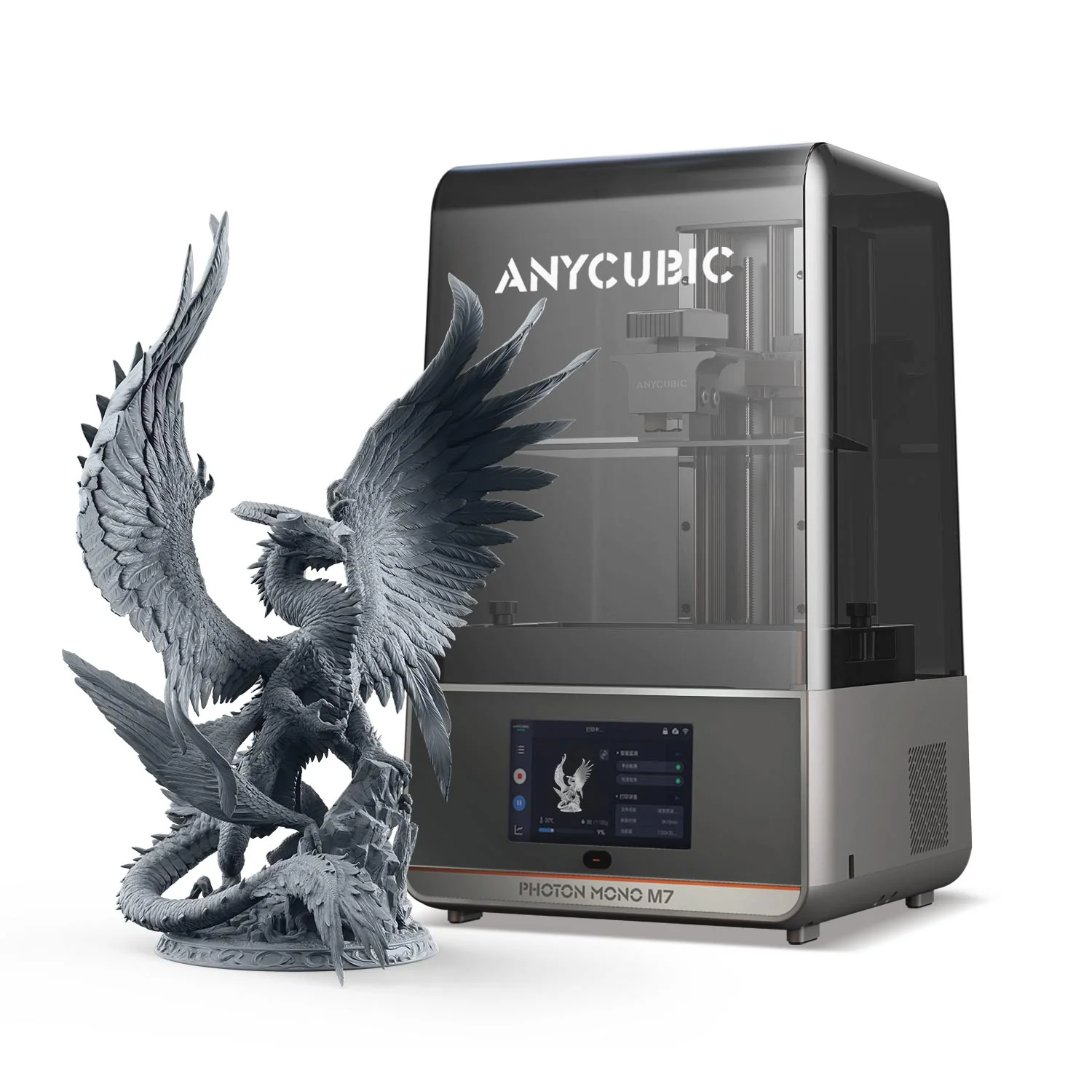

Anycubic Photon Mono M7 3D Printer 14K MSLA UV Resin Printer Ultra-High Resolution & High-Speed Printing - RS9856

Description:

The Anycubic Photon Mono M7 3D Printer is a next-generation 14K MSLA UV resin 3D printer engineered to deliver exceptional precision, ultra-fast printing speeds, and intelligent automation for makers, professionals, engineers, designers, and hobbyists. Featuring a 10.1-inch 14K monochrome LCD with an impressive 16.8 × 24.8μm XY resolution, the Photon Mono M7 produces stunningly detailed models with smooth surfaces, crisp edges, and outstanding dimensional accuracy. Whether you're creating miniatures, jewelry, dental models, engineering prototypes, collectibles, or highly detailed figurines, the M7 consistently delivers professional-quality results.

Powered by Anycubic's advanced LighTurbo 3.0 optical system, the printer combines a COB light source, Fresnel lens, and intelligent light uniformity algorithm to ensure even UV exposure across the entire build platform. This results in superior print consistency, reduced layer lines, improved success rates, and sharper details throughout every model. The Dynamic Light-Off Compensation technology further optimizes exposure timing for enhanced surface quality and printing efficiency.

Designed for speed without compromising quality, the Photon Mono M7 supports printing speeds up to 150mm/h when paired with compatible high-speed resins. Its generous 223 × 126 × 230mm (6.5L) build volume allows users to print multiple models simultaneously or produce larger parts in a single print, significantly improving productivity for commercial and professional applications.

Specifications:

• Printing volume: 223*126*230mm³ (6.5 L)

• Printing speed: Max Speed ≤90mm/h; Standard Resin (0.1mm): ≤90mm/h; High-
• Speed Resin (0.1mm): ≤150mm/h

• Layer Height Range: 0.01–0.15 mm

• X/Y Axis Resolution: 16.8 × 24.8 μm

• Light Source: COB Light Source+ Fresnel Lens+Light Uniformity Algorithm

• Light Intensity: 4500 ±10% μW/cm²

• Material Compatibility: High-speed, Water-washable, Standard, ABS-like, plant-based Resins, etc.

• Build Platform: Laser-engraved Build Plate

• Z-axis: Dual Linear Rails with 10 μm Precision

• Release film: Improved ACF Film

• Resin Vat: ≤ 1 L

• Machine Leveling: Leveling-free

• Power Loss Resume: Not Supported

• Power Supply: 135W

• Protection Film: Replaceable Scratch-resistant Film

• Resin Auto-fill Unit: Not Supported

• Dynamic Temperature Control Resin Vat: Not Supported

• Slicing Software: Photon Workshop, Chitubox, Lychee Slicer (Scheduled)

• File Transfer: USB/WiFi/LAN (Scheduled)

• Operating Screen: 4.3" Touch-Control

• Air Purifier: Optional Accessory

• LCD Screen: 10.1-inch Monochrome LCD, 14K Resolution

• Anycubic App: Supported

Features:

• The 10.1-inch 14K Mono LCD Delivers ultra-high-resolution prints with exceptional detail and smooth surface finishes.
• Large 223 × 126 × 230mm Build Volume  Print larger models or multiple parts simultaneously with ease.
• LightTurbo 3.0 Optical System Ensures uniform UV light distribution for precise, consistent, and reliable curing.
• Ultra-Fast Resin Printing Supports print speeds up to 150 mm/h with compatible high-speed resins.
• 16.8 × 24.8 μm XY Resolution Produces sharp edges, intricate details, and outstanding dimensional accuracy.
• Stable Dual Linear Rail Z-Axis Enhances printing stability while minimising layer shifting and vibrations.
• Intelligent Print Monitoring Smart detection features help reduce print failures and improve reliability.
• Wide 405nm Resin Compatibility Works with standard, ABS-like, water-washable, plant-based, and high-speed UV resins.
• Photon Workshop Compatible Simplifies slicing, print preparation, and workflow management.

Package Included:

1 x Anycubic Photon Mono M7
