Description:

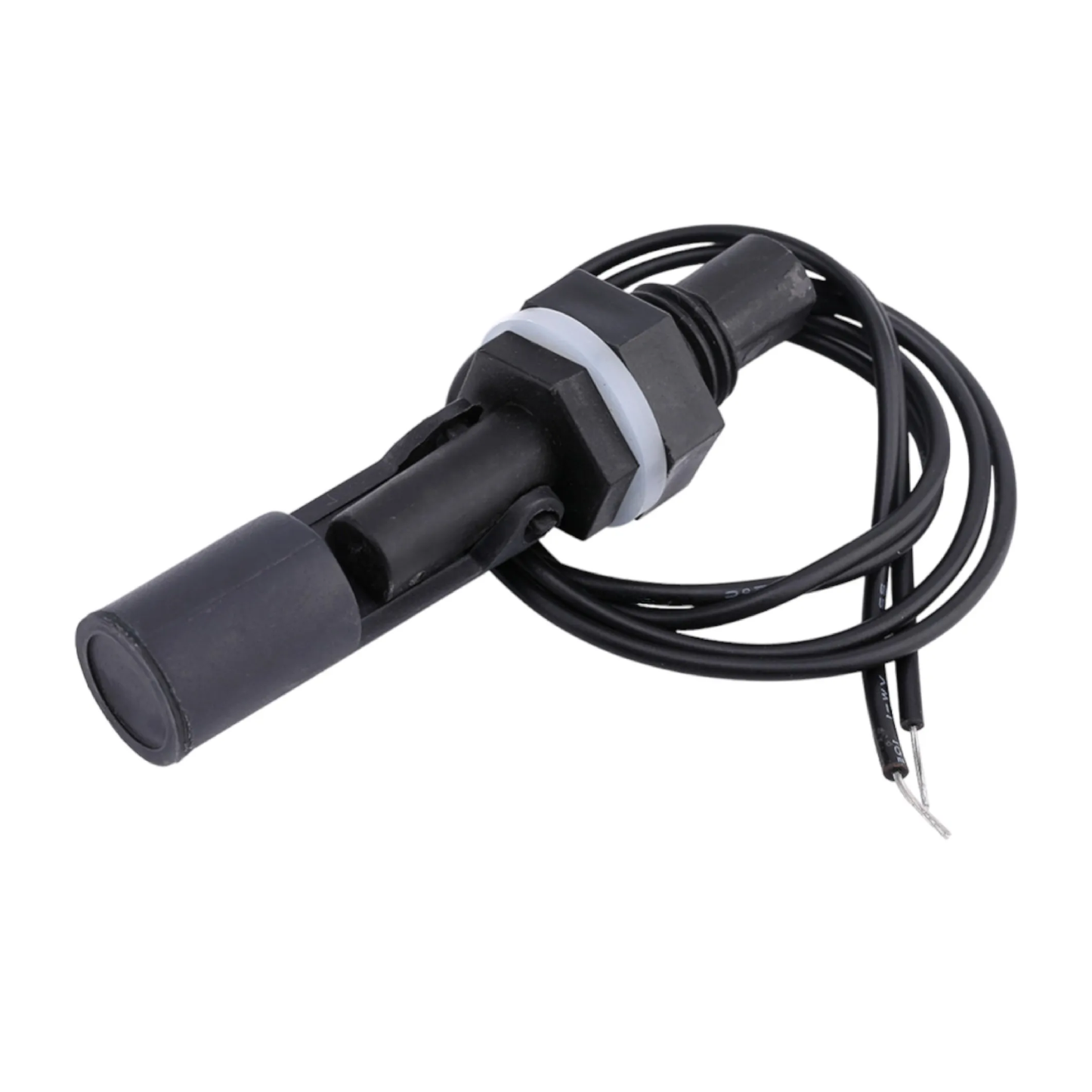

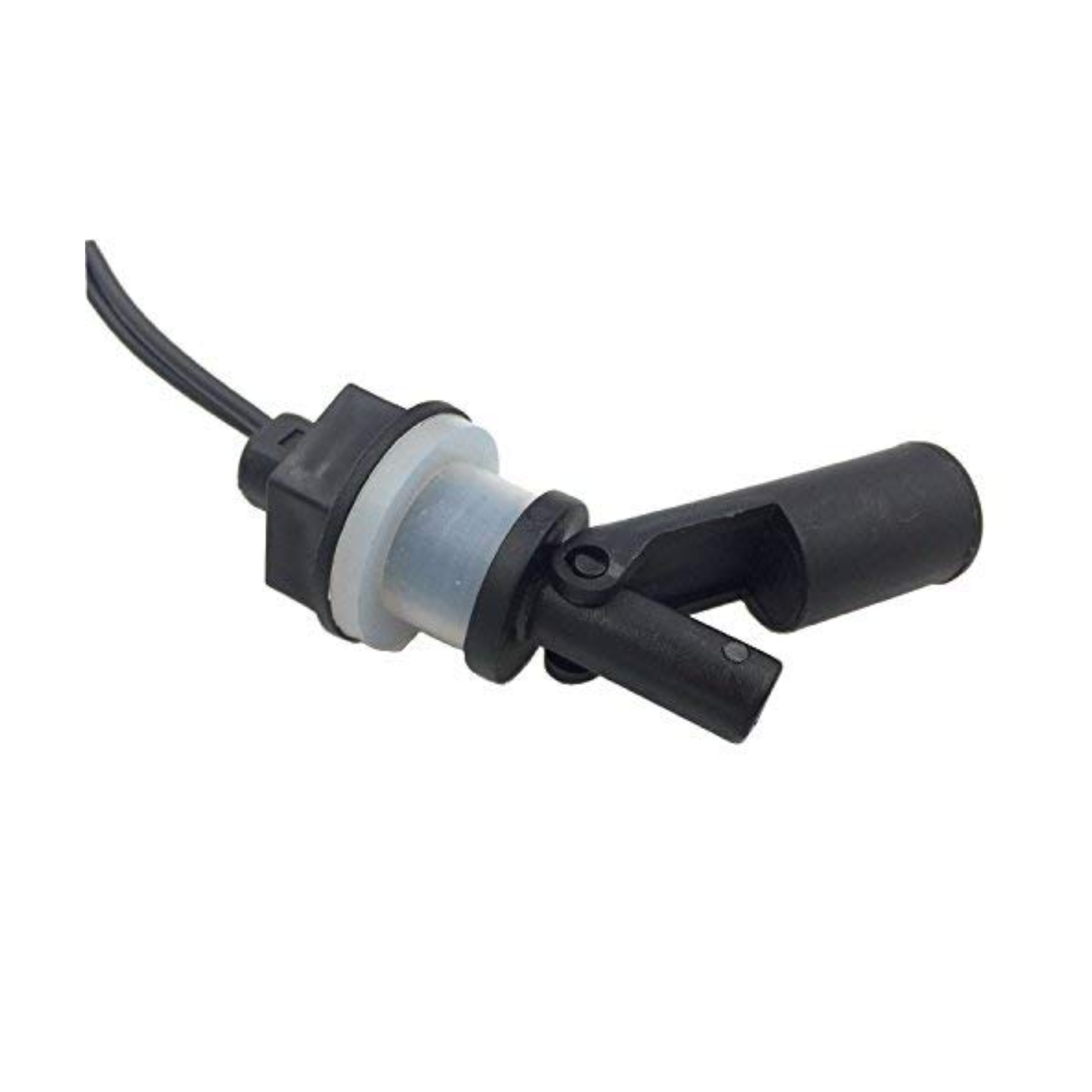

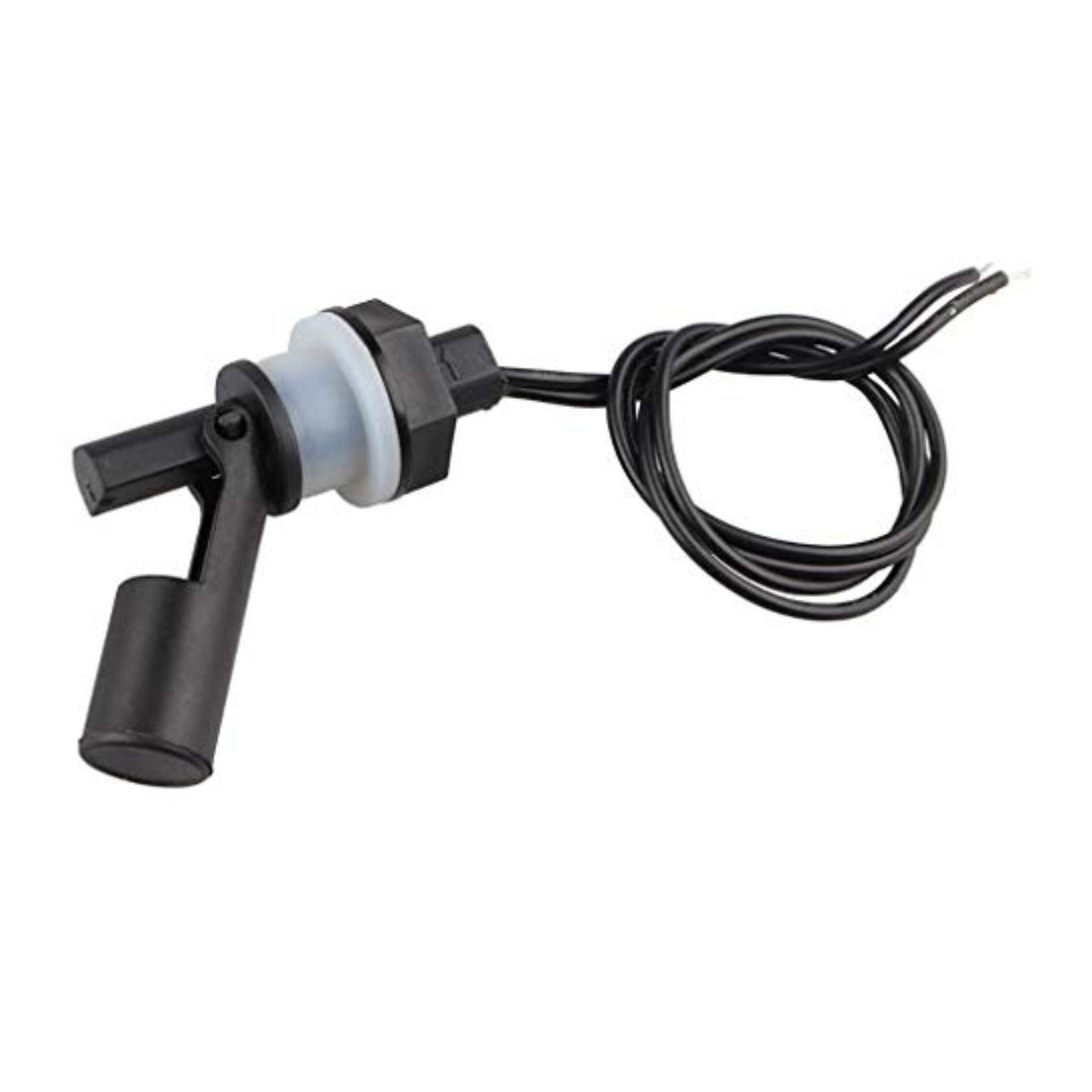

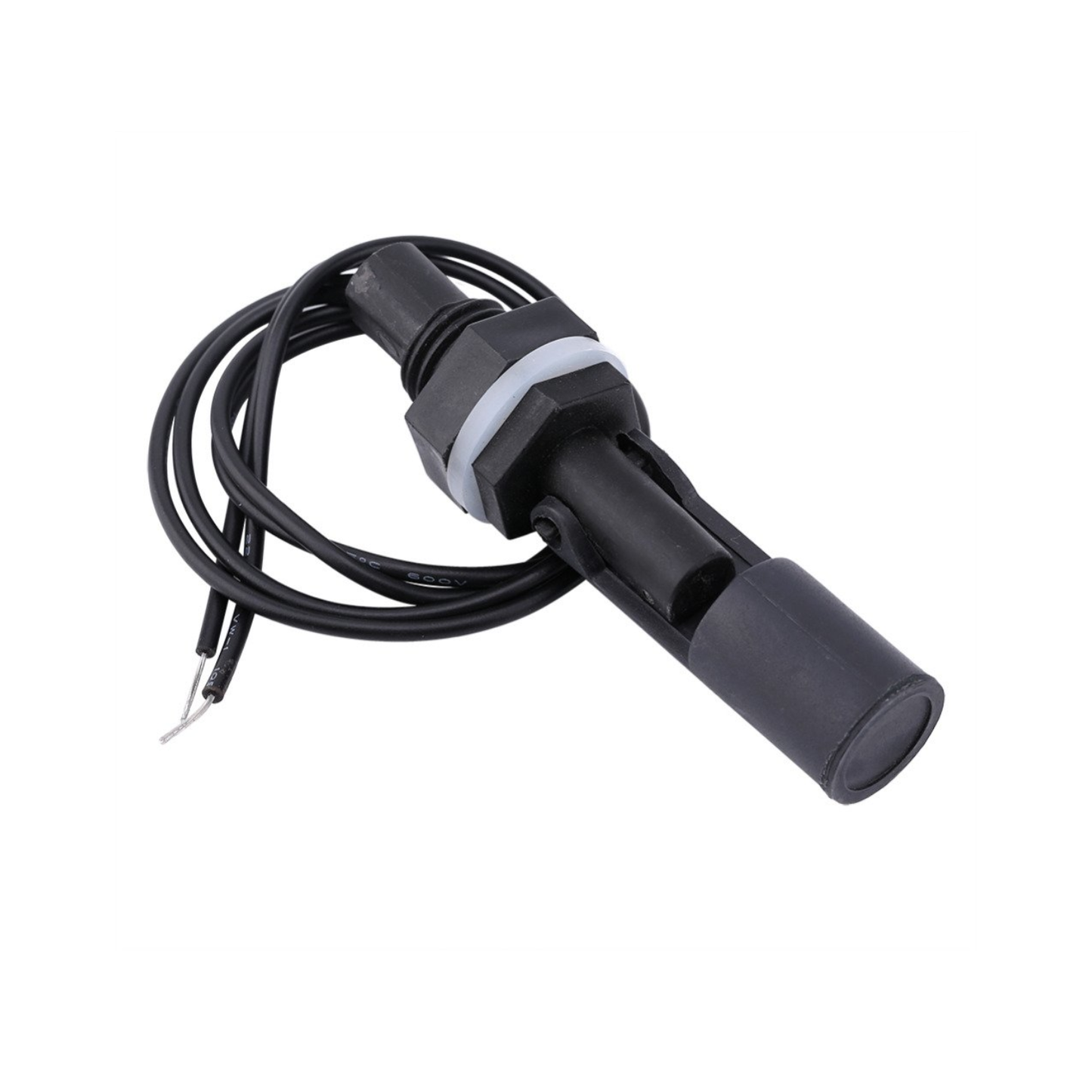

This robust Anti-Corrosion Water Level Sensor, featuring a reliable ball float switch, provides precise liquid level detection for a wide range of applications. Seamlessly integrate it into your systems to trigger pumps, indicators, alarms, or other devices. Perfect for hydroponics, aquariums (freshwater and saltwater), gardening, pet care, filtration, heating, and countless DIY projects, this sensor ensures consistent and automated liquid management.
Specifications:
- Switching Power Supply: 110VDC
- Pulse Current: 0.5A
- Current: 1A
- Operating Temperature: -10 to 60°C
- Resistance: Contract resistance: 100 OM
- ON/OFF Angle: Approx. between 15° to 20°
- Breakdown Voltage: 220VDC
- Float Opening: 70°
- Cable Length: 40cm
Features:
- A compact, horizontally mounted float switch that can be configured as a normally open or normally closed switch simply by rotating it through 180° in its push-fit mounting.
- When the water level reaches the float, the float moves, and an internal magnet activates a sealed reed relay in the device.
- The sensor is supplied pre-wired with flying output leads.
Package Included:
1 x Liquid Float Switch
