Description:
The AntennaHome AHGG.24X GPS/BD Antenna is a high-performance GPS/BD antenna designed for applications requiring accurate and reliable positioning data. This compact and rugged antenna provides excellent signal reception for both GPS and BeiDou satellite systems, ensuring optimal performance in various environments.
Specifications:
| PN | AHGG.241 |
Electrical Properties) |
|
| Frequency： | GPS/1575.42 MHz、BD/1561.02MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.0 |
| Gain： | 3~5 dB |
| Polarization: | RHCP |
Mechanical Properties |
|
| Conn&Cable： | / |
| Material&Color： | Ceramic |
| Mounting: | DIP |

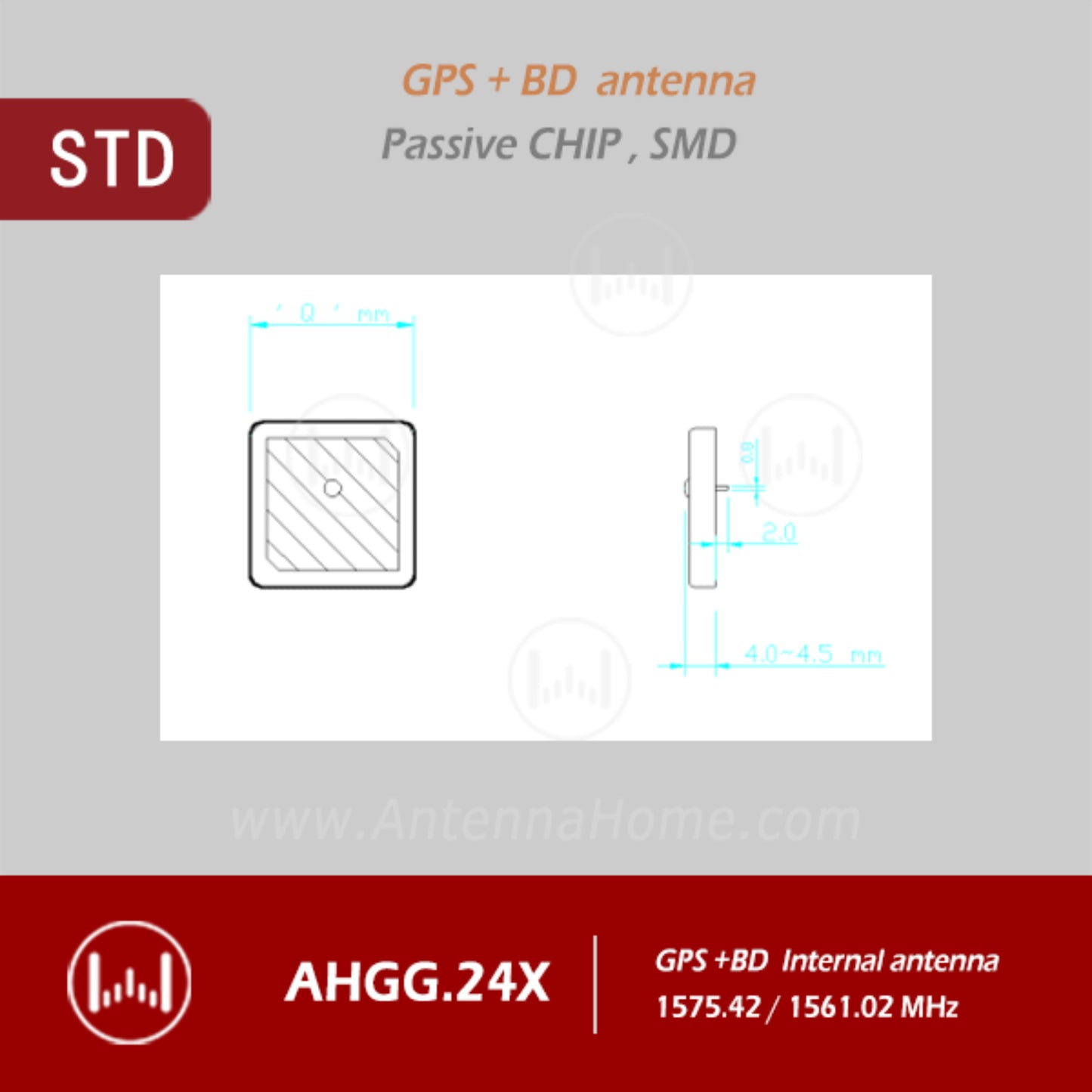

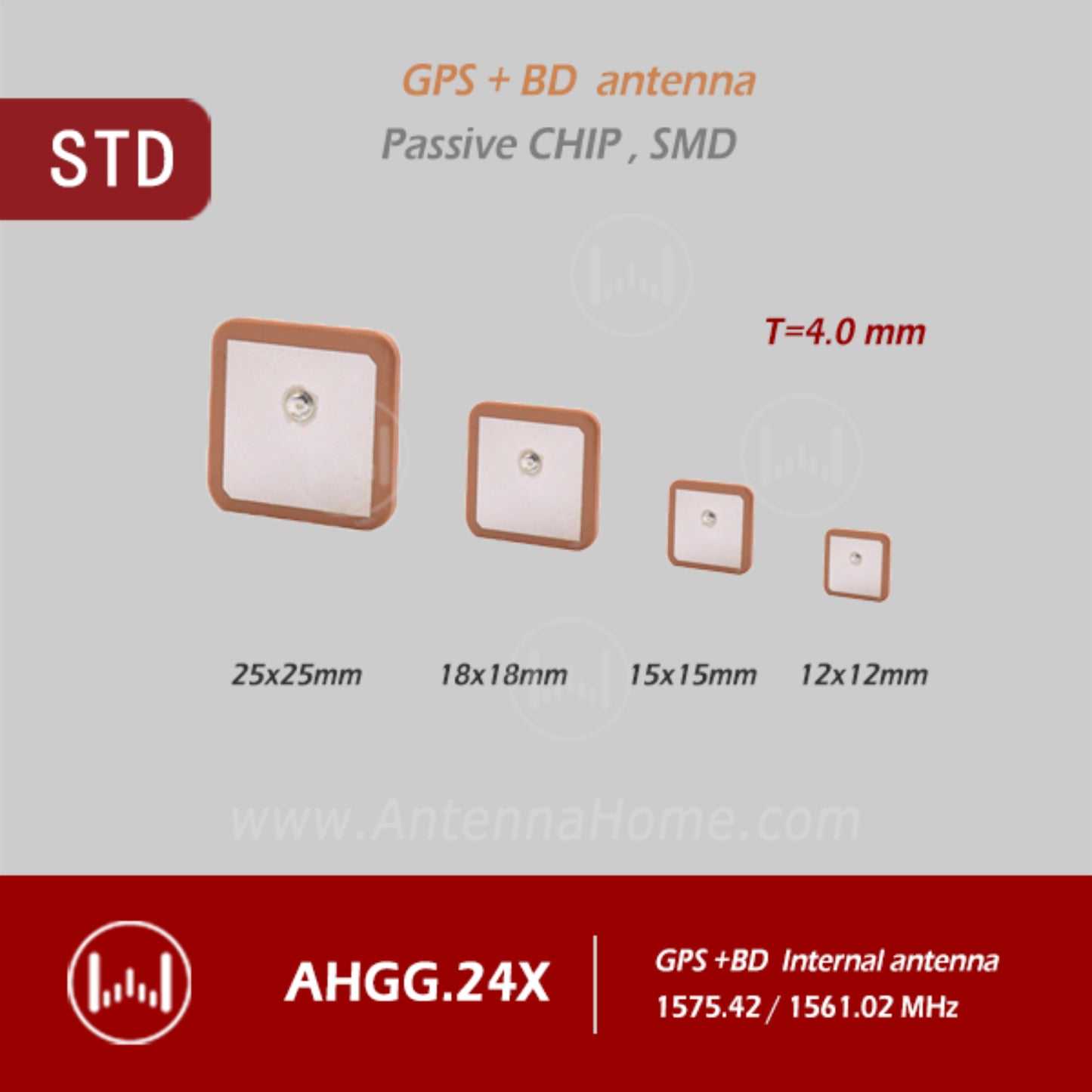

| Size: | QxQx4.0mm(Q=25,18,15,12) |
| Weight: | 5 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- GPS / BeiDou , GNSS Position System.
- wireless system.
- -40~85。C work temp.
Useful Link:
AntennaHome AHGG.24X GPS/BD Antenna
Package Included:
1 x AntennaHome AHGG.24X GPS/BD Antenna High-Sensitivity Low-Profile GPS/BD SMD Chip Passive Antenna Module
