Description:

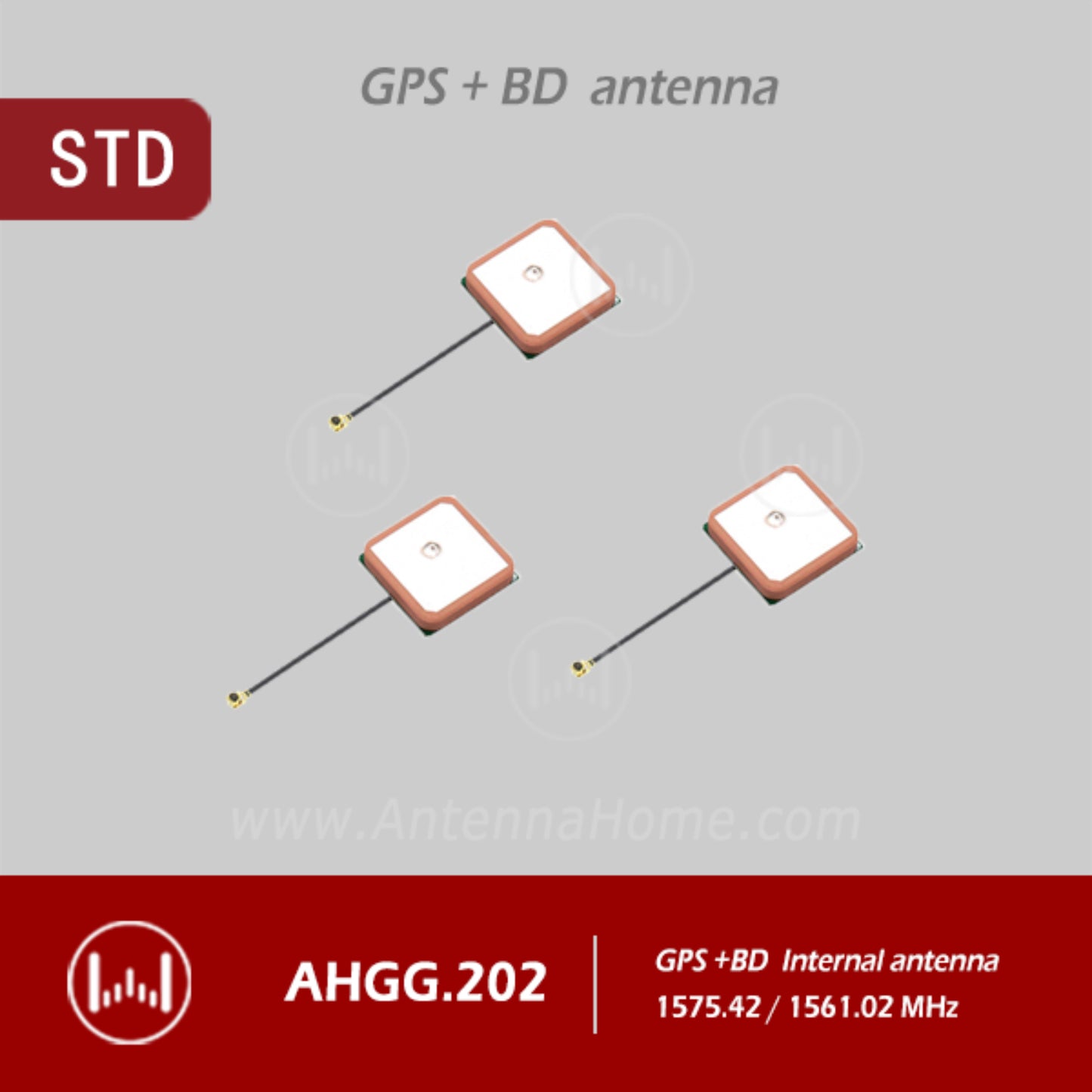

AntennaHome AHGG.202 L120 GPS/BD Internal Antenna is a cutting-edge positioning solution designed for seamless integration within a wide range of electronic devices. This compact and high-performance antenna module leverages the power of both GPS and BeiDou satellite constellations to deliver precise and reliable location data.
Specifications:
| PN | AHGG.202 |
Electrical Properties) |
|
| Frequency： | GPS/1575.42 MHz、BD/1561.02MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.0 |
| Gain： | 26±2dB @2.7~3.3V |
| Polarization: | RHCP |
Mechanical Properties |
|
| Conn&Cable： | IPX ,RG113 L120 |
| Material&Color： | Ceramic / pcb |
| Mounting: | / |

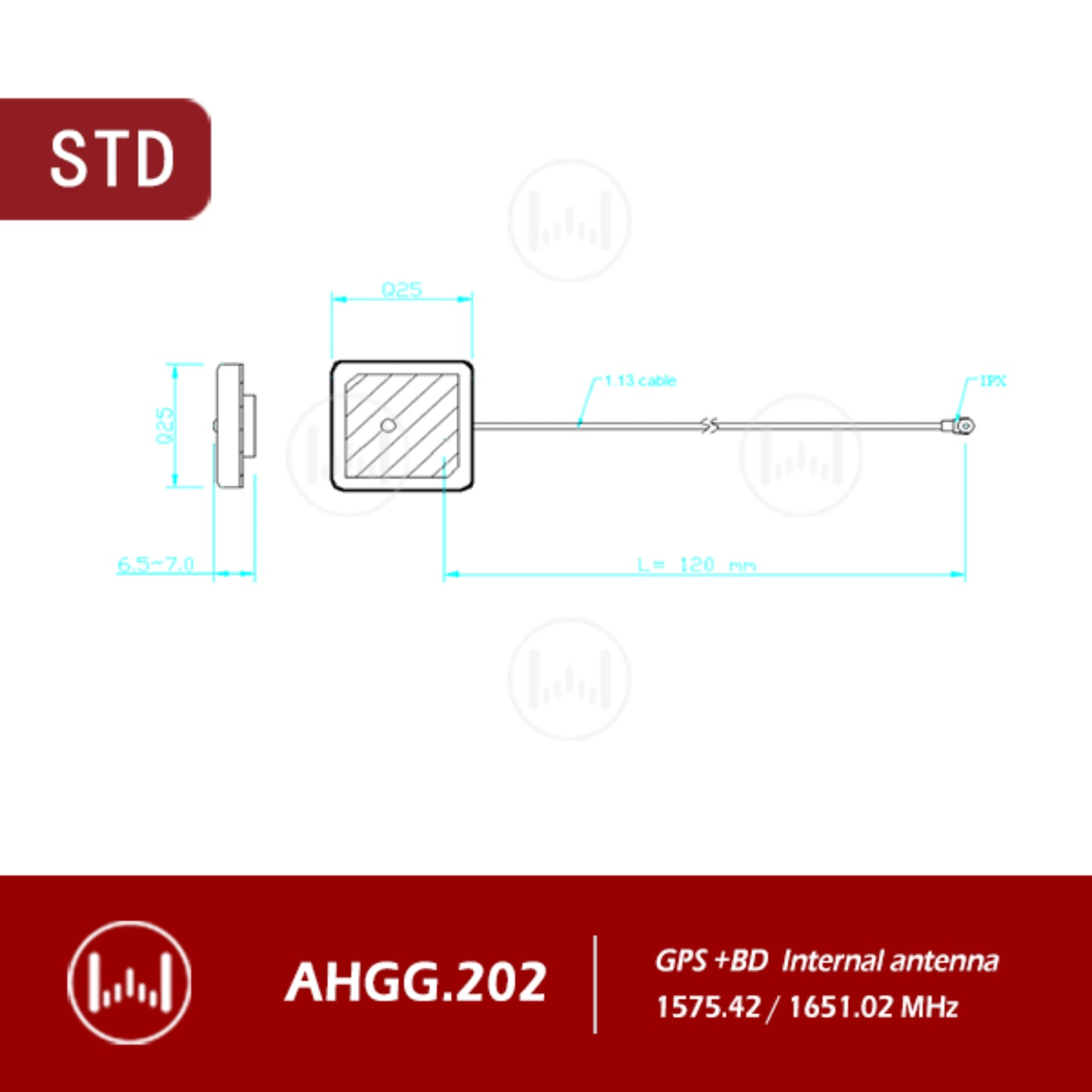

| Size: | Q25 x25 x6.5 mm |
| Weight: | 12 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- GPS / BeiDou , GNSS Position System.
- wireless system.
- -40~85。C work temp.
Useful Link:
AntennaHome AHGG.202 L120 GPS/BD Internal Antenna
Package Included:
1 x AntennaHome AHGG.202 L120 GPS/BD Internal Antenna High-Performance Internal GPS L120 Antenna Module With Integrated GPS For Enhanced Positioning Accuracy
