Description:

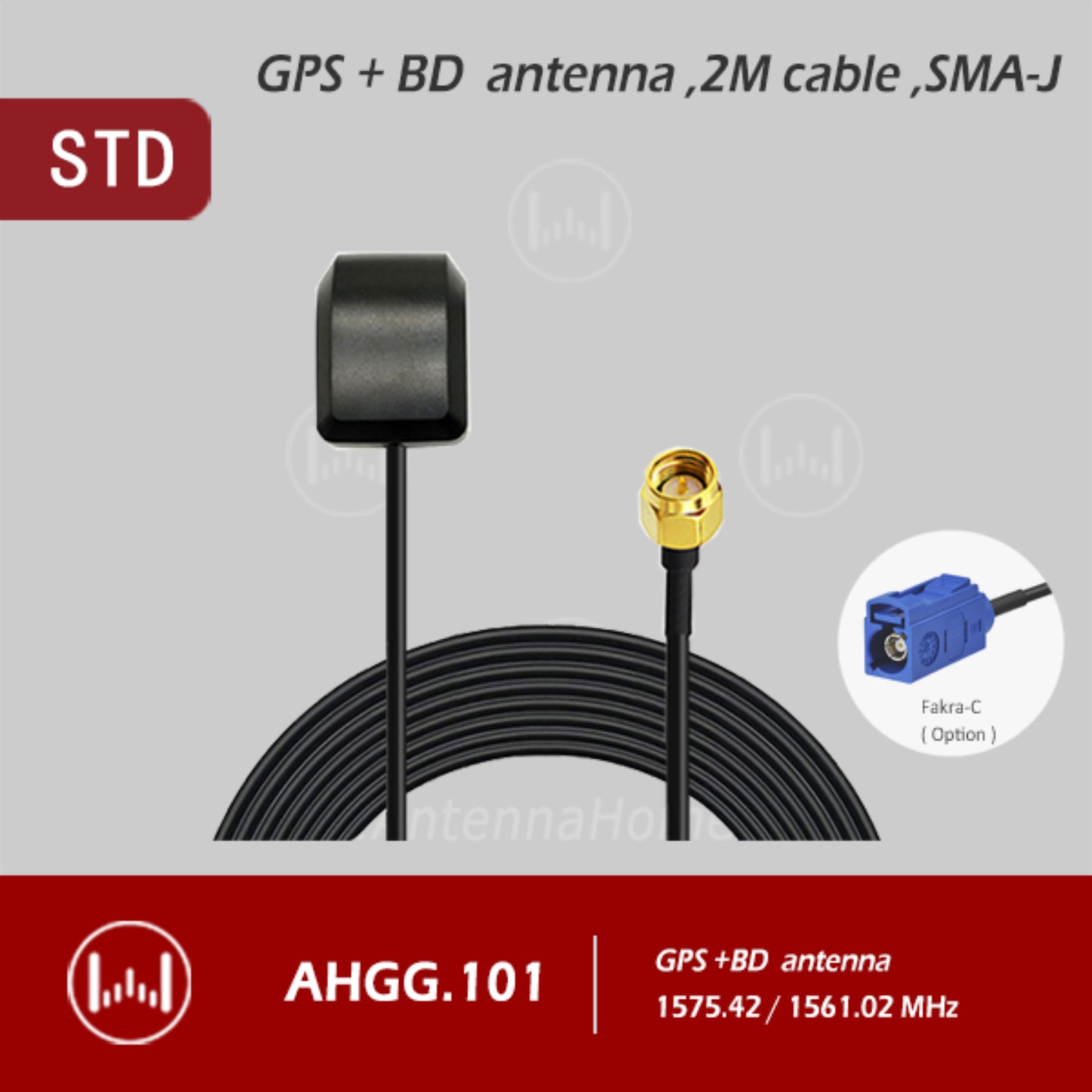

AntennaHome AHGG.101 Box GPS SMA-J Antenna is a compact and versatile antenna designed for various applications requiring precise positioning and navigation. It supports both GPS and BeiDou satellite systems, ensuring reliable positioning even in challenging environments. The SMA-J connector provides a secure and convenient connection to compatible devices.
Specification:
| PN | AHGG.101 |
Electrical Properties) |
|
| Frequency： | GPS/1575.42 MHz、BD/1561.02MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.0 |
| Gain： | 28±2dB @3~5V |
| Polarization: | RHCP |
Mechanical Properties |
|
| Conn&Cable： | SMA-J ,RG-174 2M |
| Material&Color： | Copper / ABS |
| Mounting: | SMA connector |
| Size: | Q48x38x13 mm |
| Weight: | 50 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- GPS / BeiDou , GNSS Position System.
- wireless system.
- -40~85。C work temp.
Useful Link:
AntennaHome AHGG.101 Box GPS SMA-J Antenna
Package Included:
1 x AntennaHome AHGG.101 Box GPS SMA-J Antenna AHGG.101 High-Gain GPS/BD Antenna With SMA-J Connector For Enhanced Positioning Accuracy
