Description:
AntennaHome AHCG.203 SMA-K T1.6 DIP RF Connector is a specialized, high-quality connector designed for optimal performance in high-frequency and RF (Radio Frequency) applications. The T1.6 designation typically refers to the connector's specific pin spacing, ensuring compatibility with standard PCB designs and providing flexibility in integration.
Specifications:
| PN | AHCG.203 |
Electrical Properties) |
|
| Frequency： | DC~6000 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤1.3 |
| Gain： | 0.25 dBi |
| Polarization: | / |
Mechanical Properties |
|
| Conn&Cable： | SMA-K |
| Material&Color： | Copper |
| Mounting: | DIP |

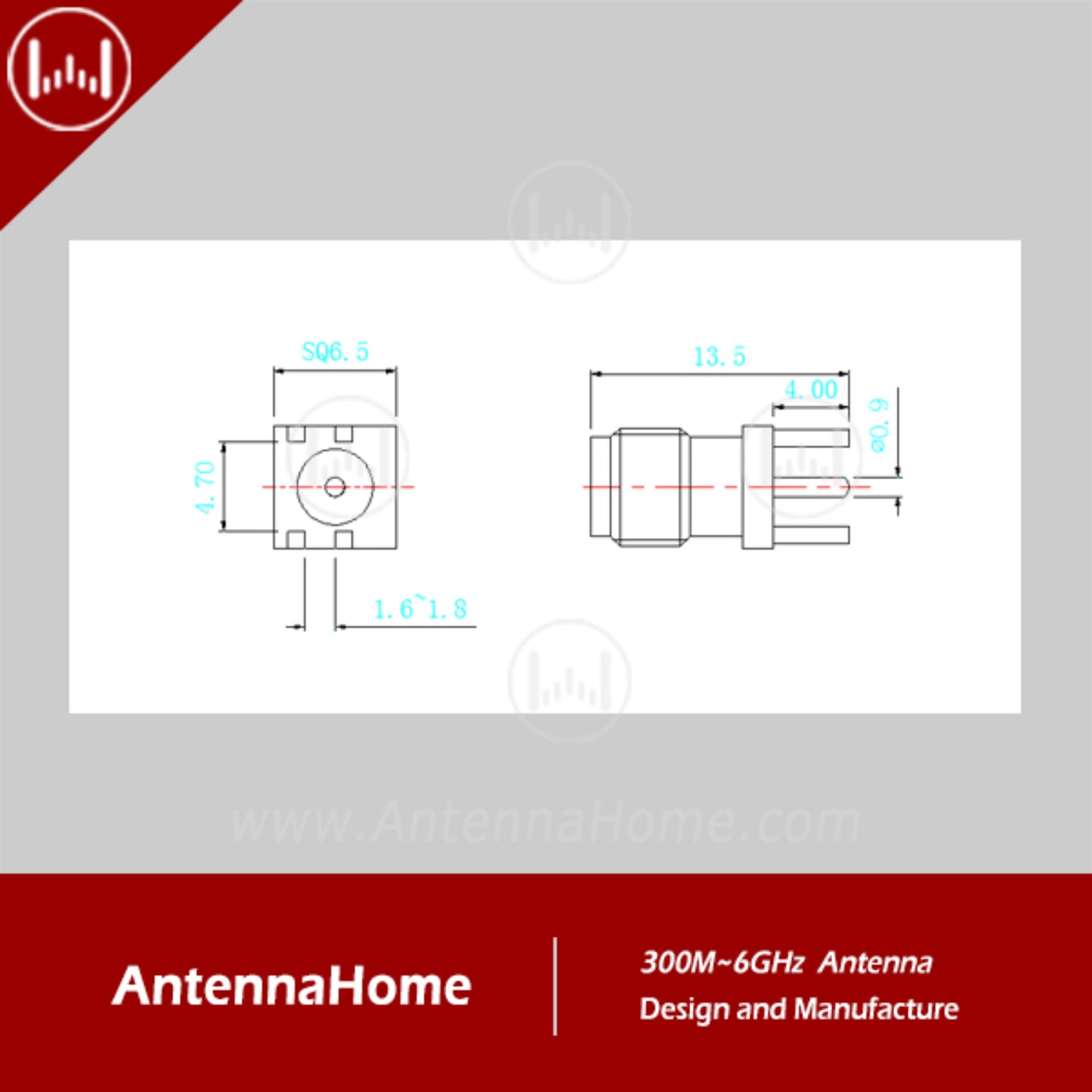

| Size: | Q6 x 13.5 mm |
| Weight: | 1.4 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- IoT wireless Communication system.
- Low cost but great performance.
- -40~85。C work temp.
Useful Link:
AntennaHome AHCG.203 SMA-K T1.6 DIP RF Connector
Package Included:
1 x AntennaHome AHCG.203 SMA-K T1.6 DIP RF Connector Reliable SMA-K DIP Connector
