Description:

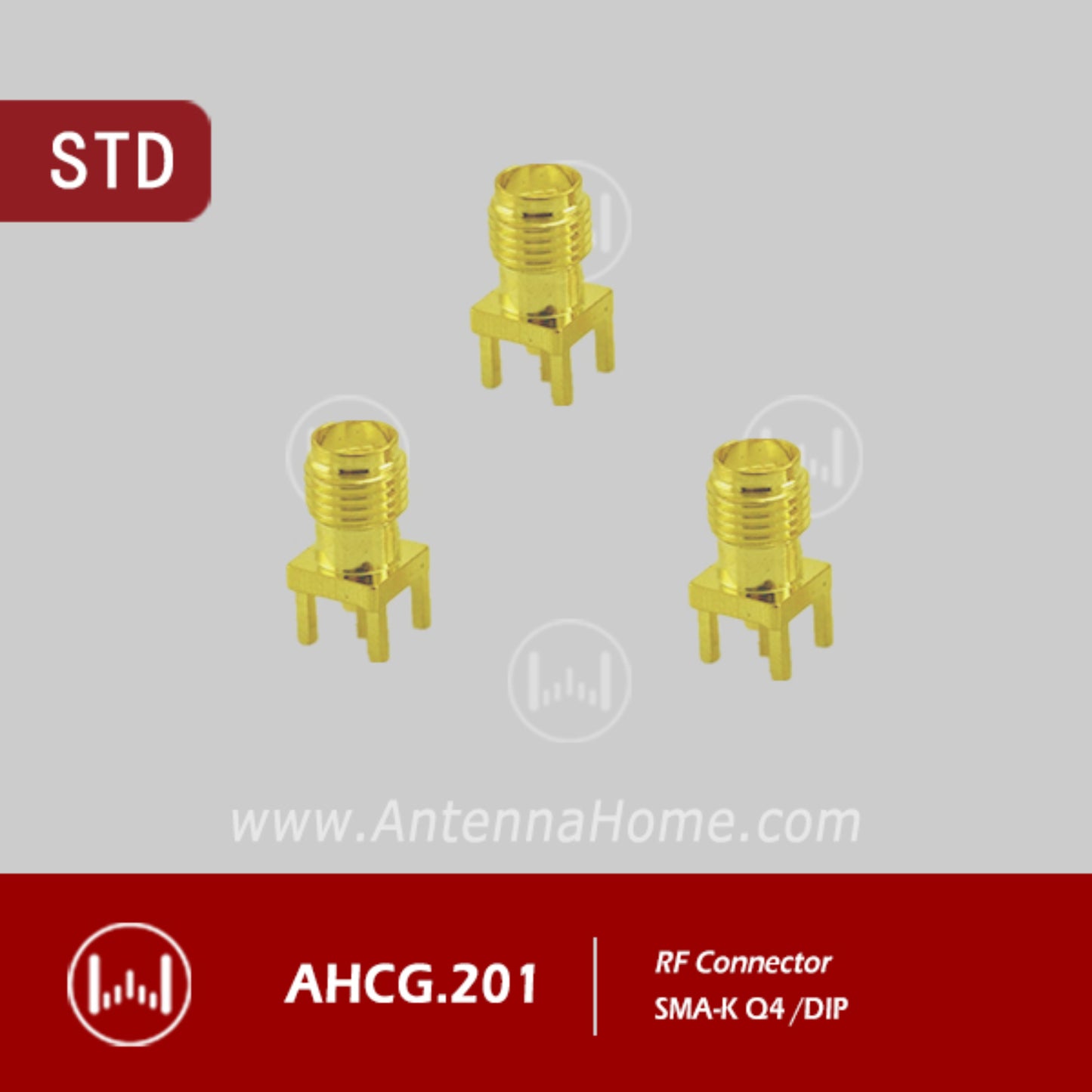

AntennaHome AHCG.201 SMA-K Q4 DIP RF Connector is a type of RF connector that uses a SubMiniature version A (SMA) interface with a quarter-wave (Q4) design and a dual-in-line package (DIP) mounting style. It is commonly used in wireless communication devices.
Specifications:
| PN | AHCG.201 |
Electrical Properties) |
|
| Frequency： | DC~6000 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤1.3 |
| Gain： | 0.25 dBi |
| Polarization: | / |
Mechanical Properties |
|
| Conn&Cable： | SMA-K |
| Material&Color： | Copper |
| Mounting: | DIP |

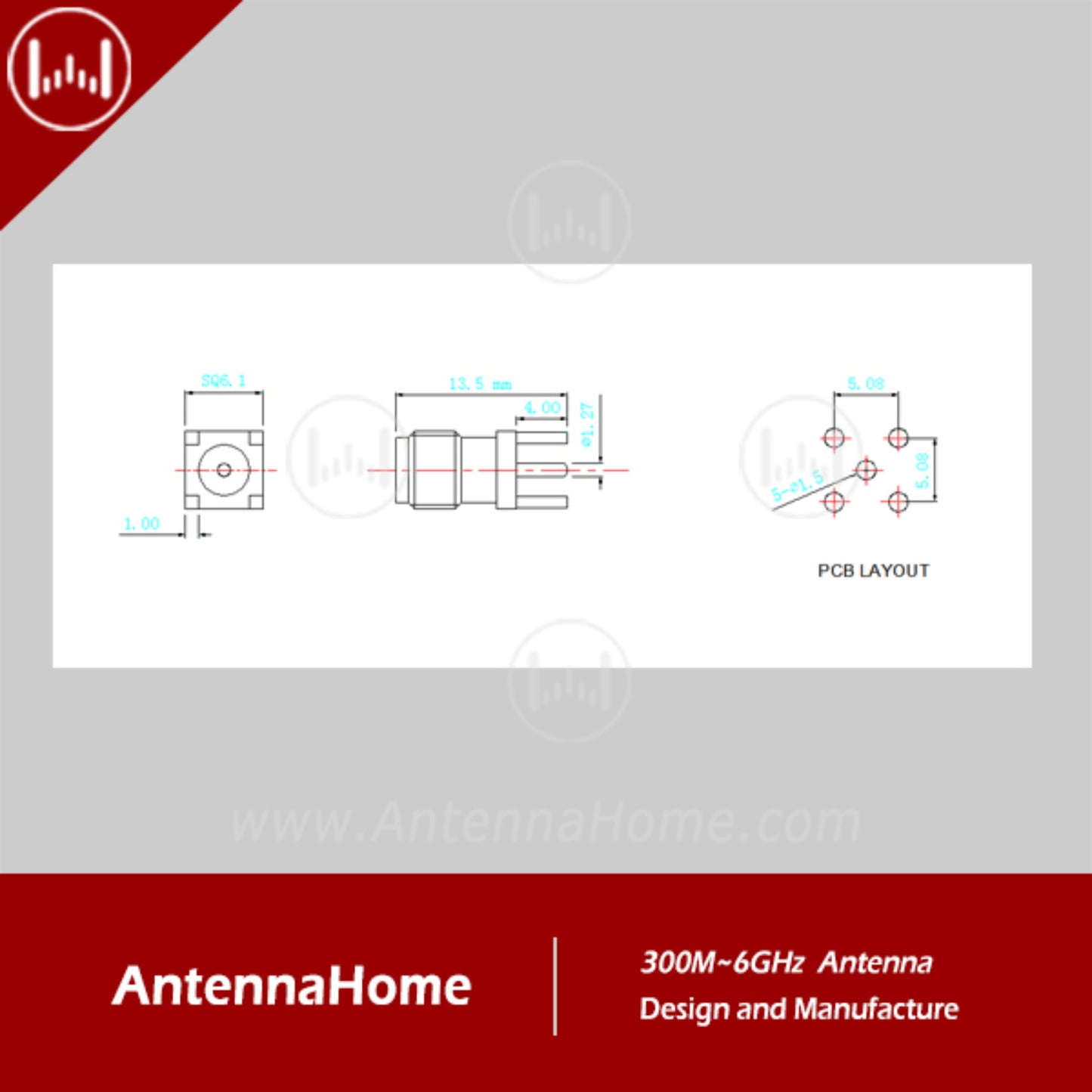

| Size: | Q6 x 13.5 mm |
| Weight: | 1.4 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- IoT wireless Communication system.
- Low cost but great performance.
- -40~85。C work temp.
Useful Link:
AntennaHome AHCG.201 SMA-K Q4 DIP RF Connector
Package Included:
1 x AntennaHome AHCG.201 SMA-K Q4 DIP RF Connector High-Performance SMA-K Connector
