Description:

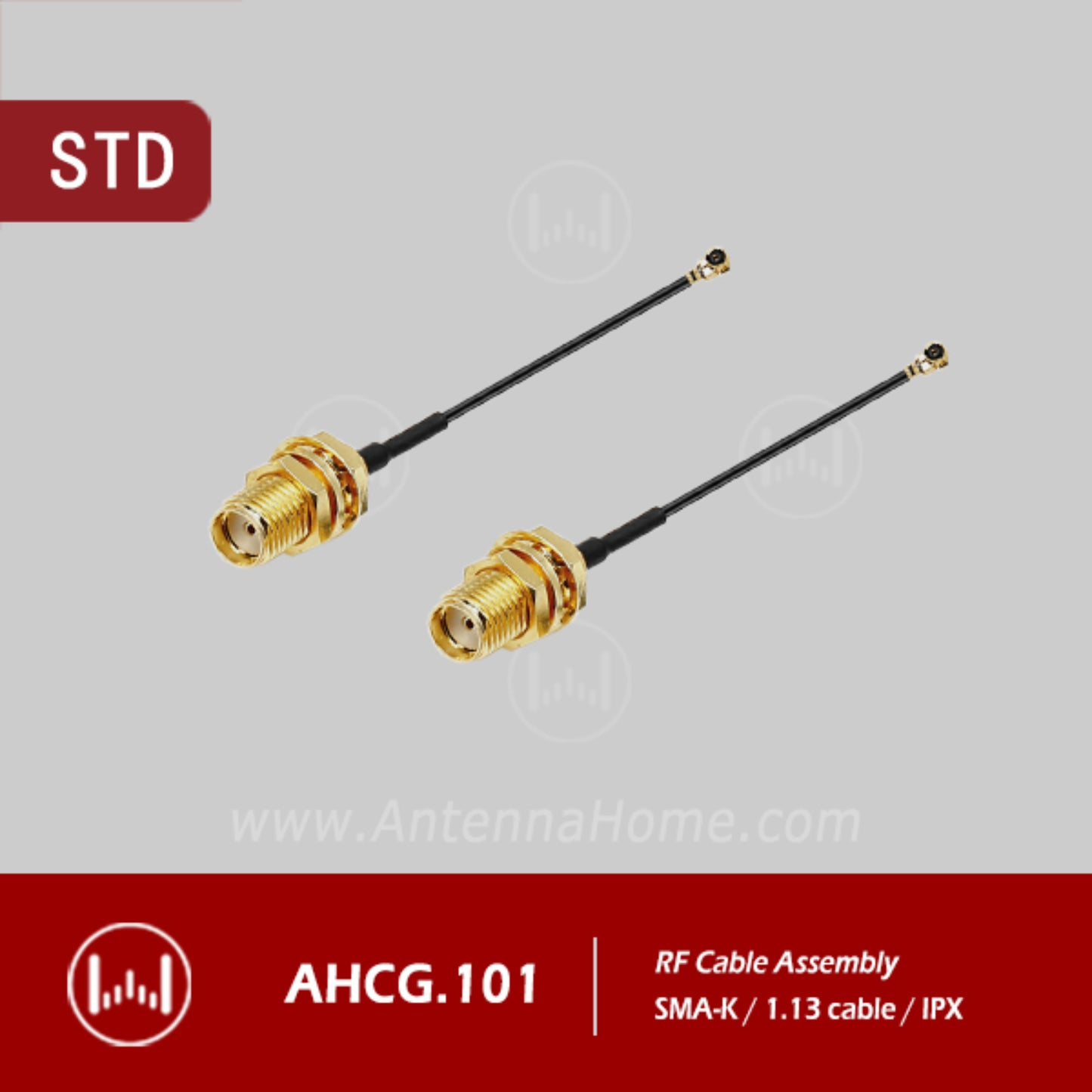

AntennaHome AHCG.101 L120 1.13m Cable Assembly is designed for RF applications, specifically for IoT and wireless communication systems. It features a 1.13-inch cable length and incorporates an SMA connector on one end and an IPX connector on the other. The IPX connector is a DIP (Dual In-line Package) connector, often used for compact and surface-mount applications.
Specifications:
| PN | AHCG.101 |
Electrical Properties |
|
| Frequency： | DC~6000 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤1.3 |
| Gain： | 0.5 dBi |
| Polarization: | / |
Mechanical Properties |
|
| Conn&Cable： | SMA-K / IPX |
| Material&Color： | Copper / Black cable |
| Mounting: | SMA connector |

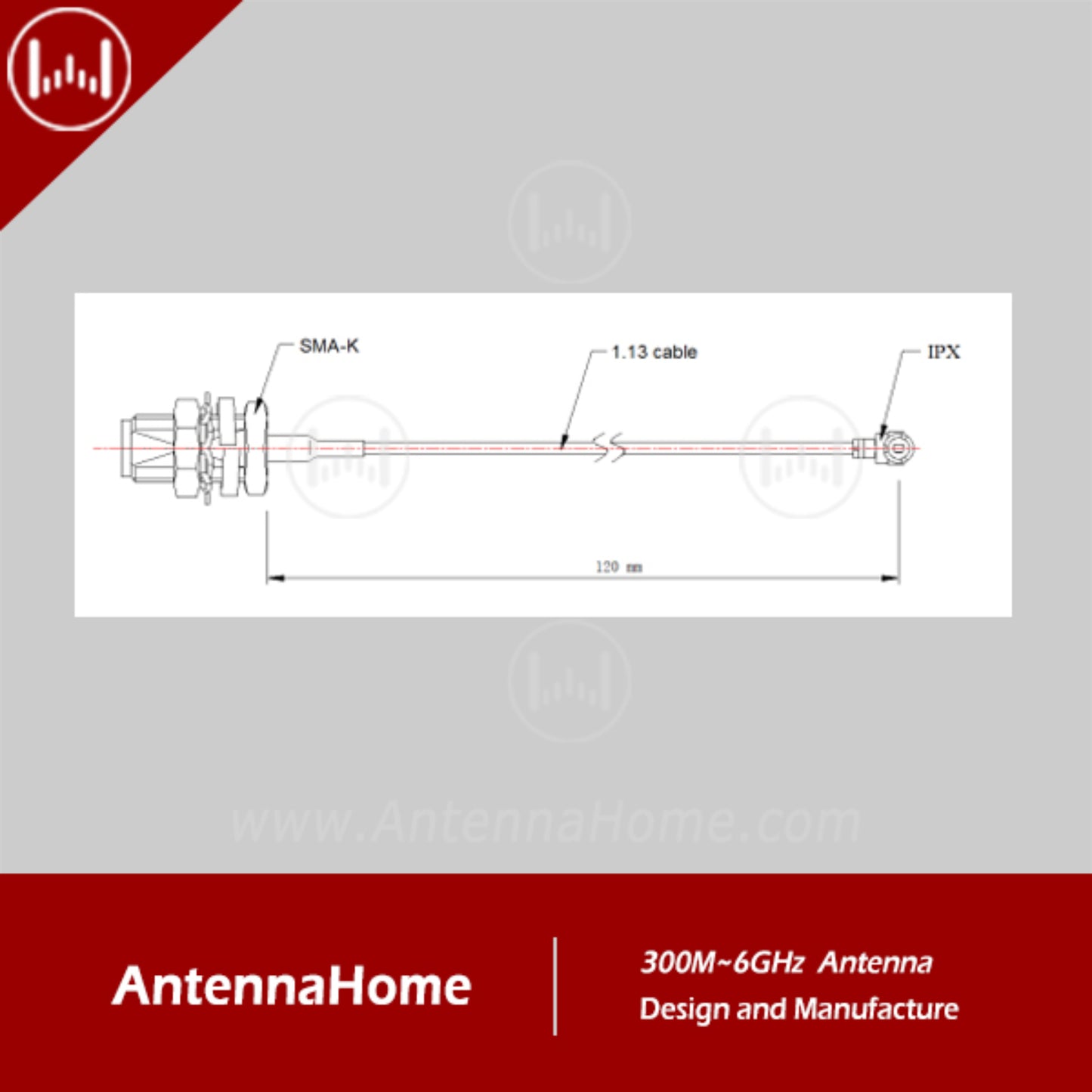

| Size: | L=120 mm |
| Weight: | 3.3 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- IoT wireless Communication system.
- Low cost but great performance.
- -40~85 work temp.
Useful Link:
AntennaHome AHCG.101 L120 1.13m Cable Assembly
Package Included:
1 x AntennaHome AHCG.101 L120 1.13inch Cable Assembly
