Description:

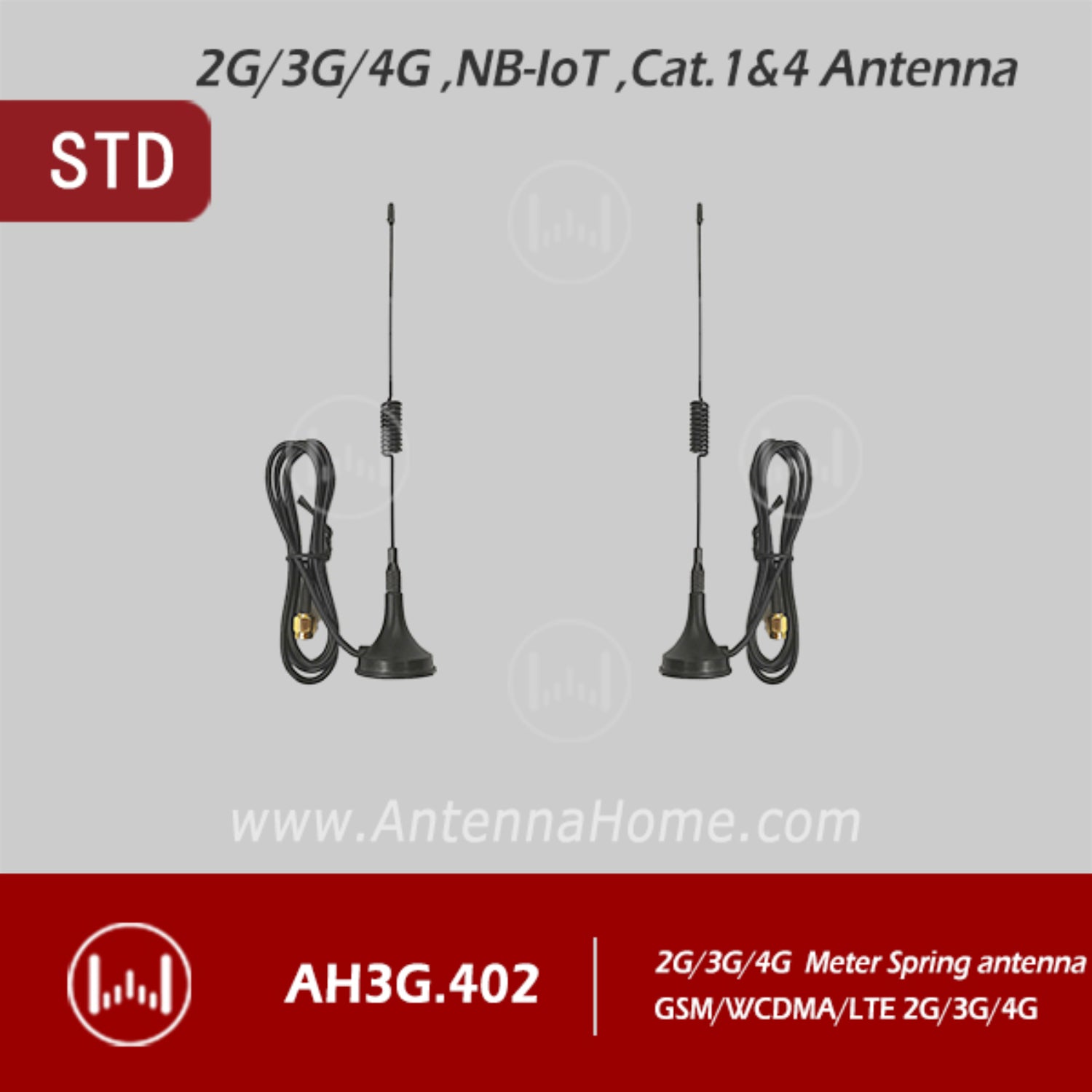

AntennaHome AH3G.402 H200 MeterSpring Antenna is a multi-band cellular antenna designed for outdoor use. It supports 2G, 3G, and 4G LTE networks, providing reliable connectivity for various applications. Its compact and weatherproof design, combined with high gain and wide frequency coverage, makes it an ideal solution for various applications, including home internet, remote monitoring, and industrial IoT.
Specifications:
| PN | AH3G.402 |
Electrical Properties) |
|
| Frequency： | 800~2690 MHz, 2G/3G/4G,NB-IoT,CAT.1&4 |
| Impedance： | 50Ω |
| VSWR： | ≤1.5 |
| Gain： | 3.5 /dBi |
| Polarization: | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | SMA-J & RG-174 Cable ‘ L ’=1.5M |
| Material&Color： | Copper/Black |
| Mounting: | Magnetic |

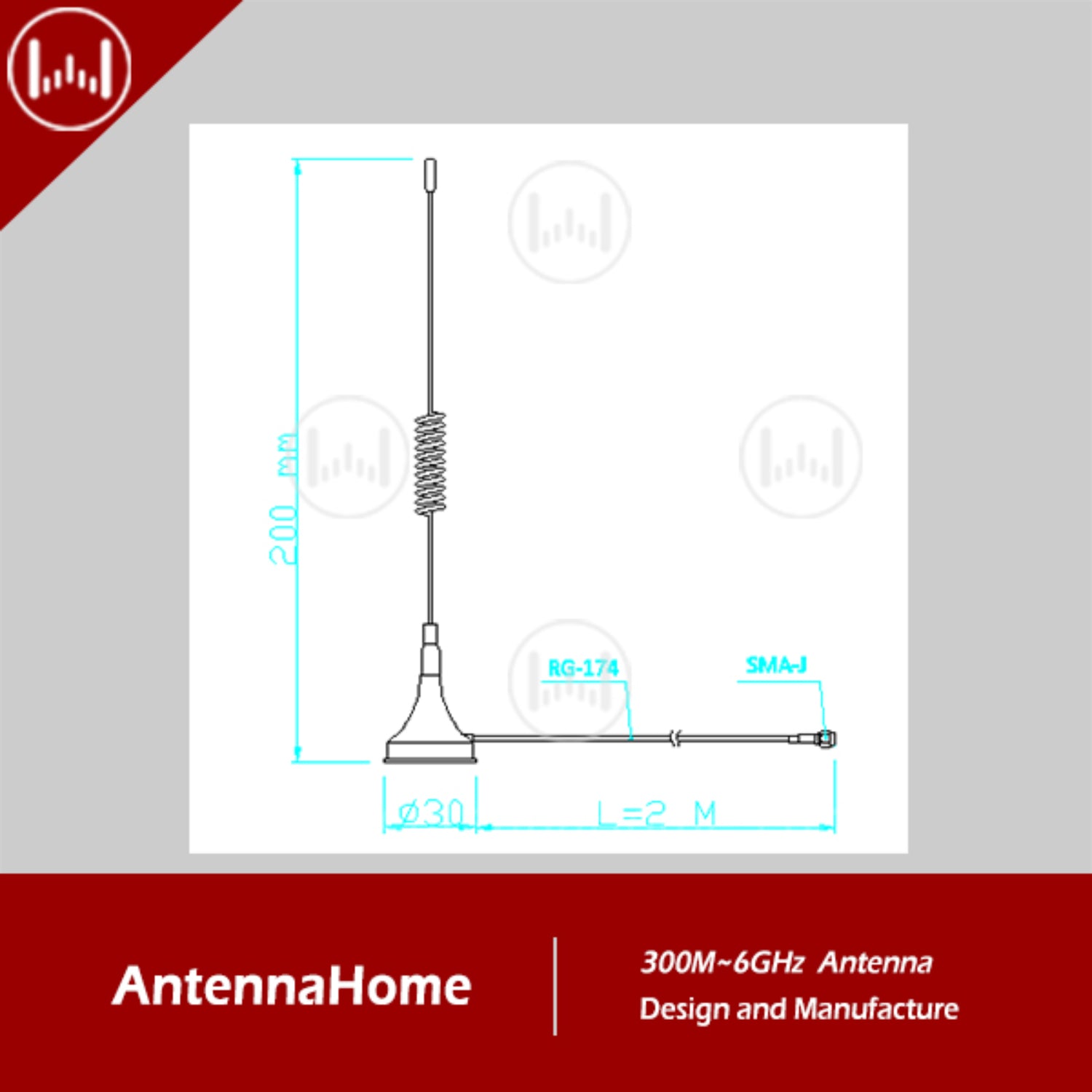

| Size: | ¢30×H200 mm |
| Weight: | 45.0 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Useful Link:
AntennaHome AH3G.402 H200 MeterSpring Antenna
Package Included:
1 x AntennaHome AH3G.402 H200 MeterSpring Antenna High Gain 2G/3G/4G H200 MeterSpring Antenna For Mobile Connectivity and Rural Coverage
