Description:

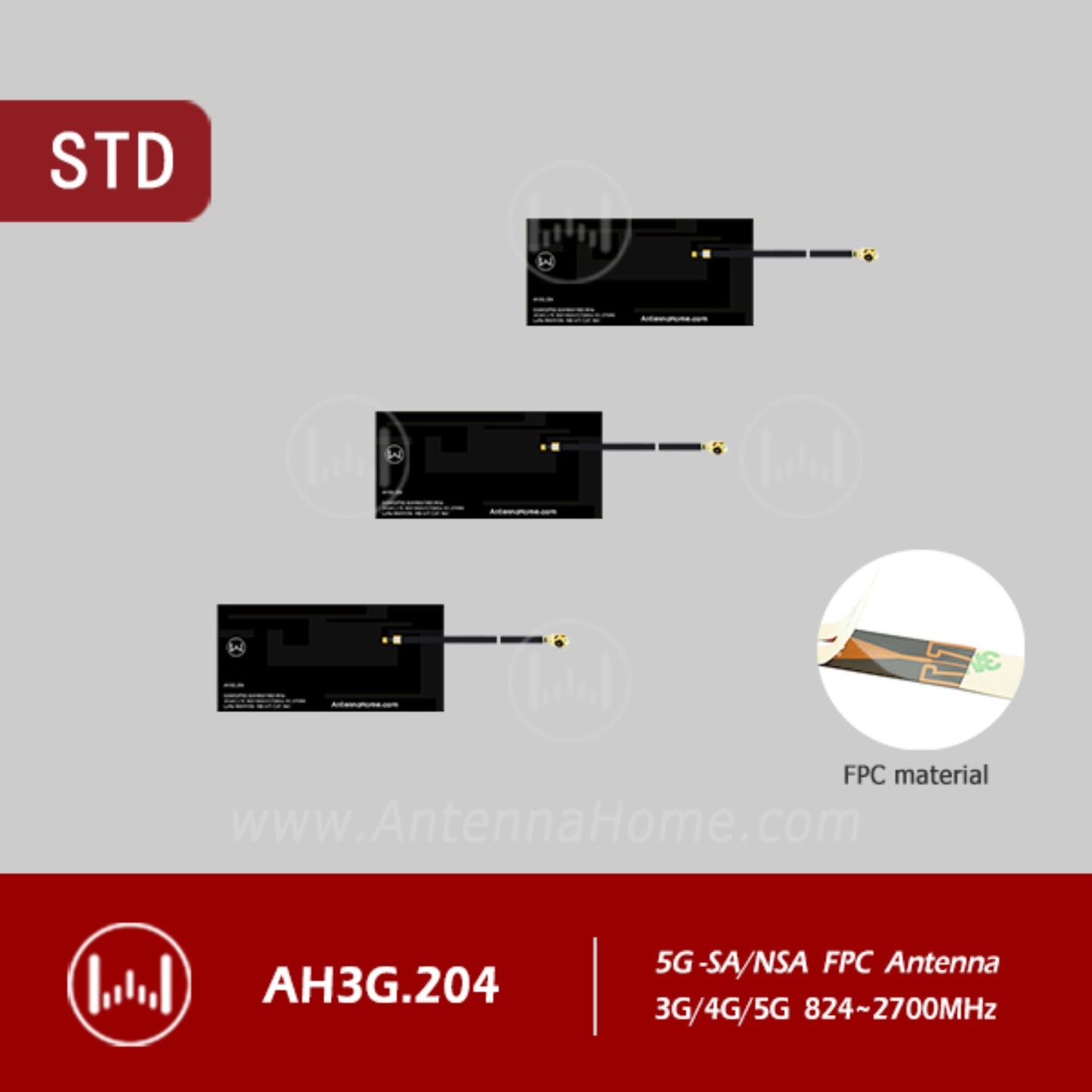

AntennaHome AH3G.204 3G/4G/5G FPC Antenna is a thin, flexible printed circuit board (PCB) antenna designed to support cellular communication across multiple generations of wireless technology, including 3G, 4G (LTE) and 5G.
Specifications:
| PN | AH3G.204 |
Electrical Properties) |
|
| Frequency： | 824~2700 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.5 |
| Gain： | 1.5 dBi |
| Polarization: | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | FPC, 1.13 cable ,IPX |
| Material&Color： | FPC |
| Mounting: | IPX connector |

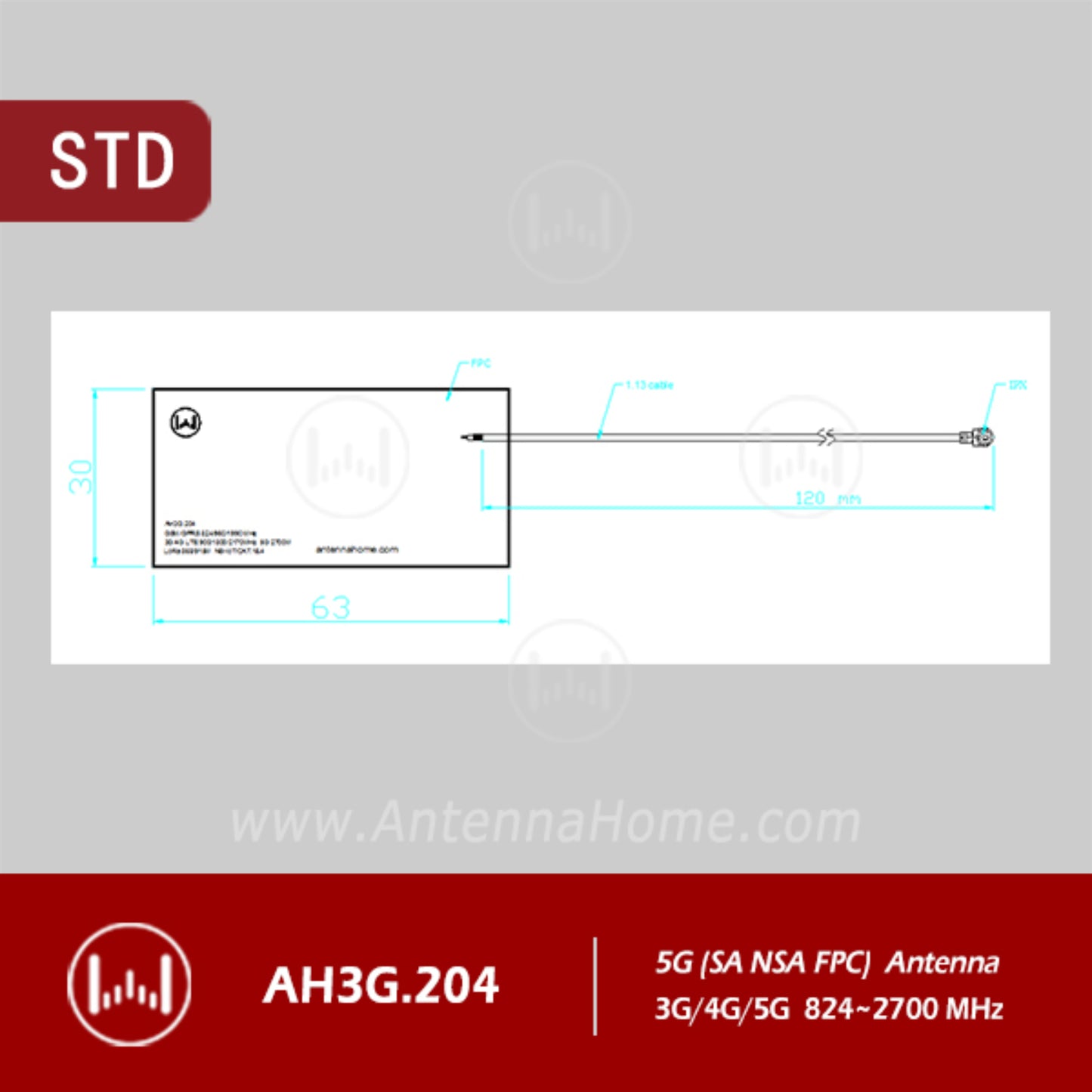

| Size: | W30.0 x L63.0 mm |
| Weight: | 1.6 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- 300MHz~ 6GHz wireless system.
- -40~85C work temp.
Useful Link:
AntennaHome AH3G.204 3G/4G/5G FPC Antenna
Package Included:
1 x AntennaHome AH3G.204 3G/4G/5G FPC Antenna High-Performance Multi-Band Flexible Printed Circuit Antenna For Wireless Connectivity
