Description:

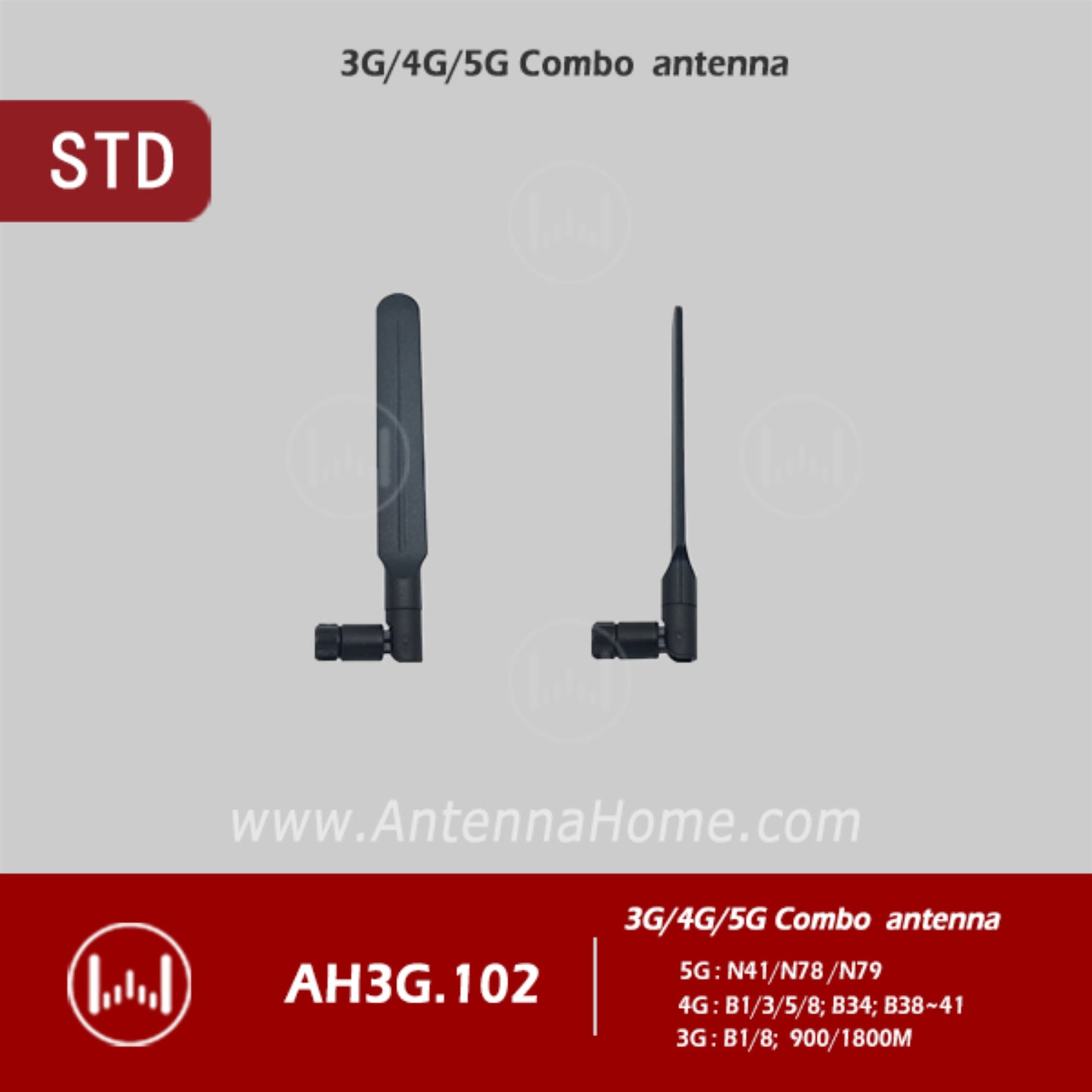

AntennaHome AH3G.102 HB180 BIAN Antenna is a high-performance antenna designed to provide superior signal reception for 3G, 4G, and 5G networks. It features a compact and rugged design, making it ideal for both indoor and outdoor use.
Specification:
| PN | AH3G.102 |
Electrical Properties) |
|
| Frequency： | 824~2700 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.5 |
| Gain： | 2.8 dBi |
| Polarization: | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | SMA-J |
| Material&Color： | Copper/ABS |
| Mounting: | SMA connector |

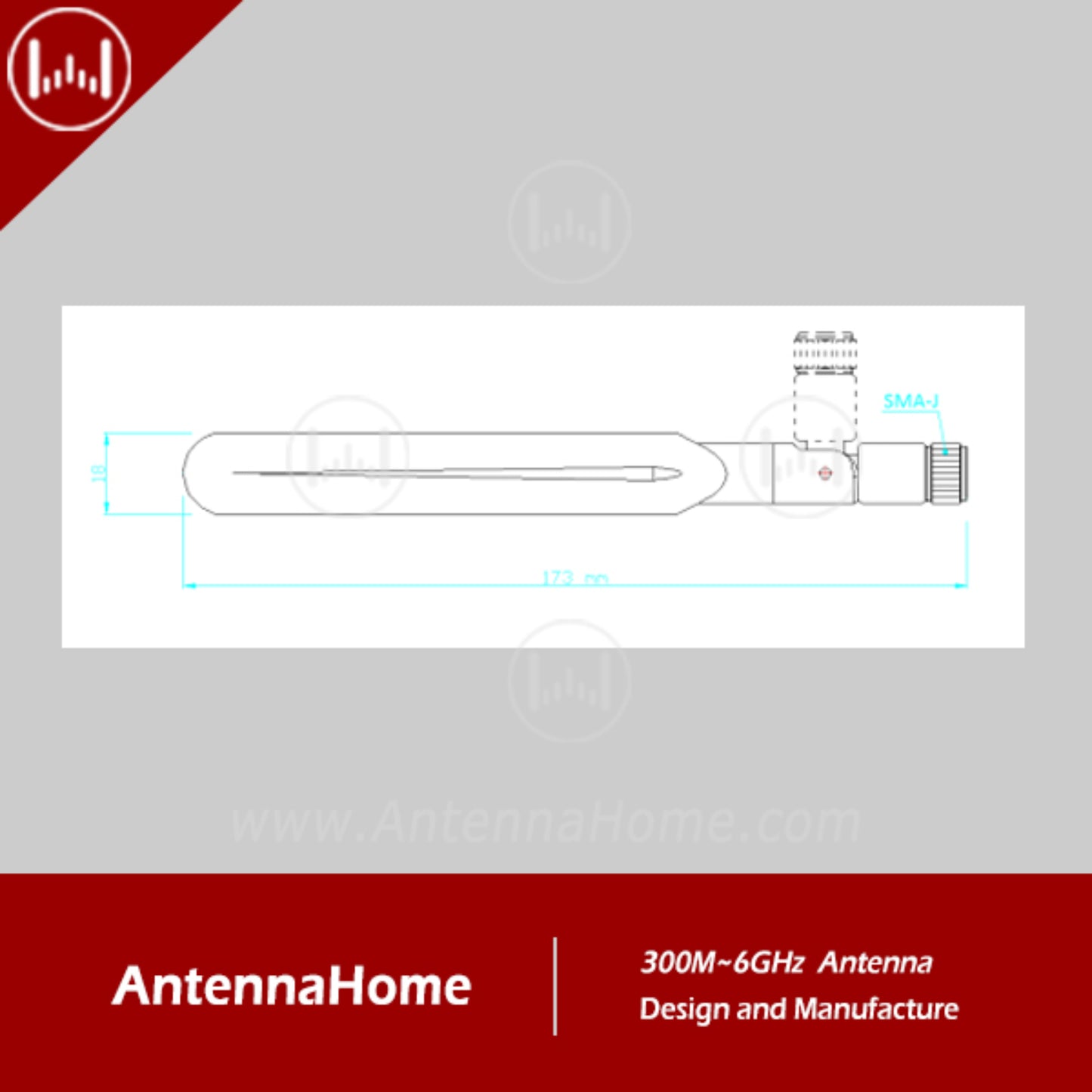

| Size: | ¢13×HB180 mm |
| Weight: | 16.0 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- 300MHz~ 6GHz wireless system.
- -40~85.C work temp.
Useful Link:
AntennaHome AH3G.102 HB180 BIAN Antenna
Package Included:
1 x AntennaHome AH3G.102 HB180 BIAN Antenna High Performance 3G/4G/5G Multi-Band BIAN Antenna For Reliable and High Speed Data Transmission
