Description:

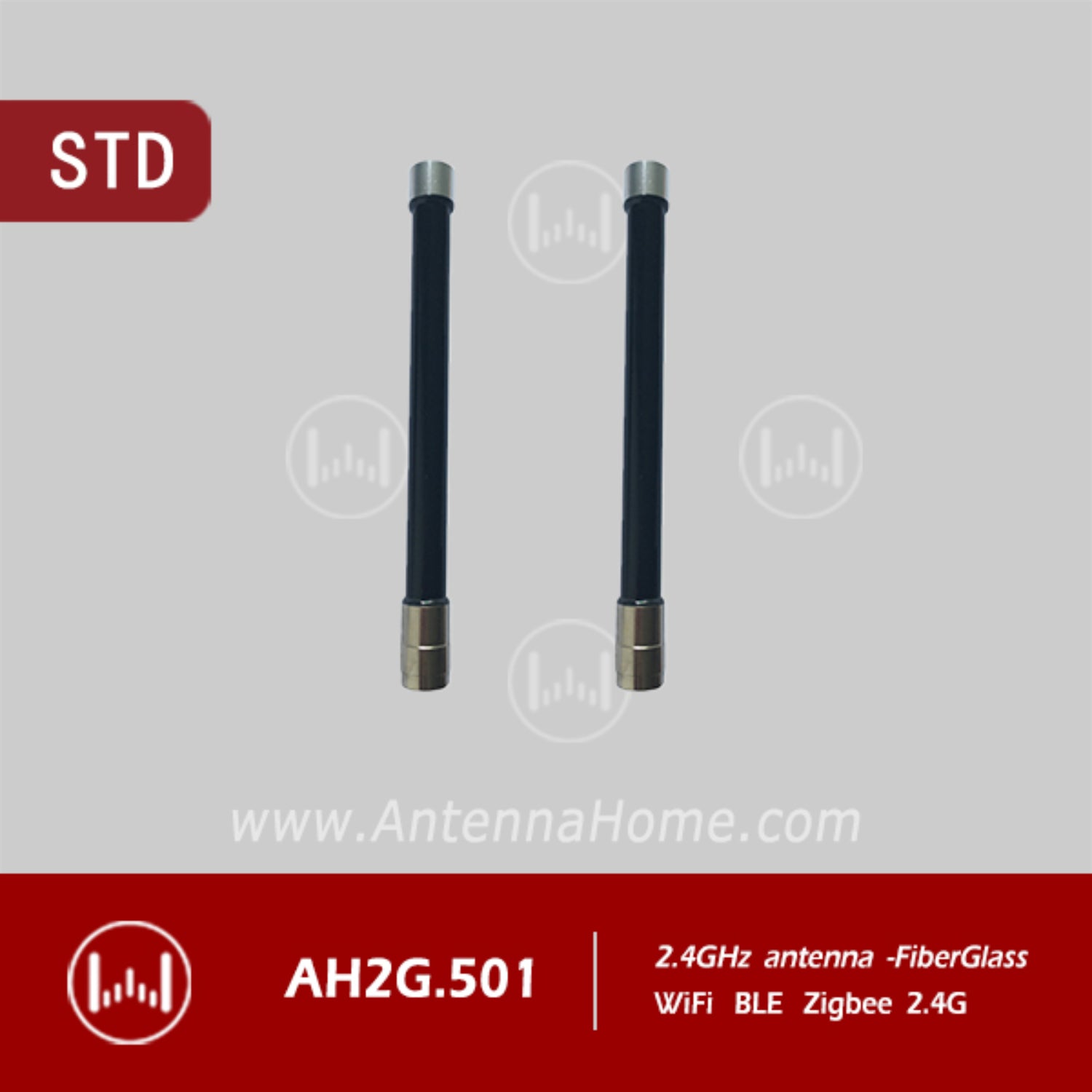

AntennaHome AH2G.501 2.4GHz H220 Fiberglass Antenna is typically vertically polarized and receives signals in a vertical orientation. The gain of the antenna is typically around 3.5 dBi, which provides a moderate boost in signal strength. Fiberglass H220 N-type 2.4G Antenn is suitable for a wide range of applications, including wireless networking, point-to-point links, and other wireless communication systems.
Specifications:
| AH2G.501 | |
Electrical Properties) |
|
| Frequency： | 2400~2500 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.0 |
| Gain： | 3.5 /dBi |
| Polarization: | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | N-TYPE |
| Material&Color： | Copper/Fiberglass |
| Mounting: | |
| Size: | ¢40×H175 mm |
| Weight: | 25 g/pc |
| Operate Temp: | （-40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Package Included:
1 x AntennaHome AH2G.501 2.4GHz H220 Fiberglass Antenna High Gain H220 Fiberglass N-Type 2.4G Antenna For Long Range Wireless Communication
