Description:

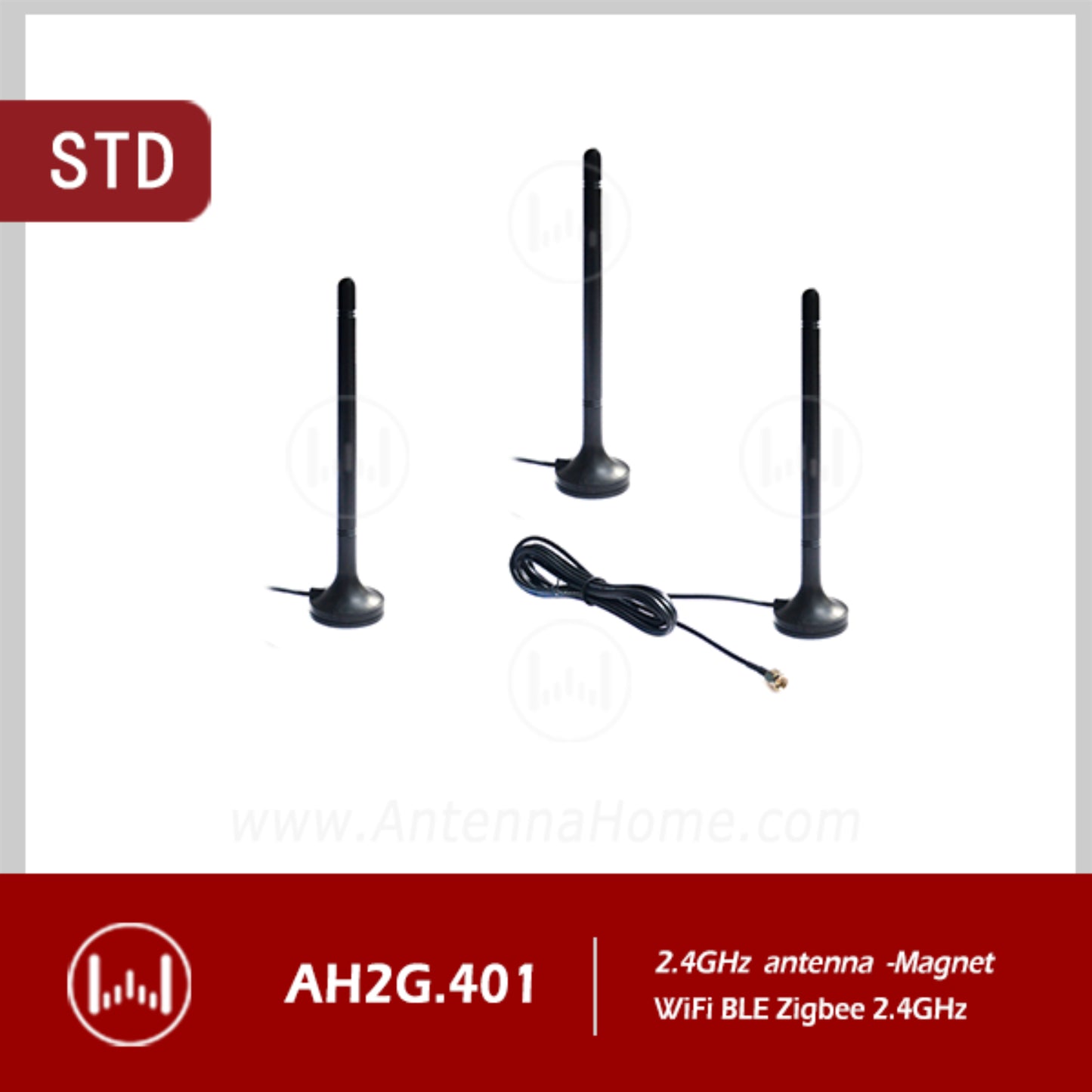

AntennaHome AH2G.401 H175 Rubber Magnetic Antenna is Provides a strong and secure attachment to metal surfaces, even in high winds or vibrations. it magnetic base allows for quick and simple attachment to metal surfaces. The H175 Rubber Magnetic SMA-J 2.4G antenna is designed for a variety of wireless applications.
Specifications:
| PN | AH2G.401 |
Electrical Properties) |
|
| Frequency： | 2400~2500 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.0 |
| Gain： | 2.2 /dBi |
| Polarization: | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | SMA-J & RG-174 Cable |
| Material&Color： | Copper/ABS |
| Mounting: | Magnetic |

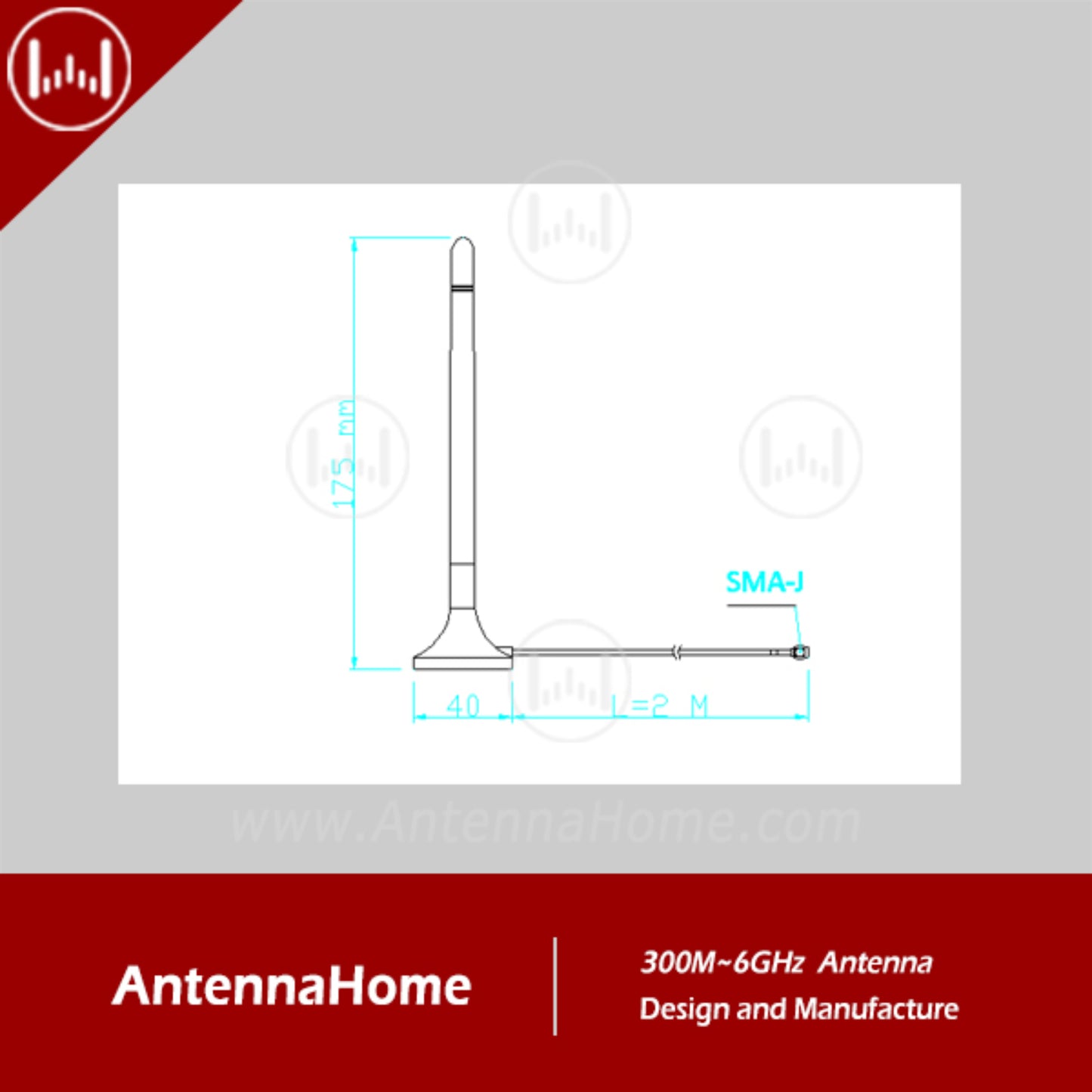

| Size: | ¢40×H175 mm |
| Weight: | 40 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Useful Link:
AntennaHome AH2G.401 H175 Rubber Magnetic Antenna
Package Included:
1 x AntennaHome AH2G.401 H175 Rubber Magnetic Antenna High Gain 2.4GHz Waterproof Rubber Antenna With SMA-J Connector For IoT and Wireless Applications
