Description:

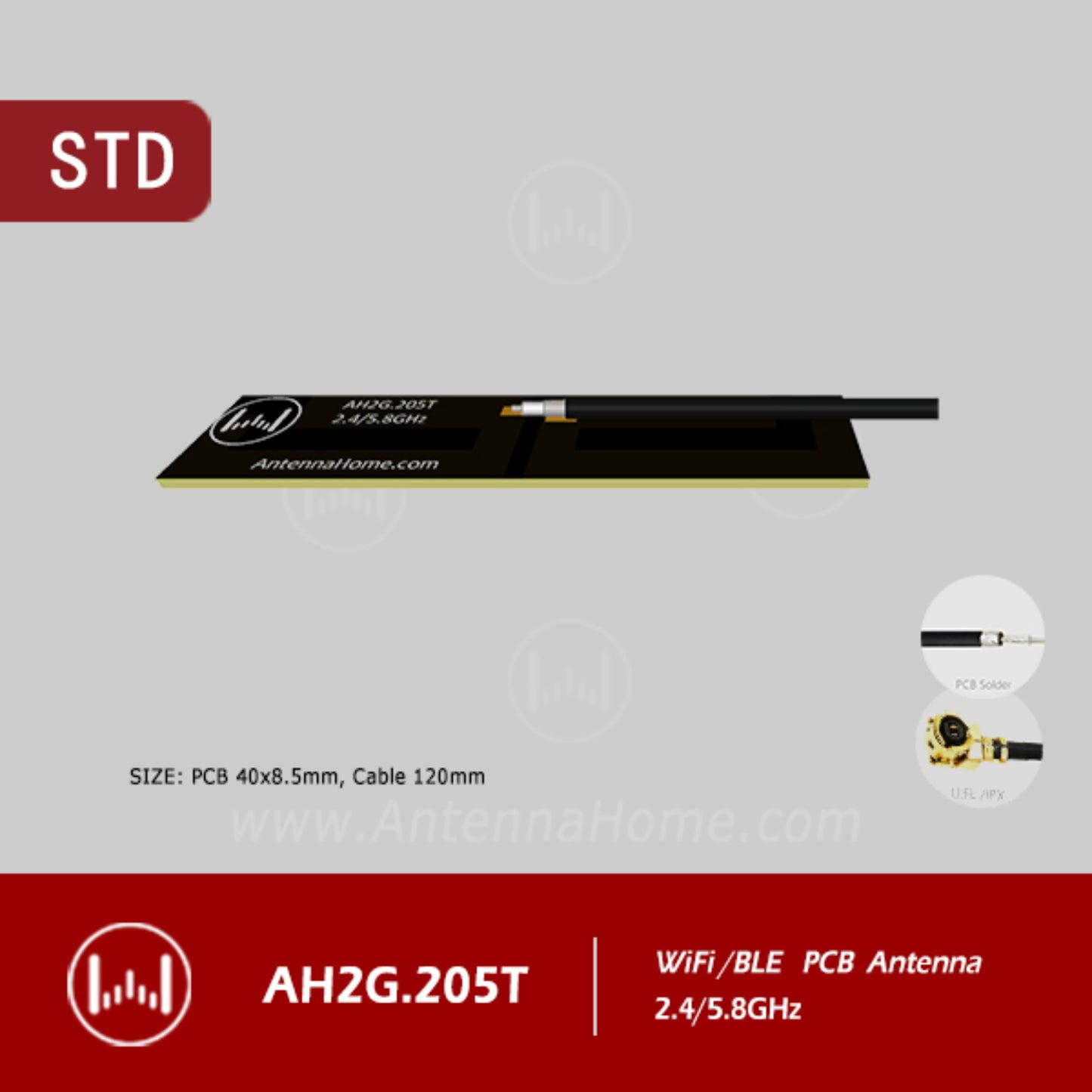

AntennaHome AH2G.205T PCB Antenna is a compact antenna integrated directly into the printed circuit board (PCB) of a device. It operates in the 2.4 GHz frequency band, commonly used for Wi-Fi, Bluetooth, and other wireless technologies. These antennas are known for their small size, low profile, and ease of integration into electronic devices.
Specifications:
PN | AH2G.205T |
Electrical Properties |
|
Frequency: | 2.4/5.8 GHz |
Impedance: | 50Ω |
VSWR: | ≤2.0 |
Gain: | 1.5 dBi |
Polarization: | Vertical / Omni |
Mechanical Properties |
|
Conn&Cable: | PCB, 1.13 cable ,IPX |
Material&Color: | PCB |
Mounting: | IPX connector |
Size: | W8.0xL40xT1.0 mm |
Weight: | 1.2 g/pc |
Operate Temp: | -40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Useful Link:
AntennaHome AH2G.205T PCB Antenna
Package Included:
1 x AntennaHome AH2G.205T PCB Antenna High Gain 2.4GHz PCB Internal Antenna For WiFi Signal Strength and Reliable Wireless Connectivity
