Description:
The H108 Rubber SMA-J 2.4G Antenna is a versatile antenna designed for various wireless applications operating in the 2.4GHz frequency band. It is commonly used in devices such as routers, Wi-Fi modules, Bluetooth devices, and IoT devices.
Specification:
| PN | AH3G.101 |
Electrical Properties) |
|
| Frequency： | 824~2170 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.5 |
| Gain： | 2.0 dBi |
| Polarization: | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | SMA-J |
| Material&Color： | Copper/ABS |
| Mounting: | SMA connector |

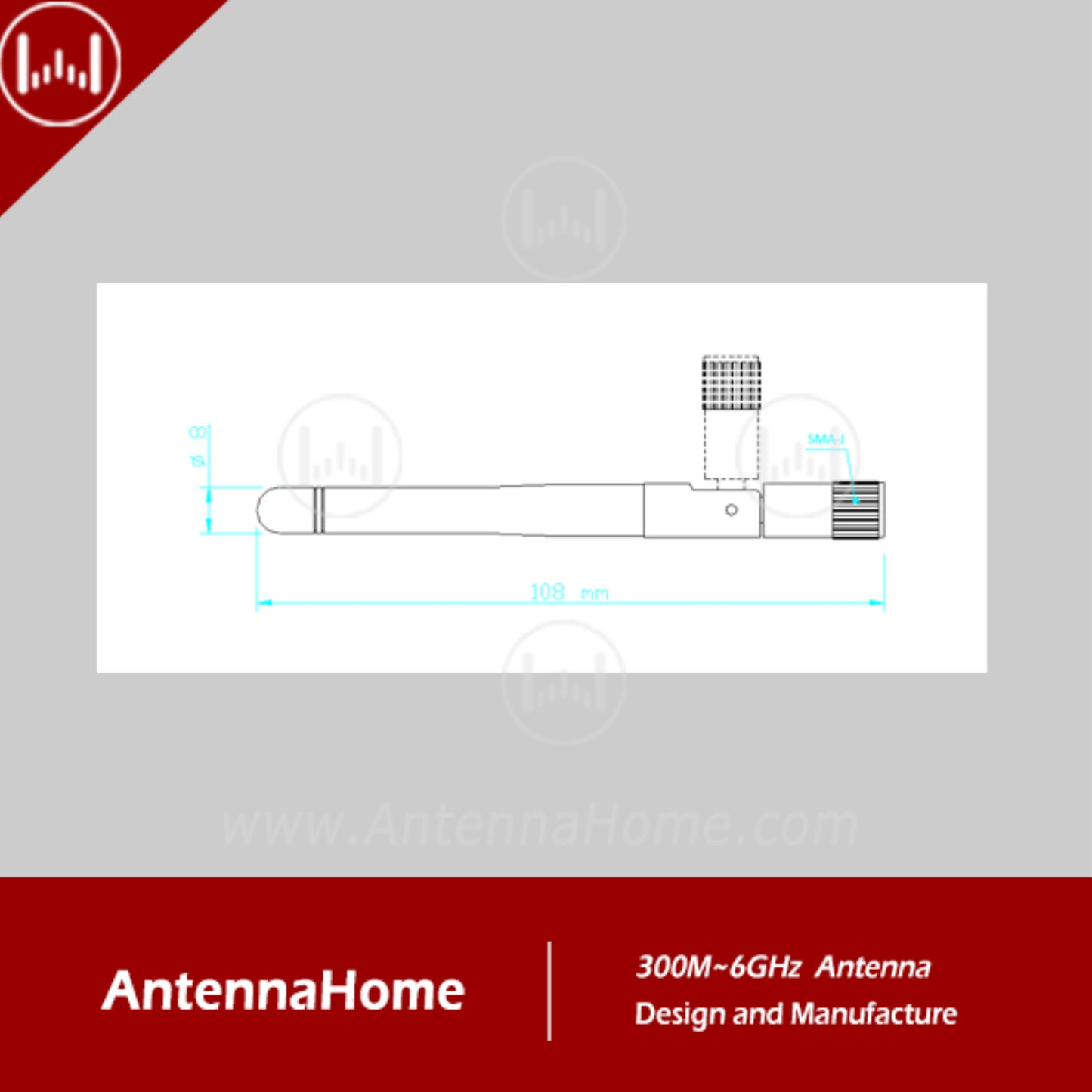

| Size: | ¢8×H108 mm |
| Weight: | 6.0 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Useful Link:

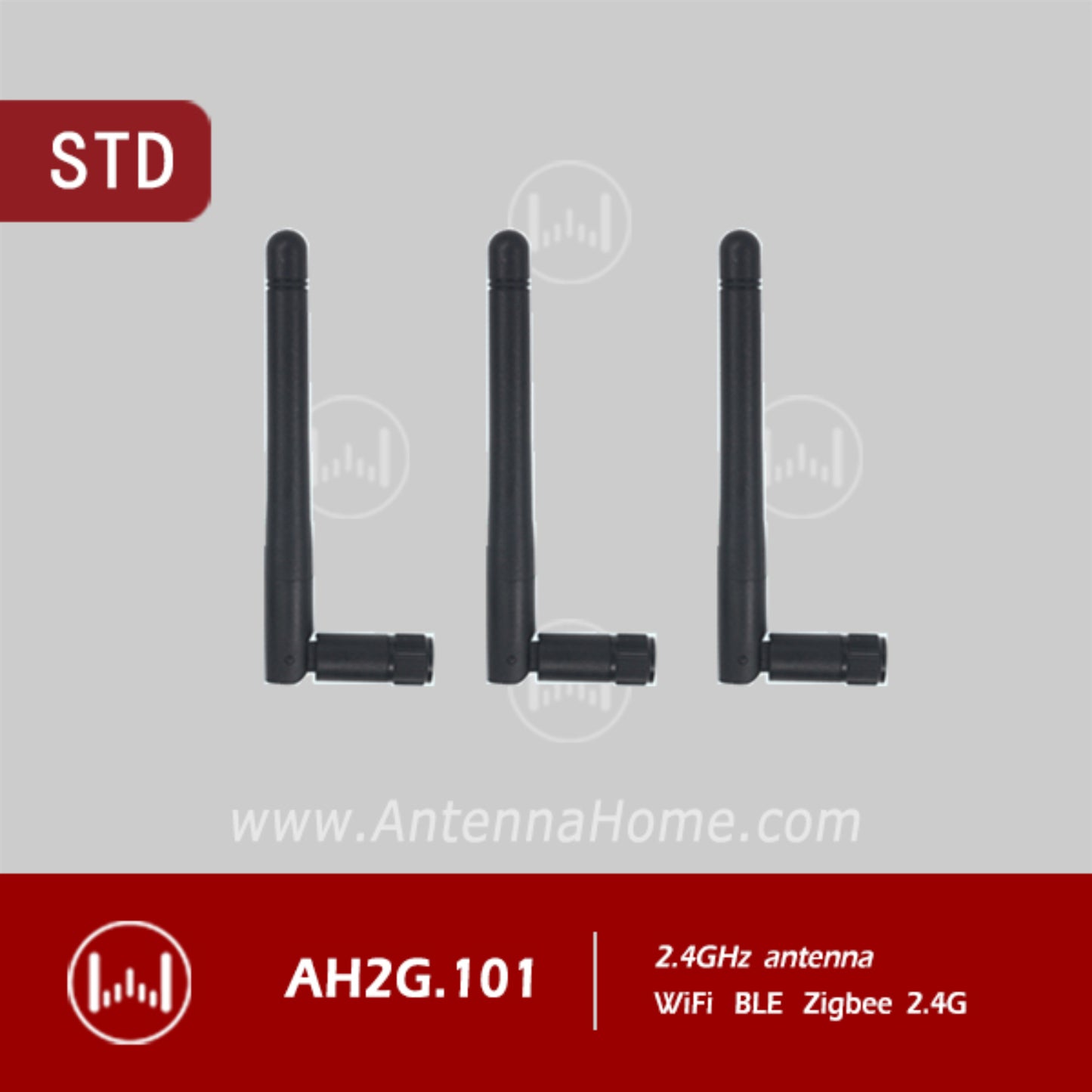

AntennaHome AH2G.101 2.4GHz Antenna
Package Included:
1 x AntennaHome AH2G.101 2.4GHz Antenna H108 Rubber SMA-J 2.4G Antenna High Performance Wireless Antenna For Enhanced Connectivity and Signal Strength
