Description:

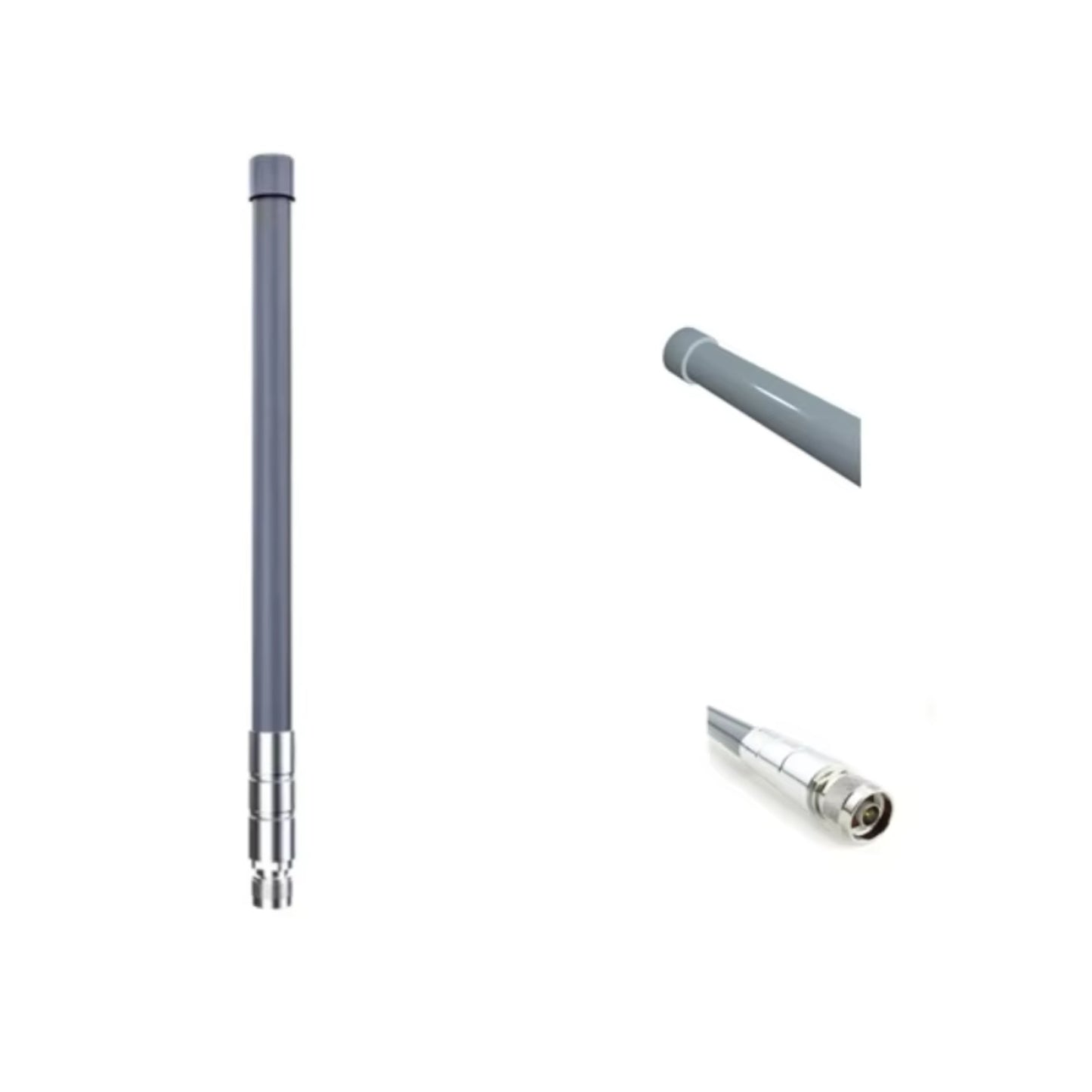

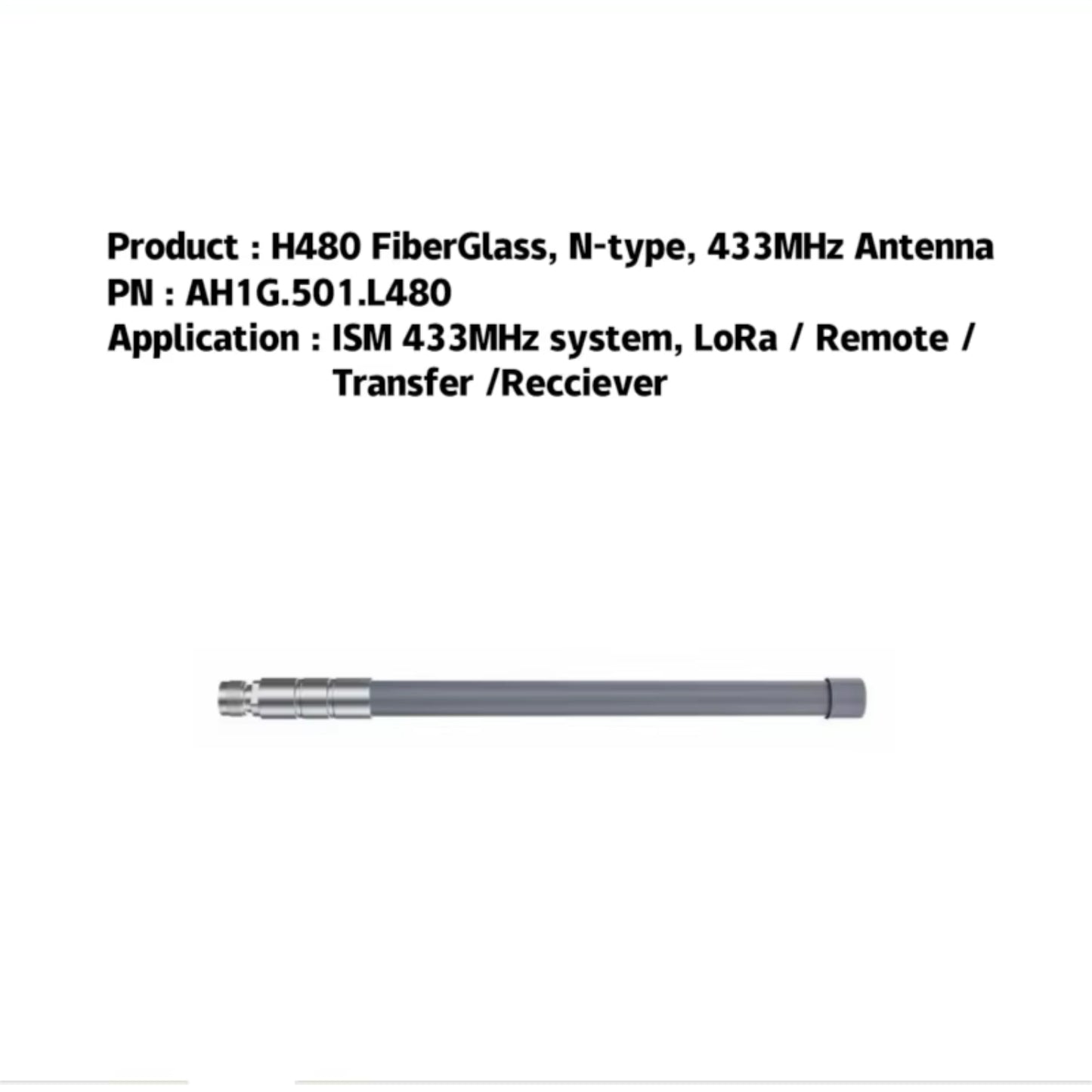

AntennaHome AH1G.501 Antenna is built using durable fiberglass material, ensuring long-lasting performance in various environmental conditions. ISM Band Antenna N-Type Connector provides a reliable and secure connection to compatible devices. It covers a wide frequency spectrum from 315 MHz to 915 MHz, making it suitable for a broad range of wireless applications.
Specifications:
| AH1G.501 | |

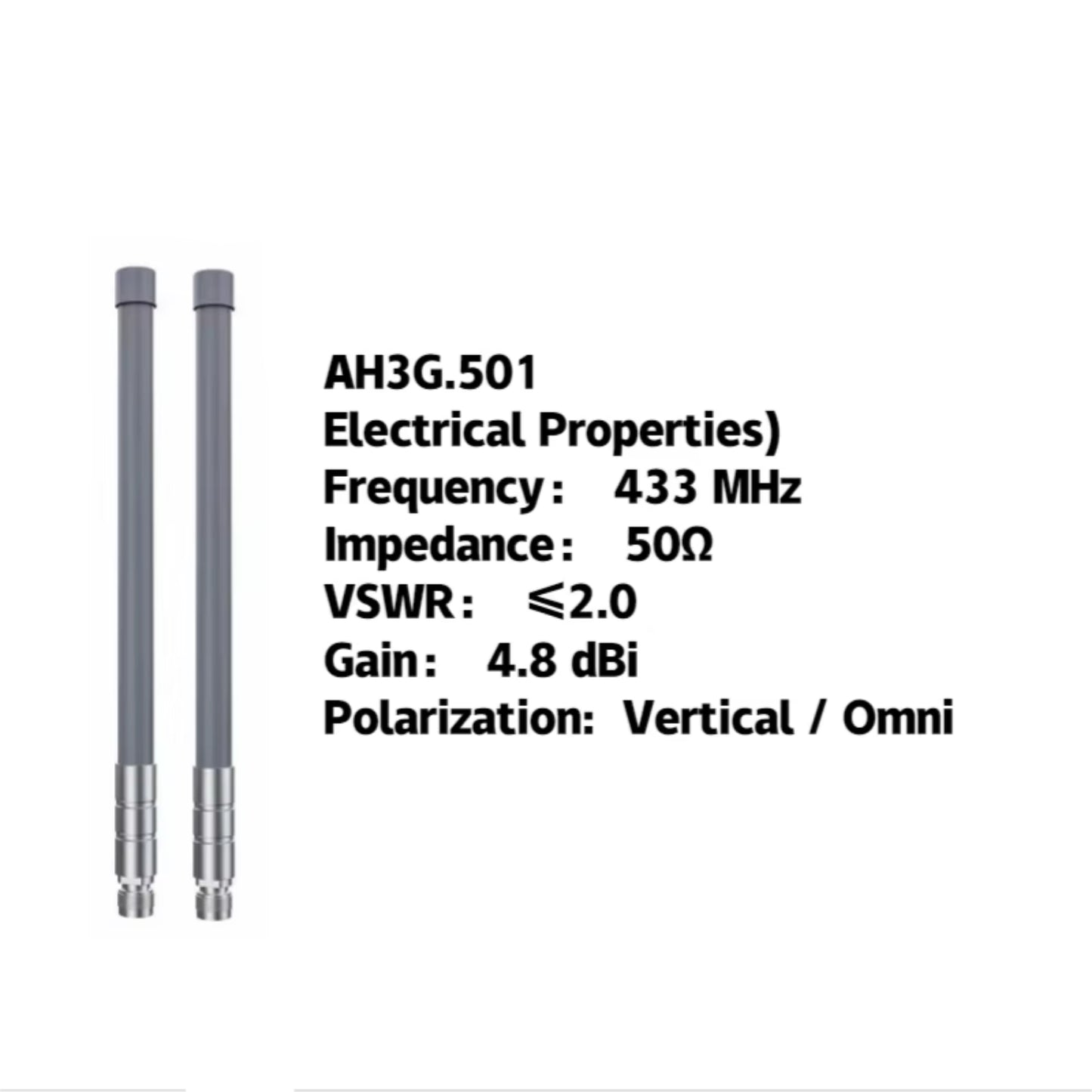

Electrical Properties) |
|
| Frequency： | 433 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.0 |
| Gain： | 4.8 dBi |
| Polarization: | Vertical / Omni |

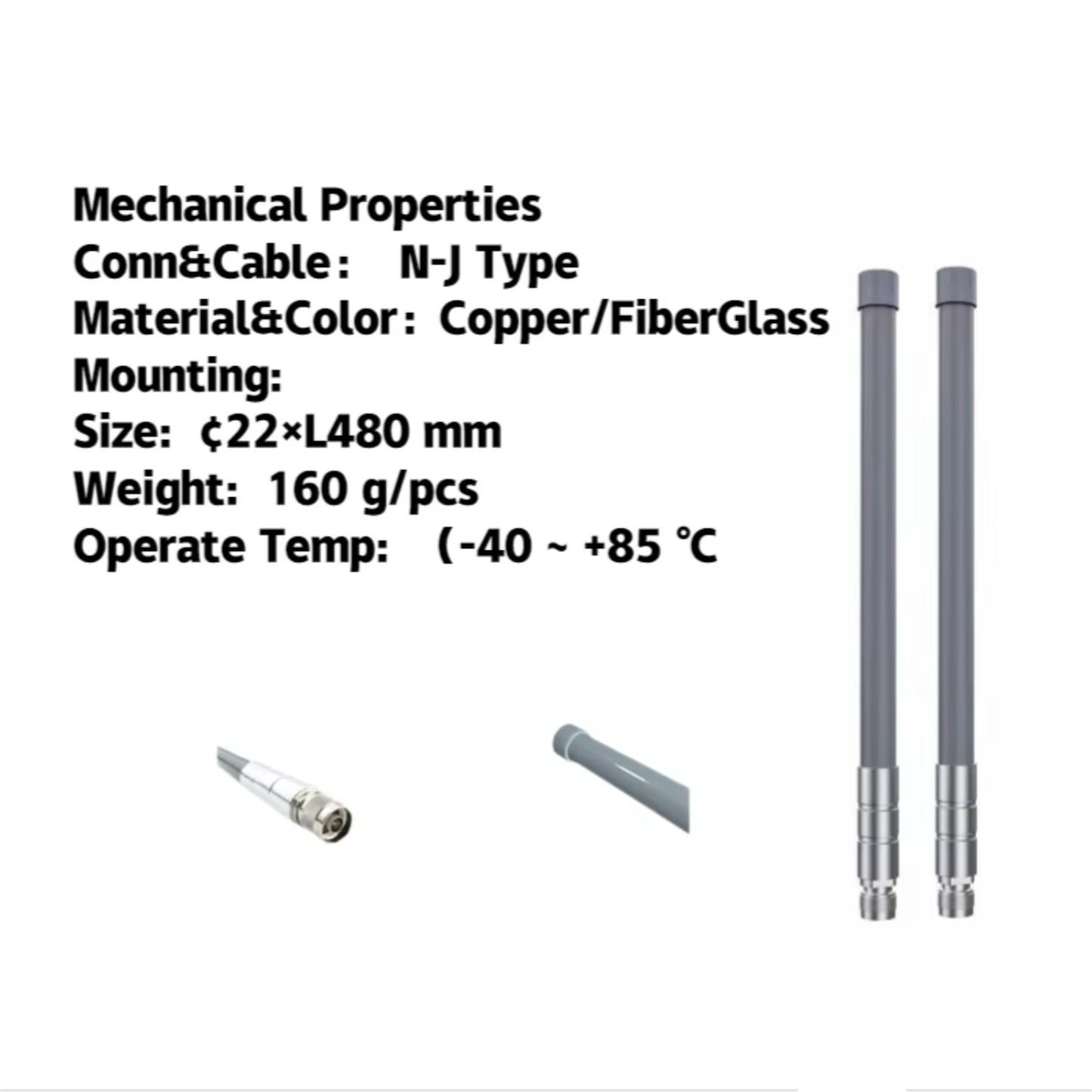

Mechanical Properties |
|
| Conn&Cable： | N-J Type |
| Material&Color： | Copper/FiberGlass |
| Mounting: | |
| Size: | ¢22×L480 mm |
| Weight: | 160 g/pcs |
| Operate Temp: | （-40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Useful Link:
AntennaHome AH1G.501 Fiberglass Antenna
Package Included:
1 x AntennaHome AH1G.501 Fiberglass Antenna ISM Band Antenna N-Type Connector High Gain 433MHz H220 Fiberglass Antenna For Data Transfer
