Description:
AntennaHome AH1G.406 H145 Magnetic SMA-J Antenna is Designed for optimal performance in LoRa applications operating within the 408MHz to 433MHz frequency range. Magnetic Base LoRa Antenna is your key to reliable and efficient data transmission.
Specifications:
| PN | AH1G.406 |
Electrical Properties) |
|
| Frequency | 408.0MHz +/-5 MHz |
| Impedance | 50Ω |
| VSWR | ≤1.5 |
| Gain | 3.5~4.0 dBi |
| Polarization | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable | SMA-J & RG-174 Cable |
| Material&Color | Copper/Black |
| Mounting | Magnetic |

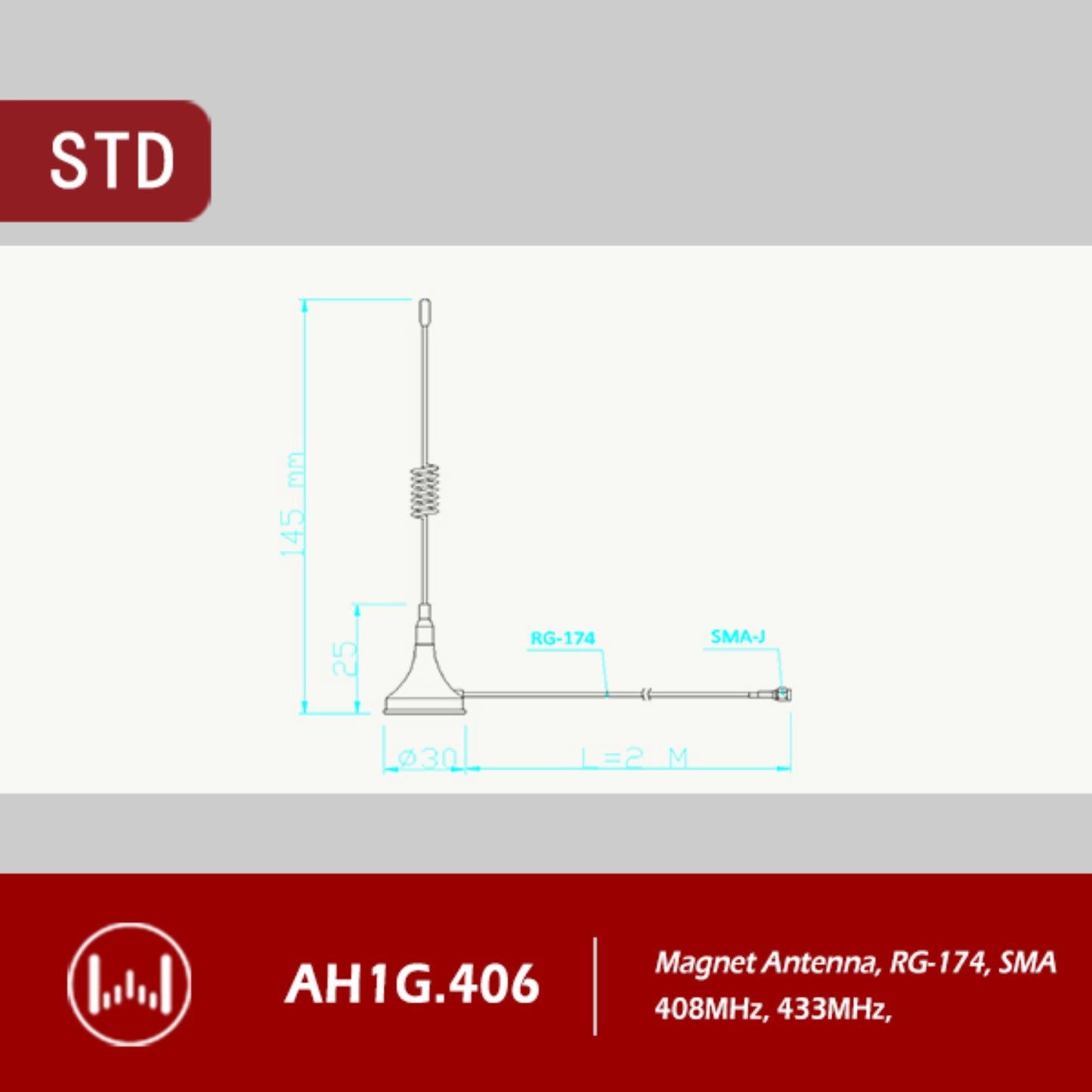

| Size | ¢30×H145 mm |
| Weight | 40.5 g/pc |
| Operate Temp | -40 ~ +85 ℃ |
Features:
- IoT wireless Communication system.
- Low cost but great performance.
- -40~85C work temp .
Useful Link:
AntennaHome AH1G.406 H145 Magnetic SMA-J Antenna
Package Included:
1 x AntennaHome AH1G.406 H145 Magnetic SMA-J Antenna High-Gain 408MHz 433MHz LoRa Antenna With Magnetic Base For IoT and Remote Monitoring Applications
