Description:

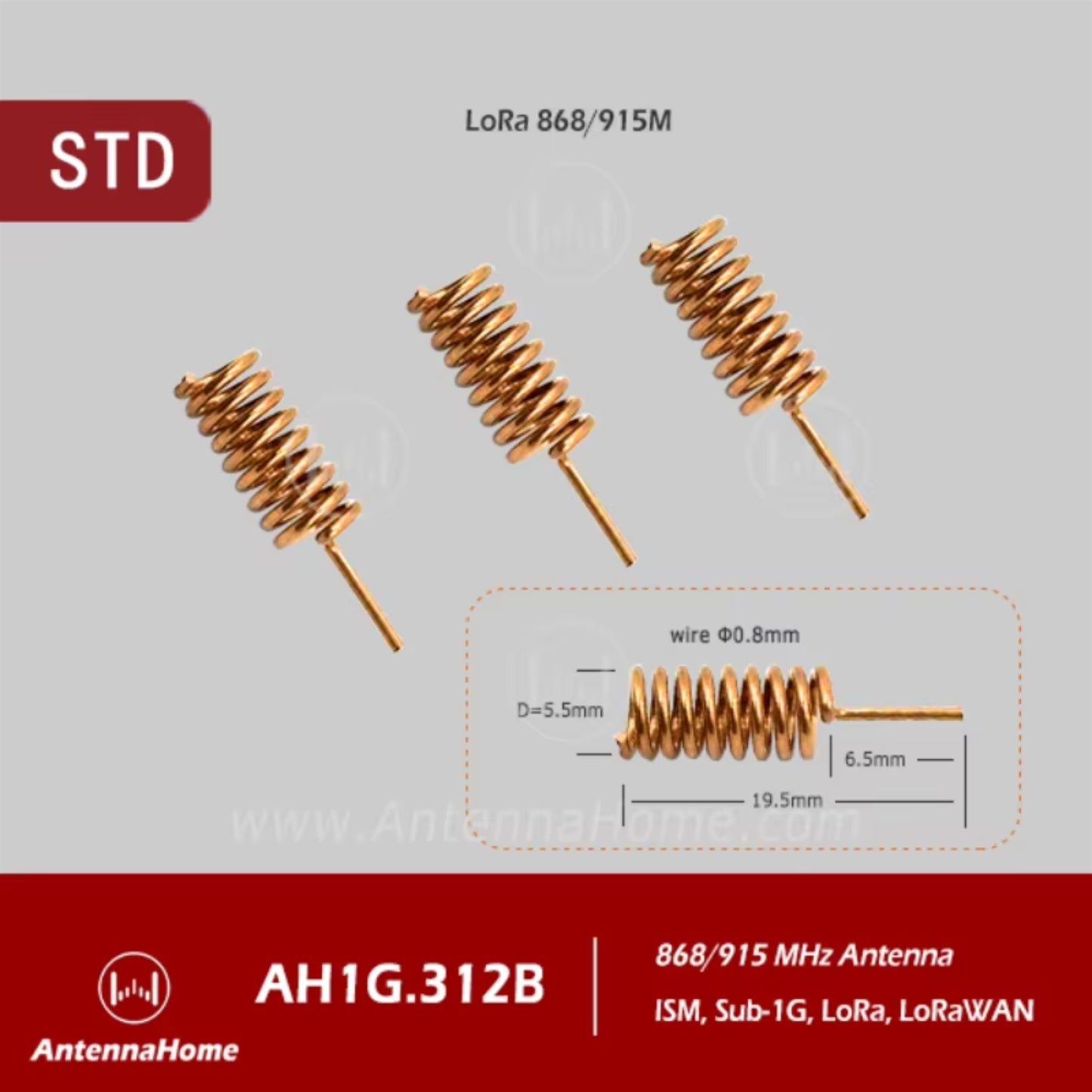

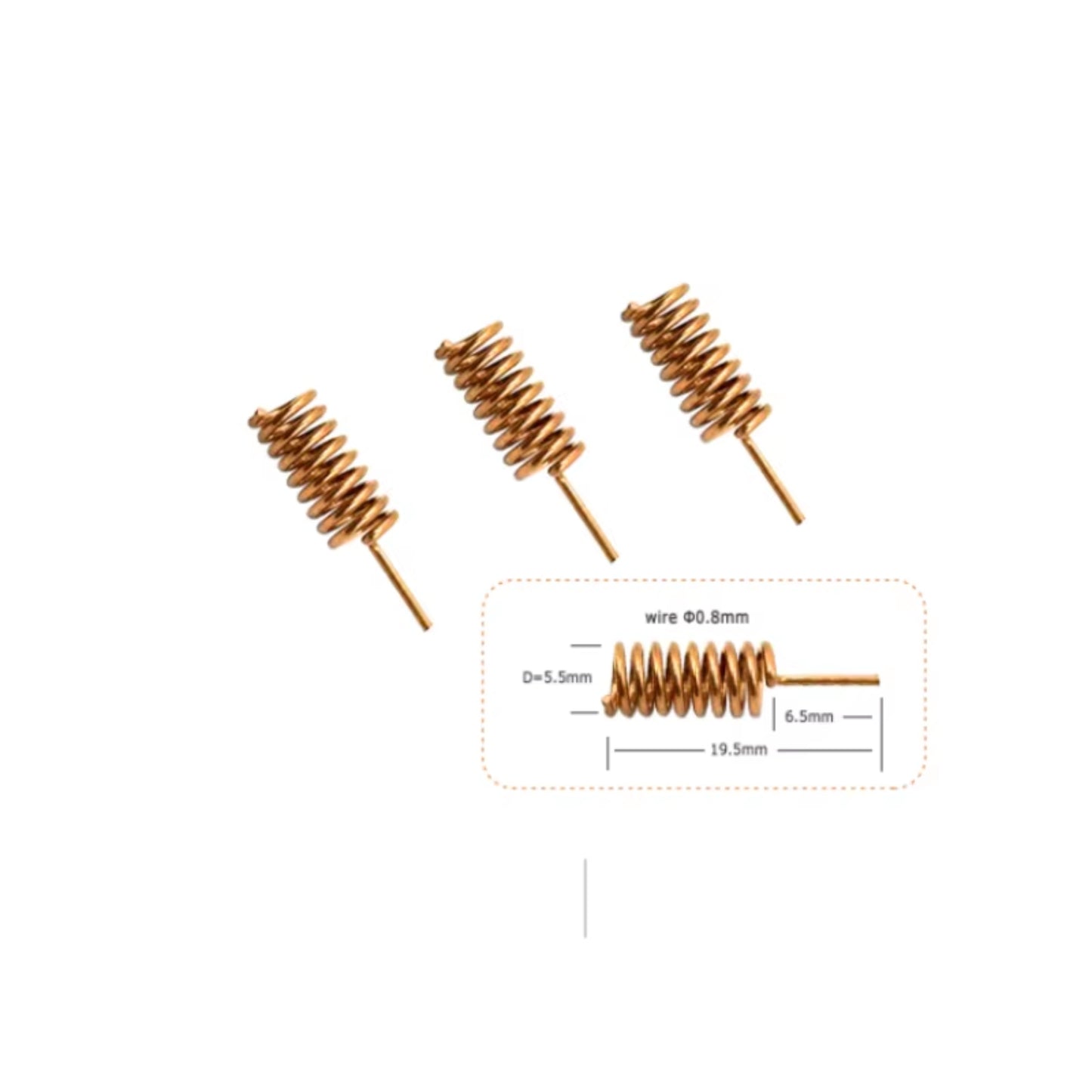

AntennaHome AH1G.312B Spring DIP Antenna is a versatile wireless communication module designed for Internet of Things (IoT) applications. High Gain LoRa Spring DIP Antenna Provides a convenient and reliable solution for wireless signal transmission and reception.
Specifications:
| PN | AH1G.312B |
Electrical Properties) |
|
| Frequency： |
868/915 MHz |
| Impedance： | 50Ω |
| VSWR： |
≤2.5 |
| Gain： |
1.0 dBi |
| Polarization: |
Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | / |
| Material&Color： |
Copper |
| Mounting: | DIP |
| Size: |
¢5.0 ×L24.0 mm |
| Weight: |
0.7 g/pc |
|
Operate Temp: |
-40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Package Included:
1 x AntennaHome AH1G.312B Spring DIP Antenna High Gain LoRa Spring DIP Antenna For 868/915MHz ISM Transmitters/Receivers
