Description:

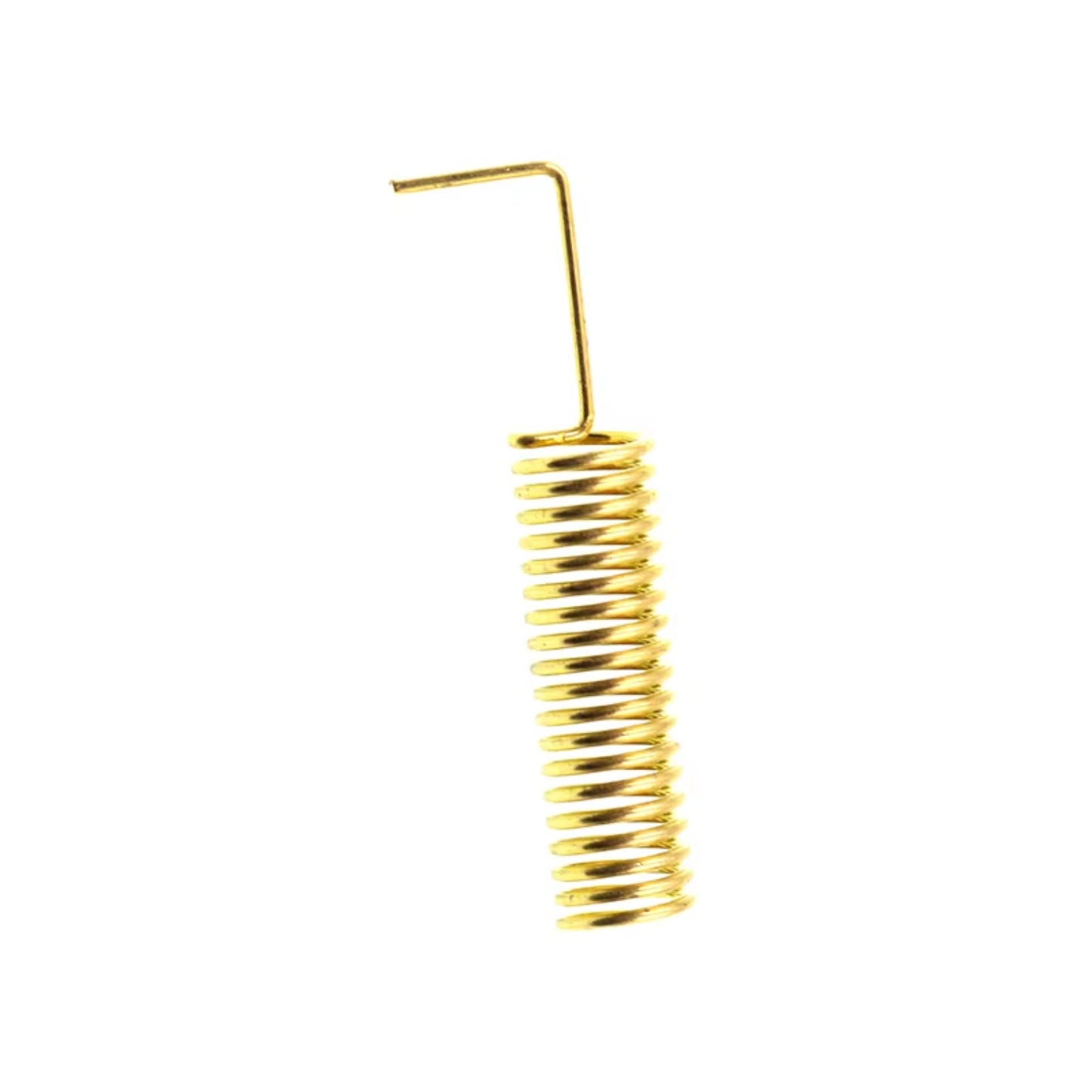

AntennaHome AH1G.301 Spring Dipole Antenna is designed for wireless communication systems operating in the 433 MHz frequency band. This antenna is commonly used in various applications, wireless sensors, and data transmission systems. It features a helical spring design, which enhances its radiation efficiency and provides omnidirectional coverage.
Specifications:
| PN | AH1G.301 |
Electrical Properties) |
|
| Frequency： | 433 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.0 |
| Gain： | 1.0 dBi |
| Polarization: | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | / |
| Material&Color： | Copper |
| Mounting: | DIP |

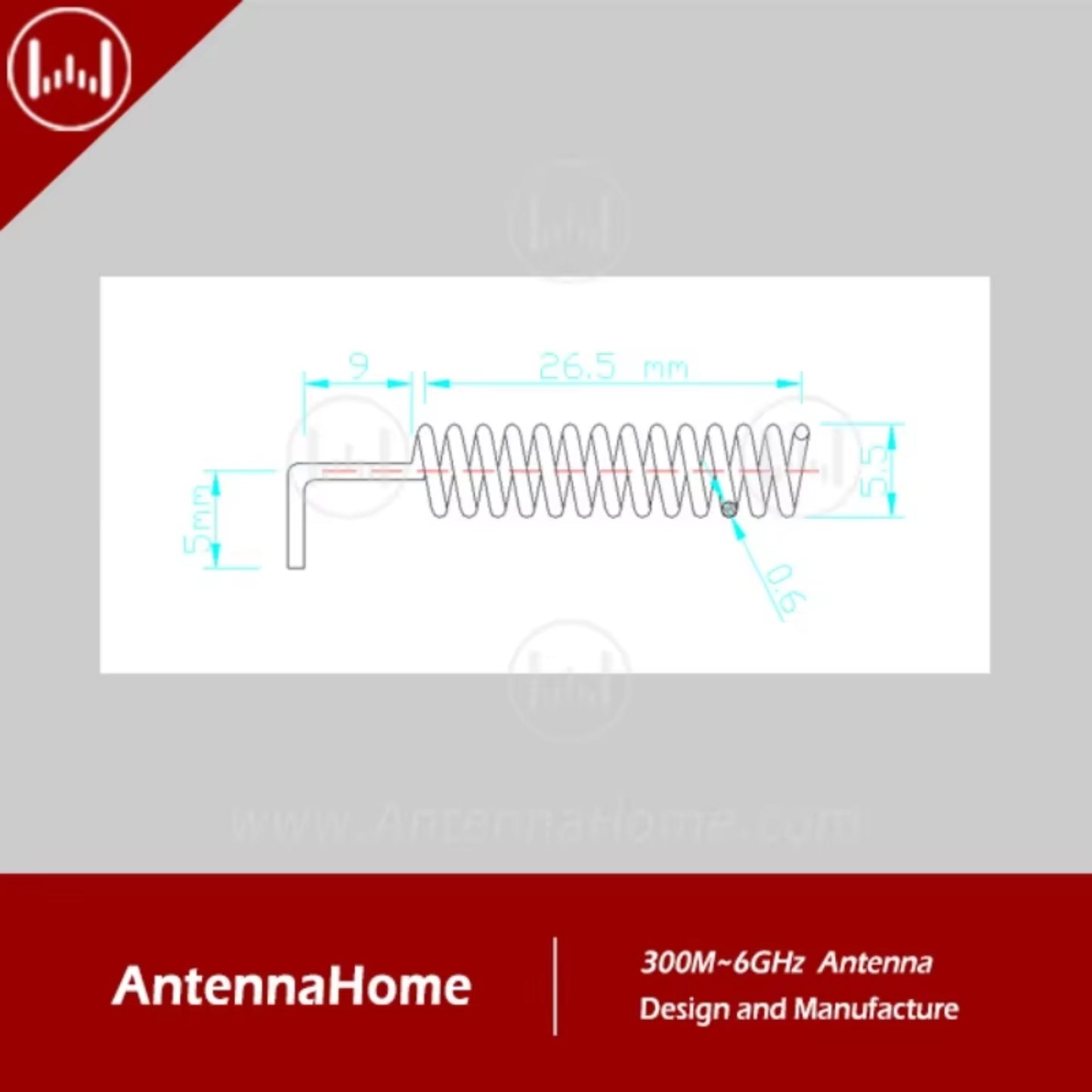

| Size: | ¢5.5×L36.0 mm |
| Weight: | 0.7 g/pc |
| Operate Temp: | （-40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Useful Link:
AntennaHome AH1G.301 Spring Dipole Antenna
Package Included:
1 x AntennaHome AH1G.301 Spring Dipole Antenna LoRa Spring DIP Antenna High Gain 433MHz Spring DIP Antenna For Wireless Sensor Network Applications
