Description:

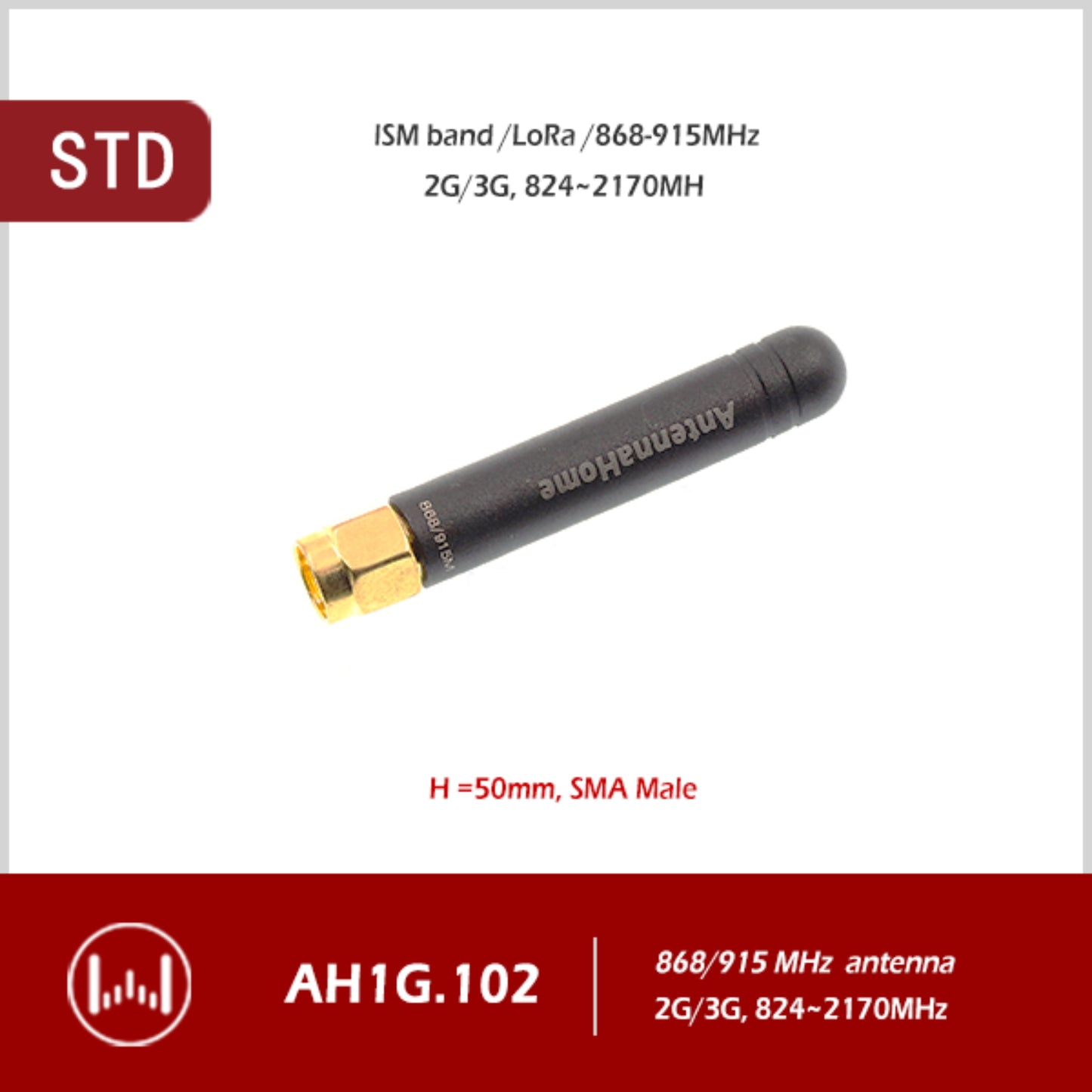

The AntennaHome AH1G.102 H50 Rubber SMA-J Antenna designed for various wireless applications. The rubber construction provides durability and weather resistance, while the SMA-J connector ensures a reliable connection.t operates the frequency 868/915 MHz, GSM900/1800 MHz bands. it is suitable for technologies like LoRa, GSM/GPRS, NB-IoT and ISM.
Specifications:
| PN | AH1G.102 |
Electrical Properties) |
|
| Frequency | 868/915 MHz,900/1800MHz |
| Impedance | 50Ω |
| VSWR | ≤2.5 |
| Gain | 1.5 dBi |
| Polarization | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable | SMA-JW |
| Material&Color | Copper/ABS |
| Mounting | SMA connector |

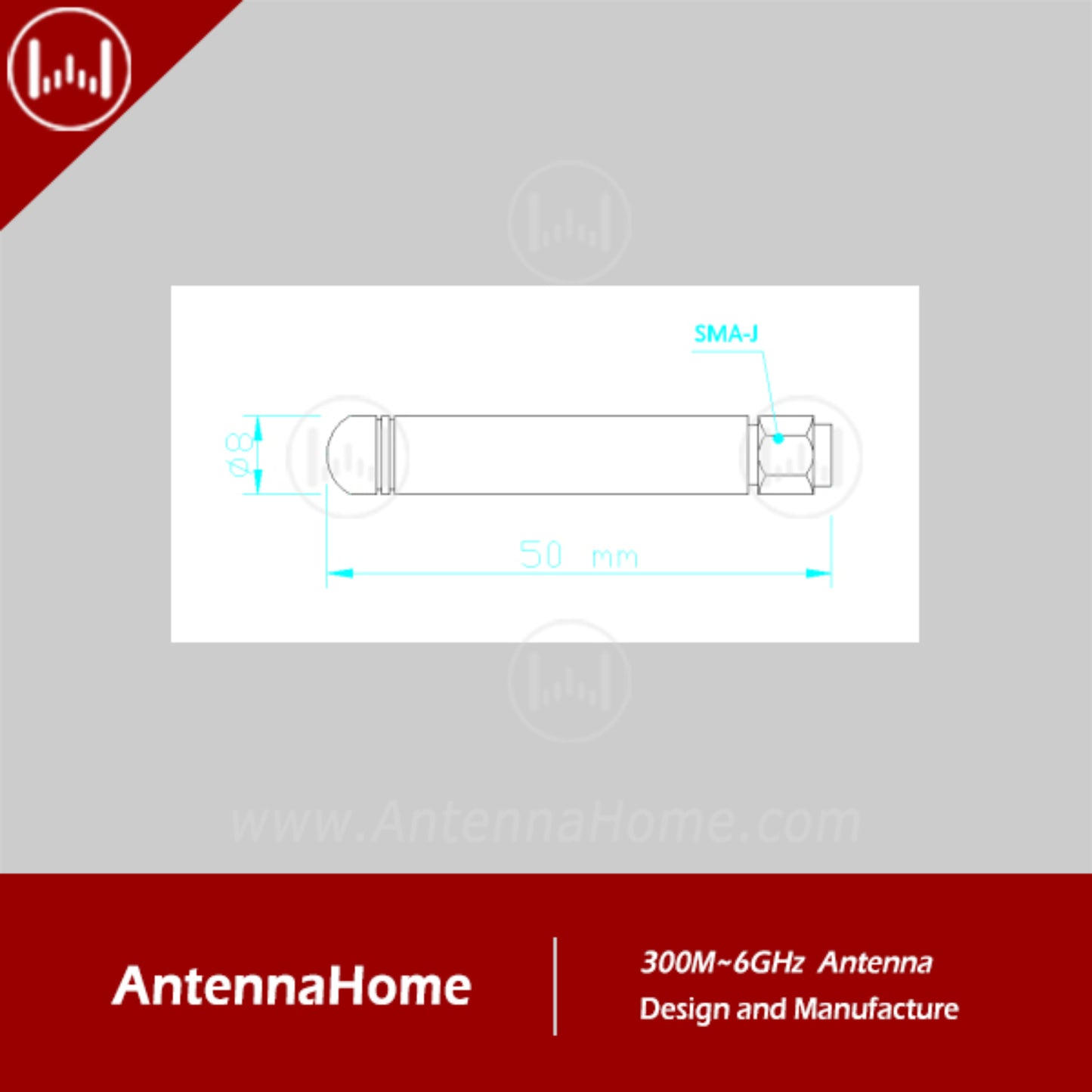

| Size | ¢8×H50 mm |
| Weight | 6.0 g/pc |
| Operate Temp | -40 ~ +85 ℃ |
Features:
- IoT wireless Communication system.
- Low cost but great performance.
- -40~85。C work temp.
Useful Link:
AntennaHome AH1G.102 H50 Rubber SMA-J Antenna
Package Included:
1 x AntennaHome AH1G.102 H50 Rubber SMA-J Antenna High Gain GSM/3G Antenna With H50 Rubber SMA-J Connector For 868/915 MHz, GSM900/1800 MHz Bands
