Description:

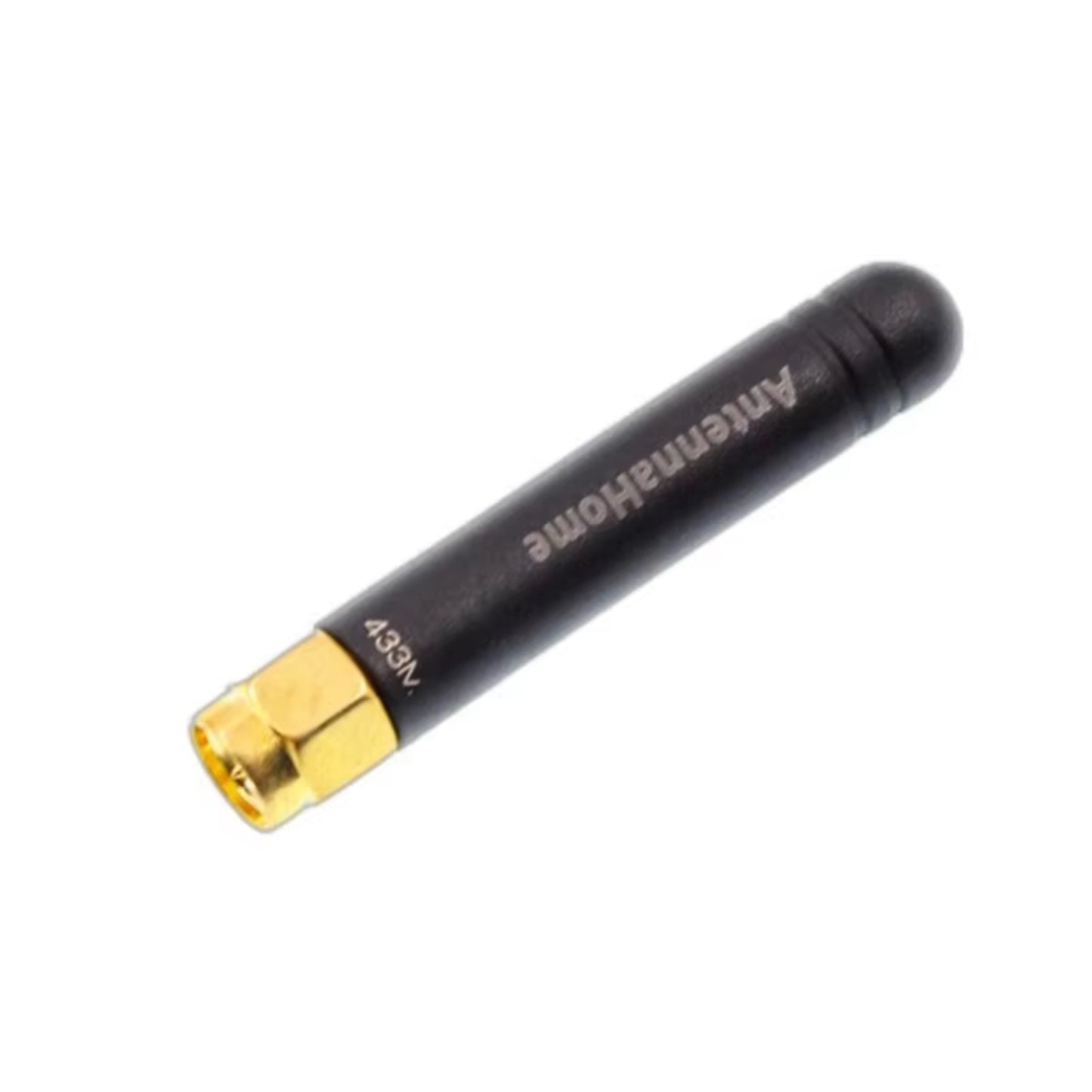

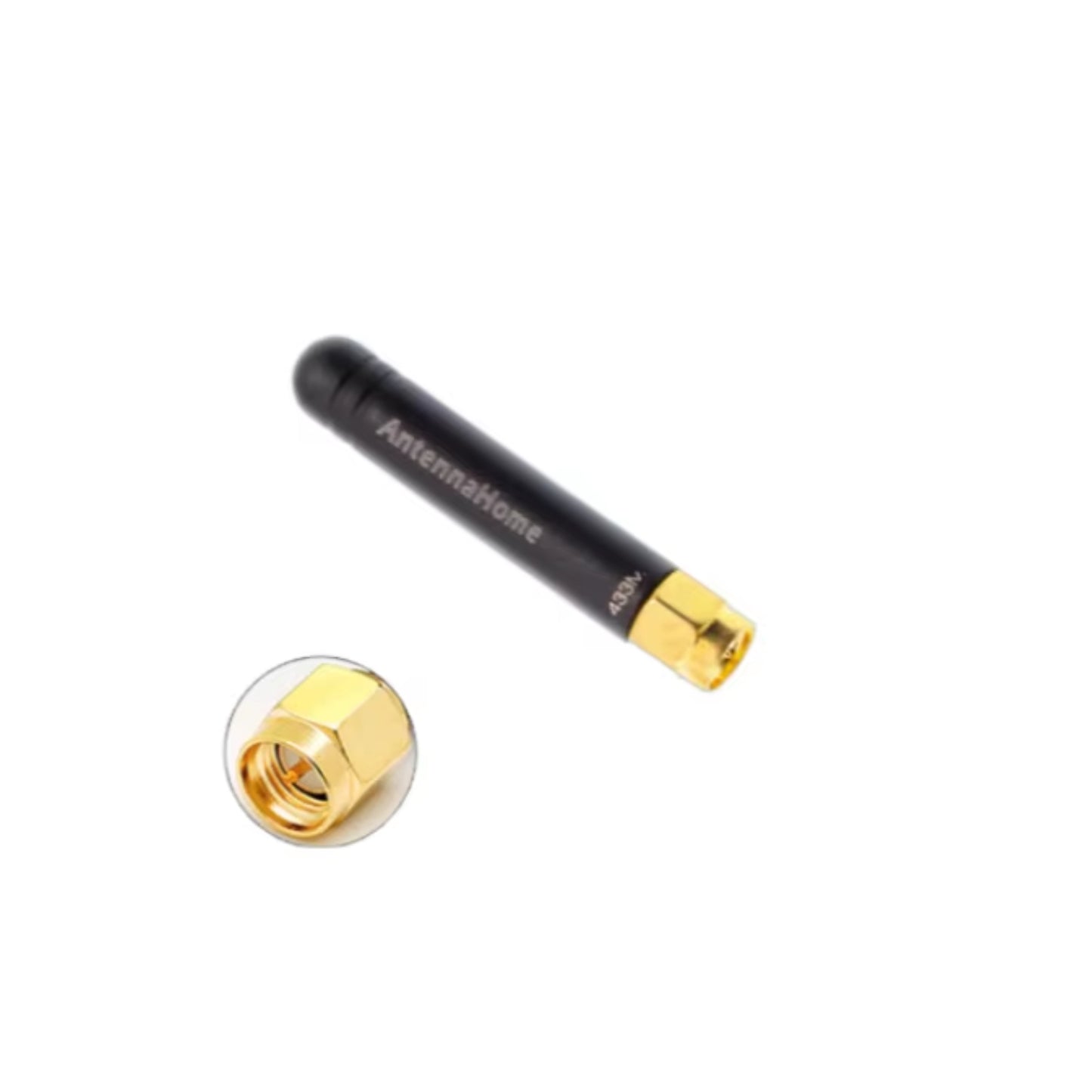

LoRa 433MHz H50 Rubber Antenna is designed for optimal performance in the 433MHz frequency band. 433MHz ISM Band Antenna for reliable signal transmission and robust construction to withstand harsh environmental conditions.
Specifications:
| PN | AH1G.101 |

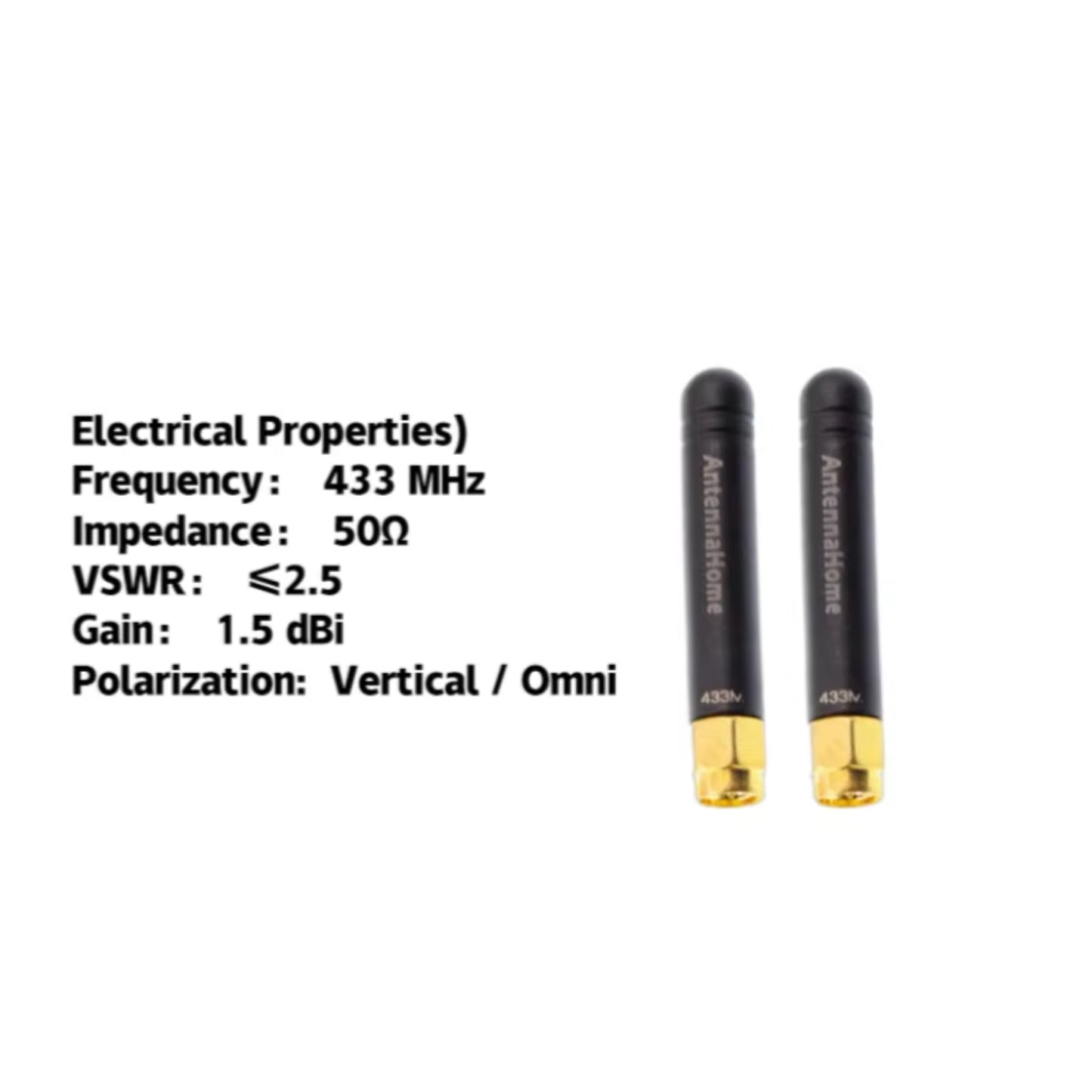

Electrical Properties |
|
| Frequency： | 433 MHz |
| Impedance： | 50Ω |
| VSWR： | ≤2.5 |
| Gain： | 1.5 dBi |
| Polarization: | Vertical / Omni |
Mechanical Properties |
|
| Conn&Cable： | SMA-JW |
| Material&Color： | Copper/ABS |
| Mounting: | SMA connector |
| Size: | ¢8×H50 mm |
| Weight: | 6.0 g/pc |
| Operate Temp: | -40 ~ +85 ℃ |
Features:
- 433M wireless system.
- Small in size but has good efficiency.
- -40~85.C work temp.
Useful Link:
AntennaHome AH1G.101 LoRa 433MHz H50 Rubber Antenna
Package Included:
1 x LoRa 433MHz H50 Rubber Antenna 433M Wireless Communication Antenna With SMA-J Connector For Remote Monitoring and Control Systems
